Fig. 65: Installing Second Gear Bearing On Mainshaft
Courtesy of CHRYSLER LLC

1. Place mainshaft in Fixture 9648 mounted in a vise.

2. Install second gear bearing (1) on mainshaft (2).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro



Fig. 66: Installing Second Gear And Bearing On Mainshaft
Courtesy of CHRYSLER LLC

3. Install second gear (1) and bearing (2) on mainshaft.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

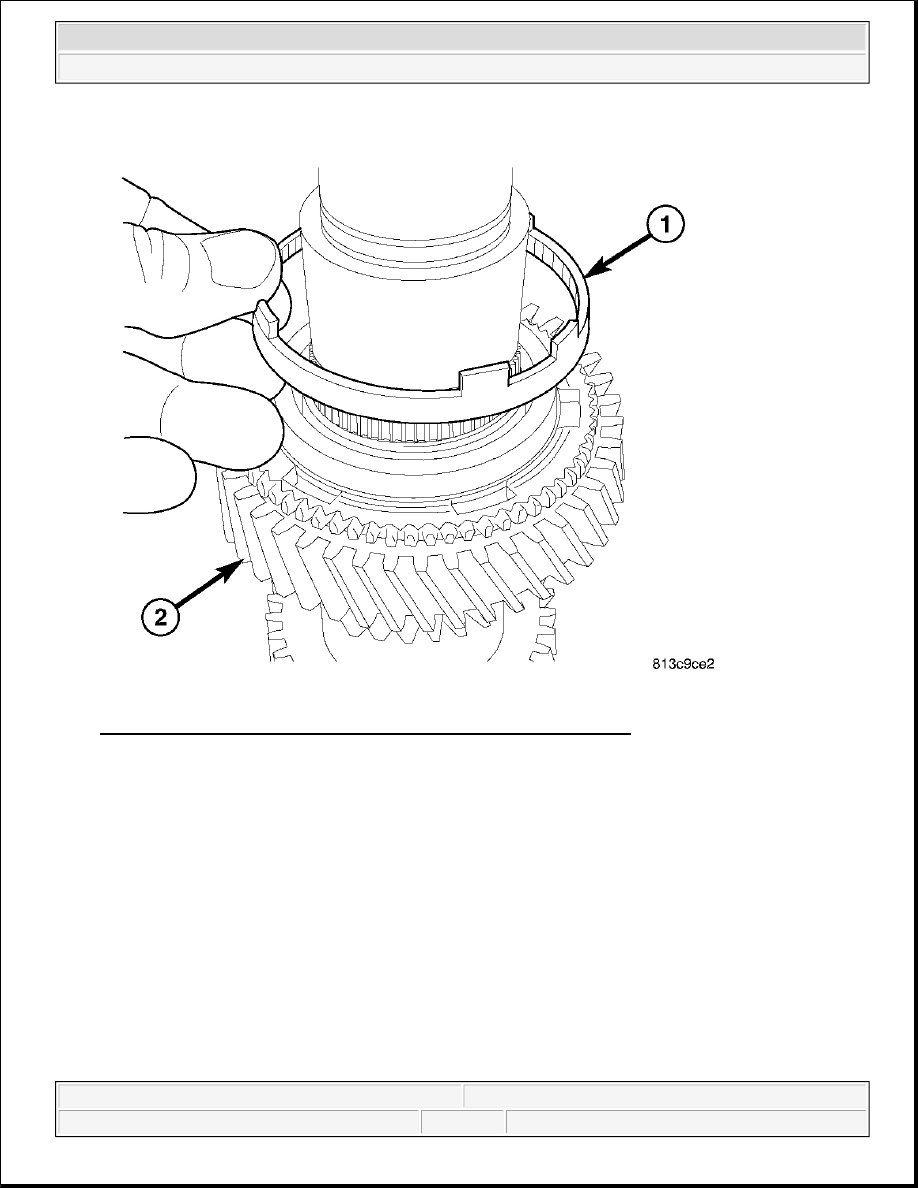

Fig. 67: Installing Inner Synchronizer Friction Ring On Second Gear
Courtesy of CHRYSLER LLC

4. Install inner synchronizer friction ring (1) on second gear (2).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

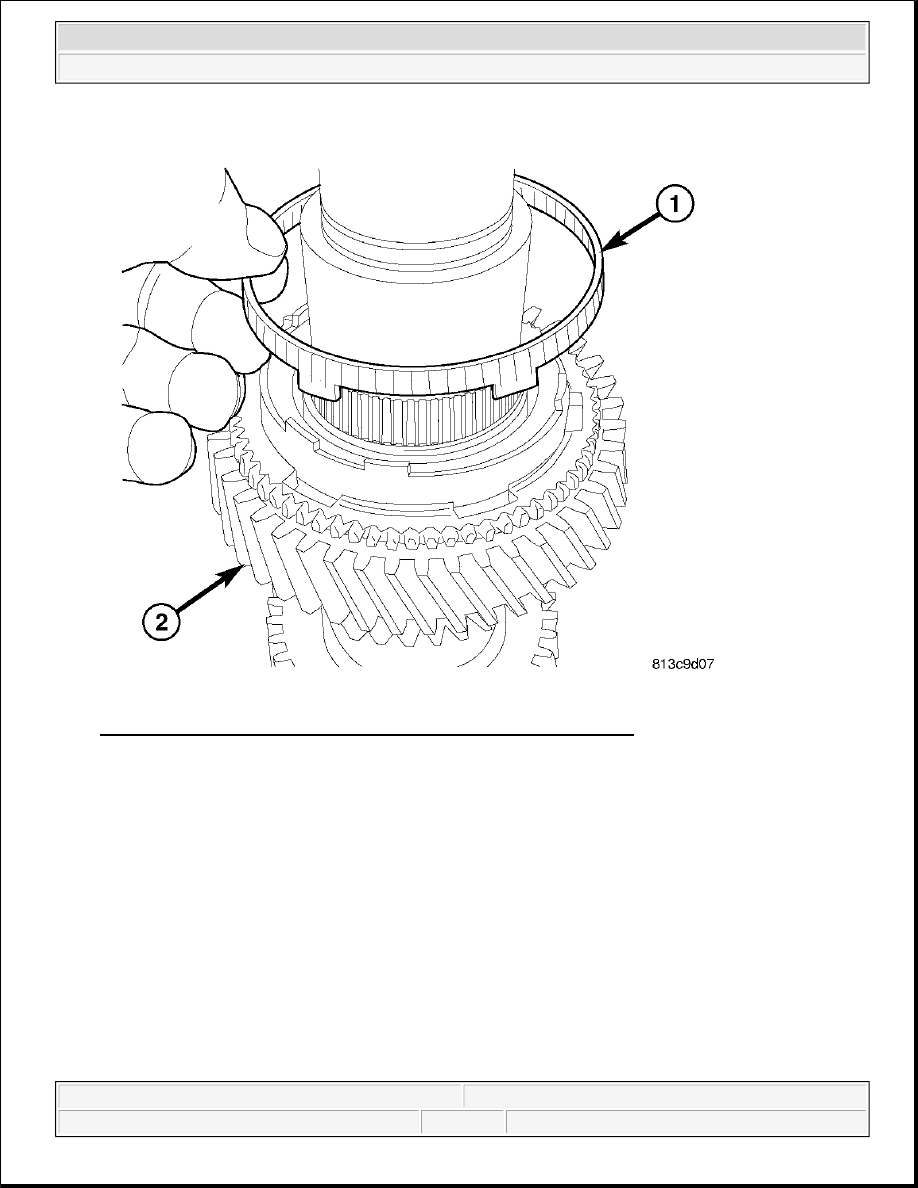

Fig. 68: Installing Outer Synchronizer Friction Ring On Second Gear
Courtesy of CHRYSLER LLC

5. Install outer synchronizer friction ring (1) on second gear (2).
