Dodge Nitro. Manual - part 831

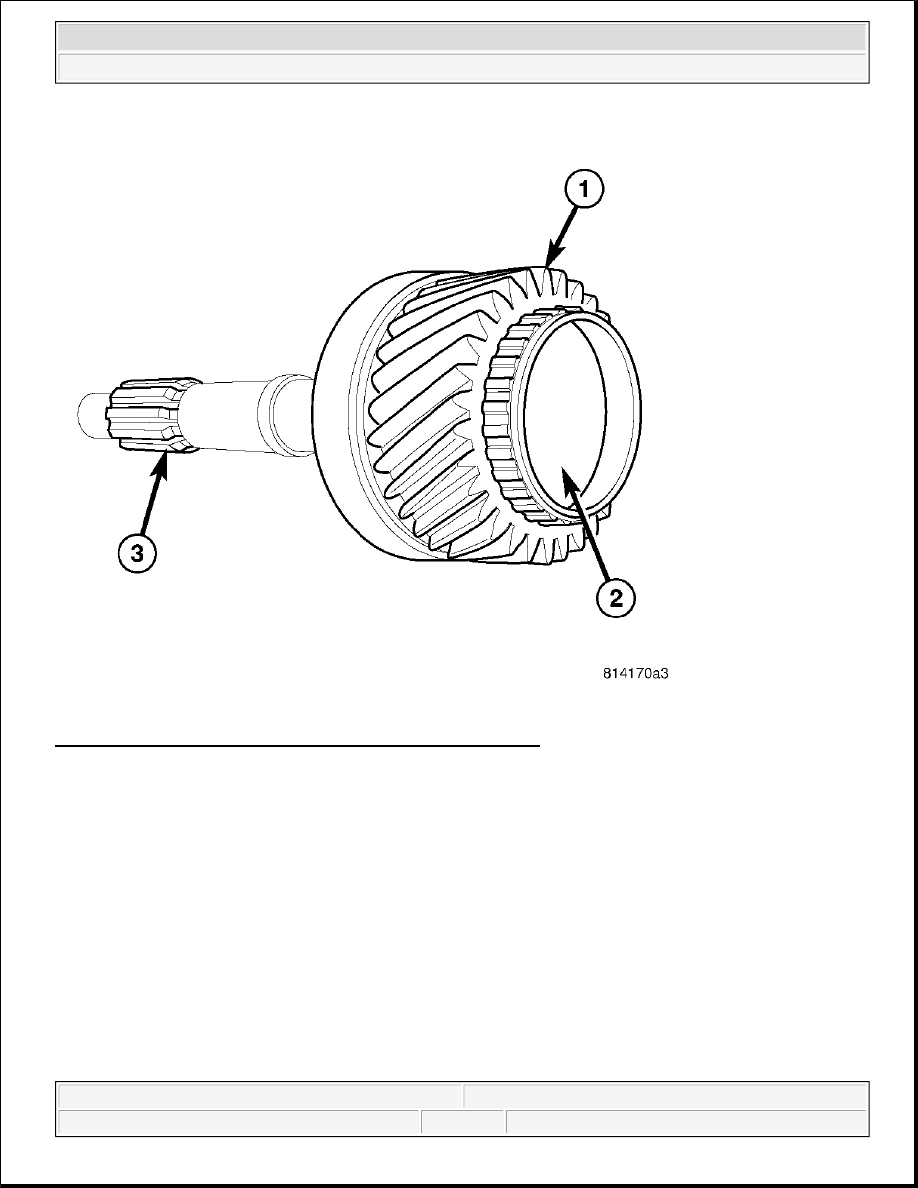

Fig. 61: Inspecting Input Shaft & Bearing Surface For Damage
Courtesy of CHRYSLER LLC

Input Shaft: Inspect for worn, chipped or cracked teeth (1). Inspect bearing surface (2) for wear or flat-spots.
Inspect for worn splines (3).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

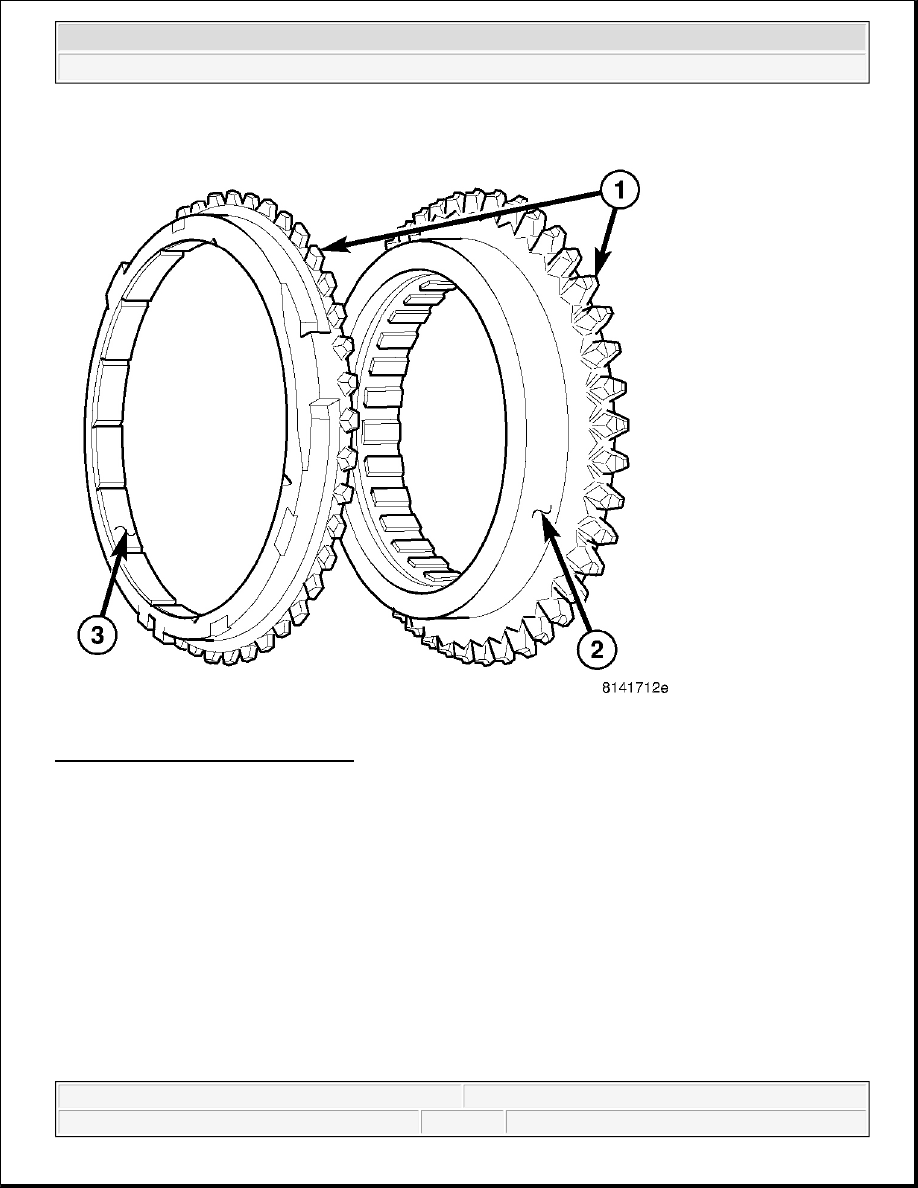

Fig. 62: Inspecting Synchronizer Rings
Courtesy of CHRYSLER LLC

Synchronizer components: Inspect for worn, chipped or cracked teeth (1) and burned friction surface (2) or
flaking off friction material (3). Synchronizers are serviced as an assembly. 3-4 synchronizer assembly is
serviced with countershaft.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

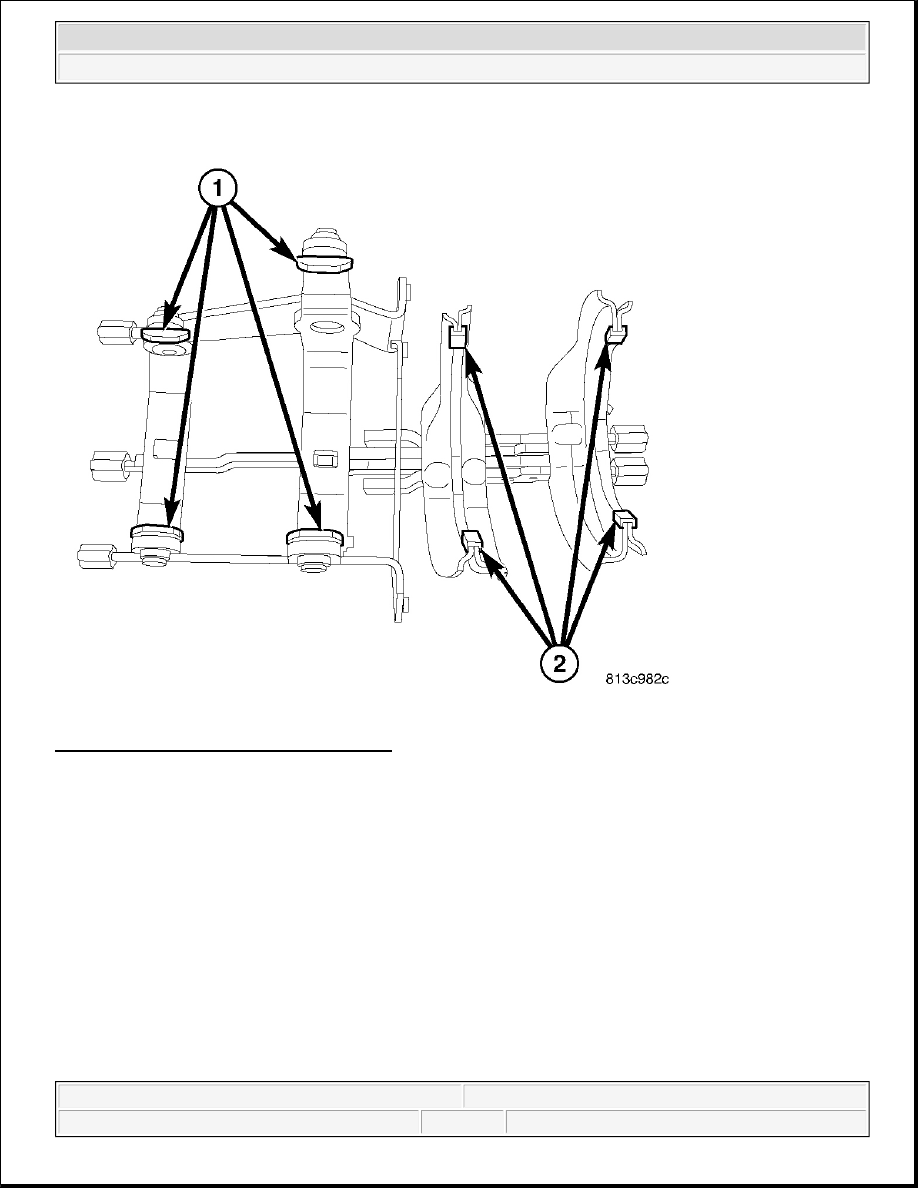

Fig. 63: Inspecting Shift Fork Shoes & Pads
Courtesy of CHRYSLER LLC

Shift forks: Inspect shift forks and shoes (1) for wear and distortion. Check fit of fork shoes in synchronizer
sleeve to ensure parts fit and work smoothly, replace if necessary. If shift fork pads (2) are worn, the shift fork
must be replaced.

Housing/Tail housing: Inspect sealing and mating surfaces are free of burrs and nicks. Inspect alignment
dowels are tight and in good condition.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

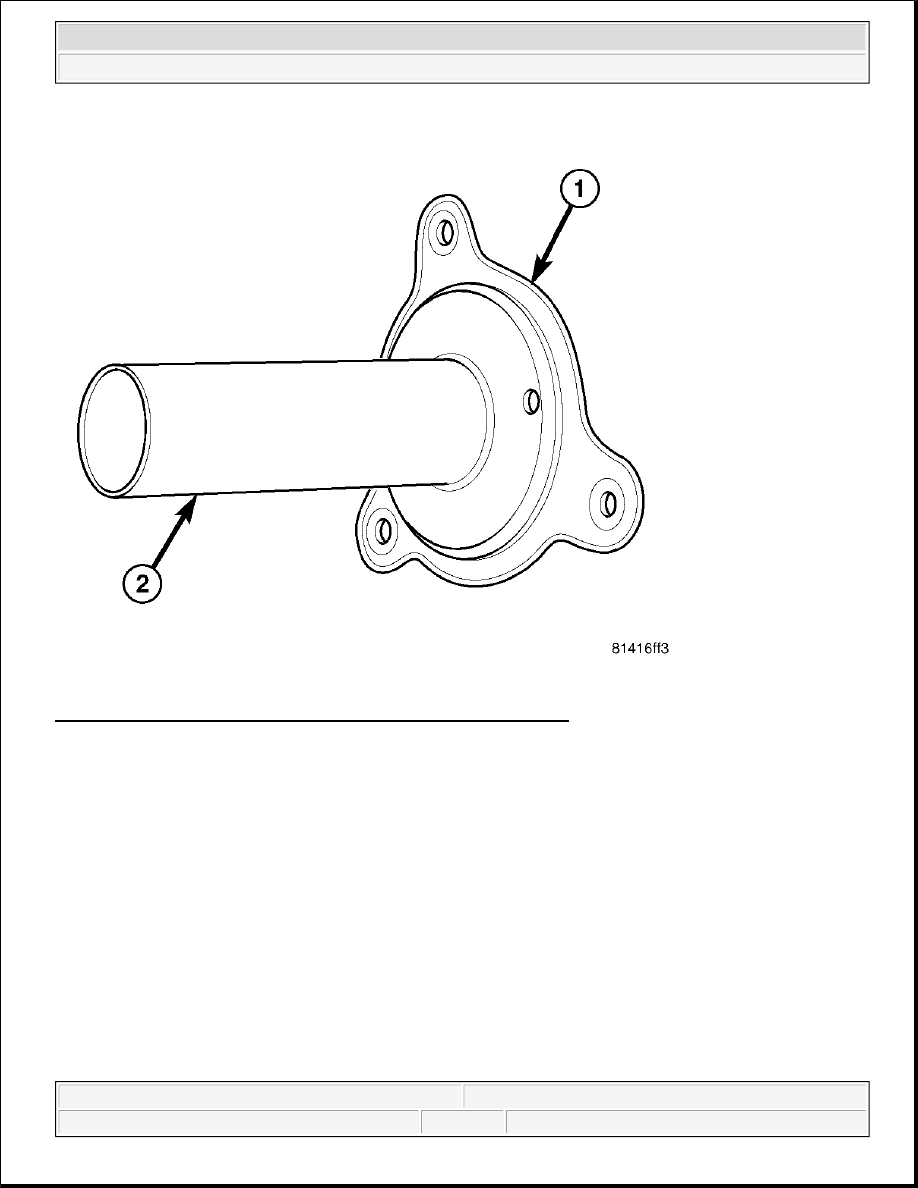

Fig. 64: Inspecting Shaft Retainer & Release Bearing Slide Surface
Courtesy of CHRYSLER LLC

Input Shaft Retainer: Inspect retainer (1) release bearing slide surface (2).

ASSEMBLY

MANUAL TRANSMISSION - NSG370

MAINSHAFT
