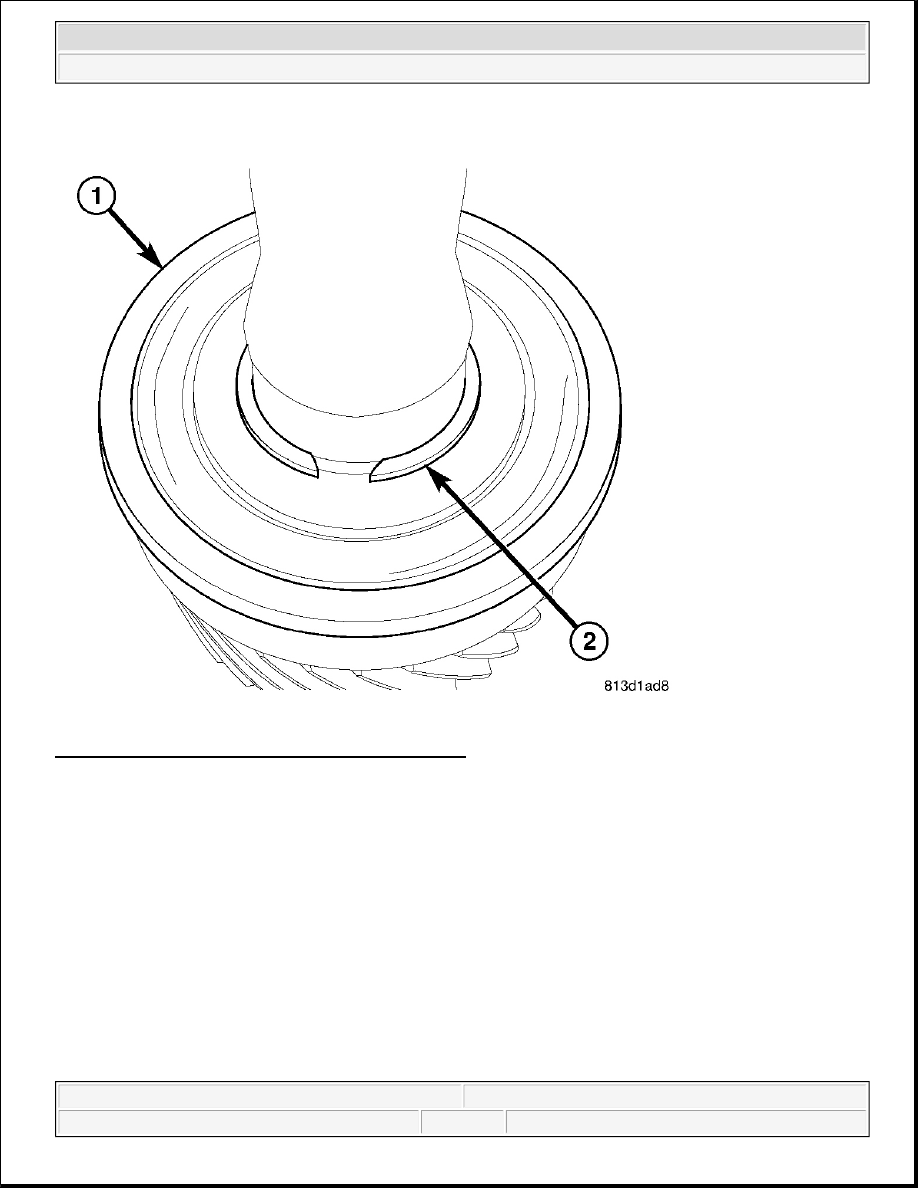

Fig. 49: Identifying Input Shaft Bearing & Snap Ring
Courtesy of CHRYSLER LLC

1. Remove input shaft bearing (1) snap ring (2).

NOTE:

All snap rings are select fit from the factory, and must be installed in their
original location.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

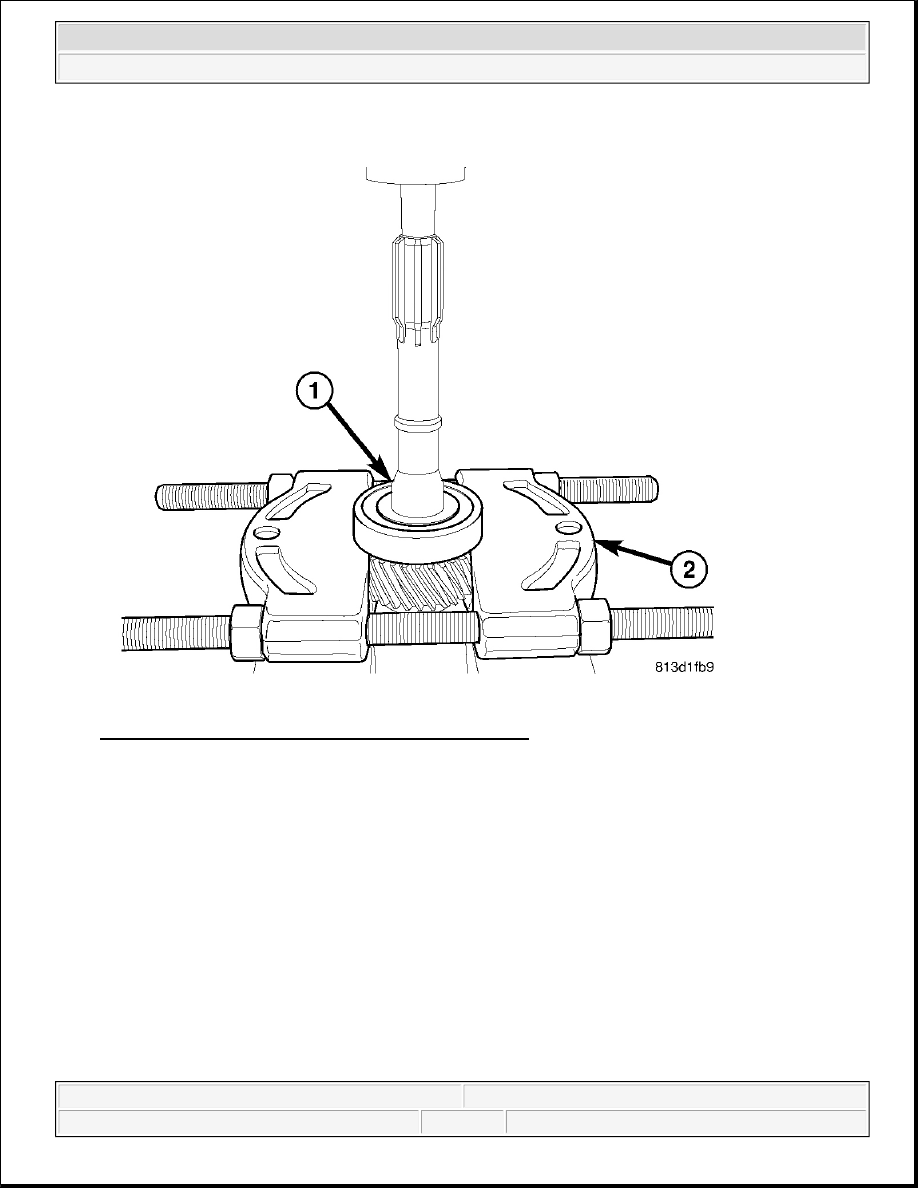

Fig. 50: Identifying Input Shaft Bearing & Splitter 1130
Courtesy of CHRYSLER LLC

2. Remove input shaft bearing (1) from input shaft with a Splitter 1130 (2) and press. Place splitter around

bearing retainer lip and press input shaft through the bearing.

REAR HOUSING



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

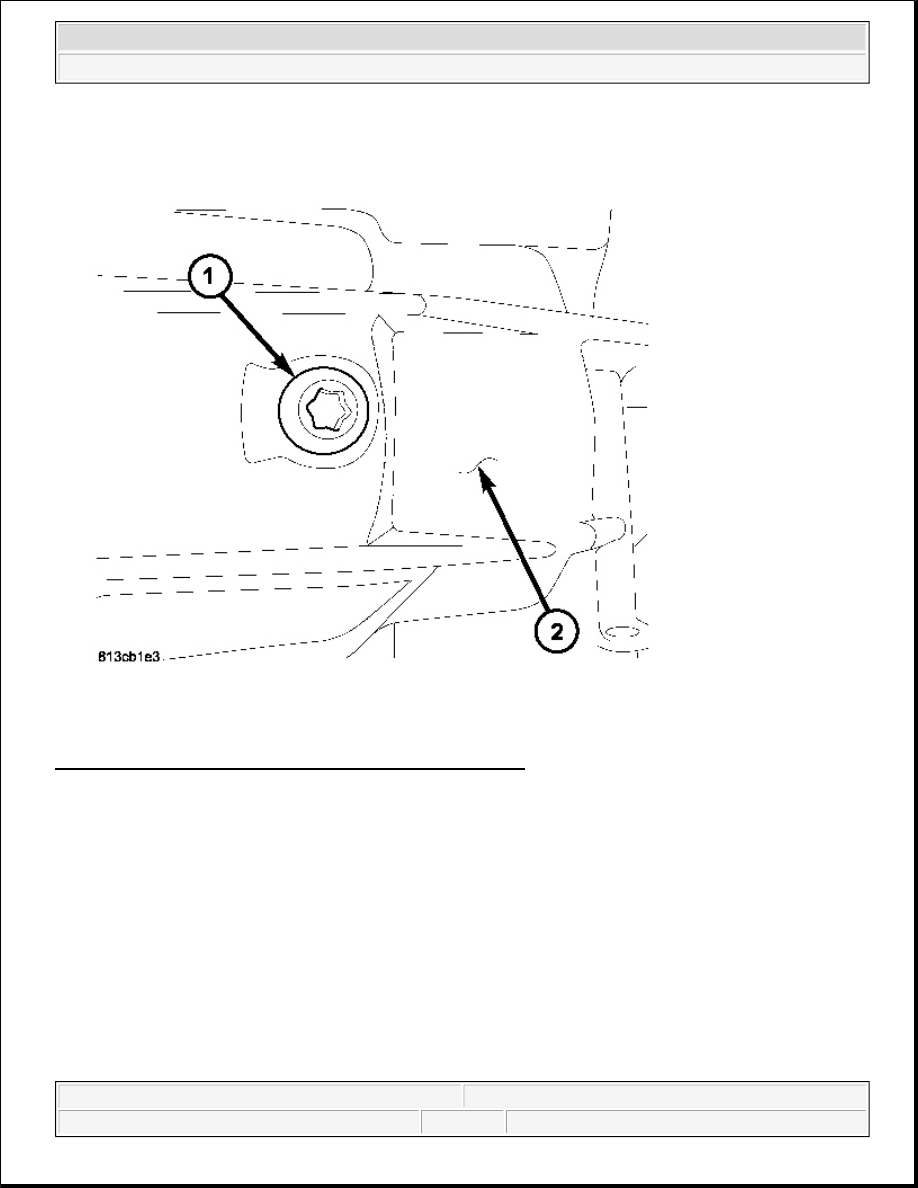

Fig. 51: Identifying Reverse Idler Gear Shaft Bolt & Housing
Courtesy of CHRYSLER LLC

1. Remove reverse idler gear shaft bolt (1) from housing (2).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

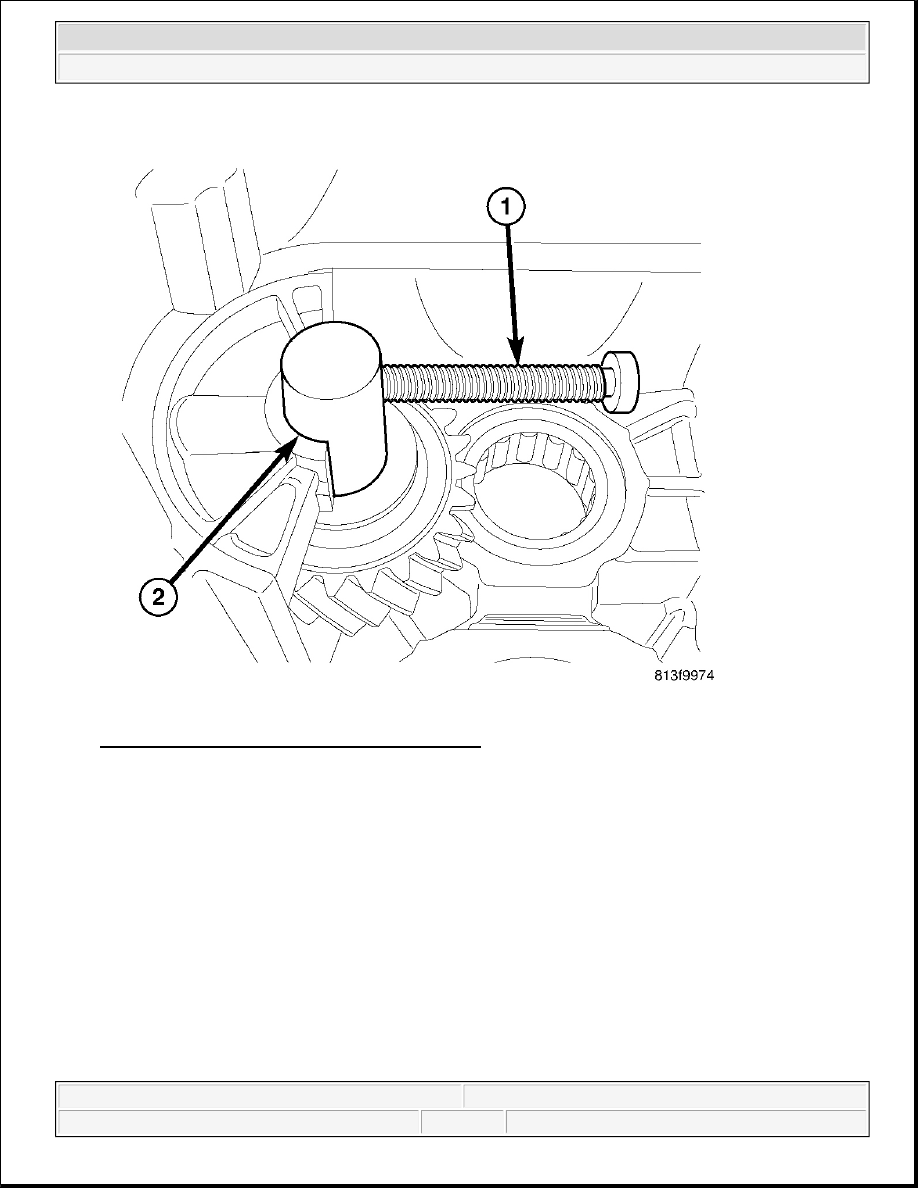

Fig. 52: Identifying Idler Gear Shaft Bolt & Shaft
Courtesy of CHRYSLER LLC

2. Thread idler gear shaft bolt (1) into the shaft (2). Then work shaft (2) out of the idler gear.
