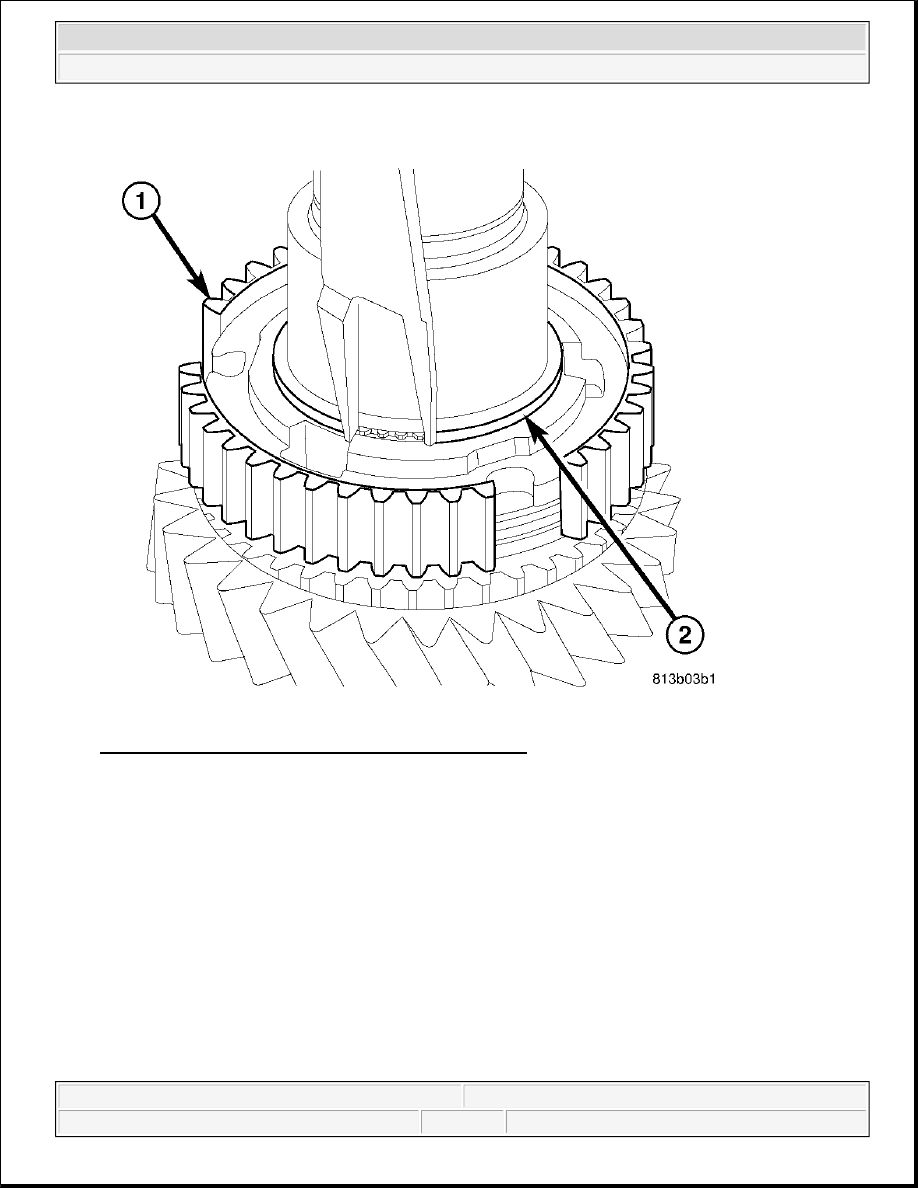

Fig. 41: Identifying 1-2 Synchronizer Hub & Snap Ring
Courtesy of CHRYSLER LLC

19. Remove 1-2 synchronizer hub (1) snap ring (2).

NOTE:

All snap rings are select fit from the factory, and must be installed in their
original location.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

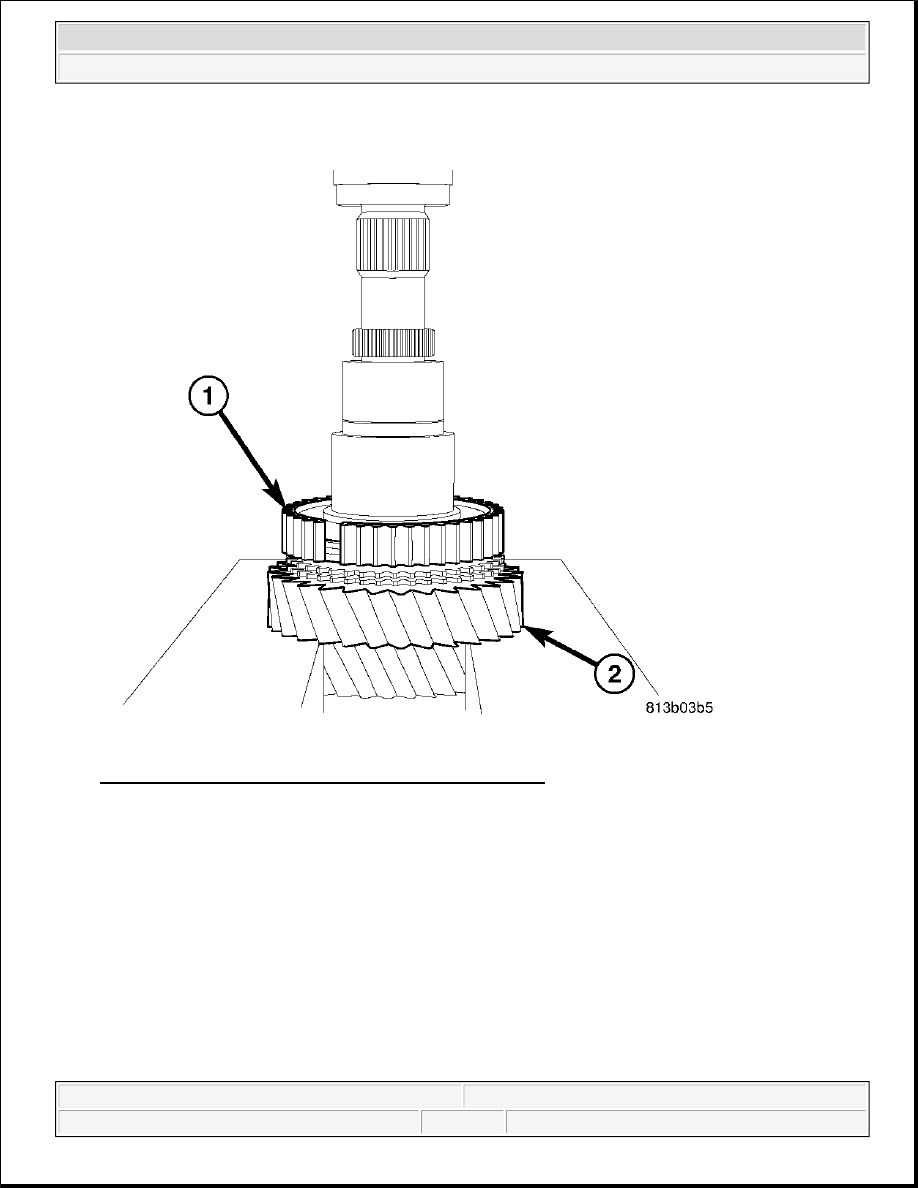

Fig. 42: Identifying 1-2 Synchronizer Hub & Second Gear
Courtesy of CHRYSLER LLC

20. Remove 1-2 synchronizer hub (1), synchronizer rings and second gear (2) off shaft with a press. Place

second gear (2) on press plates and press shaft through 1-2 synchronizer hub (1), synchronizer rings and
second gear (2)

COUNTERSHAFT



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

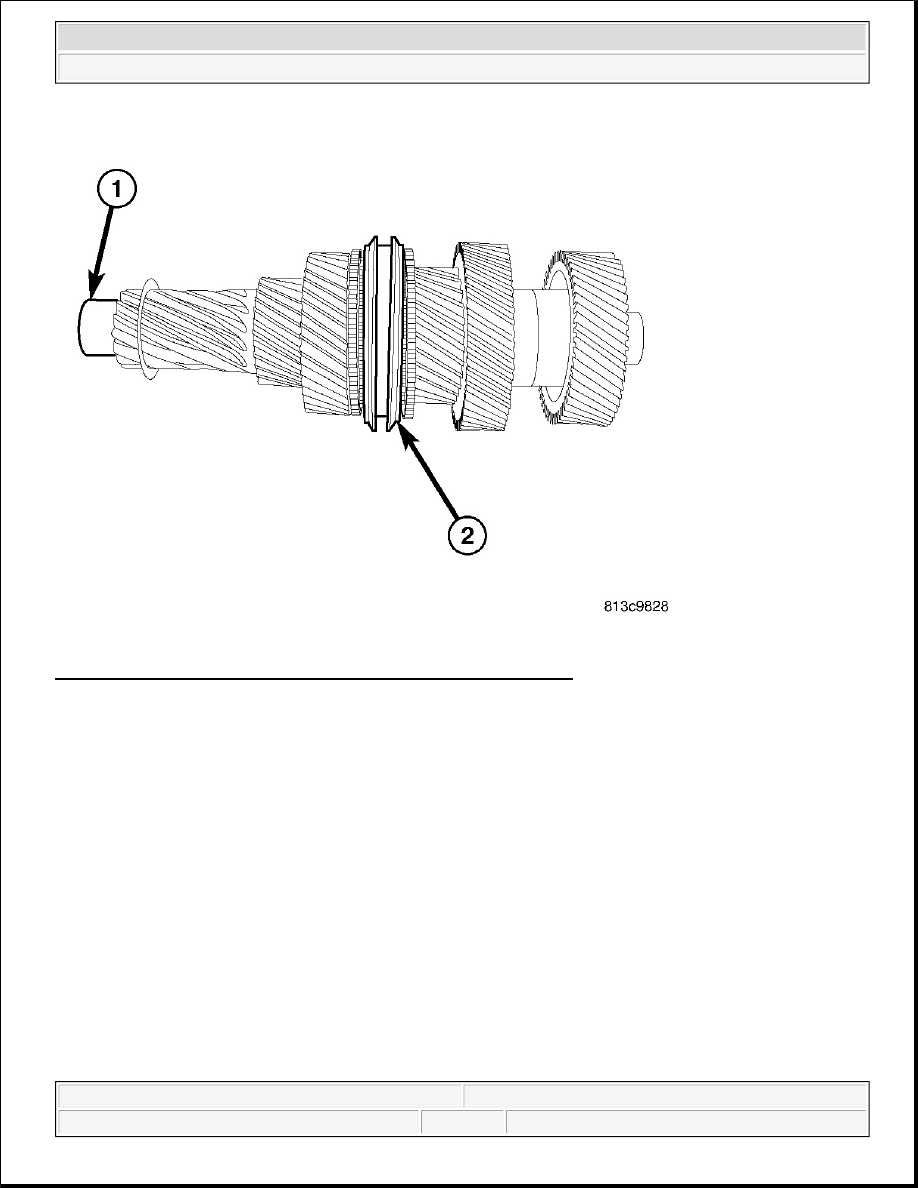

Fig. 43: Identifying Bearing Surfaces & 3-4 Synchronizer Assembly
Courtesy of CHRYSLER LLC

The countershaft (1) and 3-4 synchronizer (2) are serviced as an assembly only.

FRONT HOUSING



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

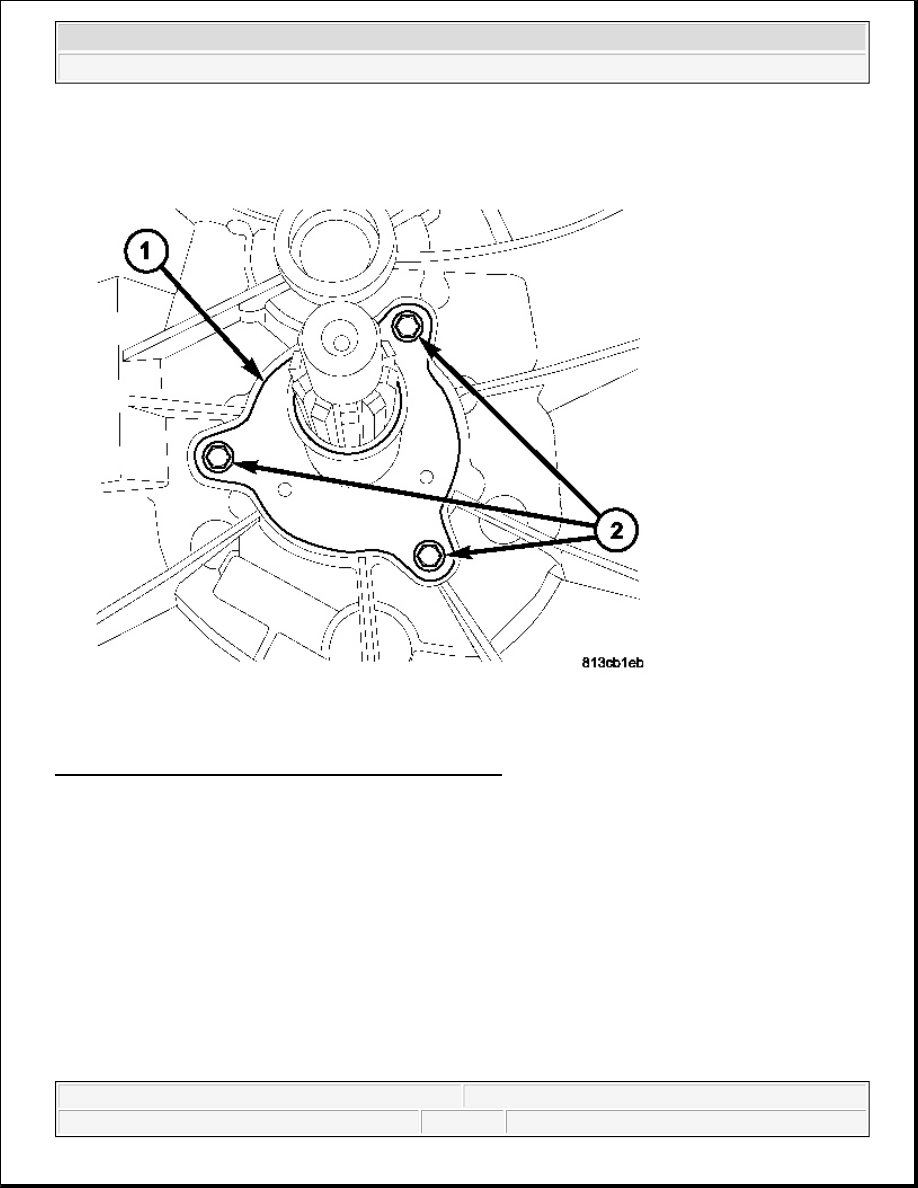

Fig. 44: Identifying Input Shaft Retainer Bolts & Retainer
Courtesy of CHRYSLER LLC

1. Remove input shaft retainer bolts (2) and remove retainer (1).
