Fig. 33: Identifying Reverse Gear & Synchronizer Sleeve
Courtesy of CHRYSLER LLC

9. Remove reverse gear (1) synchronizer sleeve (2) off synchronizer hub.

2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

Fig. 34: Identifying Reverse Synchronizer Hub & Detents
Courtesy of CHRYSLER LLC

10. Remove reverse synchronizer hub (1) detents (2).

2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

Fig. 35: Identifying Reverse Synchronizer Hub & Three Jaw Puller
Courtesy of CHRYSLER LLC

11. Remove reverse synchronizer hub (1) with three jaw puller (2). Place puller jaws in hub detent openings.

2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

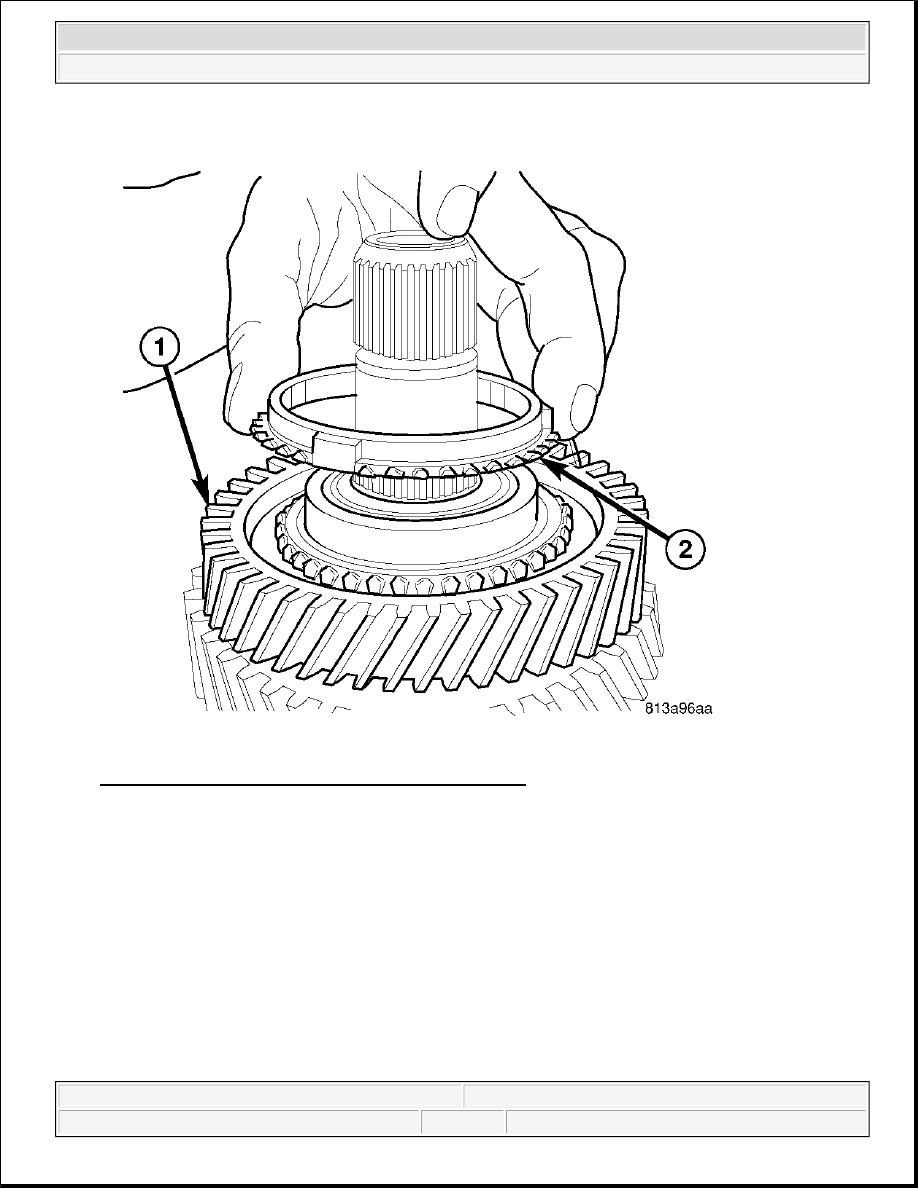

Fig. 36: Identifying Reverse Gear & Synchronizer Ring
Courtesy of CHRYSLER LLC

12. Remove reverse gear (1) synchronizer ring (2).

2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro
