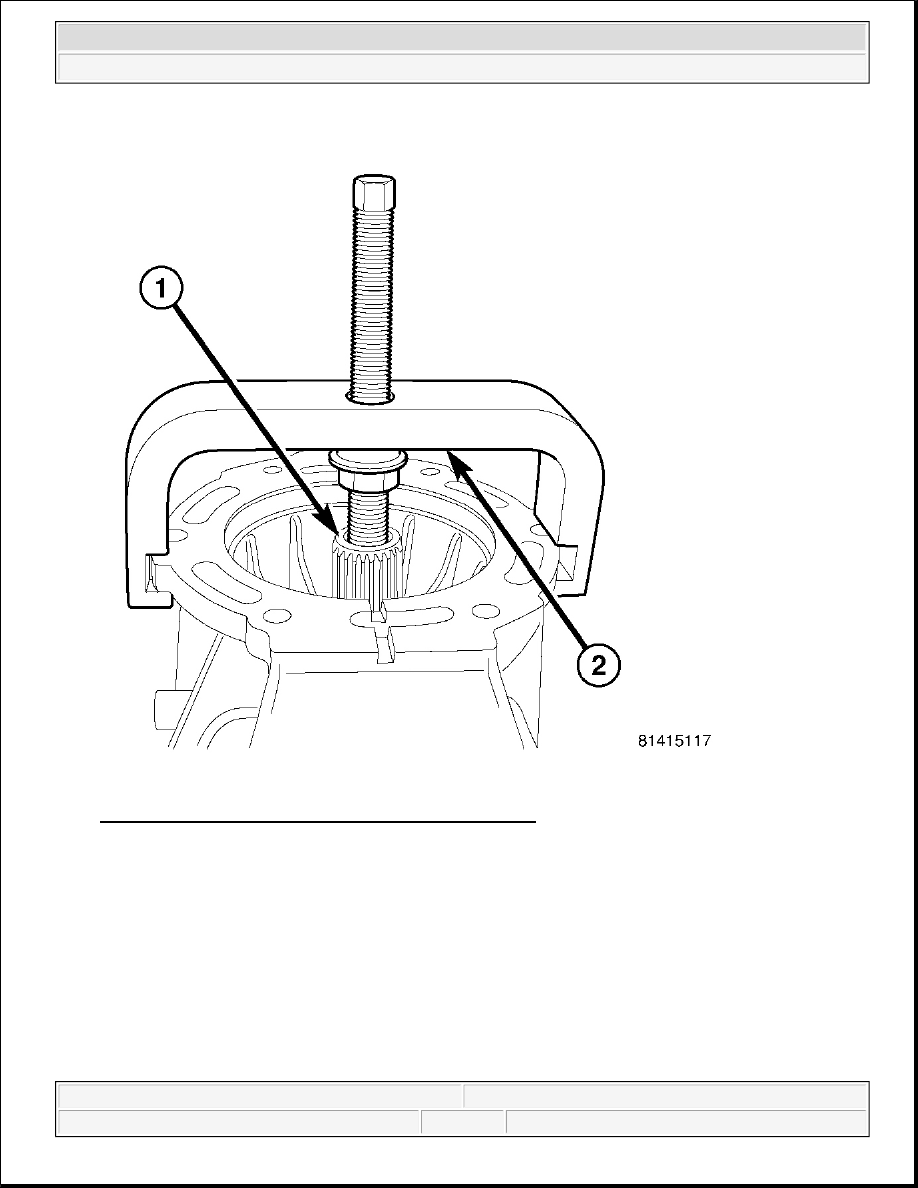

Fig. 25: Identifying Mainshaft & Remover/Installer 9636
Courtesy of CHRYSLER LLC

14. Set geartrain and shift rails with rear housing into Fixture 9633.

15. Remove mainshaft (1) from rear housing bearing with Remover/Installer 9636 (2).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

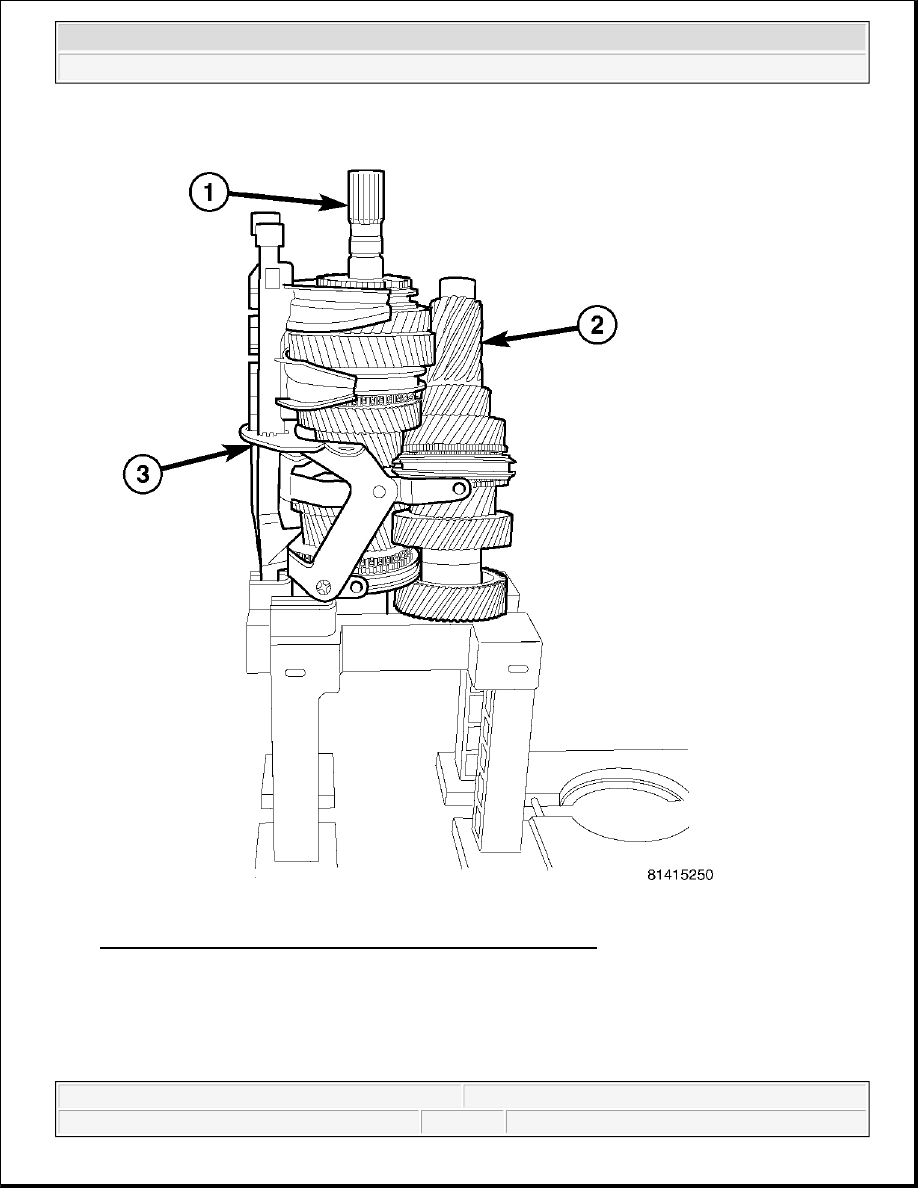

Fig. 26: Identifying Mainshaft, Countershaft & Shift Rails/Forks
Courtesy of CHRYSLER LLC

16. Remove mainshaft (1), countershaft (2) and shift rails/forks (3) from fixture.

MAINSHAFT



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

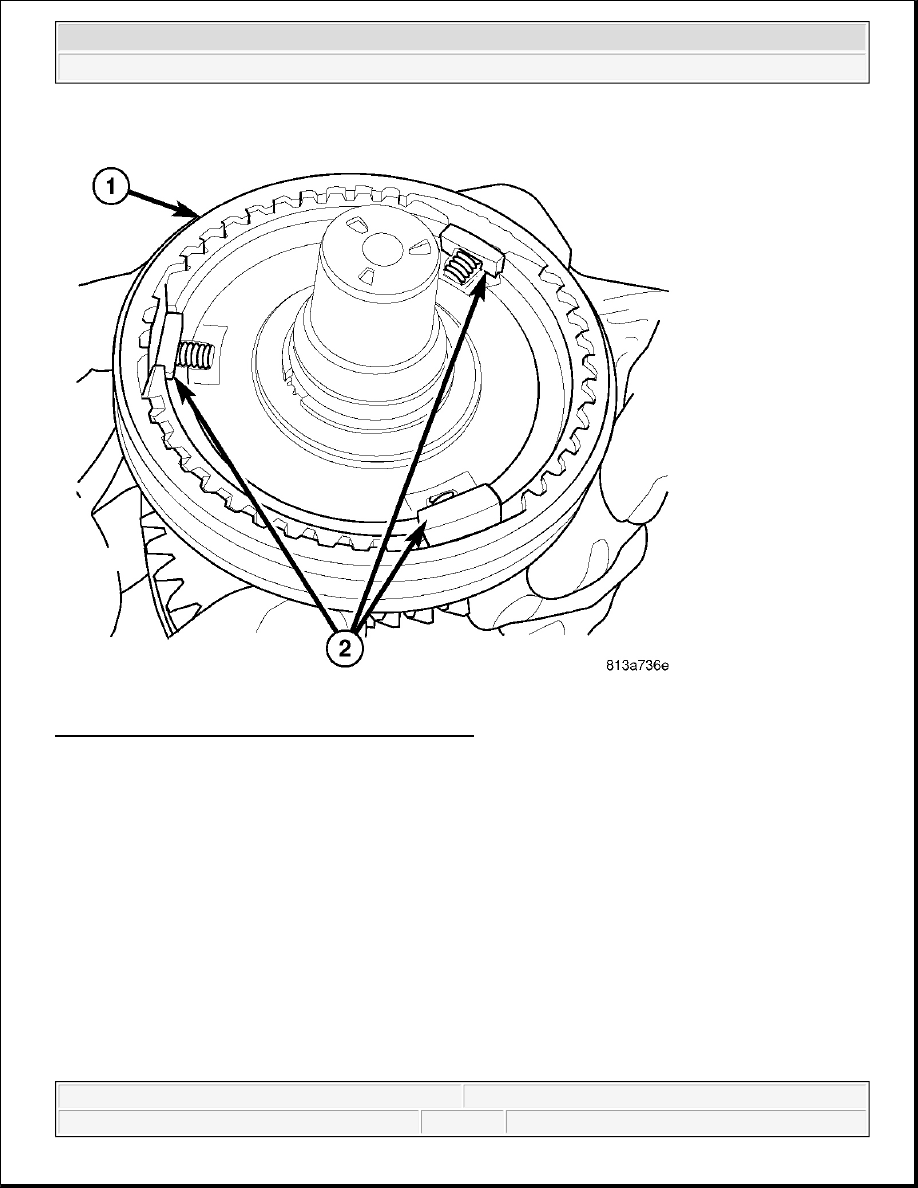

Fig. 27: Identifying 5-6 Synchronizer Sleeve & Detents
Courtesy of CHRYSLER LLC

1. Clamp build Fixture 9648 in a vise. Install mainshaft with 5-6 synchronizer facing up in build Fixture

9648.

2. Push 5-6 synchronizer sleeve (1) down on hub and remove detents (2) springs and balls.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

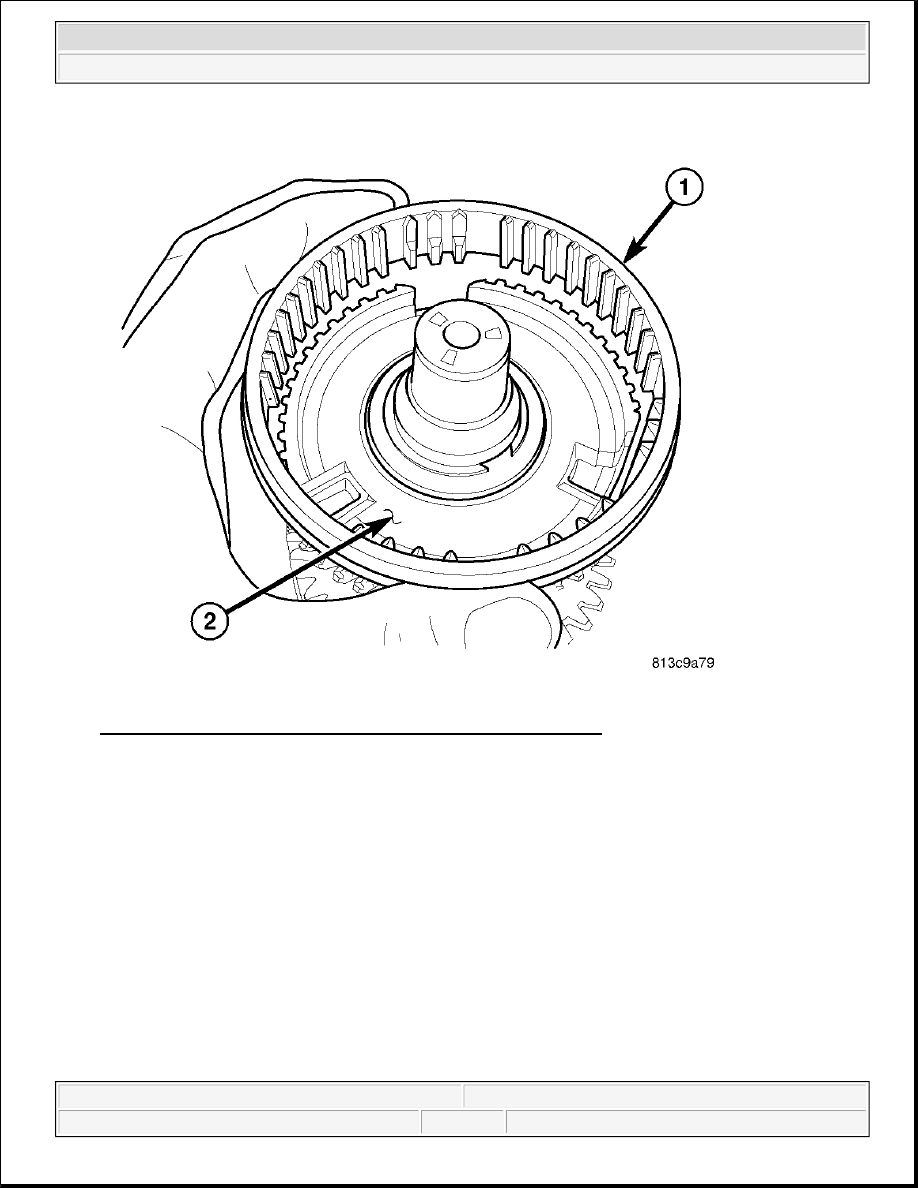

Fig. 28: Identifying 5-6 Synchronizer Sleeve & Synchronizer Hub
Courtesy of CHRYSLER LLC

3. Remove 5-6 synchronizer sleeve (1) from synchronizer hub (2).
