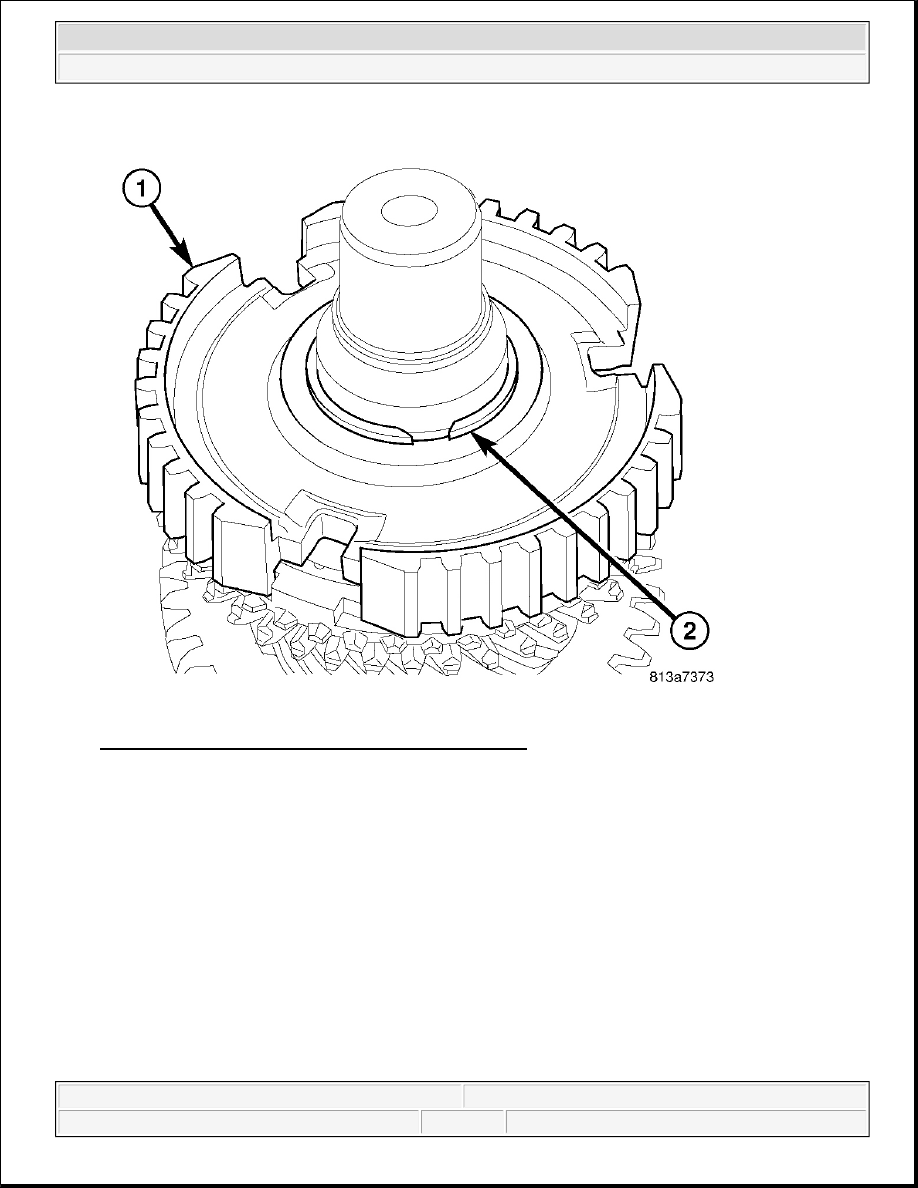

Fig. 29: Identifying 5-6 Synchronizer Hub & Snap Ring
Courtesy of CHRYSLER LLC

4. Remove 5-6 synchronizer hub (1) snap ring (2) and record location.

NOTE:

All snap rings are select fit from the factory, and must be installed in their
original location.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

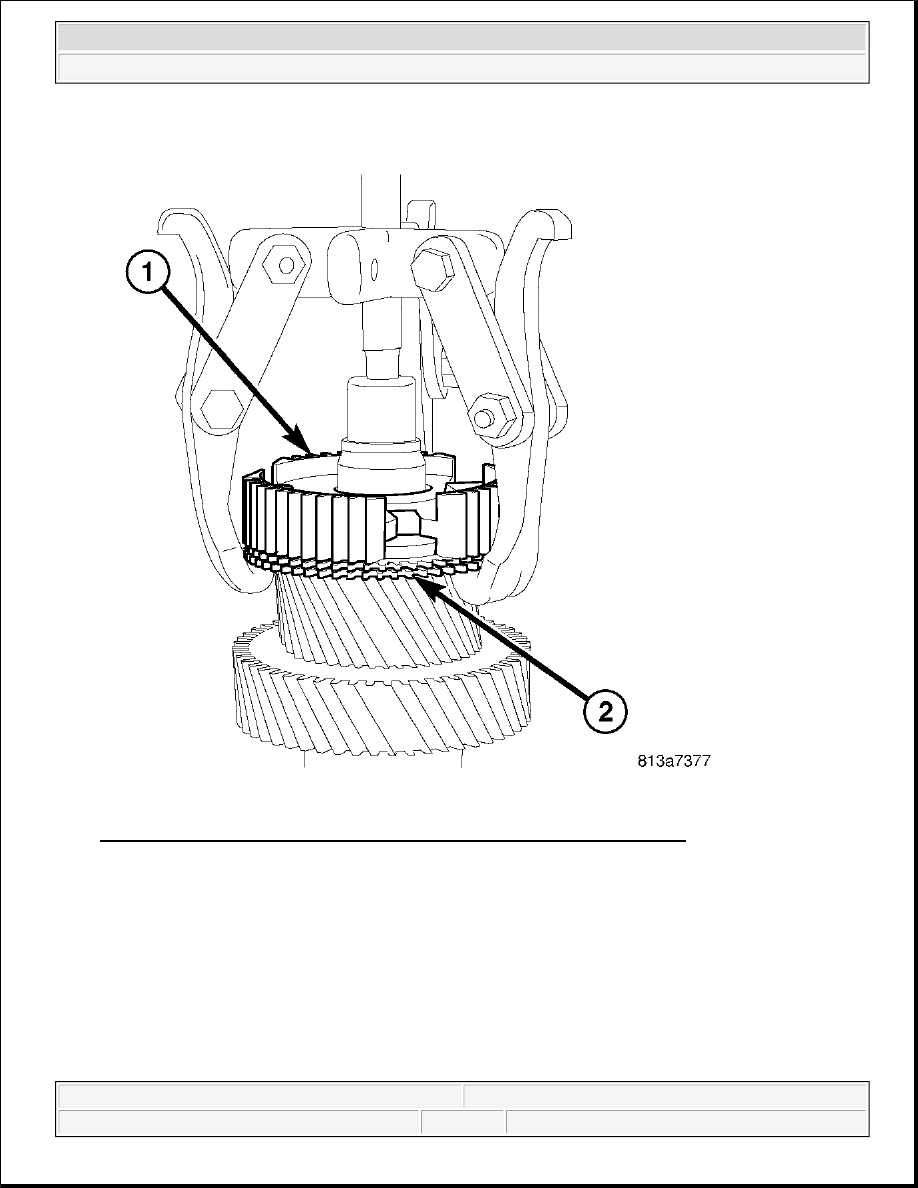

Fig. 30: Identifying 5-6 Synchronizer Hub & Sixth Gear Synchronizer Rings
Courtesy of CHRYSLER LLC

5. Remove 5-6 synchronizer hub (1) and sixth gear synchronizer rings (2) with a three jaw puller. Place

puller jaws under sixth gear synchronizer rings (2).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

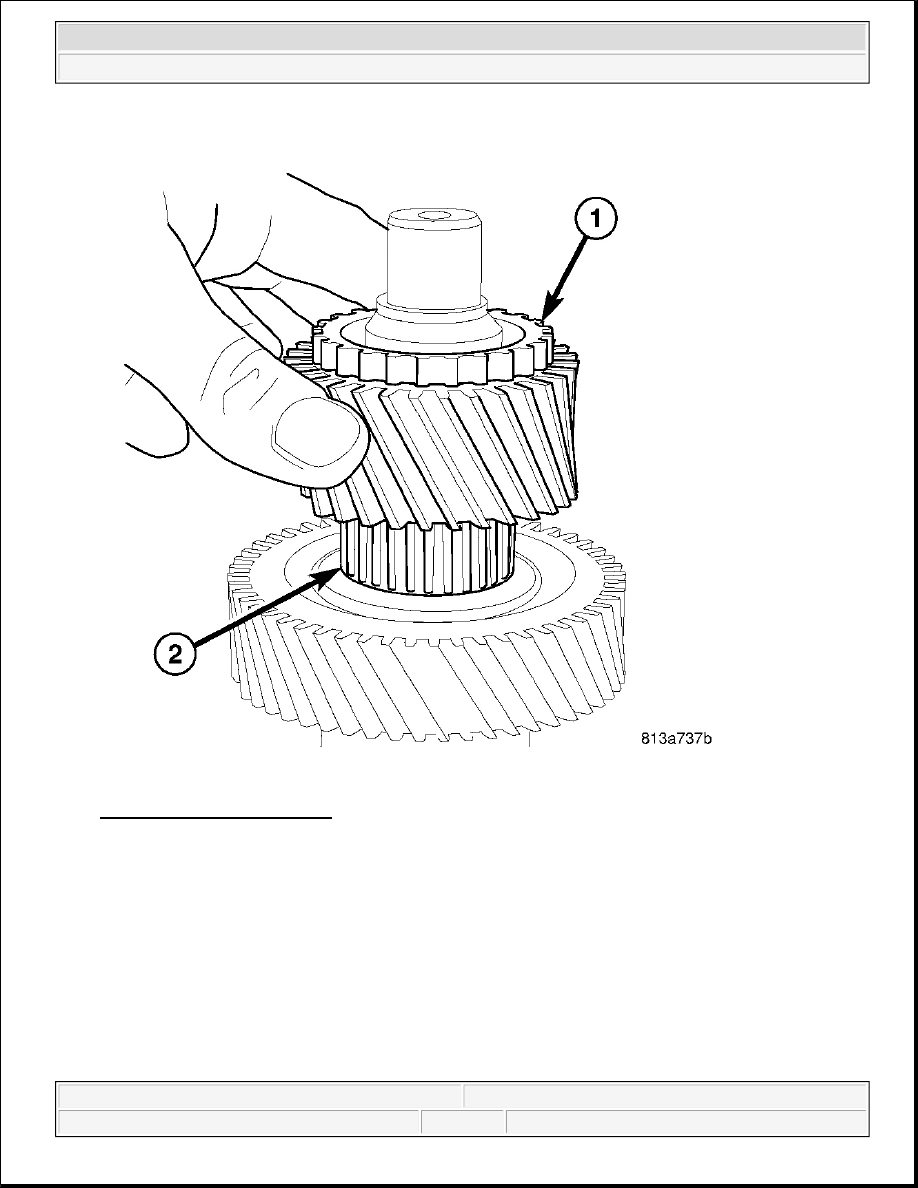

Fig. 31: Sixth Gear & Bearing
Courtesy of CHRYSLER LLC

6. Remove sixth gear (1) and bearing (2).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

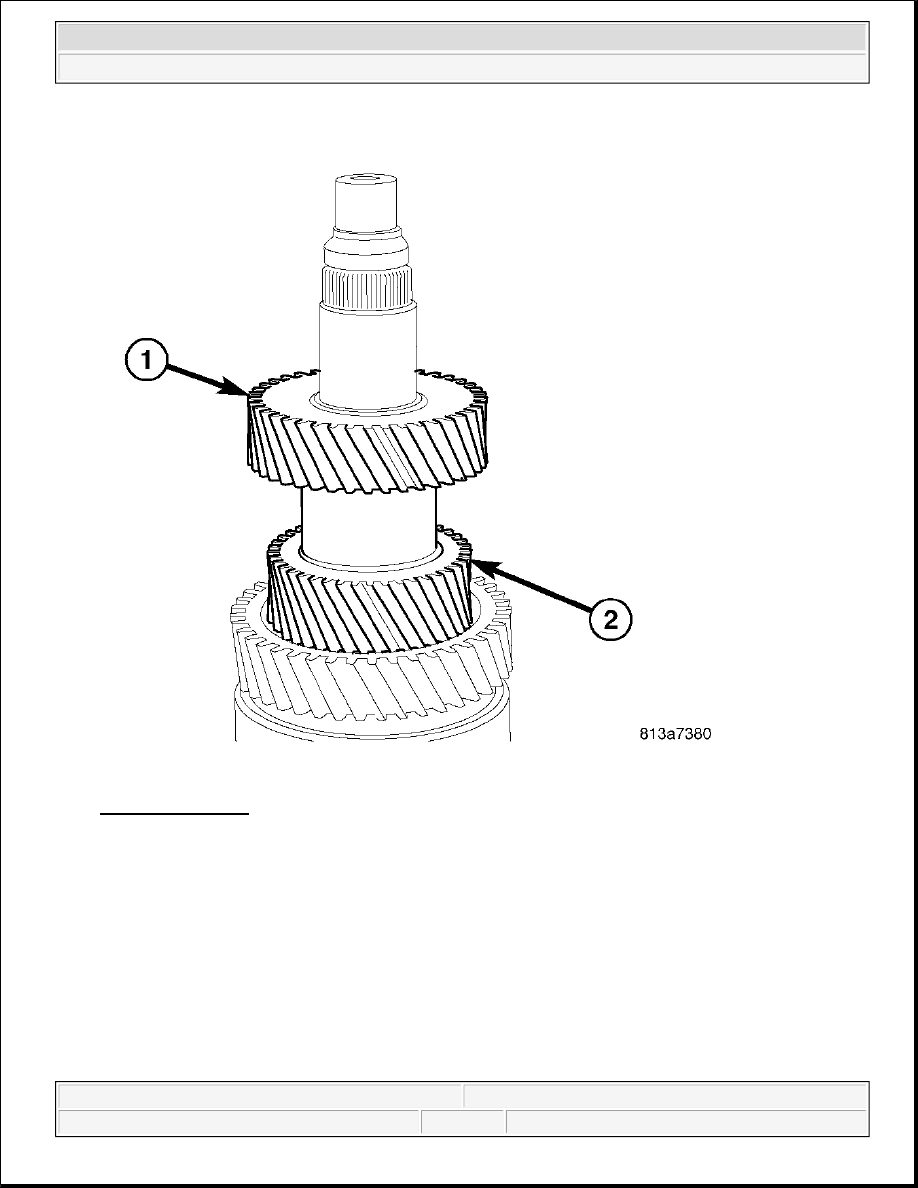

Fig. 32: 3 & 4 Gear
Courtesy of CHRYSLER LLC

7. Third gear (1) and fourth gear (2) are serviced with the mainshaft only.

8. Remove mainshaft from Fixture 9648. Turn fixture over in vise and set opposite end of mainshaft into the

fixture.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro
