Fig. 21: Identifying Shift Rails & Support Plate
Courtesy of CHRYSLER LLC

10. Remove shift rails (1) support plate (2) bolts.

2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

Fig. 22: Identifying Input Shaft & Roller Bearing
Courtesy of CHRYSLER LLC

11. Remove input shaft (1) roller bearing (2).

2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

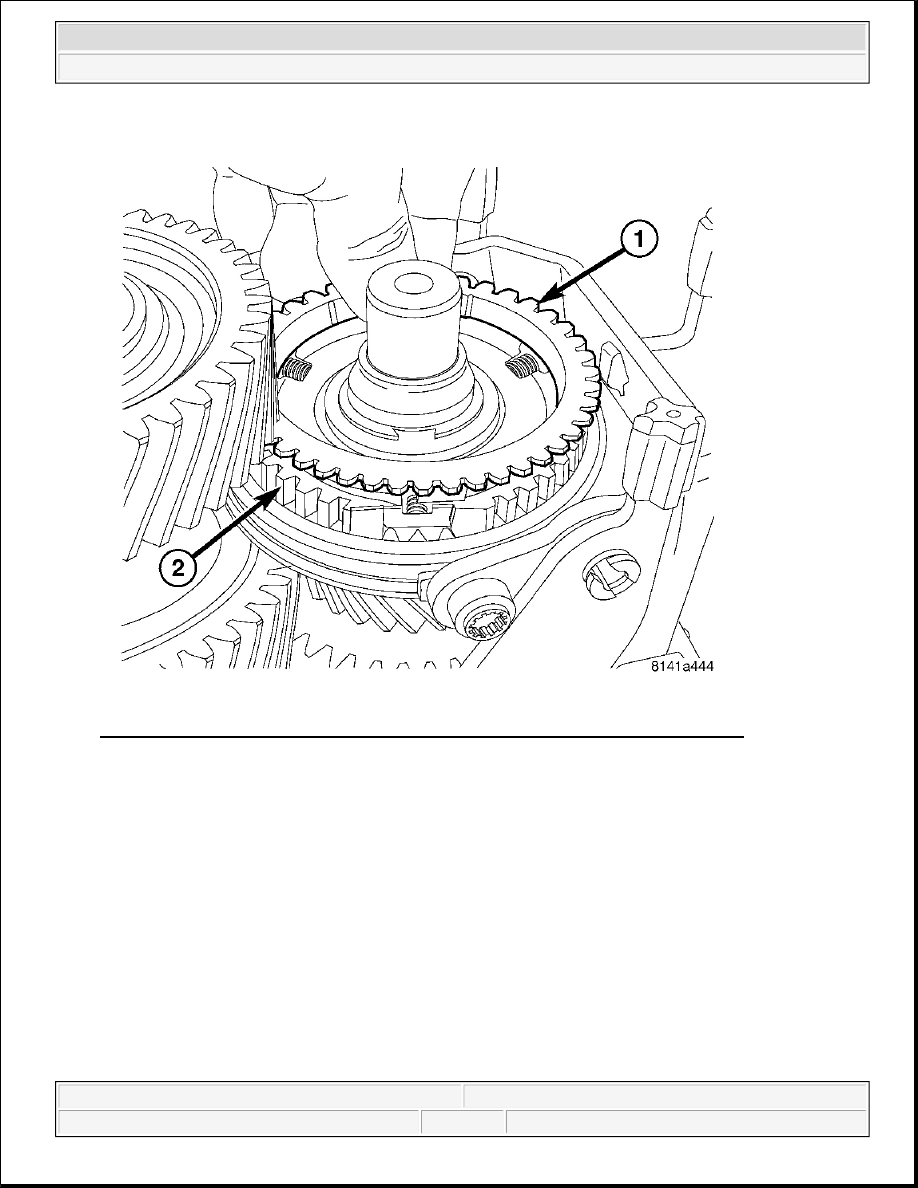

Fig. 23: Identifying Fifth Gear Synchronizer Blocker Ring & 5-6 Synchronizer Hub
Courtesy of CHRYSLER LLC

12. Remove fifth gear synchronizer blocker ring (1) from 5-6 synchronizer hub (2).

2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

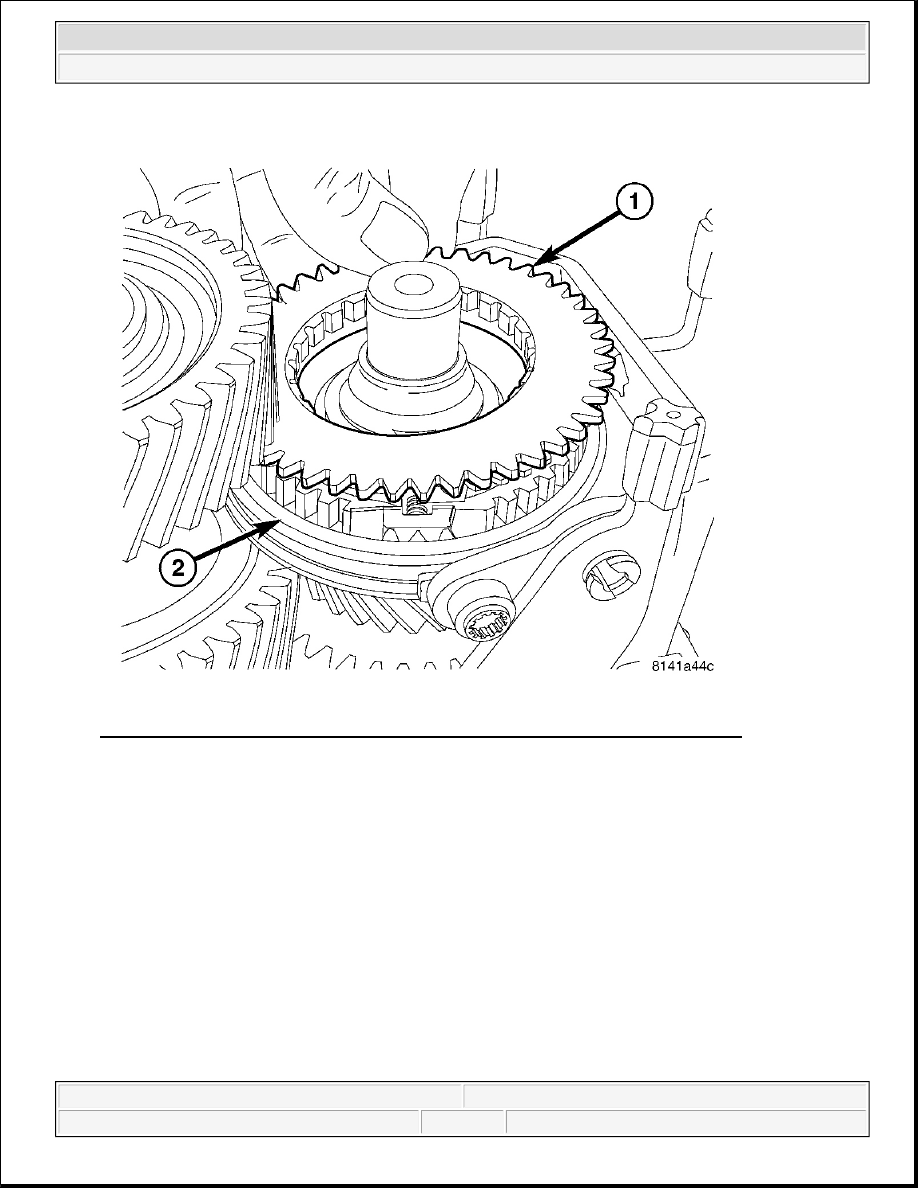

Fig. 24: Identifying Fifth Gear Synchronizer Friction Ring & 5-6 Synchronizer Hub
Courtesy of CHRYSLER LLC

13. Remove fifth gear synchronizer friction ring (1) from 5-6 synchronizer hub (2).
