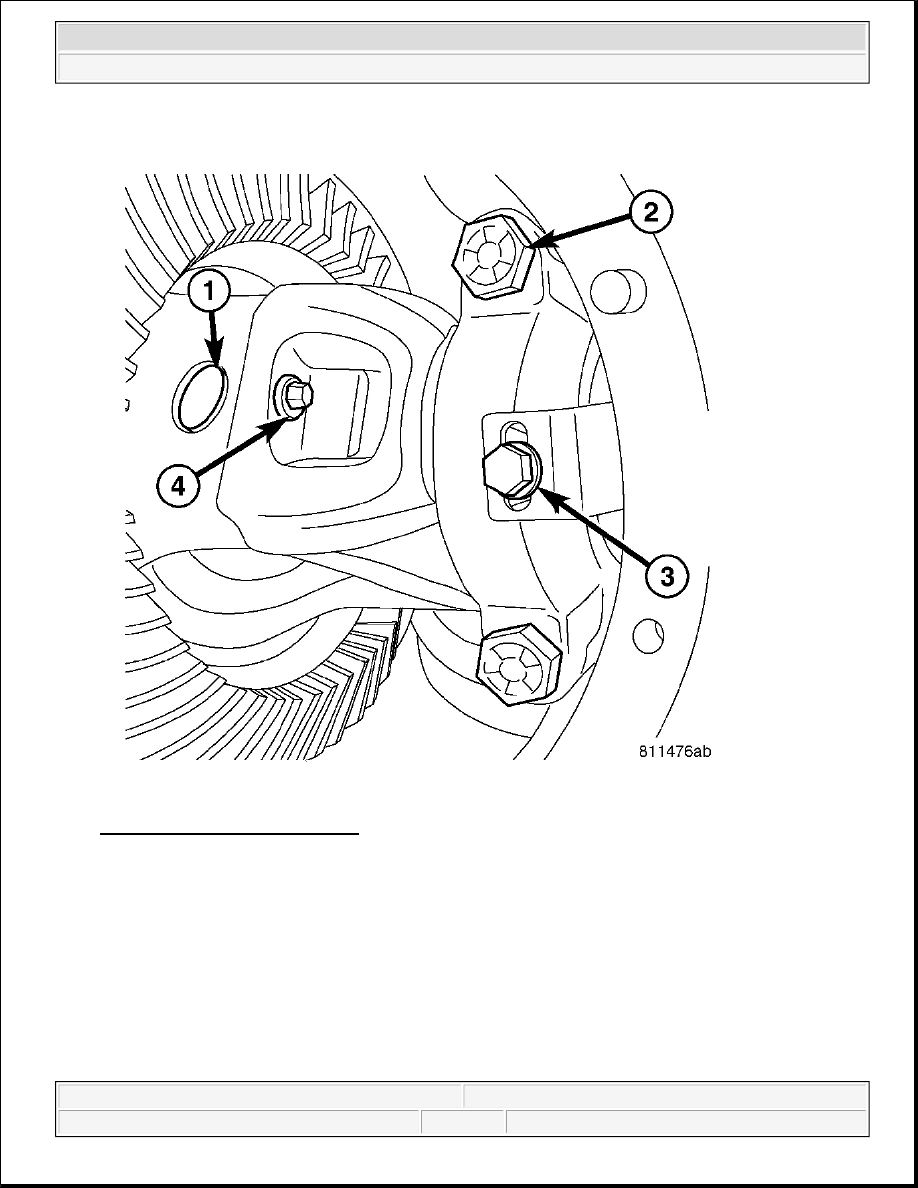

Fig. 273: Identifying Lock Screws
Courtesy of CHRYSLER LLC

5. Align hole in shaft with hole in the differential case and install lock screw (4) with Mopar Lock & Seal or

equivalent on the threads. Tighten lock screw to 26 N.m (19 ft. lbs.).

6. Install differential cover.

7. Install rear brake components.

SEAL-AXLE SHAFT

REMOVAL

SEAL-AXLE SHAFT



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



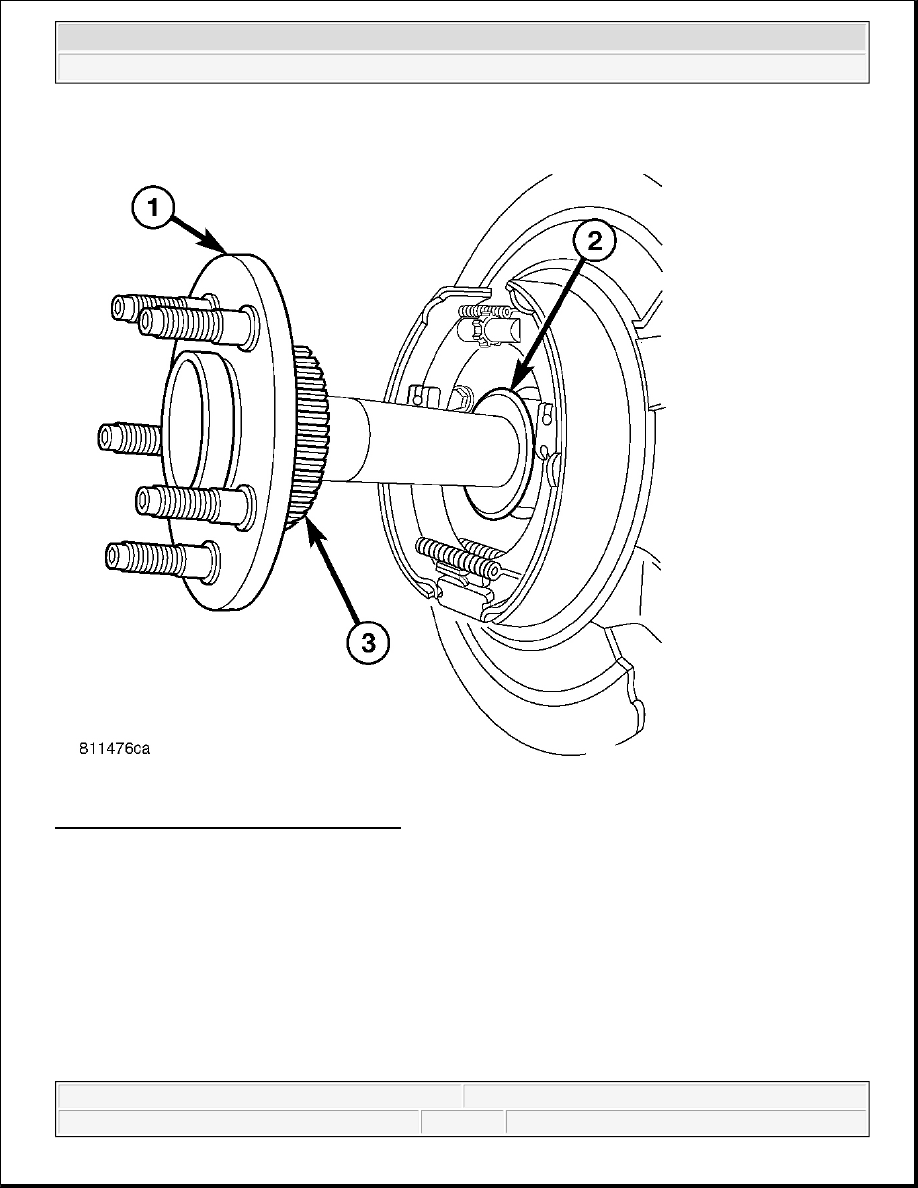

Fig. 274: Identifying Axle Shaft & Axle Tube
Courtesy of CHRYSLER LLC

1. Remove axle shaft (1) from axle tube (2).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



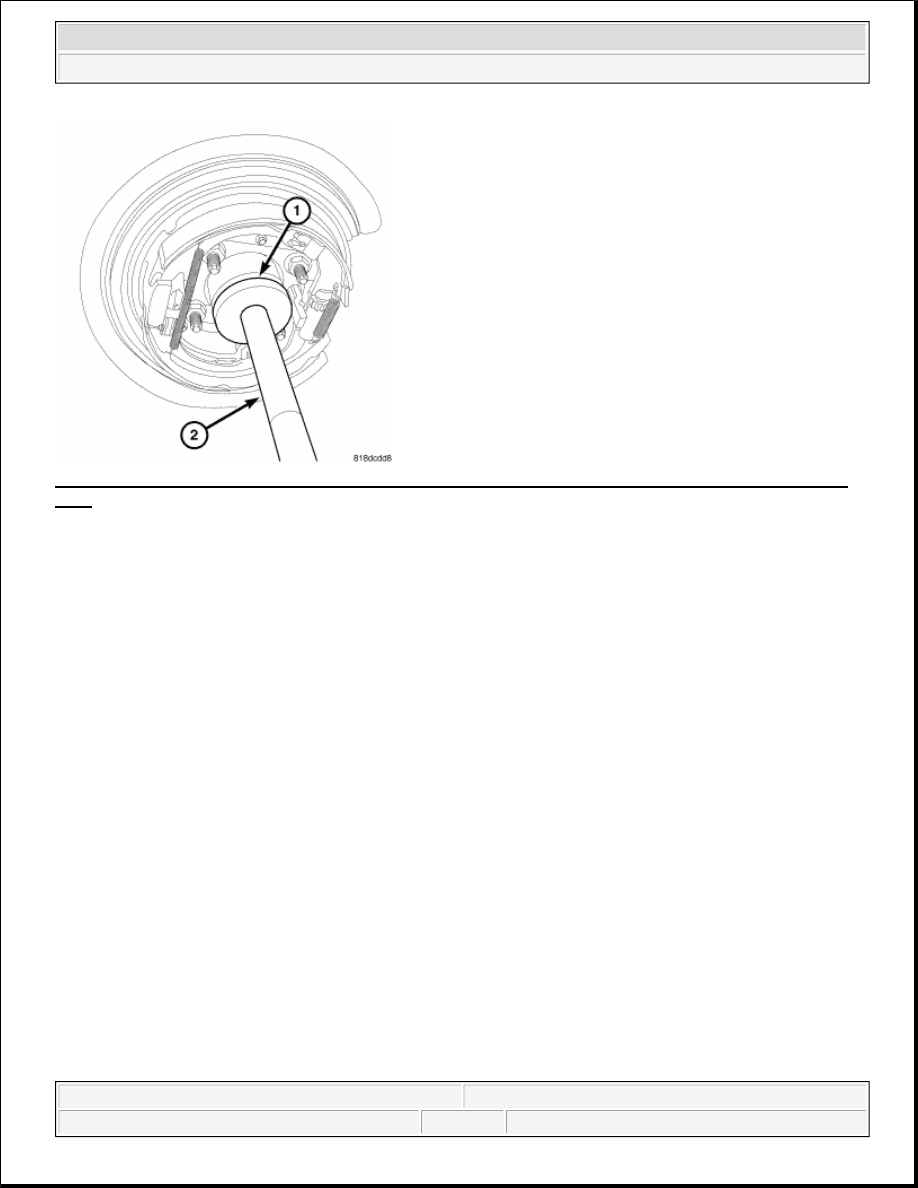

Fig. 275: Removing Axle Shaft Seal From Axle Tube With Seal Puller
Courtesy of CHRYSLER LLC

2. Remove axle shaft seal (1) from axle tube (2) with seal puller.

INSTALLATION

SEAL-AXLE SHAFT



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

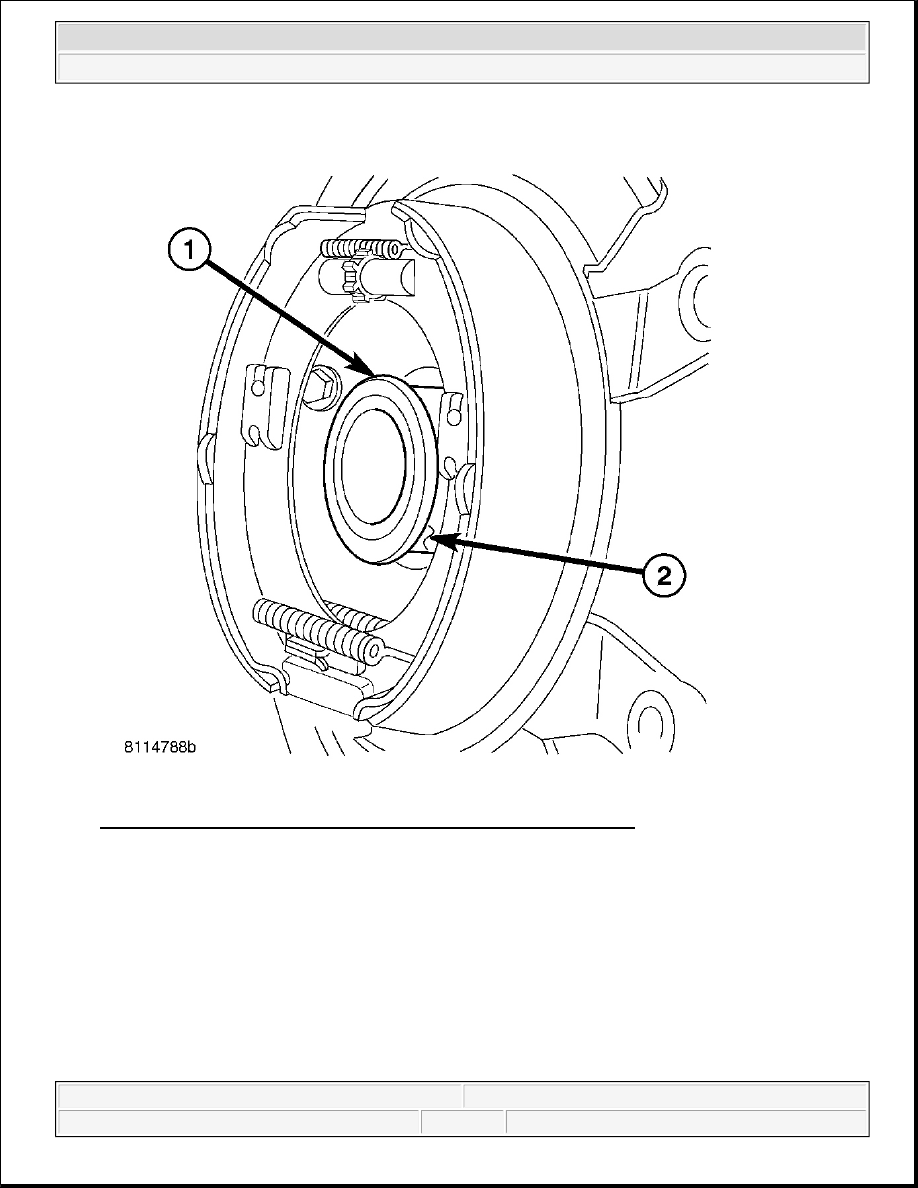

Fig. 276: Coating Seal Lip With Axle Lubricant And Installing Seal With Installer 8493 And Handle C-
4171
Courtesy of CHRYSLER LLC

1. Remove any old sealer/burrs from axle tube.

2. Coat new seal lip with axle lubricant and install seal with Installer 8493 (1) and Handle C-4171 (1).
