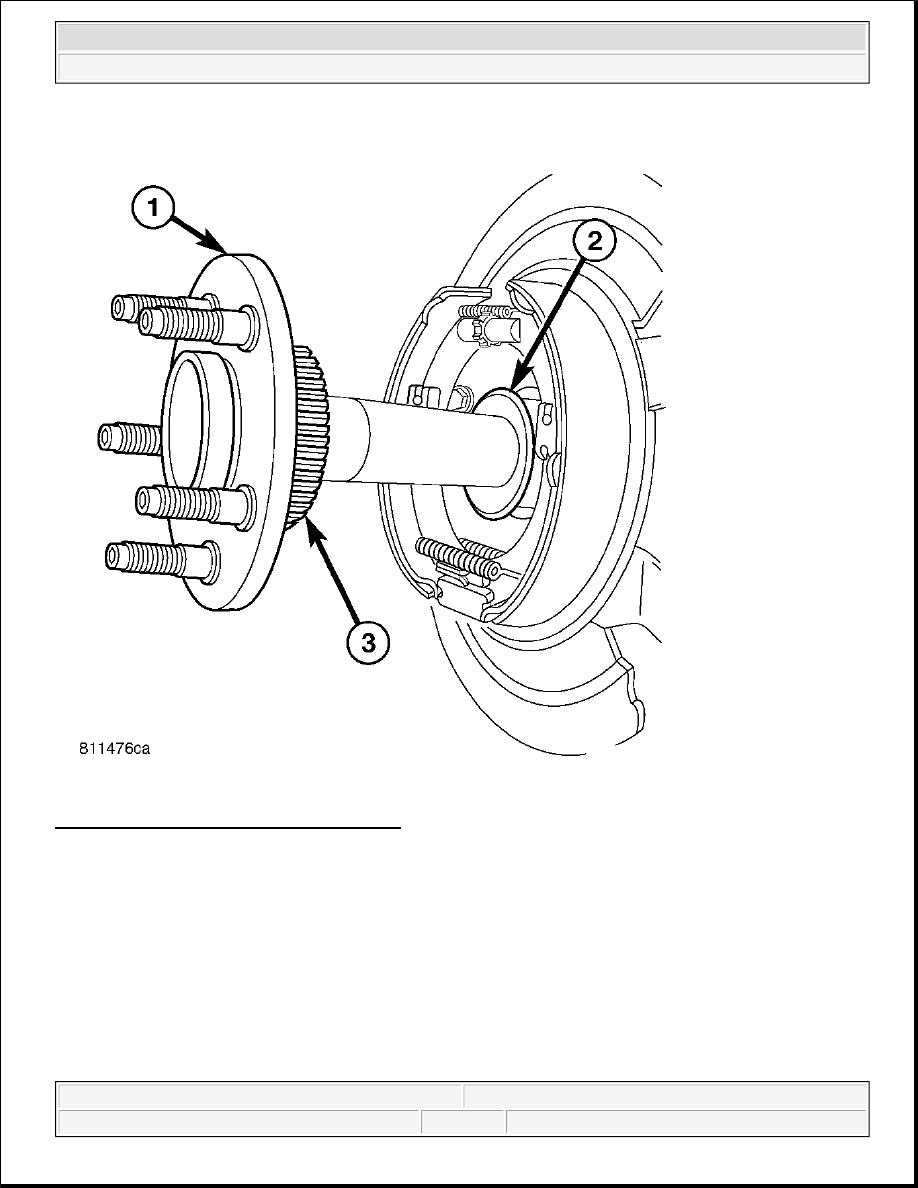

Fig. 269: Identifying Axle Shaft & Axle Tube
Courtesy of CHRYSLER LLC

8. Remove axle shaft (1) from side gear and axle tube (2).

INSTALLATION

SHAFT-AXLE



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

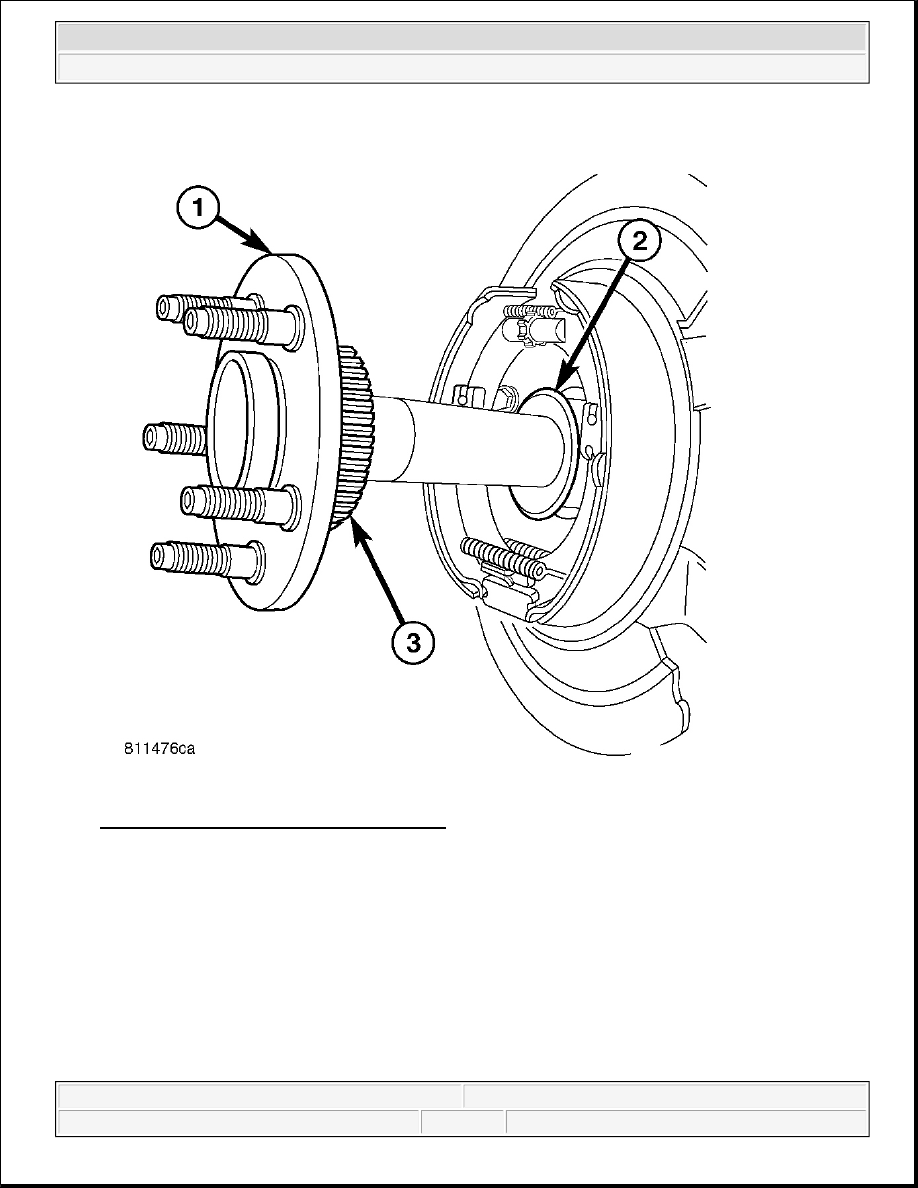

Fig. 270: Identifying Axle Shaft & Axle Tube
Courtesy of CHRYSLER LLC

1. Install axle shaft (1) in axle tube (2) and engage into side gear splines.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

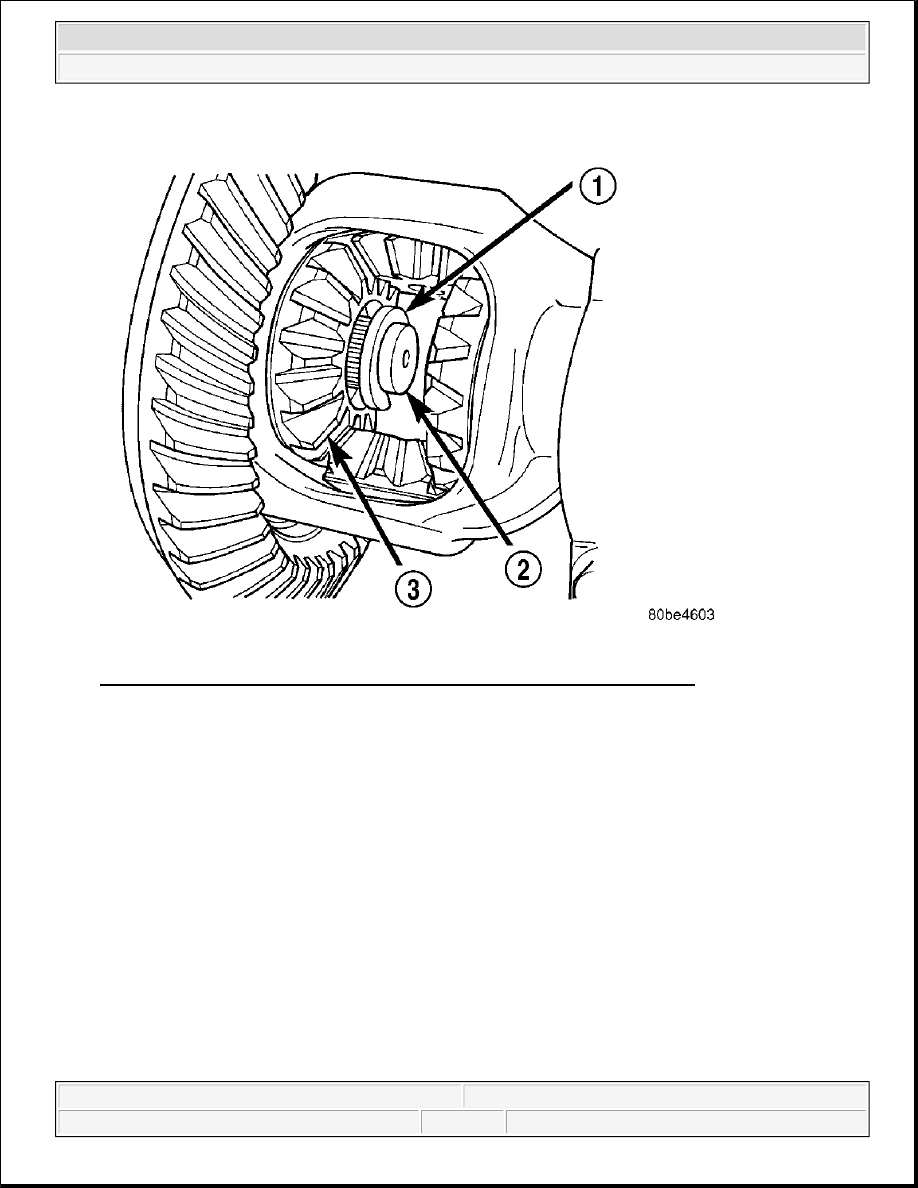

Fig. 271: Identifying Axle Shaft C-Lock, Axle Shaft & Differential Side Gears
Courtesy of CHRYSLER LLC

2. Lubricate bearing bore and seal lip with gear lubricant.

3. Install C-lock (1) in axle shaft end, then push axle shaft outward to seat C-lock in side gear.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

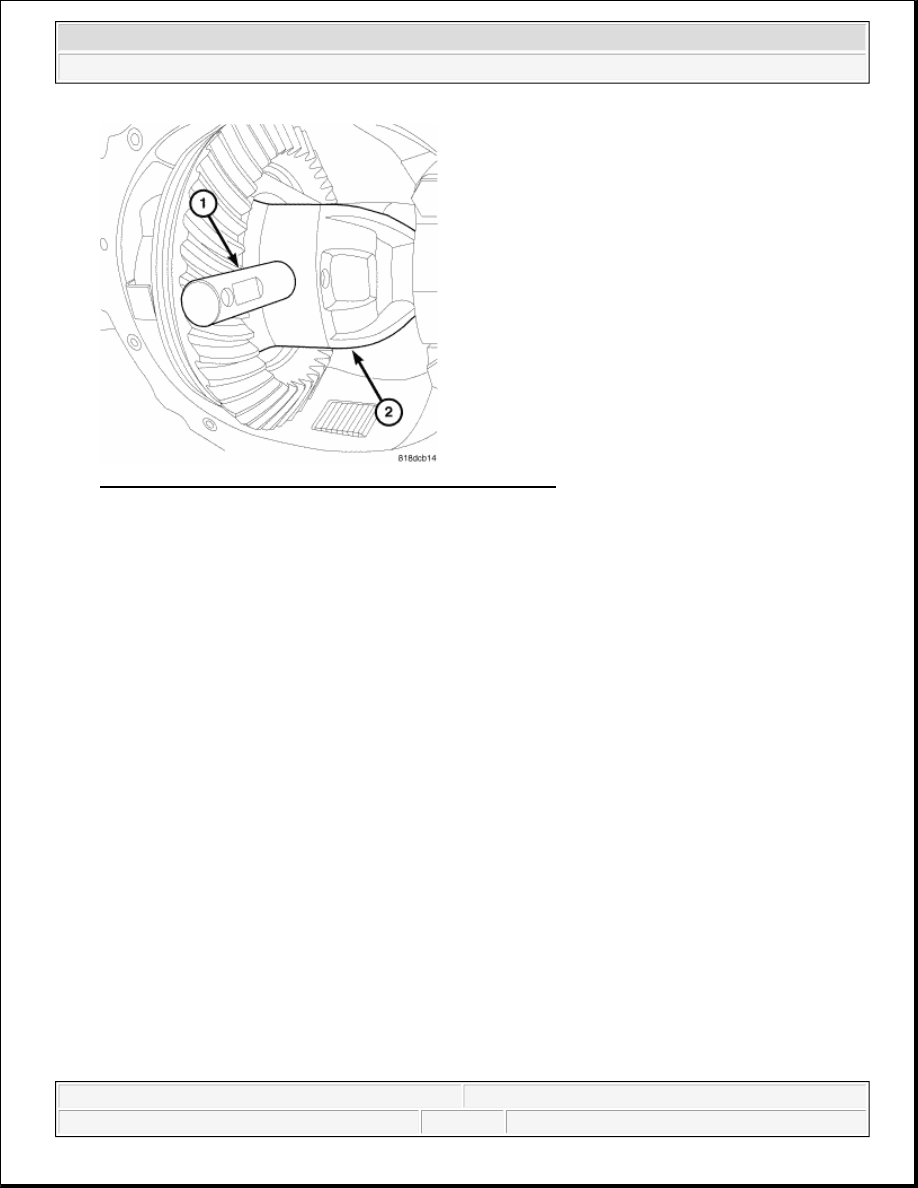

Fig. 272: Identifying Pinion Mate Shaft & Differential Case
Courtesy of CHRYSLER LLC

4. Install pinion mate shaft (1) into differential case (2) and through thrust washers and differential pinions.
