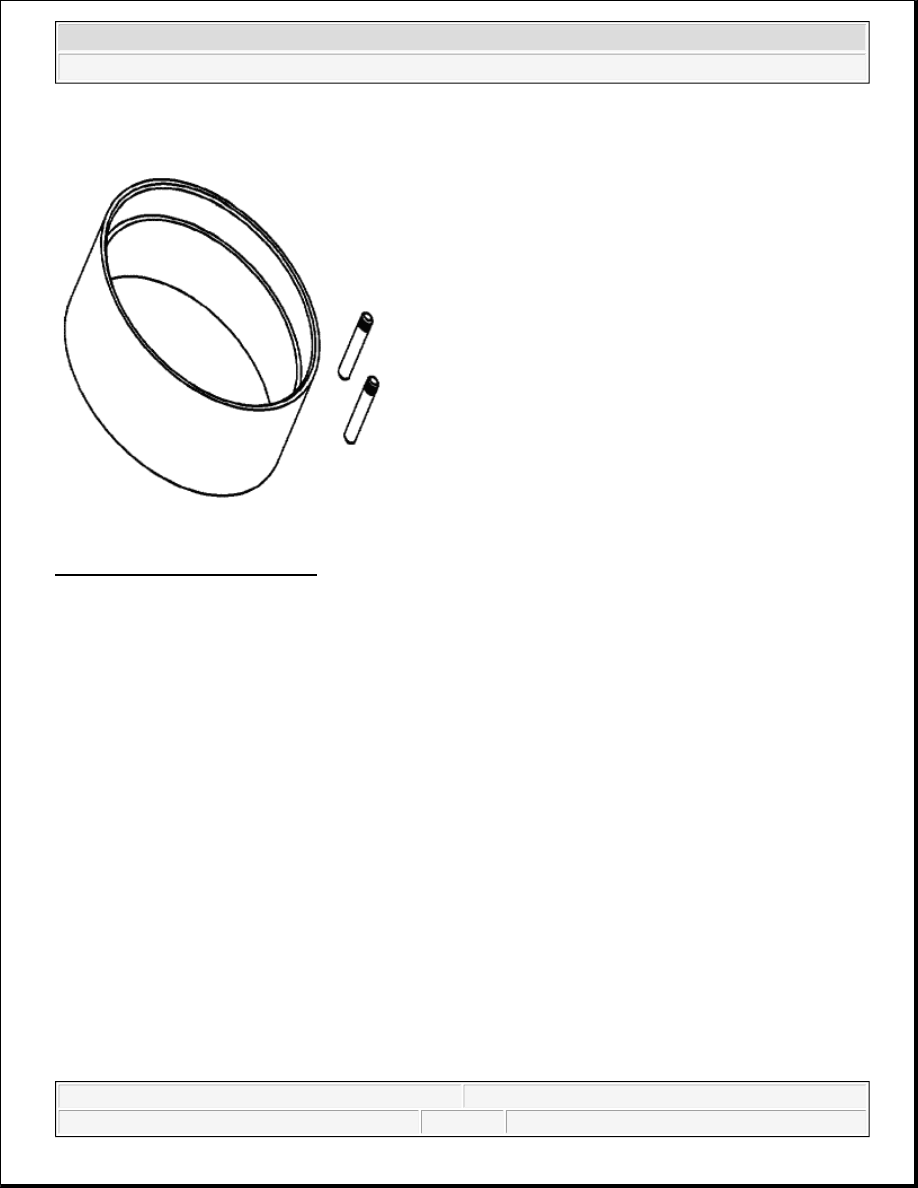

Fig. 264: Remover/Installer 10126
Courtesy of CHRYSLER LLC

COVER-DIFFERENTIAL

REMOVAL

COVER-DIFFERENTIAL

1. With vehicle in neutral, position vehicle on hoist.

2. Remove cover bolts.

3. Remove cover and drain lubricant.

INSTALLATION

COVER-DIFFERENTIAL



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

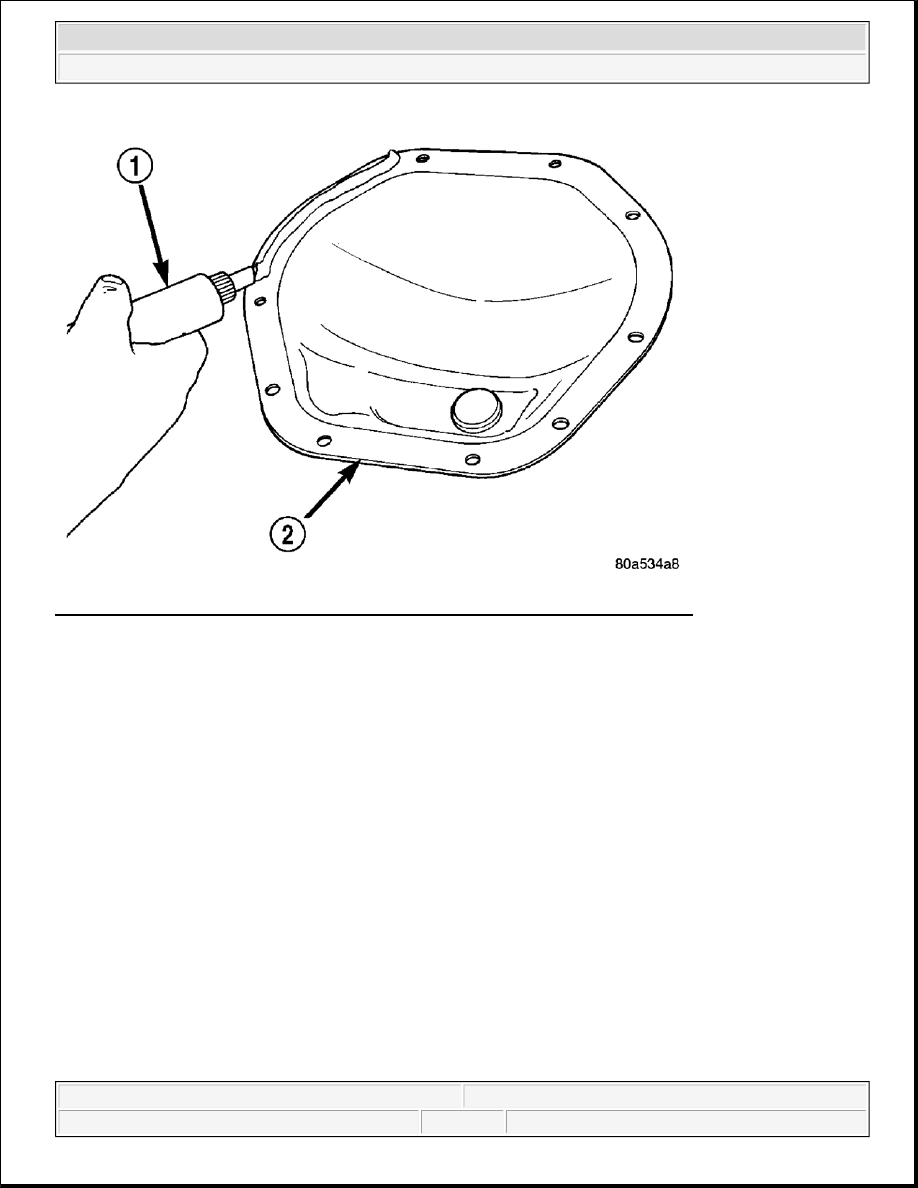

Fig. 265: Applying Bead Of Orange Mopar™ Axle RTV Sealant To Housing Cover
Courtesy of CHRYSLER LLC

1. Apply a bead of orange Mopar™ Axle RTV sealant (1) or equivalent to the housing cover (2).

2. Install cover and identification tag. Tighten cover bolts in a criss-cross pattern to 41 N.m (30 ft. lbs.).

3. Fill differential to specifications.

4. Install fill plug.

SHAFT-AXLE

REMOVAL

SHAFT-AXLE

CAUTION: If cover is not installed within 3 to 5 minutes, the cover must be

cleaned and new RTV applied. Failure to follow these instructions will
cause a leak.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

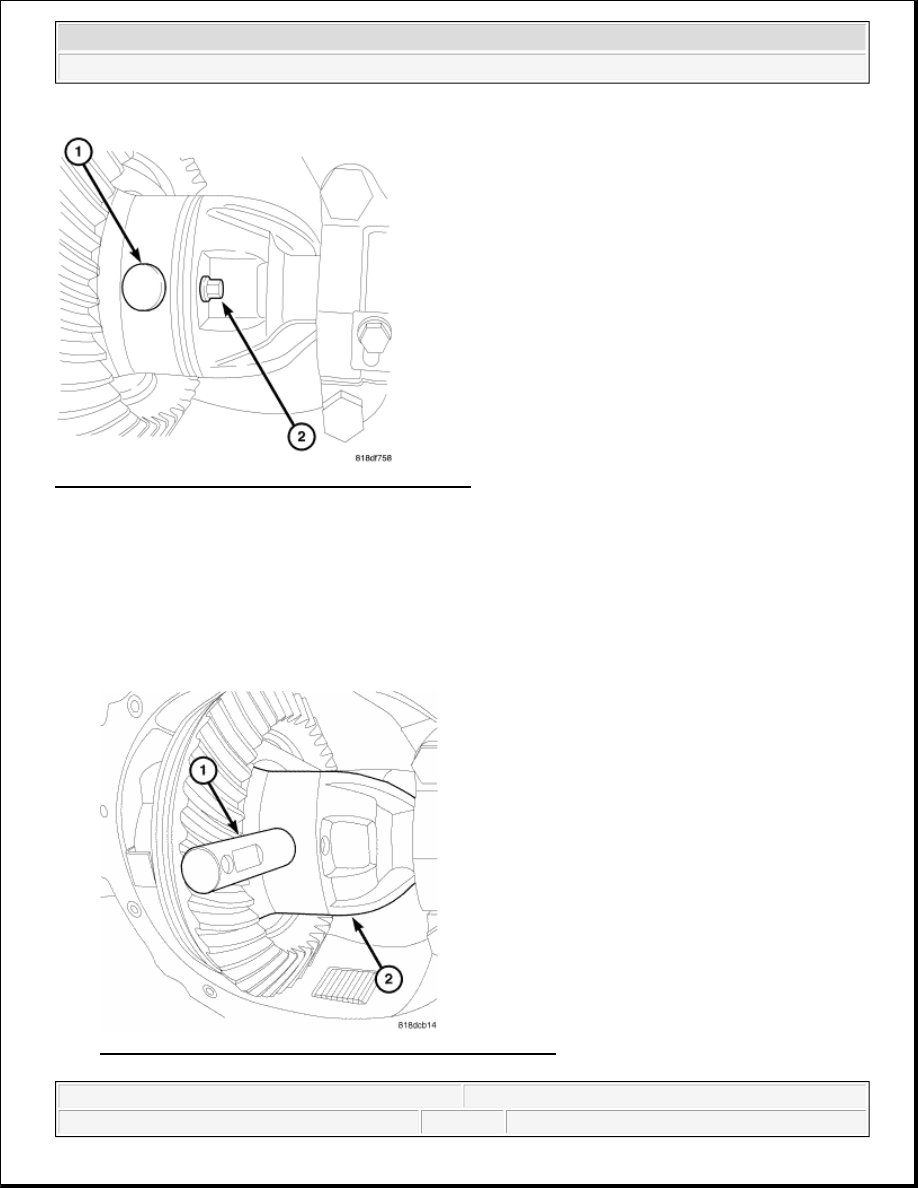

Fig. 266: Identifying Pinion Mate Shaft & Lock Screw
Courtesy of CHRYSLER LLC

1. With vehicle in neutral, position vehicle on hoist.

2. Remove rear brake components.

3. Remove wheel speed sensor.

4. Remove differential housing cover and drain lubricant.

5. Rotate differential case so pinion mate shaft (1) lock screw (2) is accessible. Remove pinion mate shaft

lock screw (2) from differential case.

Fig. 267: Identifying Pinion Mate Shaft & Differential Case
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



6. Remove pinion mate shaft (1) from differential case (2).

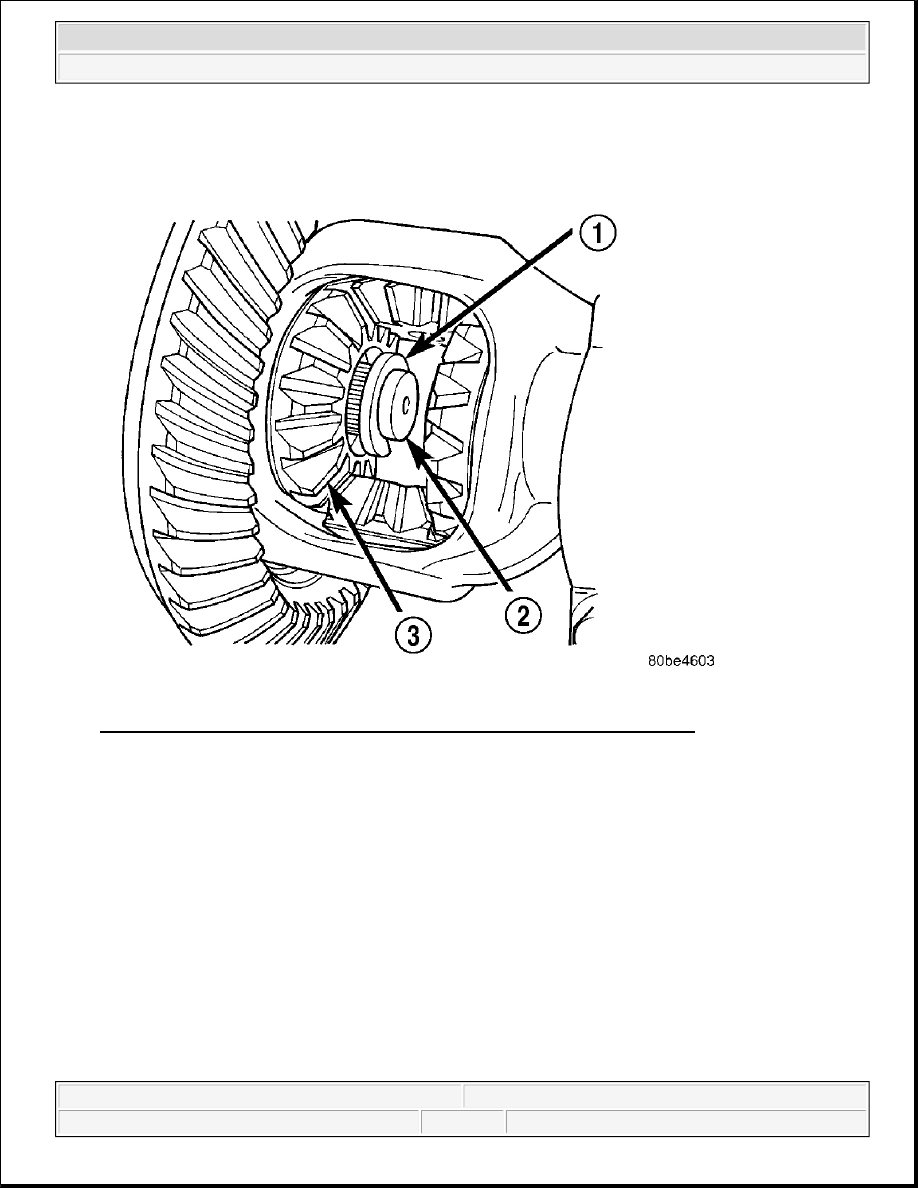

Fig. 268: Identifying Axle Shaft C-Lock, Axle Shaft & Differential Side Gears
Courtesy of CHRYSLER LLC

7. Push axle shaft inward and remove axle shaft C-lock (1) from the axle shaft (2).
