Dodge Nitro. Manual - part 597

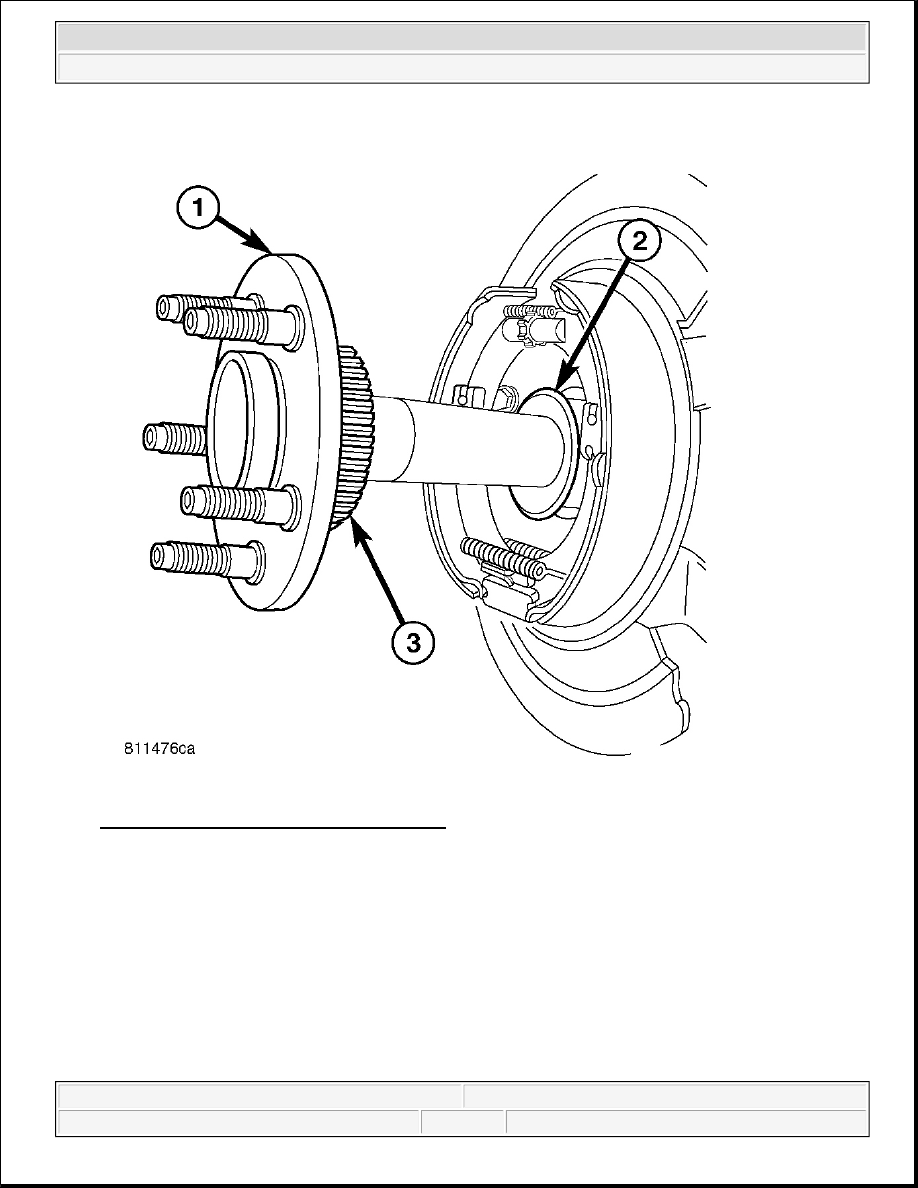

Fig. 277: Identifying Axle Shaft & Axle Tube
Courtesy of CHRYSLER LLC

3. Install axle shaft (1) in axle tube (2).

BEARING-AXLE

REMOVAL

BEARING-AXLE



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



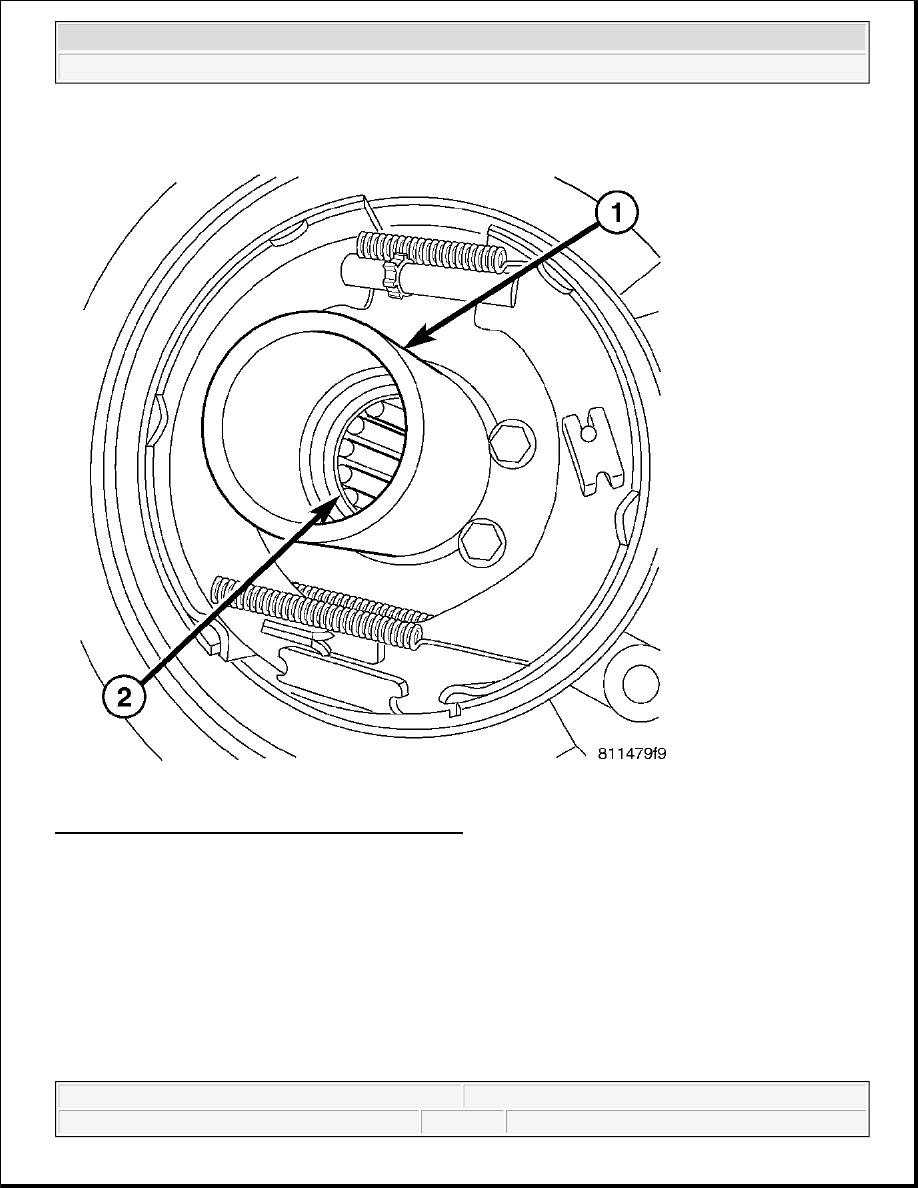

Fig. 278: Positioning Bearing Receiver On Axle Tube
Courtesy of CHRYSLER LLC

1. Remove axle shaft.

2. Remove axle seal with seal pick.

3. Position bearing (2) receiver (1) on axle tube.

NOTE:

Remove bearing with Bearing Remover 6310 and Foot 6310-9.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

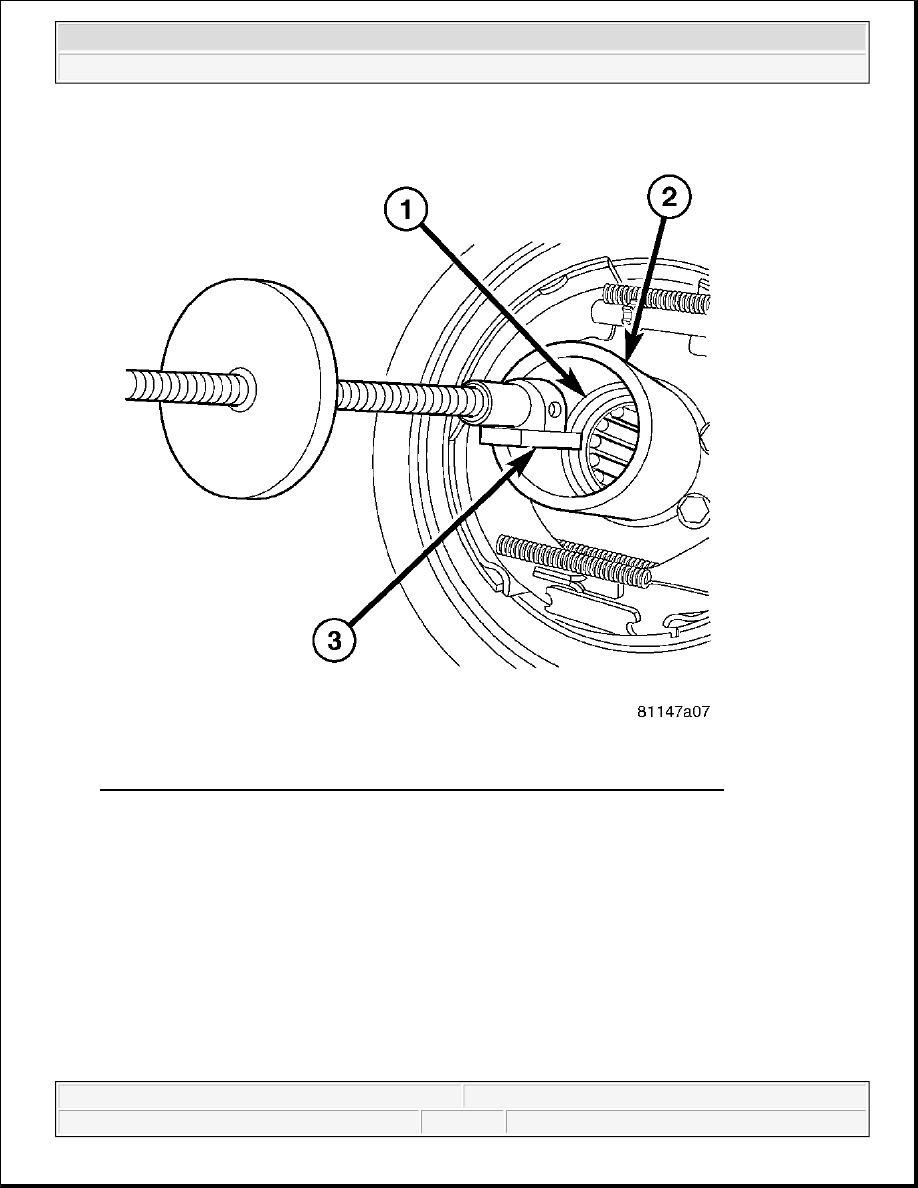

Fig. 279: Inserting Bearing Remover Foot 6310-9 Through Receiver And Bearing
Courtesy of CHRYSLER LLC

4. Insert bearing remover Foot 6310-9 (3) through receiver (2) and bearing (1).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

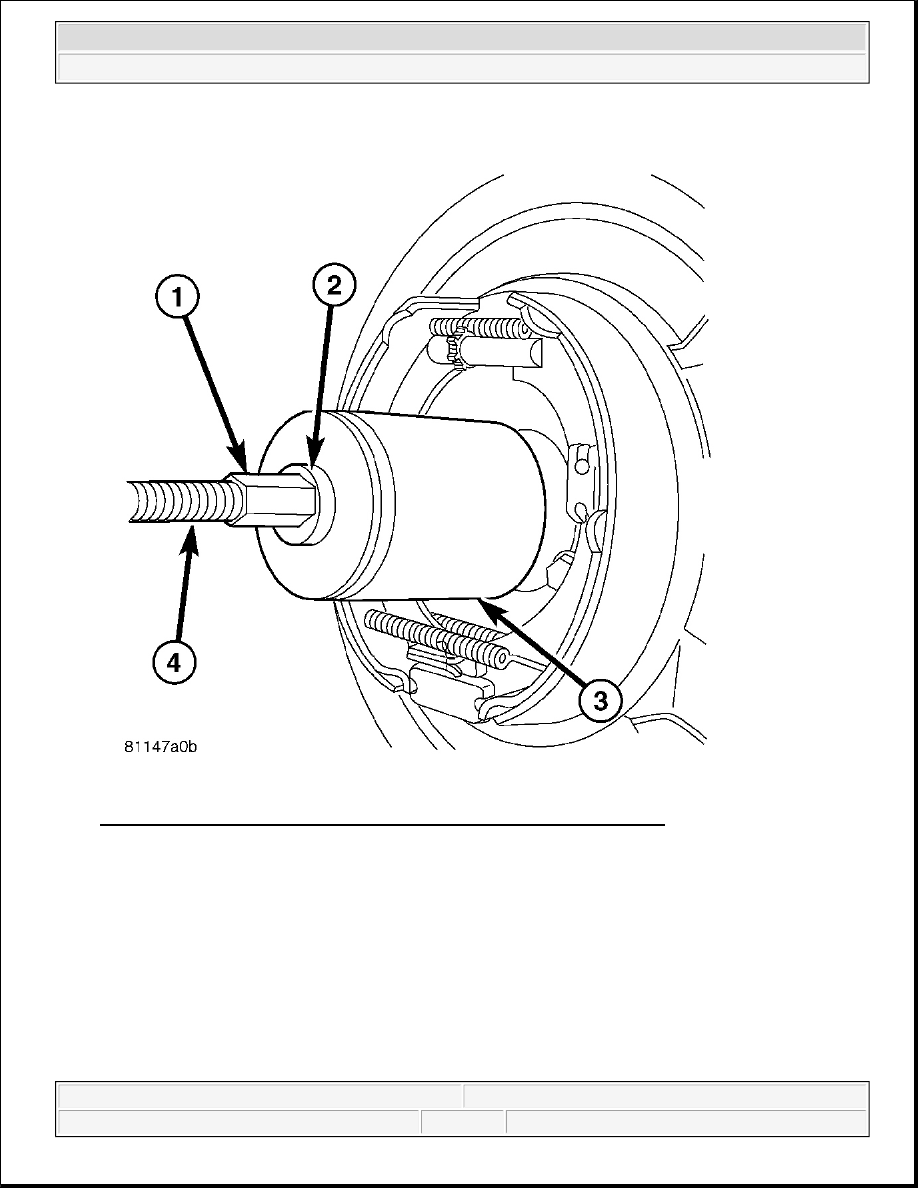

Fig. 280: Tightening Remove Nut On Shaft To Pull Bearing Into Receiver
Courtesy of CHRYSLER LLC

5. Tighten remove nut (1) on the shaft (4) to pull bearing into the receiver (3).

INSTALLATION

BEARING-AXLE



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro
