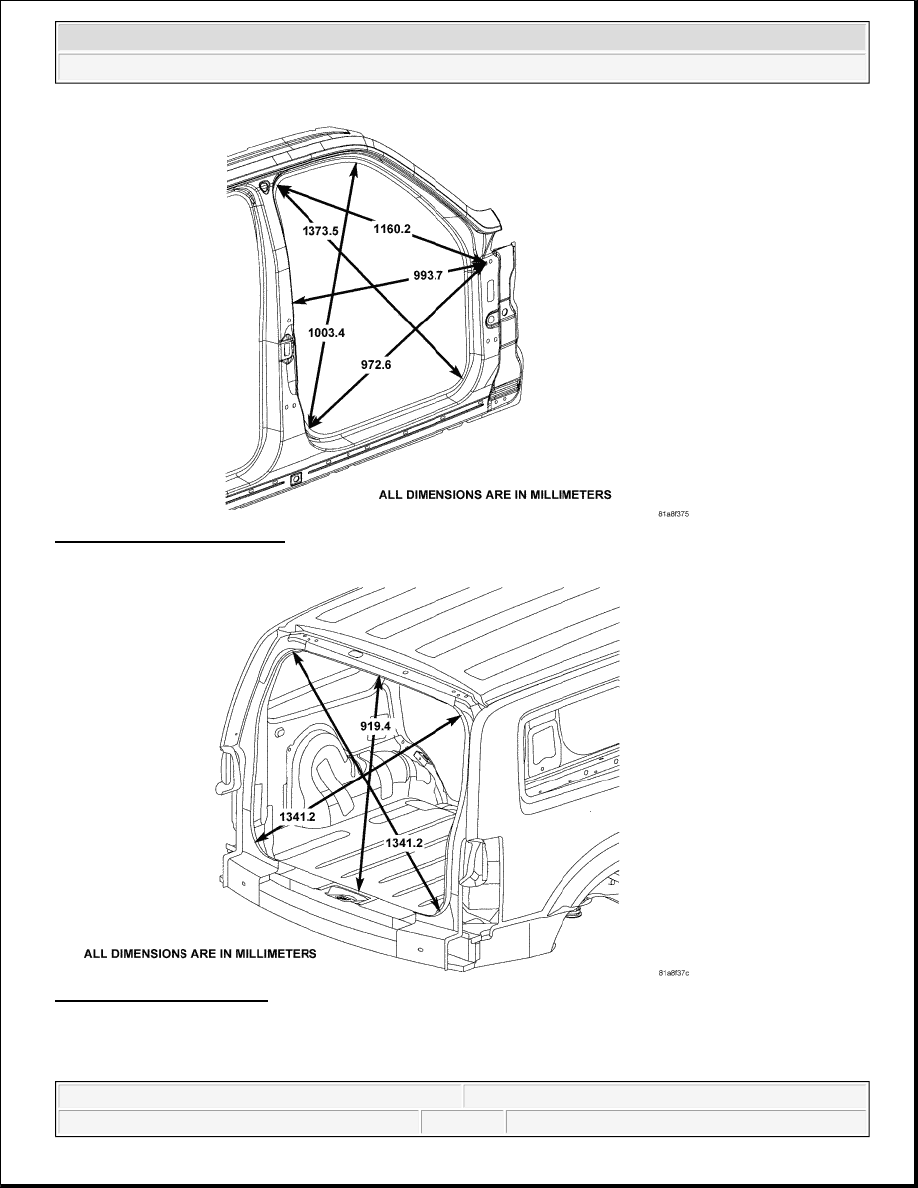

Fig. 619: Front Door Opening
Courtesy of CHRYSLER LLC

Fig. 620: Lift Gate Opening
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

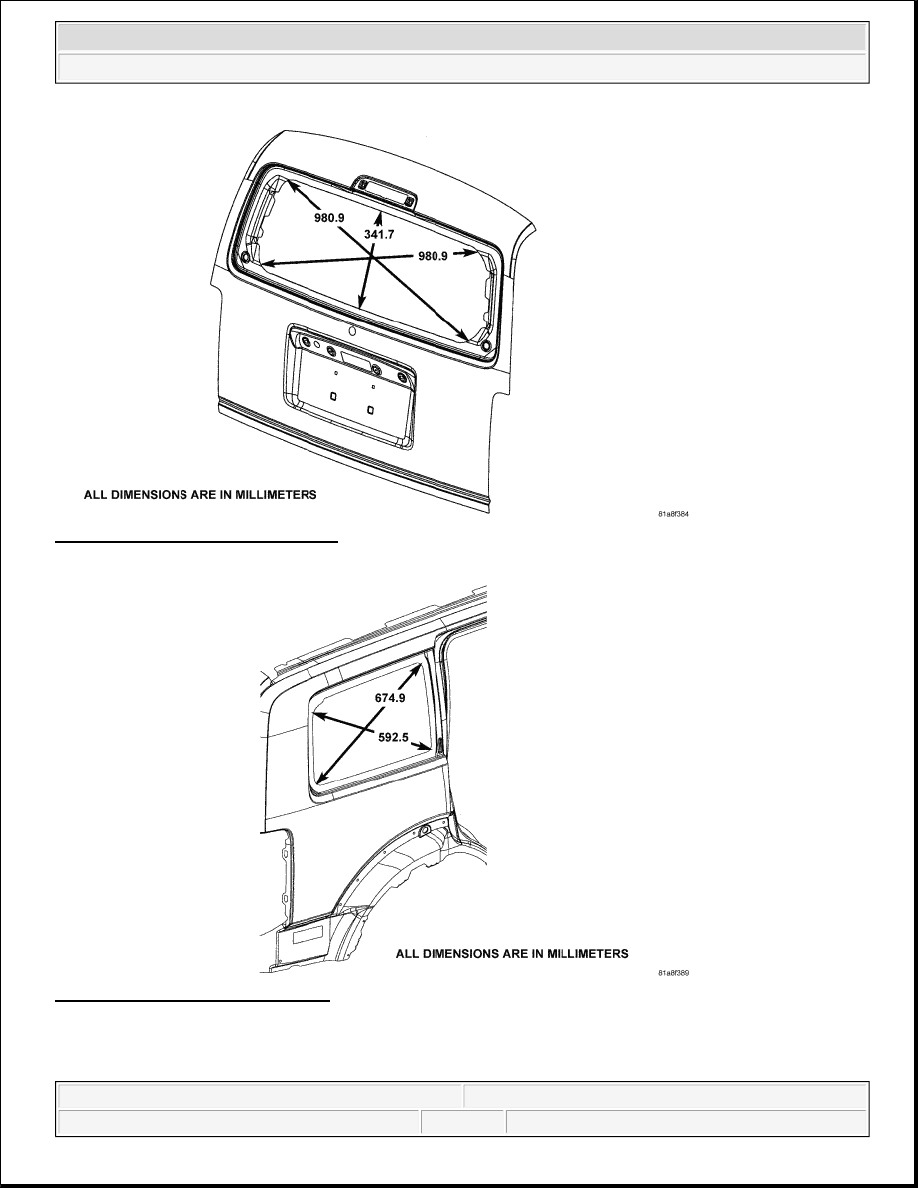

Fig. 621: Lift Gate Window Opening
Courtesy of CHRYSLER LLC

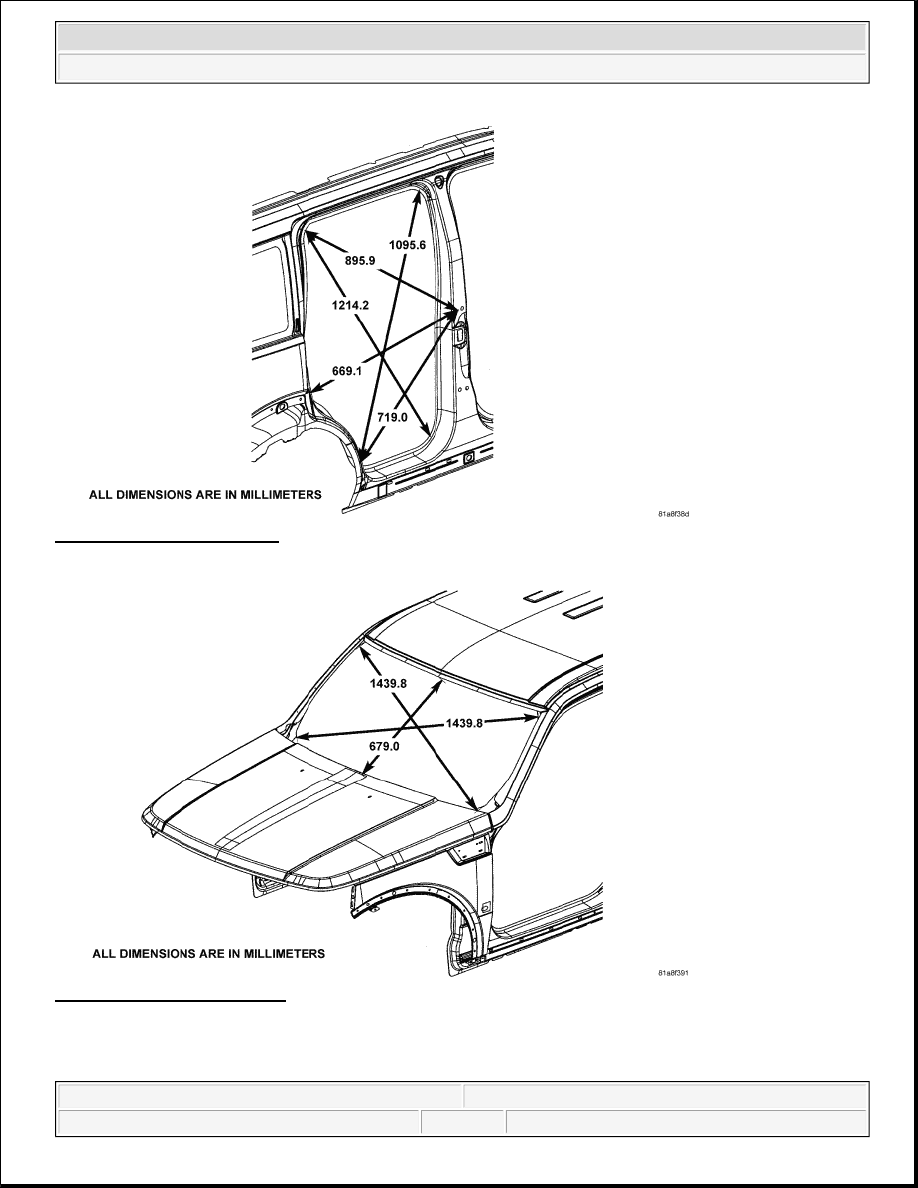

Fig. 622: Quarter Window Opening
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



Fig. 623: Rear Door Opening
Courtesy of CHRYSLER LLC

Fig. 624: Windshield Opening
Courtesy of CHRYSLER LLC

SEALER LOCATIONS



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



SPECIFICATIONS

SEALER LOCATIONS

INDEX

DESCRIPTION

FIGURE

SEALER APPLICATION METHODS

Fig. 625.

A - PILLAR REINFORCEMENT TO BODY SIDE APERTURE AND PLENUM

Fig. 626.

BODY SIDE APERTURE TO ROOF

Fig. 627.

BODY SIDE INNER TO REAR WHEELHOUSE OUTER/INNER

Fig. 628.

DASH TO FRONT FLOOR PAN

Fig. 629.

FRONT FLOOR PAN AND BODY SIDE SILL AND COWL SIDE

Fig. 630.

FLOOR PAN TO BODY SIDE SILL

Fig. 631.

FRONT FLOOR PAN TO REAR FLOOR PAN

Fig. 632.

LIFT GATE DRAIN TROUGH TO BODY SIDE APERTURE

Fig. 633.

LIFT GATE DRAIN TROUGH TO TAIL LAMP OPENING

Fig. 634.

LOWER DASH TO FRONT FLOOR PAN AND COWL SIDE

Fig. 635.

REAR FLOOR PAN TO BODY INNER AND "D" PILLAR REINFORCEMENT

Fig. 636.

REAR FLOOR PAN TO REAR WHEELHOUSE PANEL

Fig. 637.

REAR WHEELHOUSE OUTER FRONT AND REAR PANEL

Fig. 638.

TAIL LAMP CAN

Fig. 639.

TAIL LAMP MOUNTING TO BODY SIDE APERTURE

Fig. 640.

UPPER DASH TO LOWER PLENUM PANEL

Fig. 641.

UPPER DASH TO PLENUM TO COWL SIDE

Fig. 642.

UPPER PLENUM BAFFLE

Fig. 643.

WHEELHOUSE OUTER TO BODY SIDE OUTER

Fig. 644.
