Dodge Nitro. Manual - part 476





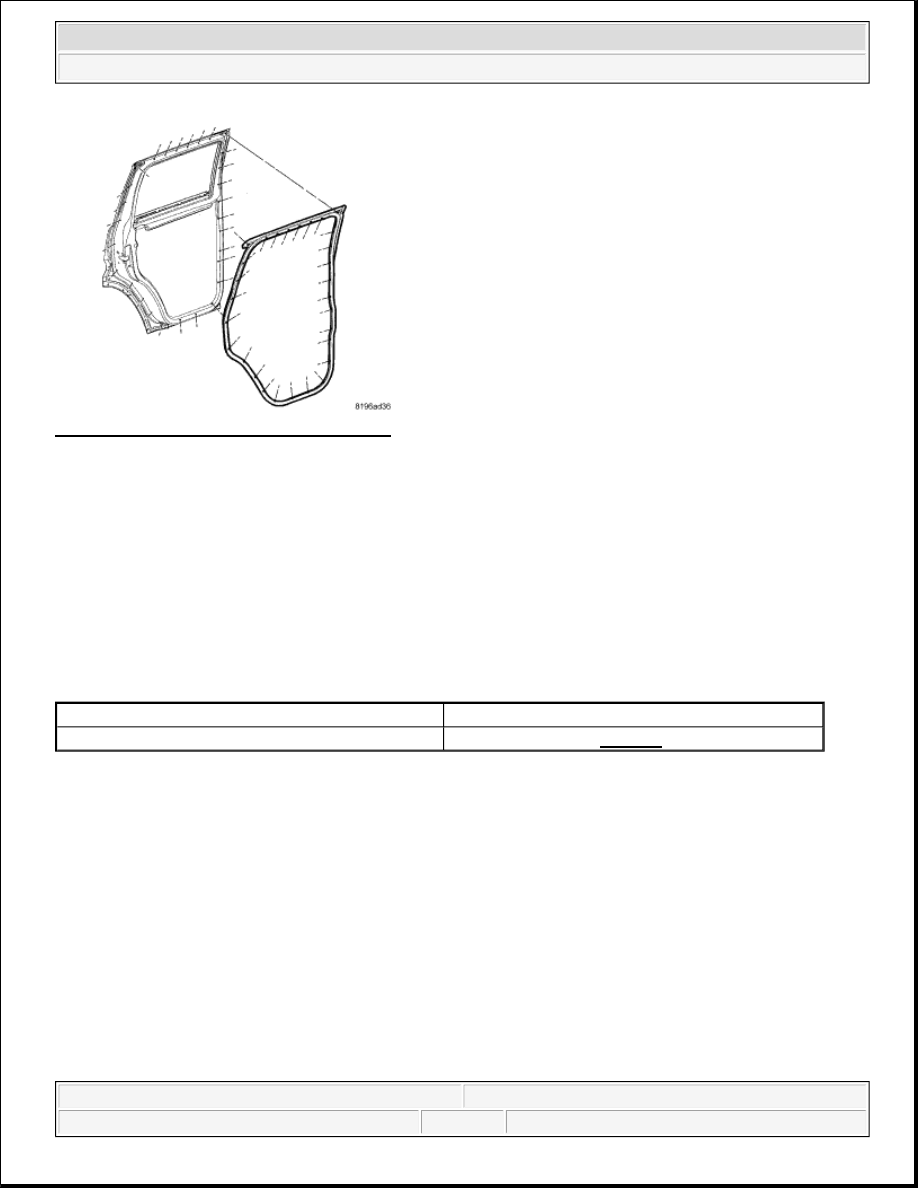

Fig. 616: Rear Door Mounted Weatherstrip
Courtesy of CHRYSLER LLC

1. Position the seal correctly and install the plastic hook style clips on the weatherstrip to the door.

BODY STRUCTURE

GAP AND FLUSH

SPECIFICATIONS

GAP AND FLUSH

INDEX

DESCRIPTION

FIGURE

BODY GAP AND FLUSH

Fig. 617.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



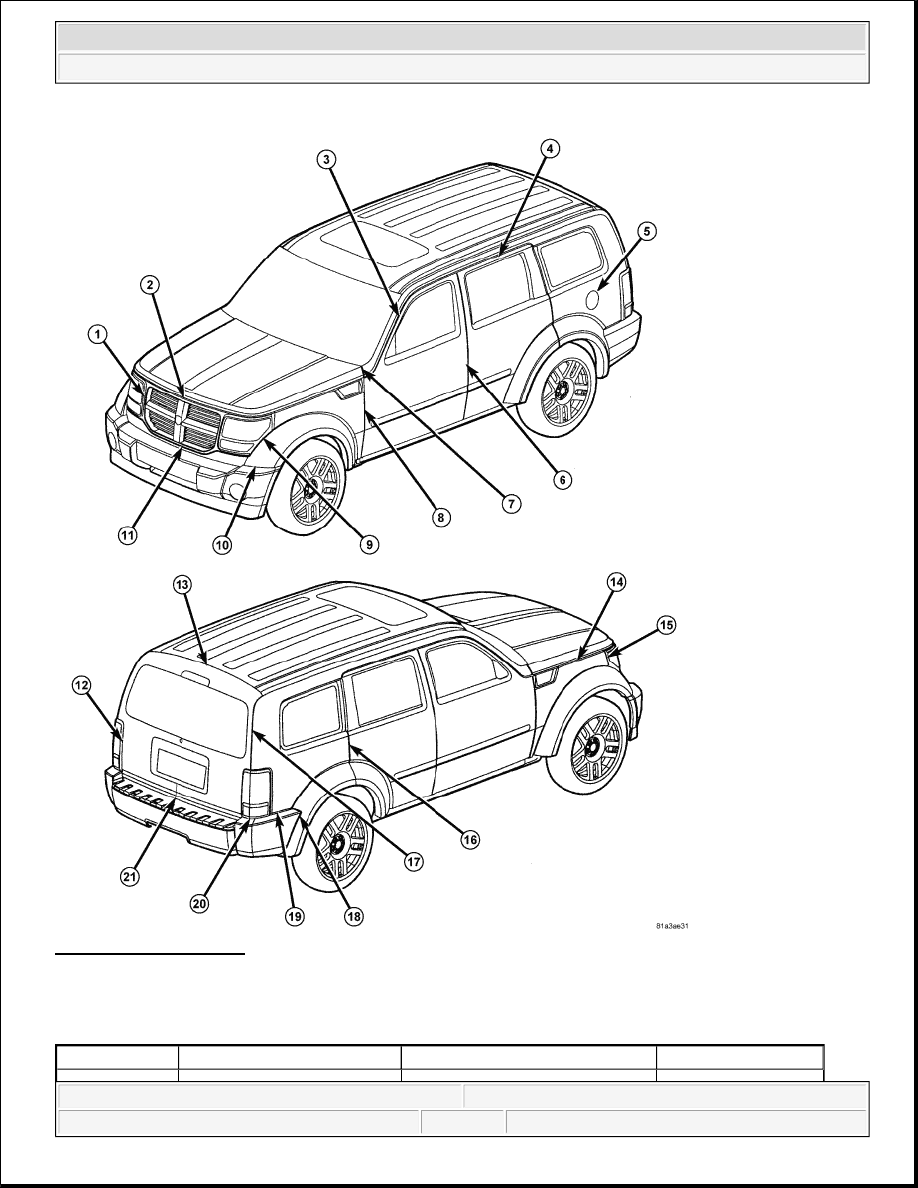

Fig. 617: Gap And Flush
Courtesy of CHRYSLER LLC

NOTE:

All dimensions are in millimeters.

DIMENSION

DESCRIPTION

GAP

FLUSH



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



1

Headlamp to Grille

2.0 +/- 2.0

Parallel within 1.5

U/F -1.0 +/- 2.0

Parallel within 2.0

2

Grille to Hood

7.0 +/- 2.0

Parallel within 1.5

U/F -2.0 +/- 2.0

Parallel within 2.0

3

Front Door to Body Side

4.5 +/- 1.5

Except 7.0 +/- 1.5

@ Front A-pillar

Parallel within 1.5

U/F 1.5 +/- 1.5

Parallel within 1.5

4

Rear Door to Body Side @

Roof

4.5 +/- 1.5

Parallel within 1.5

U/F 1.5 +/- 1.5

Parallel within 1.5

5

Fuel Filler Door to Body Side

3.0 +/- 1.0

Parallel within 1.0

U/F -0.5 +/- 1.0

Parallel within 1.0

6

Front Door to Rear Door

4.5 +/- 1.5

Parallel within 1.5

0.0 +/- 1.5

Parallel within 1.5

7

Hood to Body Side

4.5 +/- 1.5

Parallel within 1.5

O/F 0.5 +/- 1.5

Parallel within 1.5

8

Fender to Front Door

4.5 +/- 1.5

Parallel within 1.5

O/F 1.0 +/-1.5

Parallel within 1.5

9

Fender Flare to Grille

4.0 +/- 2.0

Parallel within 2.0

--

10

Fender Flare to Front Fascia

3.0 +/- 2.0

Parallel within 2.0

--

11

Front Fascia to Grille

4.0 +/- 2.0

Parallel within 2.0

U/F -1.0 +/- 2.0

Parallel within 2.0

12

Tail Lamp to Lift Gate

4.0 +/- 2.0

Parallel within 2.0

--

13

Lift Gate to Roof

9.0 +/- 1.5

Parallel within 1.5

U/F -1.5 +/- 1.5

Parallel within 1.5

14

Hood to Fender

1.0 +/- 1.5

Parallel within 1.5

O/F 1.0 +/- 1.5

Parallel within 1.5

15

Grille to Fender

0.0 +1.0/-0.0

U/F -1.0 +/- 1.5

Parallel within 2.0

16

Rear Door to Body Side

4.5 +/- 1.5

Parallel within 1.5

0.0 +/- 1.5

Parallel within 1.5

17

Lift Gate to Body Side

4.0 +/- 1.0

Parallel within 1.0

U/F -2.0 +/- 1.5

Parallel within 1.5

18

Rear Fascia to Rear Wheel

Flare

3.0 +/- 2.0

Parallel within 2.0

--

19

Rear Fascia to Body Side

0.0 +1.0/-0.0

--

20

Tail Lamp to Rear Fascia

3.0 +/- 2.0

--

21

Lift Gate to Rear Fascia

Cross/Car 4.0 +/- 2.0

Parallel within 2.0

Up/Down 8.0 +/- 2.0

Parallel within 2.0

--



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



OPENING DIMENSIONS

SPECIFICATIONS

OPENING DIMENSIONS

INDEX

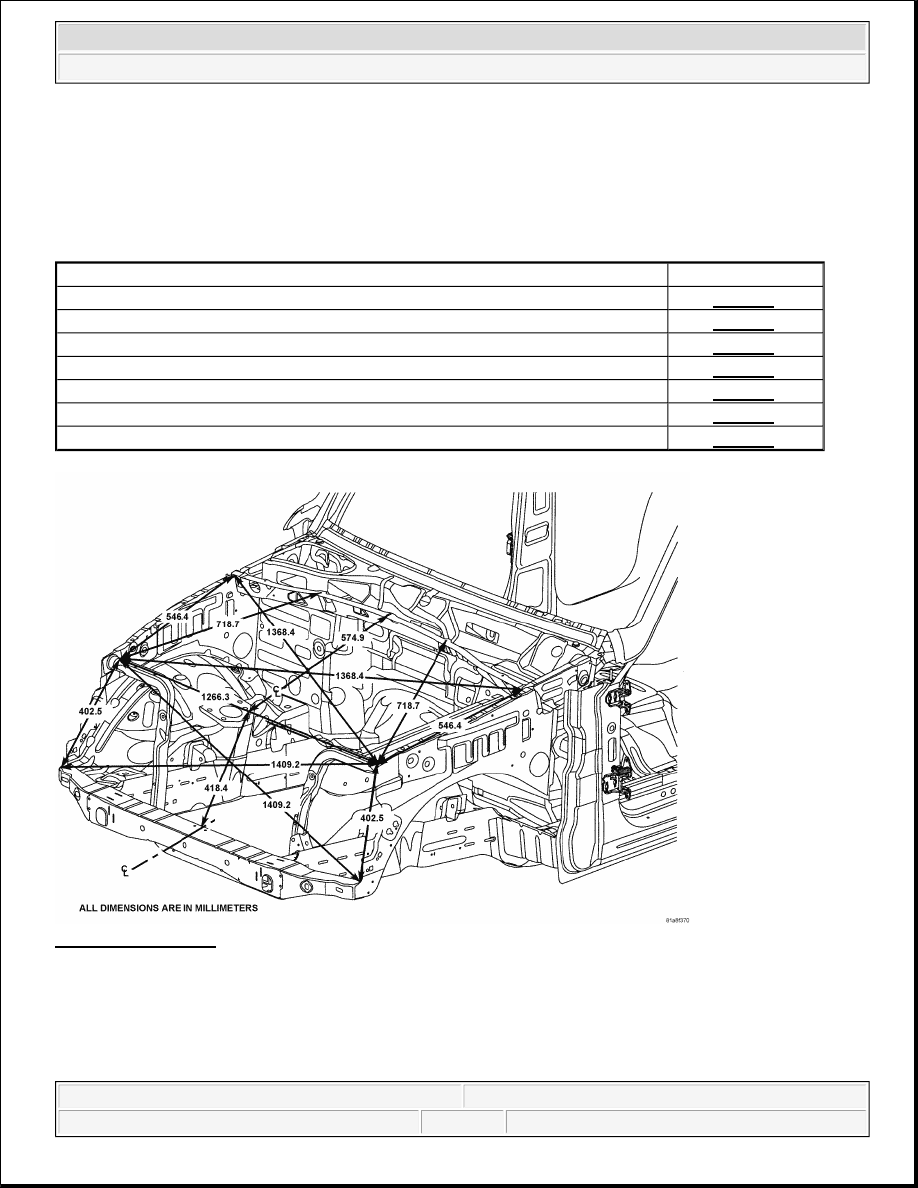

Fig. 618: Engine Box
Courtesy of CHRYSLER LLC

DESCRIPTION

FIGURE

ENGINE BOX

Fig. 618.

FRONT DOOR OPENING

Fig. 619.

LIFT GATE OPENING

Fig. 620.

LIFT GATE WINDOW OPENING

Fig. 621.

QUARTER WINDOW OPENING

Fig. 622.

REAR DOOR OPENING

Fig. 623.

WINDSHIELD OPENING

Fig. 624.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro
