Dodge Nitro. Manual - part 475

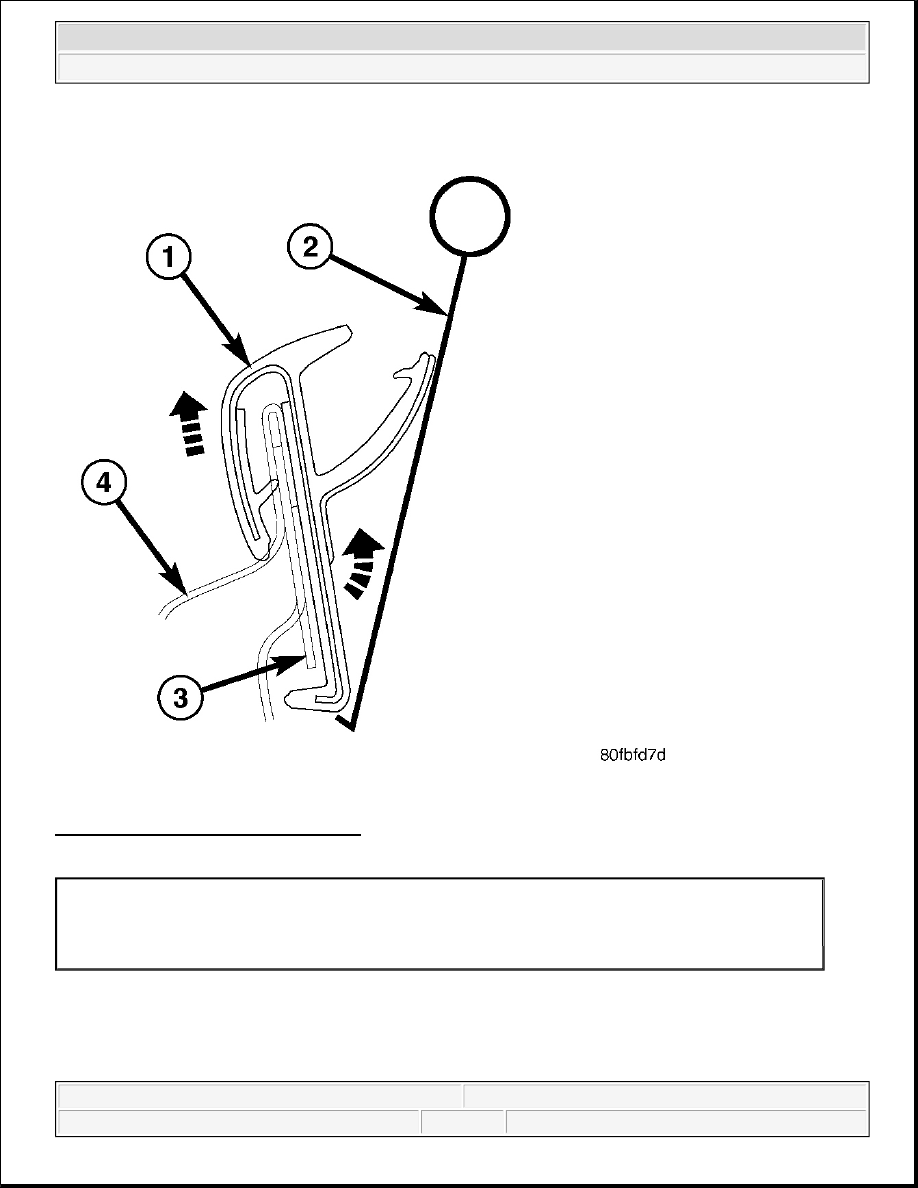

Fig. 610: Removing Outer Belt Molding
Courtesy of CHRYSLER LLC

1. Lower window completely.

2. Insert the outer door belt molding removal tool - 9093 between belt molding and glass at rear and then

slide tool forward approximately 14 cm (5.5 in.).

3. Push down on outer belt molding and rotate upper part of tool outward from vehicle approximately 6 - 8

1 - OUTER BELT MOLDING
2 - SPECIAL TOOL #9093
3 - RETAINING TAB
4 - DOOR OUTER PANEL



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



cm (2.5 - 3 in.) then lift up on molding to disengage from locking tab.

4. Repeat step 2 and 3 at 28 cm (11 in.), 43 cm (17 in.), and 57 cm (22.5 in.) from rear of door.

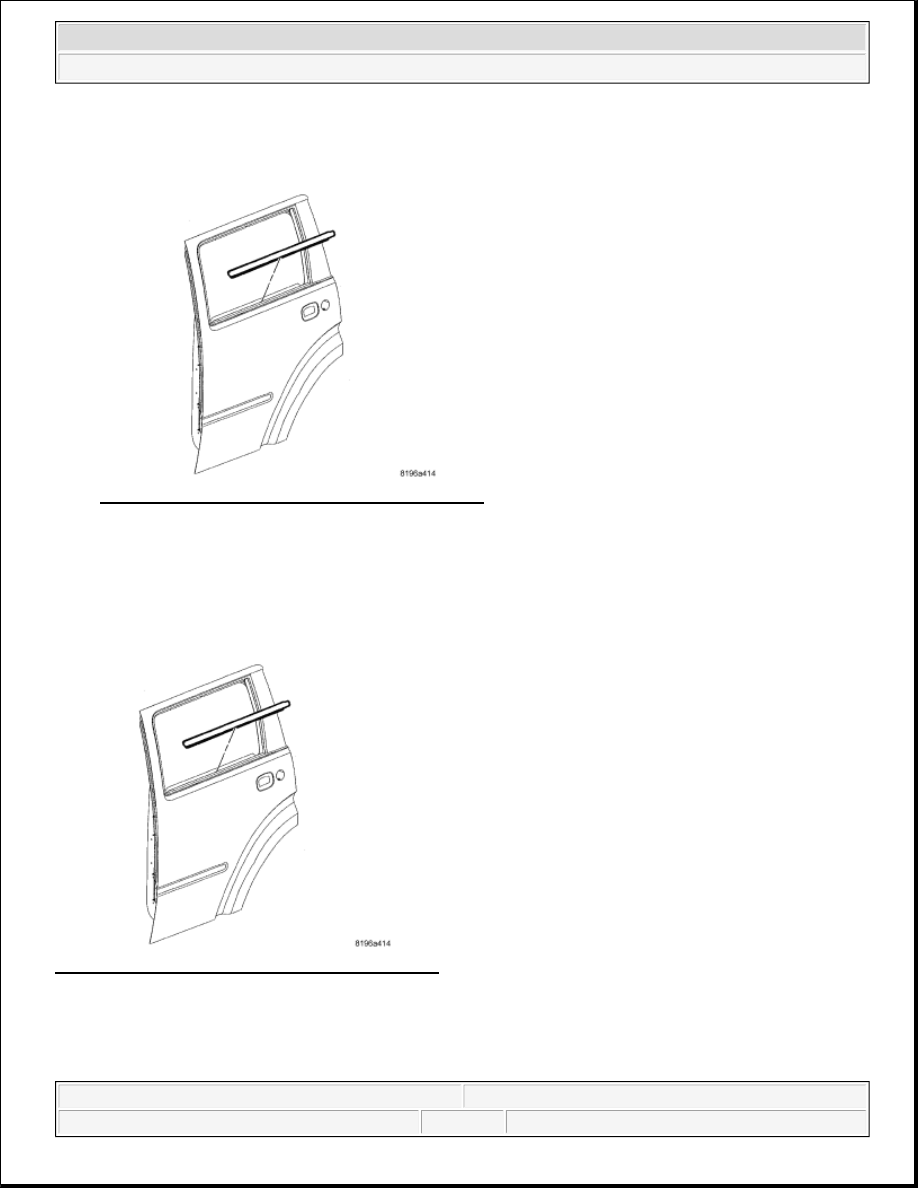

Fig. 611: Removing/Installing Outer Belt Molding
Courtesy of CHRYSLER LLC

5. Remove outer belt molding.

INSTALLATION

WEATHERSTRIP - RDB - OUTER

Fig. 612: Removing/Installing Outer Belt Molding
Courtesy of CHRYSLER LLC

1. Press the outer belt molding onto the outer door window flange starting at the rear and working forward.

2. Cycle the window to make sure the window doesn't bind on the outer belt molding.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



WEATHERSTRIP - REAR DOOR

REMOVAL

WEATHERSTRIP - REAR DOOR

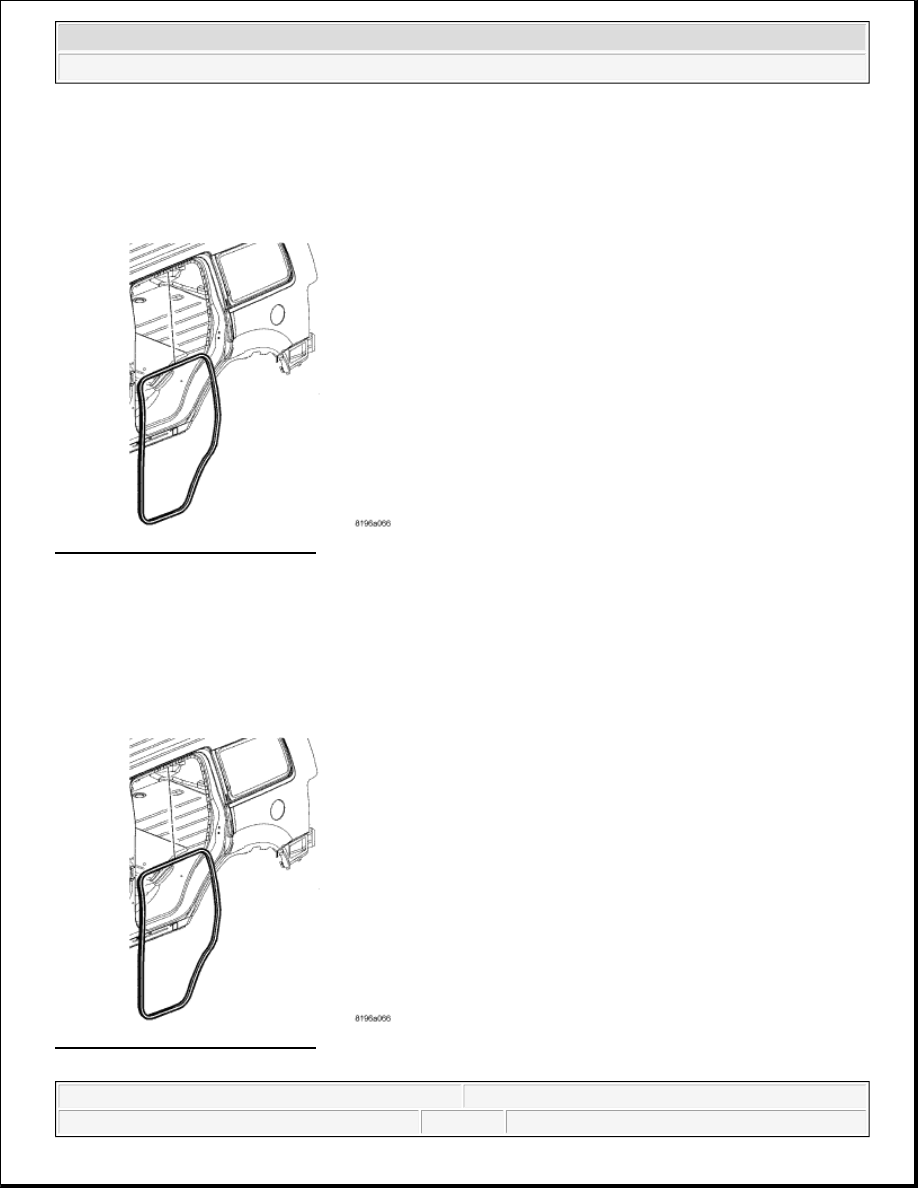

Fig. 613: Rear Door Weatherstrip
Courtesy of CHRYSLER LLC

1. Open the rear door.

2. Remove weatherstrip from the body mount flange.

INSTALLATION

WEATHERSTRIP - REAR DOOR

Fig. 614: Rear Door Weatherstrip
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



1. Install the weatherstrip to the body mount flange.

2. Trim the weatherstrip if necessary, and connect the ends together along the flange.

WEATHERSTRIP - RD - MOUNTED

REMOVAL

WEATHERSTRIP - RD - MOUNTED

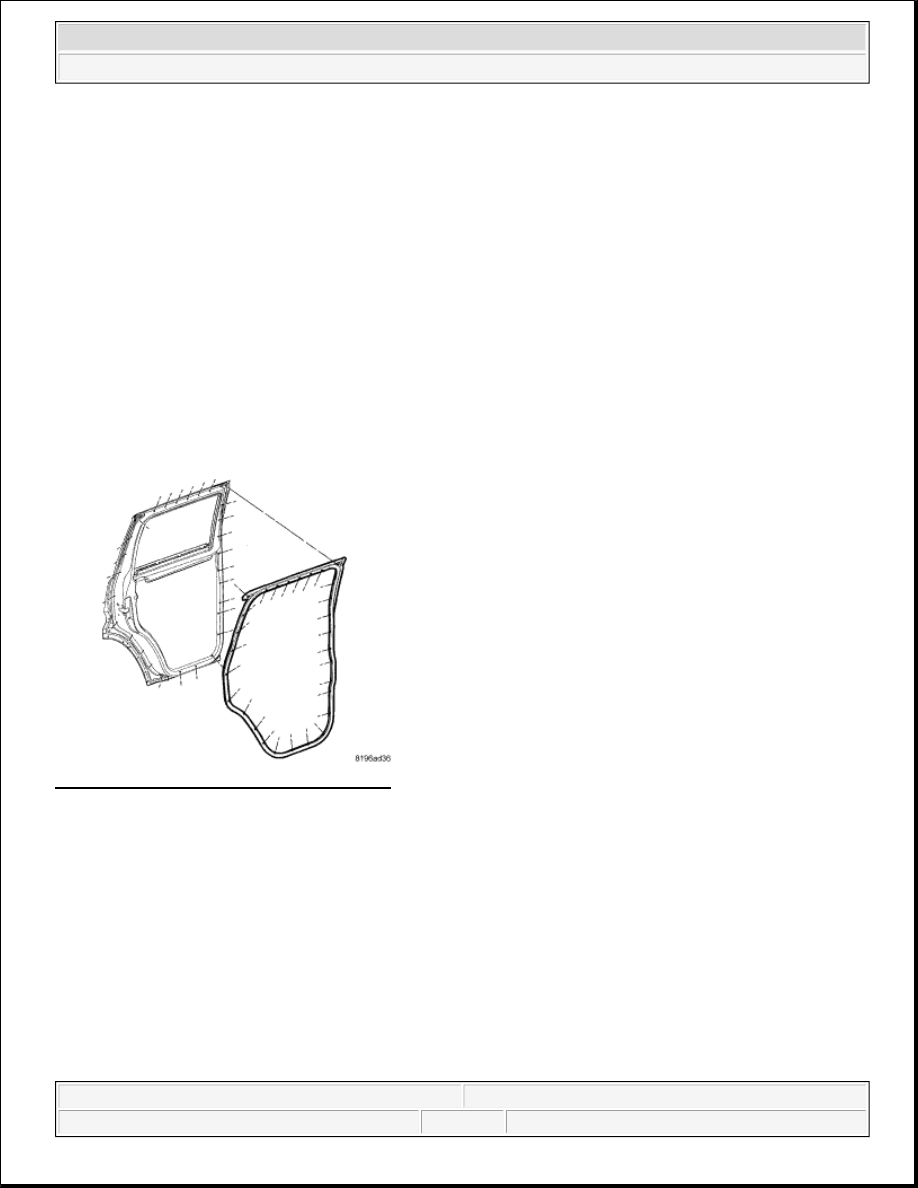

Fig. 615: Rear Door Mounted Weatherstrip
Courtesy of CHRYSLER LLC

1. Carefully remove the plastic hook style clips on the weatherstrip from the door and remove the seal from

the door.

INSTALLATION

WEATHERSTRIP - RD - MOUNTED

NOTE:

Position the seal to the bottom of the door opening, with bulb facing outboard,
starting the installation at the center of the lower flange. Press the seal onto the
sill flange and work around the perimeter of the door opening until fully seated.
Work 1/2 the way around and then start at the other end of the seal working
back, making sure the splice joint has no gap and smoothing the seal to avoid
puckers or wrinkles. If in extreme cold temperatures preheating the
weatherstrip to 23.8°C (75°F) may be required to fully seat the weatherstrip.
