Dodge Nitro. Manual - part 478

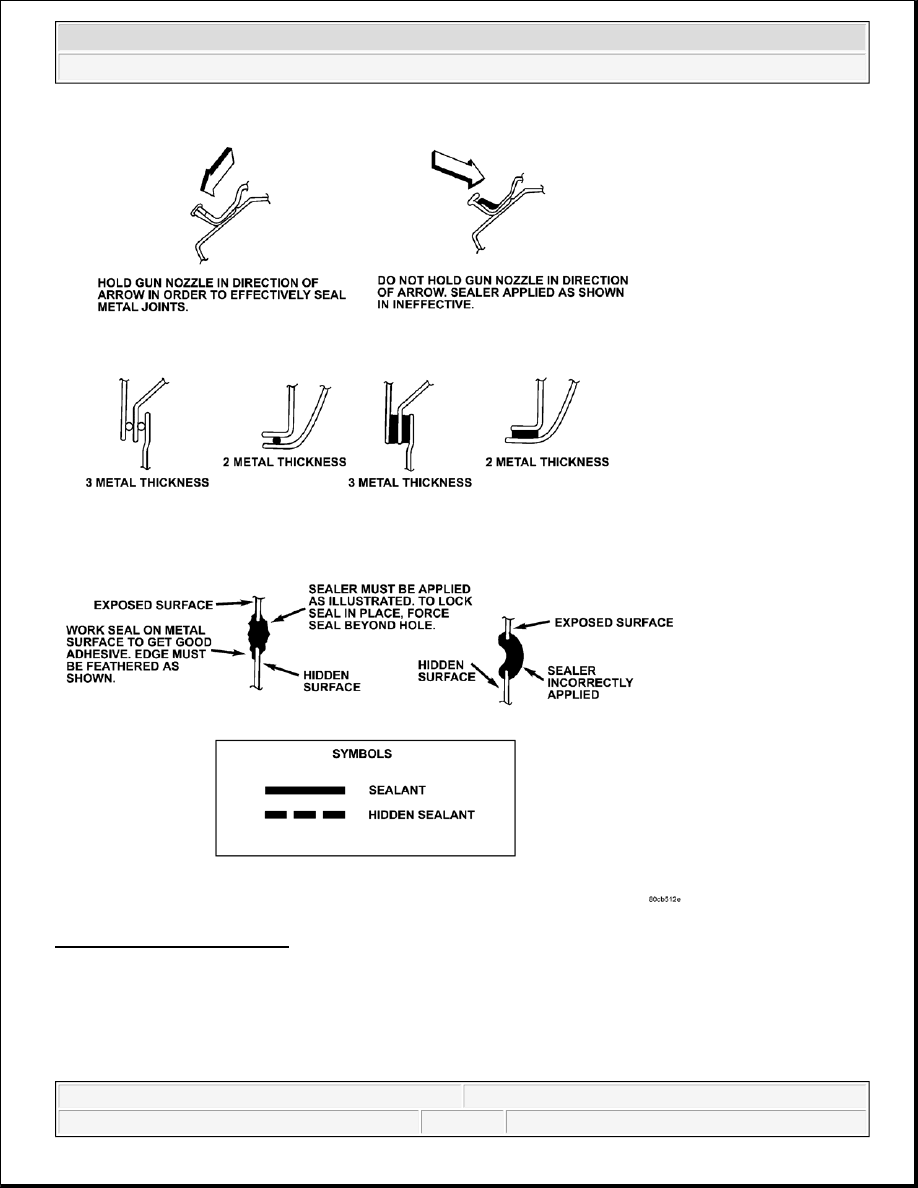

Fig. 625: Application Methods
Courtesy of CHRYSLER LLC

2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

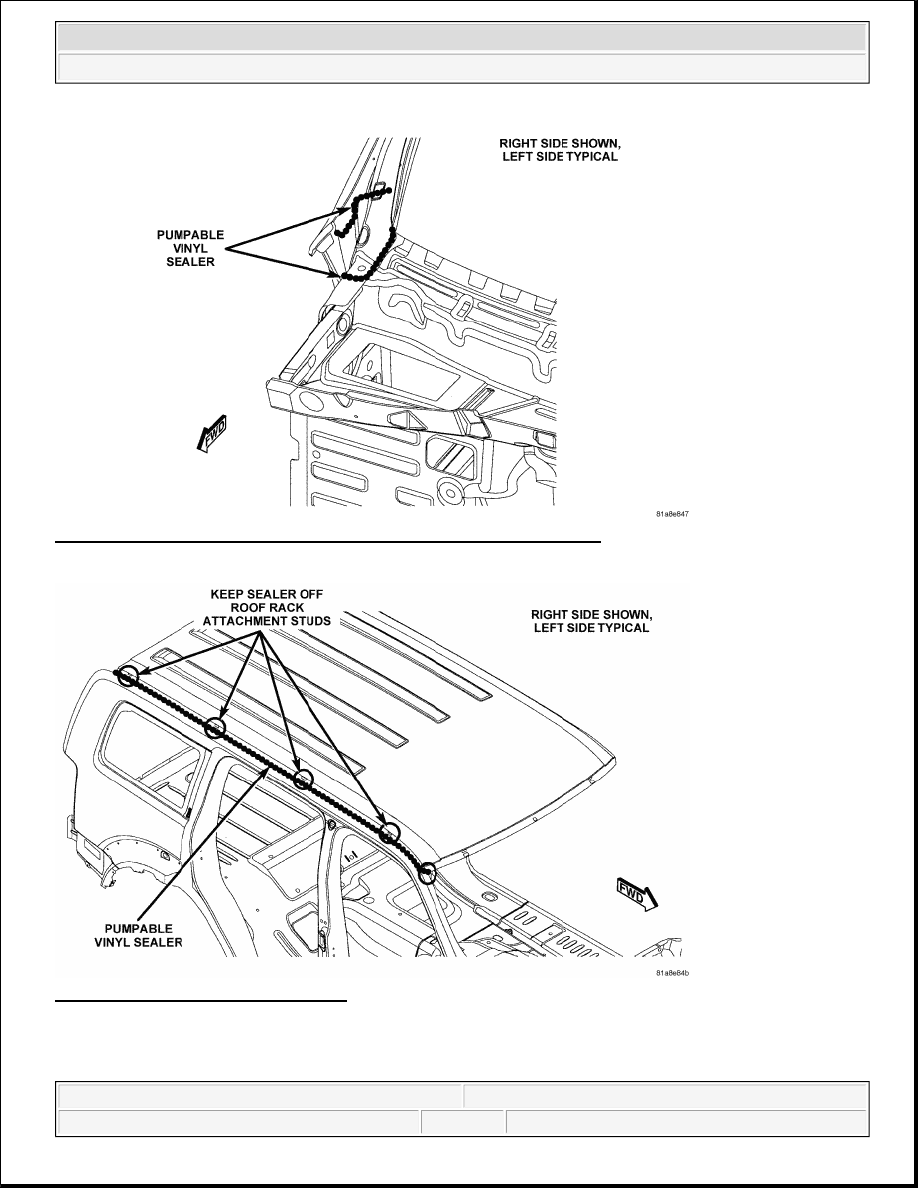

Fig. 626: A - Pillar Reinforcement To Body Side Aperture And Plenum
Courtesy of CHRYSLER LLC

Fig. 627: Body Side Aperture To Roof
Courtesy of CHRYSLER LLC

2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

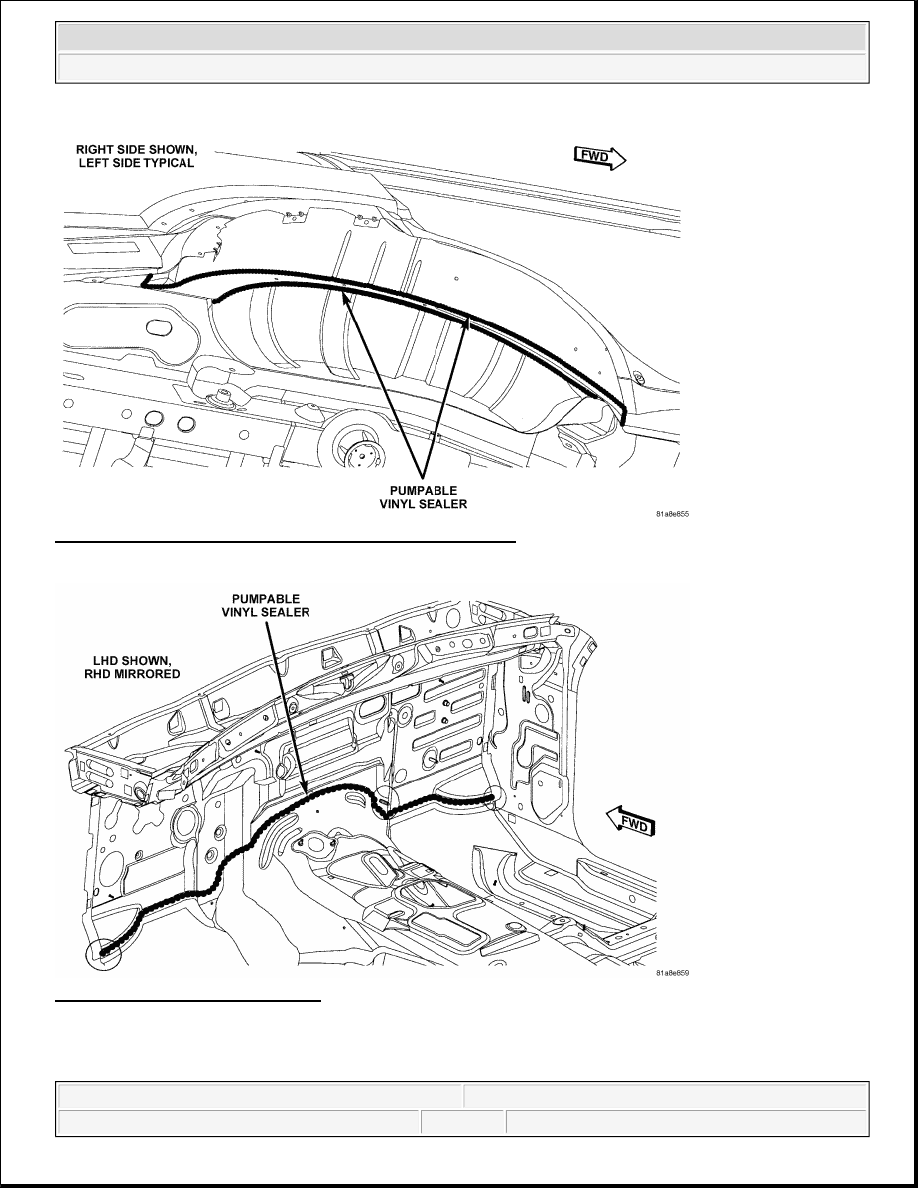

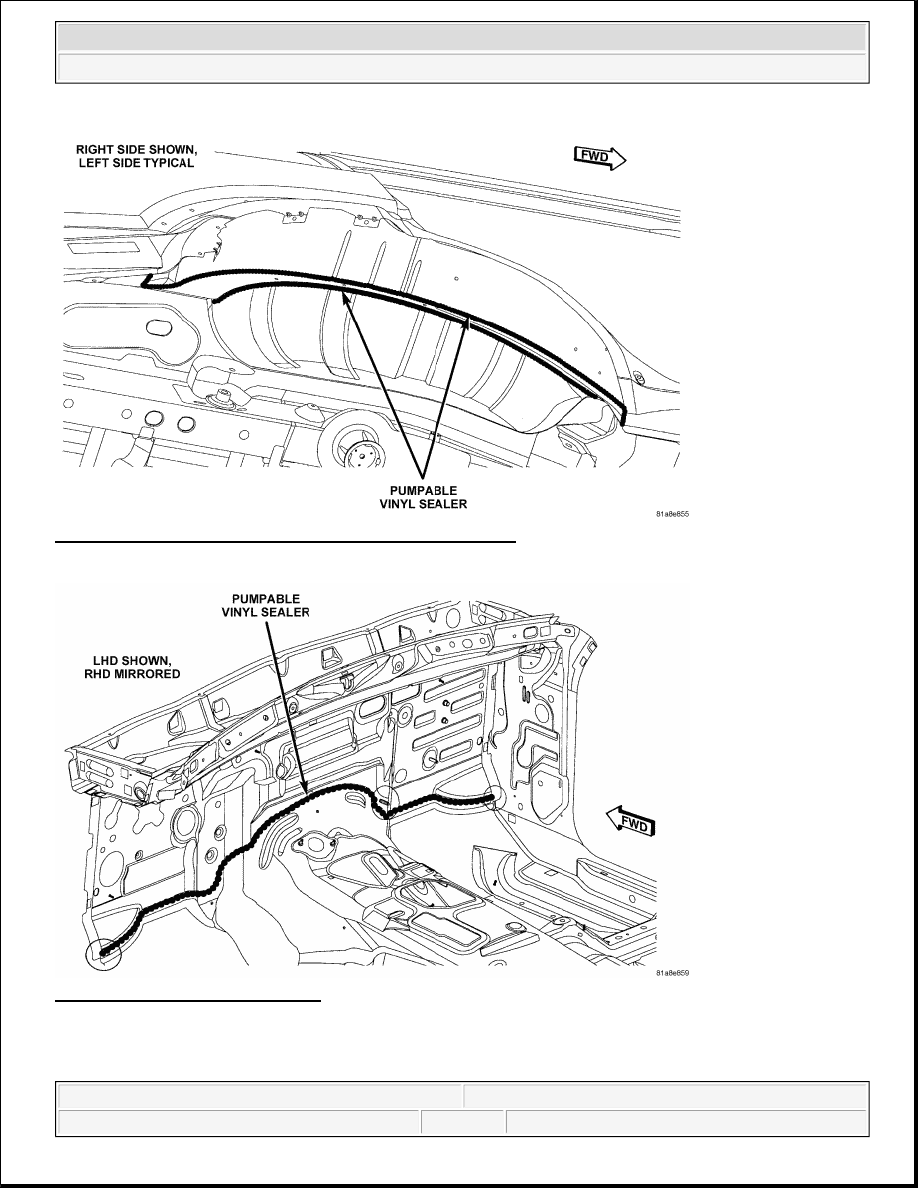

Fig. 628: Body Side Inner To Rear Wheelhouse Outer/Inner
Courtesy of CHRYSLER LLC

Fig. 629: Dash To Front Floor Pan
Courtesy of CHRYSLER LLC

2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

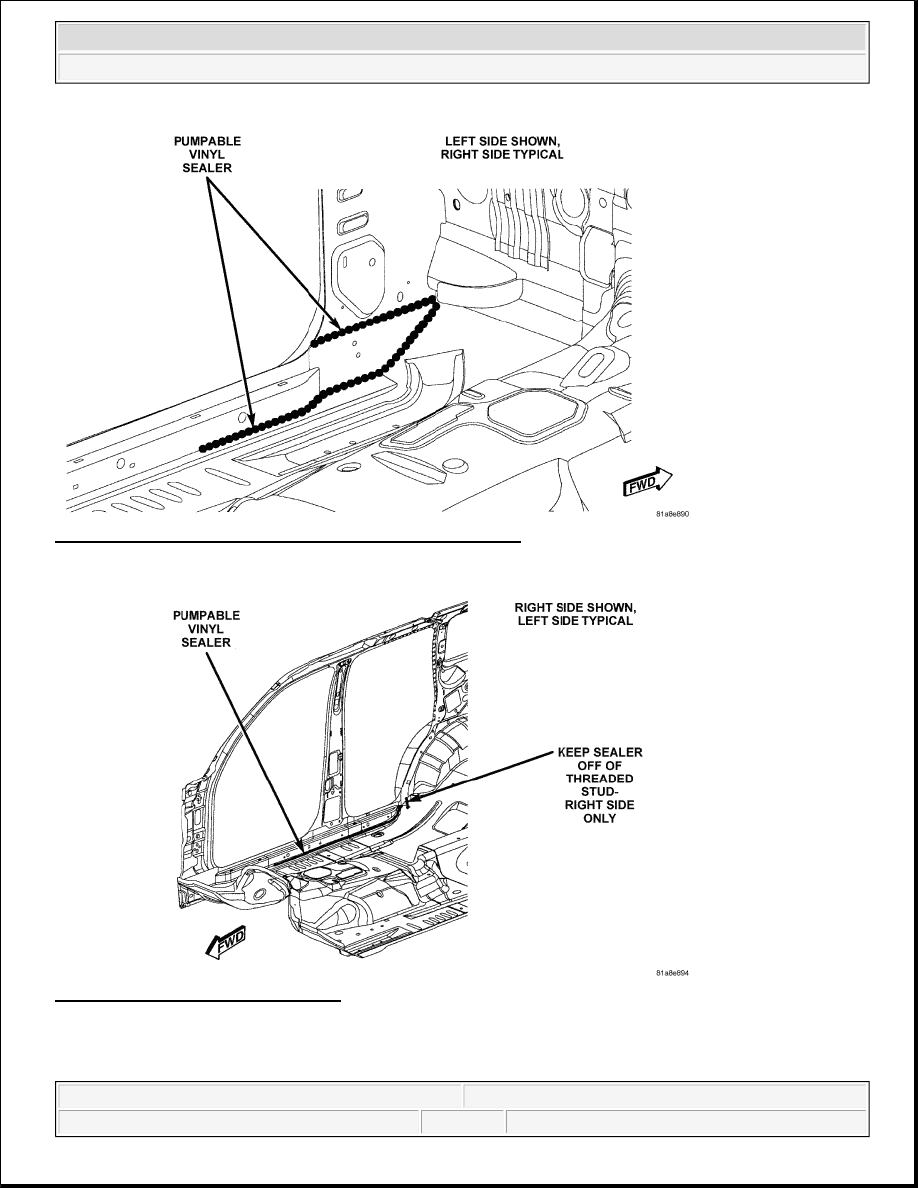

Fig. 630: Front Floor Pan And Body Side Sill And Cowl Side
Courtesy of CHRYSLER LLC

Fig. 631: Floor Pan To Body Side Sill
Courtesy of CHRYSLER LLC

2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro
