Fig. 501: Right Hinge Bolts
Courtesy of CHRYSLER LLC

5. Remove the bolts (1) from the right hinge.

Fig. 502: 60 Seat Back Seat Belt Trim
Courtesy of CHRYSLER LLC

6. Remove the seat belt trim from the top of the seat cushion.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



Fig. 503: Depressing Tabs On Head Rest Guide And Removing From Top Of Seat Cushion
Courtesy of CHRYSLER LLC

7. Depress the tabs (3) on the head rest guide (1) and remove from the top of the seat cushion (2).

8. Remove the seat belt through the cover and cushion.

9. Remove the cover and cushion from the seat back frame.

10. Position the seat cover to expose the hog rings and cut off all hog rings to separate the cover from the

cushion.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

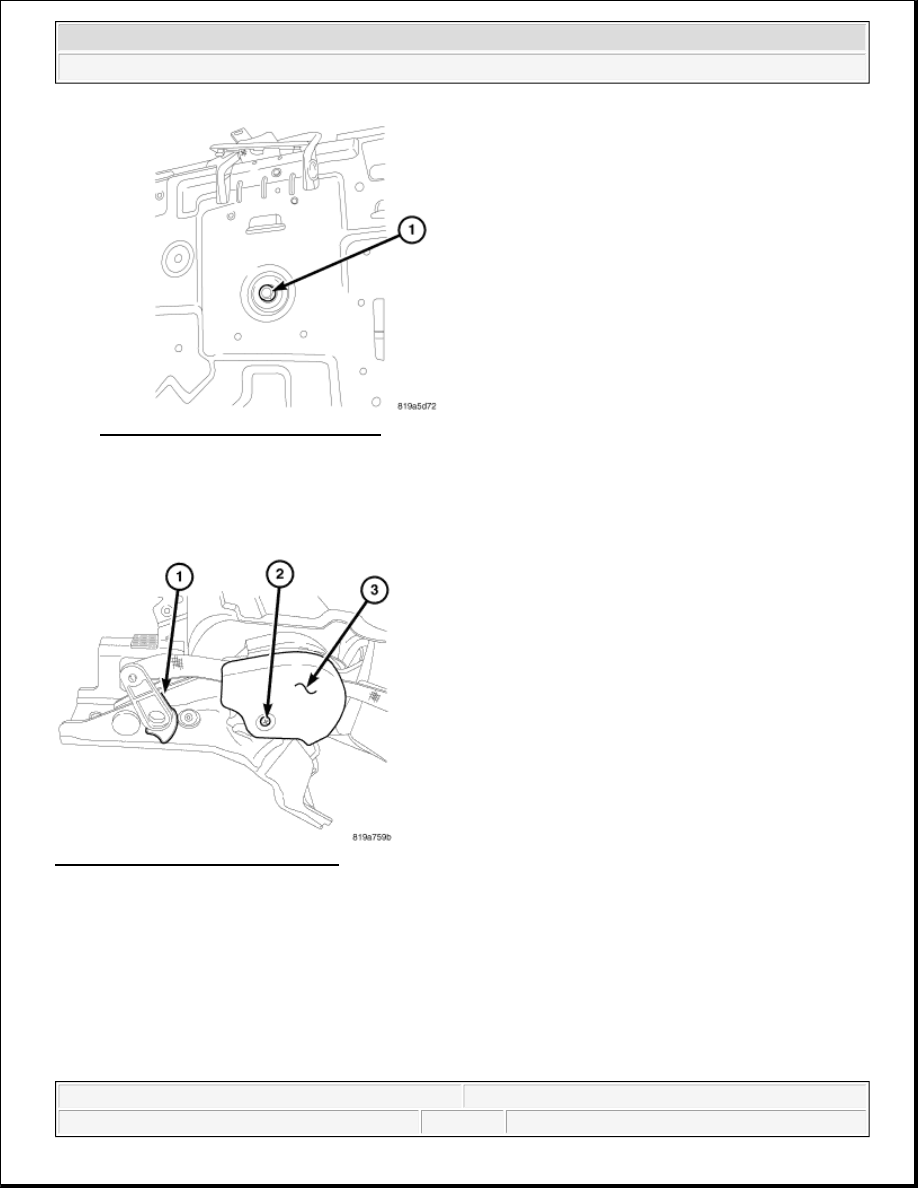

Fig. 504: 60 Seat Back Seat Belt Bolt
Courtesy of CHRYSLER LLC

11. Remove the bolt retaining the seat belt assembly from the seat back frame.

60/40 Seat Back- 40

Fig. 505: 40 Seat Floor Bracket Trim
Courtesy of CHRYSLER LLC

1. Trace (1) an outline of the recliner handle. Remove screw (2) and the floor bracket trim (3) from the

hinge.

NOTE:

Mark the position of the recliner handle prior to removal. This will make sure
that the recliner handle is in the proper position after installation.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

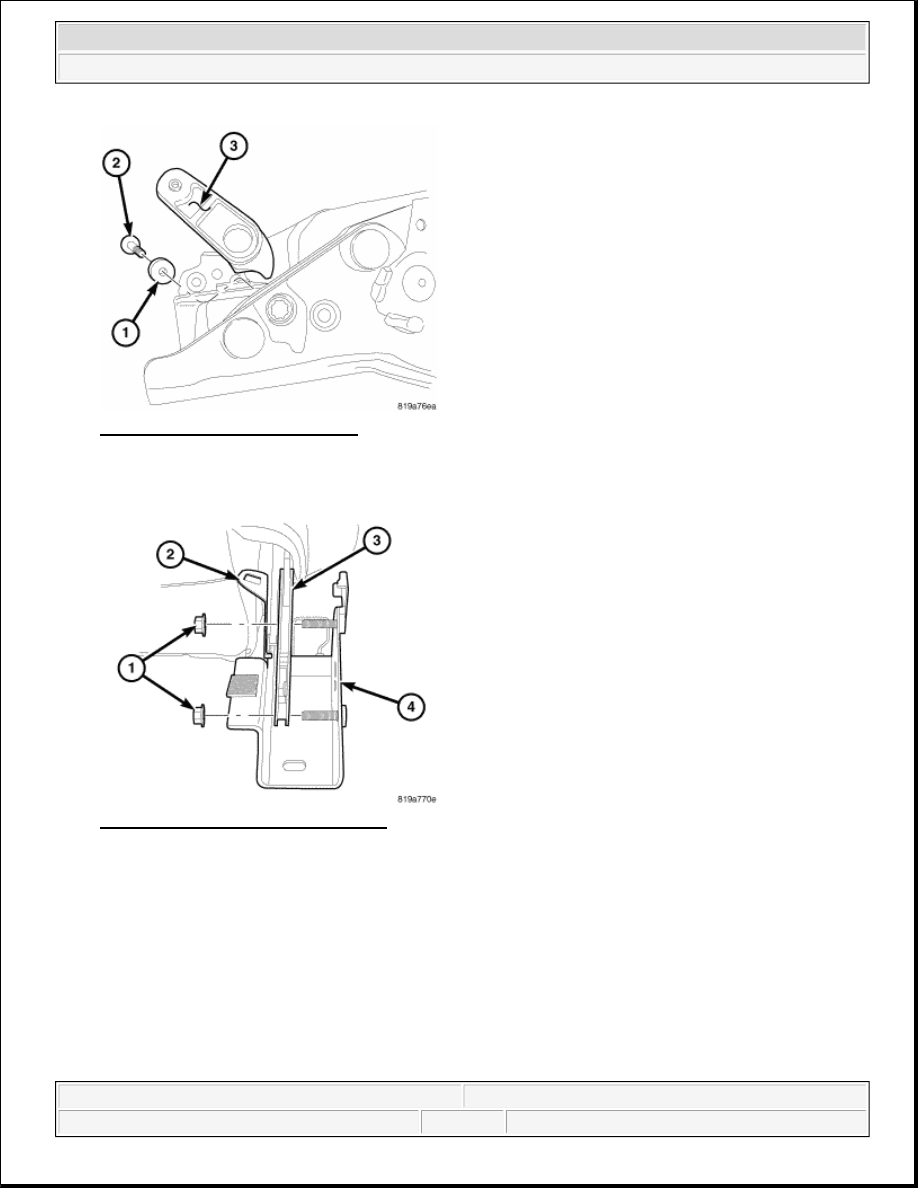

Fig. 506: 40 Seat Recliner Handle
Courtesy of CHRYSLER LLC

2. Remove the screw (2), washer (1) and recliner handle (3) from the floor bracket.

Fig. 507: 40 Seat Right Floor Bracket
Courtesy of CHRYSLER LLC

3. Remove the bracket nuts (1), trim attachment bracket (2) and bracket (4) from the hinge (3).
