Dodge Nitro. Manual - part 456





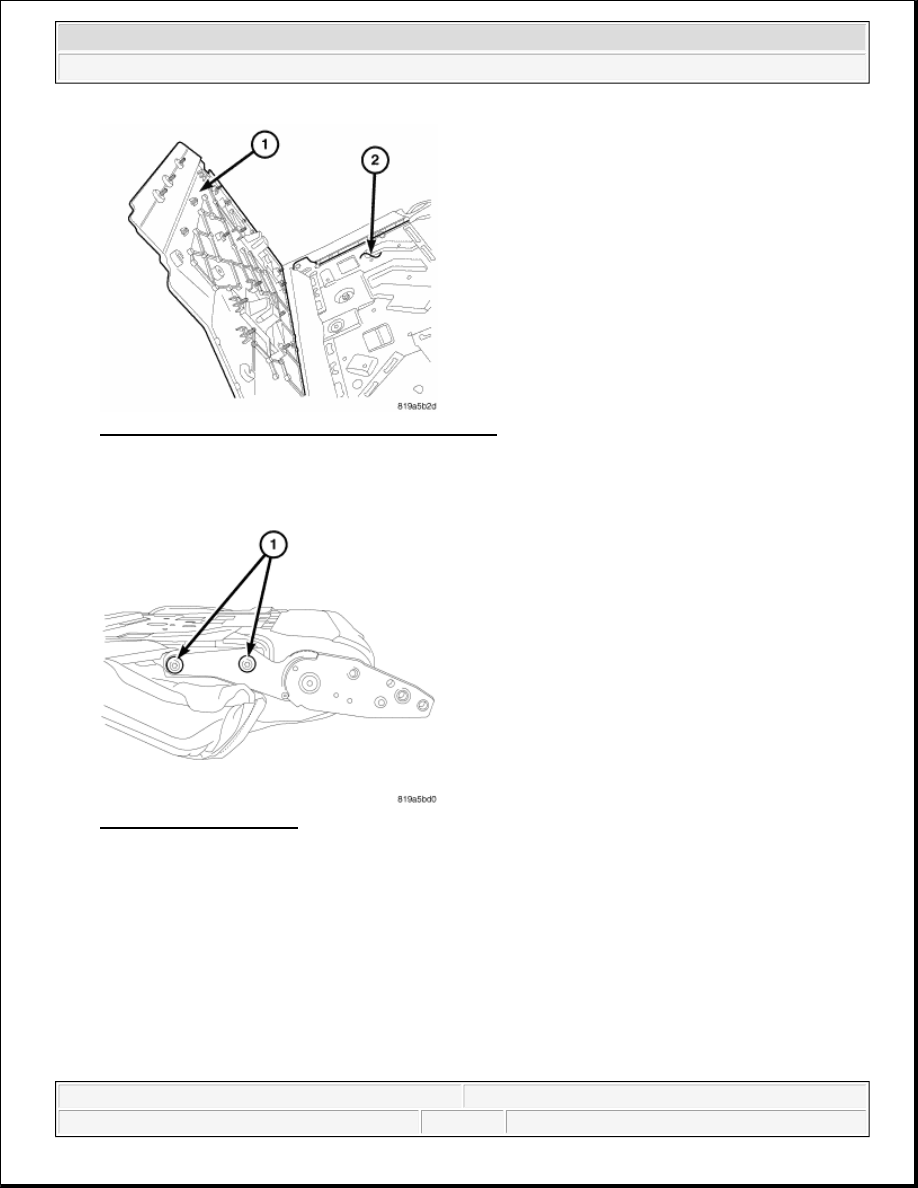

Fig. 493: Removing/Installing Nuts Attaching 40 60 Seat Back Frames
Courtesy of CHRYSLER LLC

3. Remove the nuts (1) attaching the 40 and 60 seat back frames.

Fig. 494: Removing/Installing Recliner Rod Nut And Recliner Rod
Courtesy of CHRYSLER LLC

4. Remove the recliner rod nut (1) and recliner rod (2) and the spacer.

5. Remove the 40 seat back frame from the 60 seat back frame.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



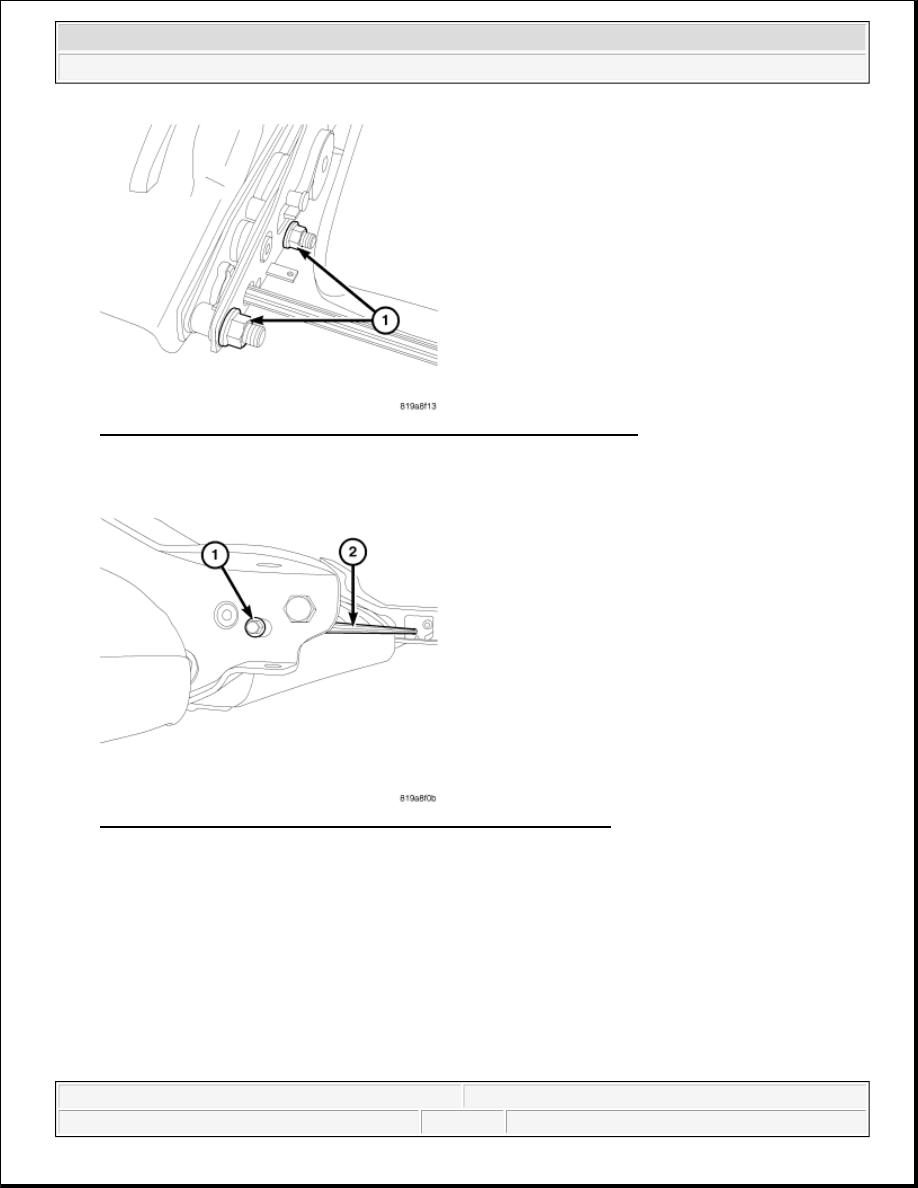

Fig. 495: Removing/Installing Screw And Trim Covering From Hinge
Courtesy of CHRYSLER LLC

6. Remove screw and trim covering from the hinge.

Fig. 496: Bracket, Trim Attachment Bracket, Bracket Nuts & Hinge
Courtesy of CHRYSLER LLC

7. Remove the bracket nuts (3), trim attachment bracket (2) and bracket (1) from the hinge (4).

DISASSEMBLY

DISASSEMBLY

60/40 Seat Back- 60



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

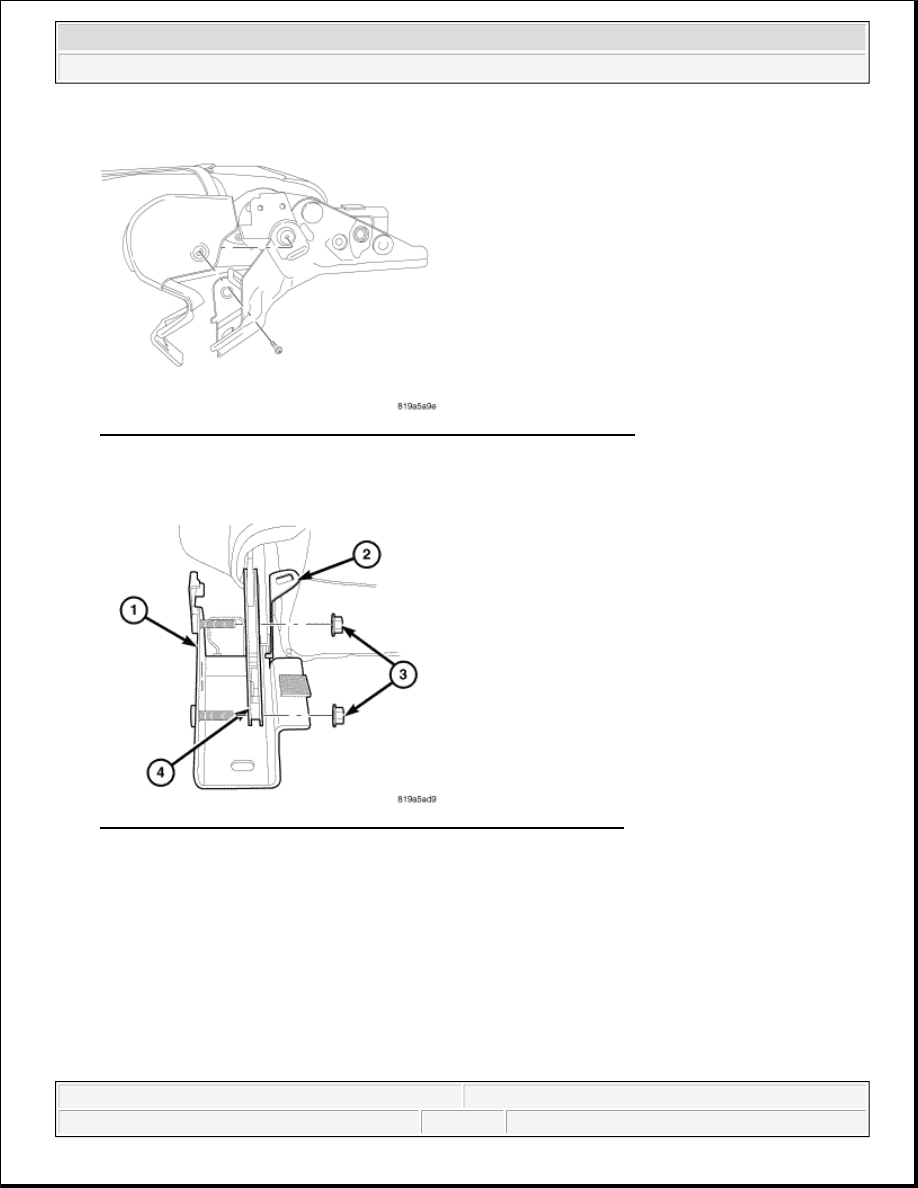

Fig. 497: Removing/Installing Screw And Trim Covering From Hinge
Courtesy of CHRYSLER LLC

1. Remove screw and trim covering from the hinge.

Fig. 498: Bracket, Trim Attachment Bracket, Bracket Nuts & Hinge
Courtesy of CHRYSLER LLC

2. Remove the bracket nuts (3), trim attachment bracket (2) and bracket (1) from the hinge (4).



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



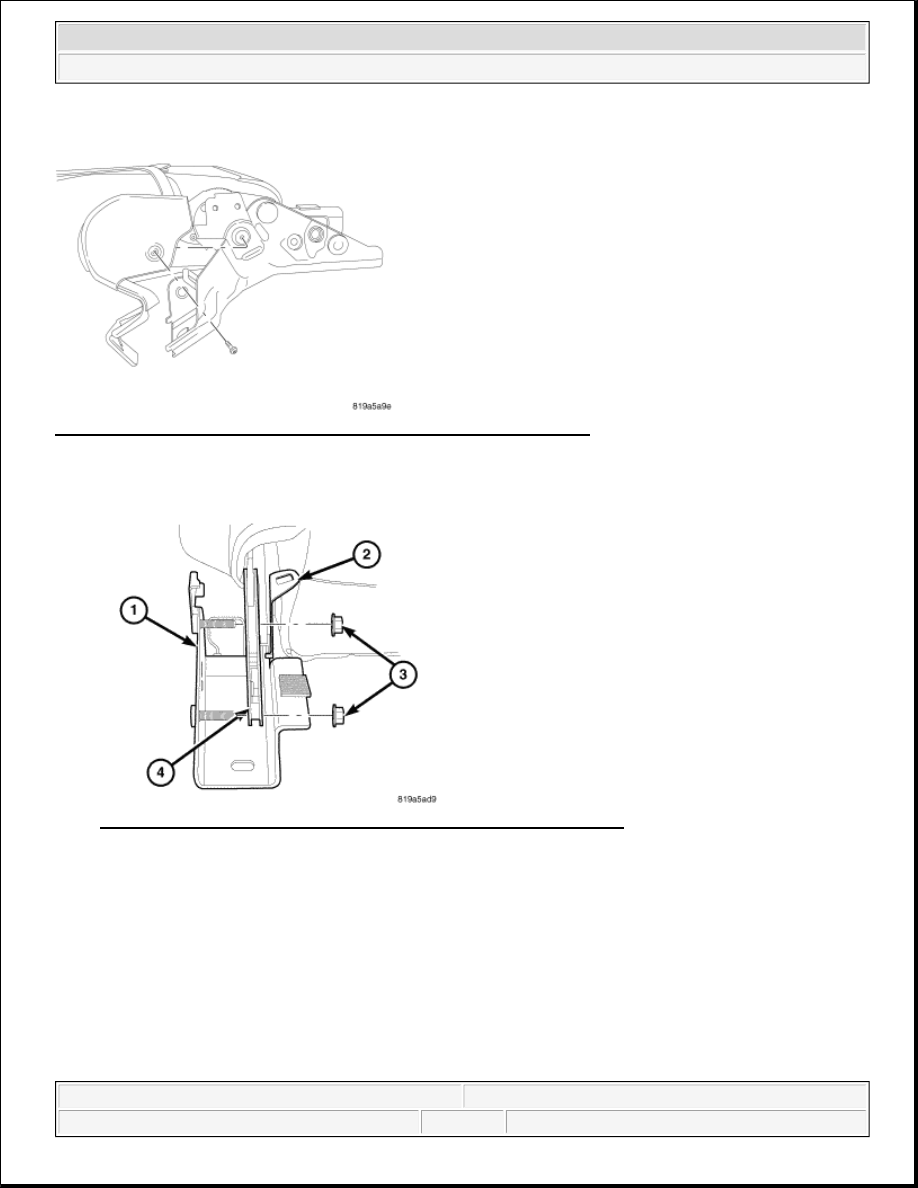

Fig. 499: Seat Back Trim Panel & Seat Back Frame
Courtesy of CHRYSLER LLC

3. Remove the seat back trim panel (1) from the seat back frame (2).

Fig. 500: Left Hinge Bolts
Courtesy of CHRYSLER LLC

4. Remove the bolts (1) from the left hinge.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro
