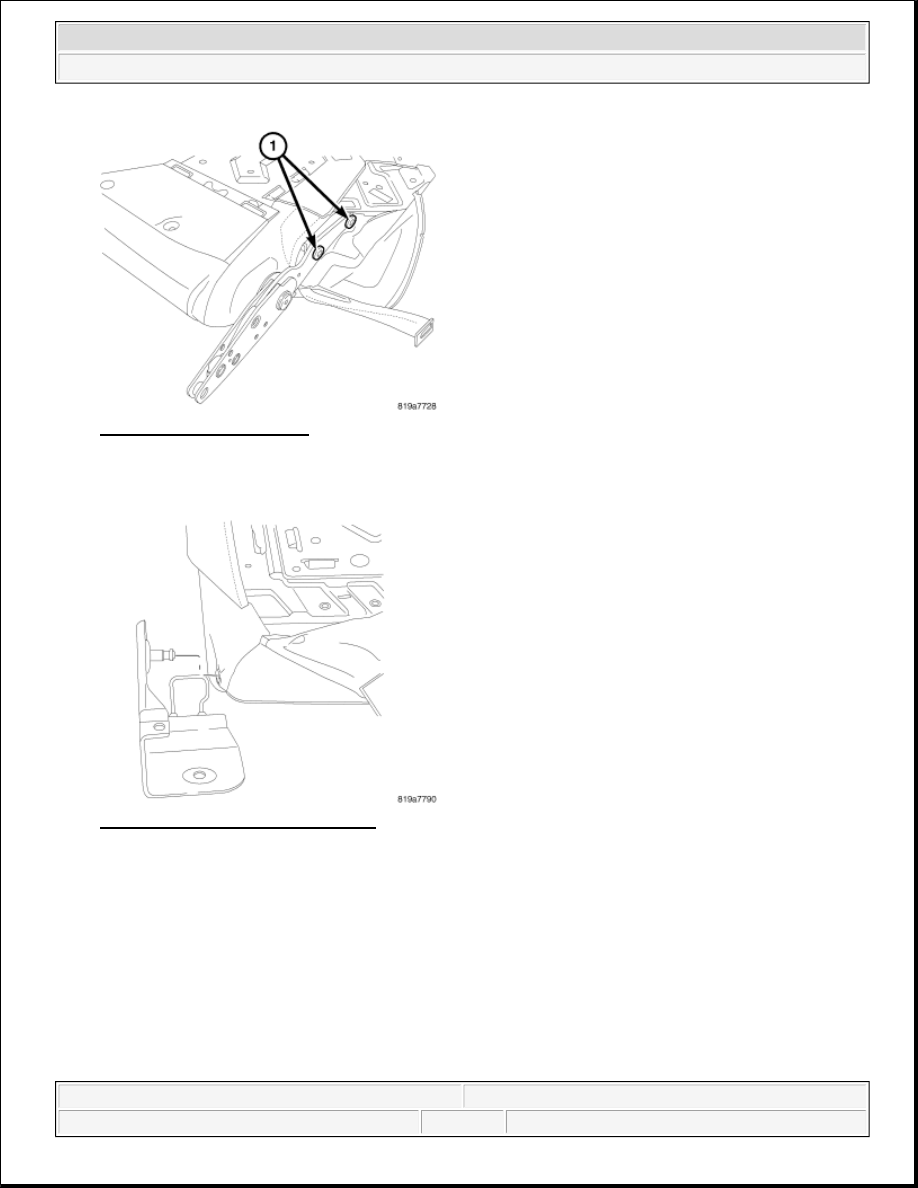

Fig. 508: Right Hinge Bolts
Courtesy of CHRYSLER LLC

4. Remove the bolts (1) from the right hinge.

Fig. 509: 40 Seat Left Floor Bracket
Courtesy of CHRYSLER LLC

5. Remove the left floor bracket from the seat frame.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



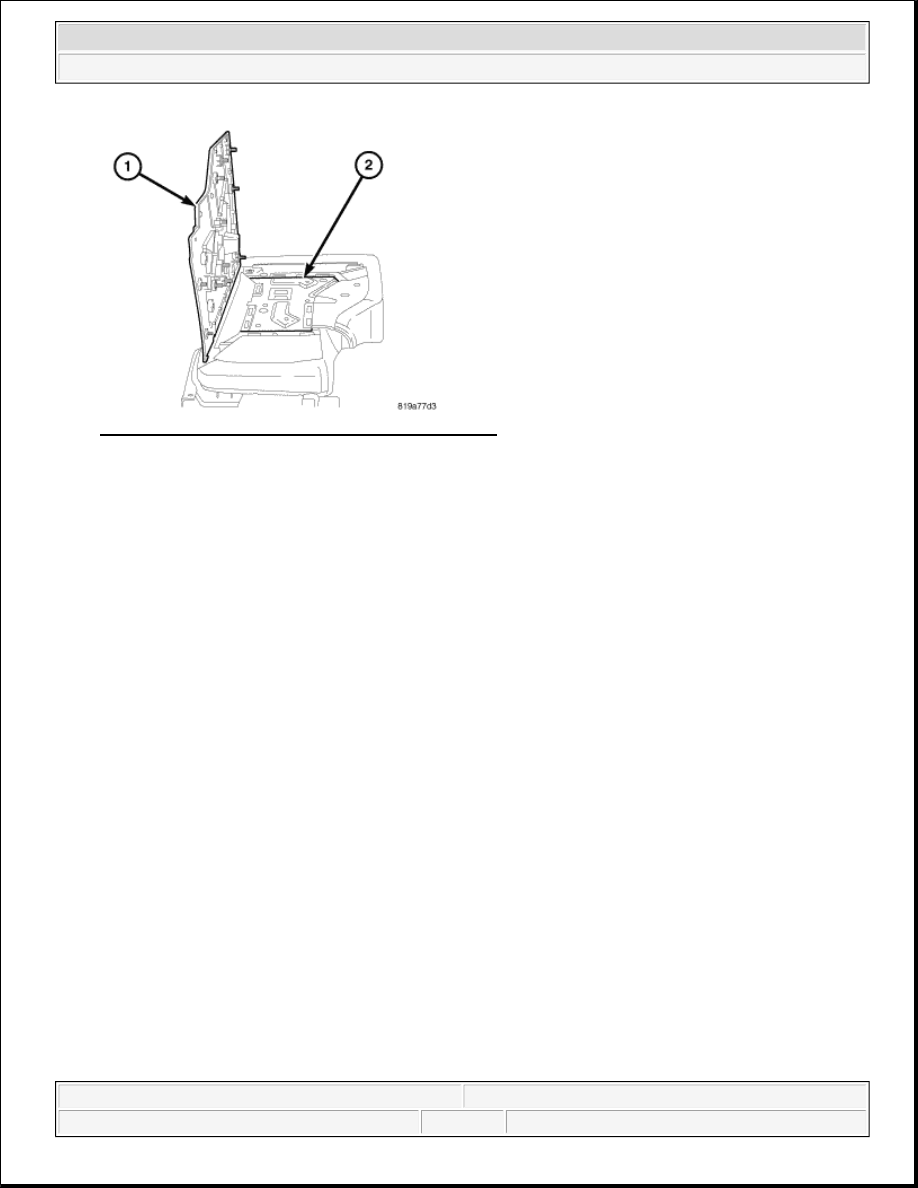

Fig. 510: Seat Back Trim Panel & Seat Back Frame
Courtesy of CHRYSLER LLC

6. Remove the seat back trim panel (1) from the seat back frame (2).

7. Remove the hog ring attaching the seat back cushion to the seat frame.

8. Remove the seat cover clips from the seat back frame.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



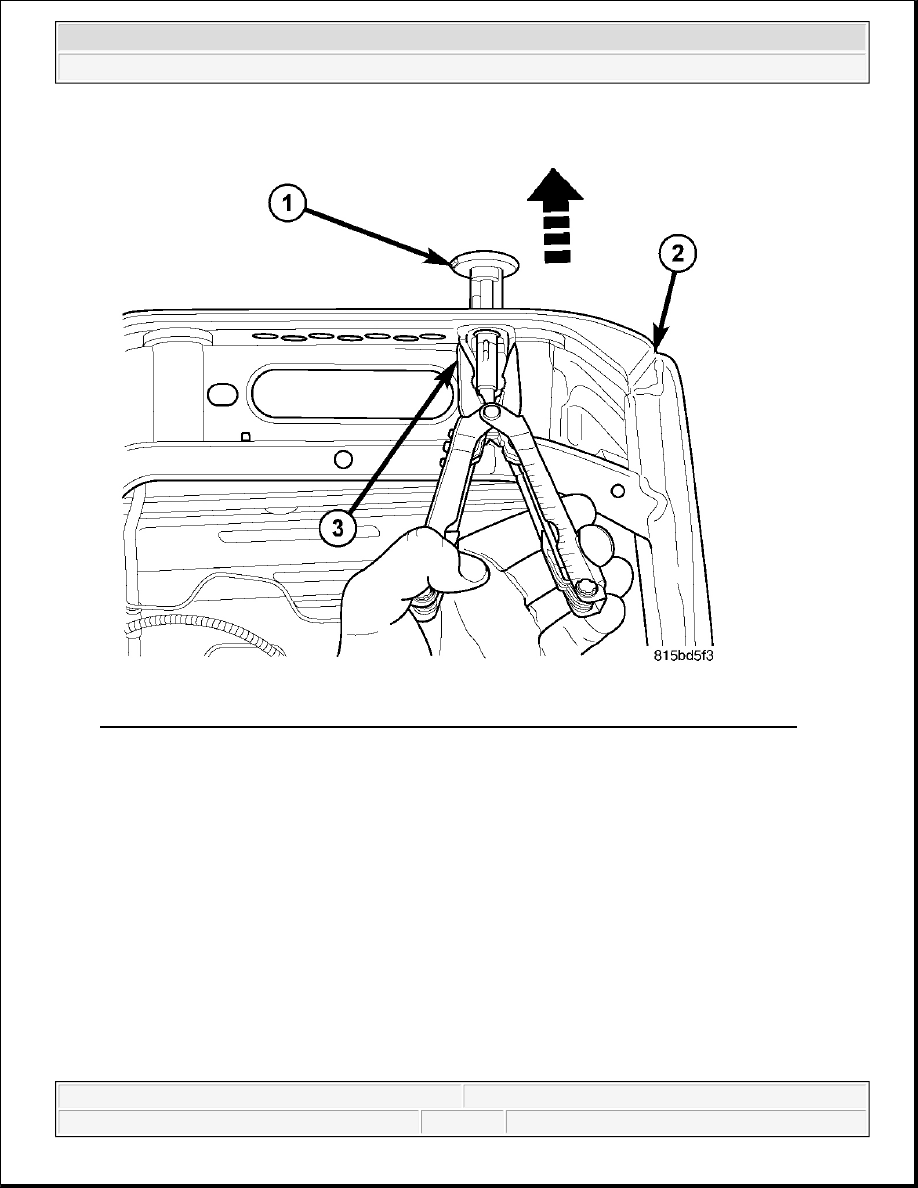

Fig. 511: Depressing Tabs On Head Rest Guide And Removing From Top Of Seat Cushion
Courtesy of CHRYSLER LLC

9. Depress the tabs (3) on the head rest guide (1) and remove from the top of the seat cushion (2).

10. Remove the cover and cushion from the seat back frame.

11. Position the seat cover to expose the hog rings and cut off all hog rings to separate the cover from the

cushion.

ASSEMBLY

ASSEMBLY



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



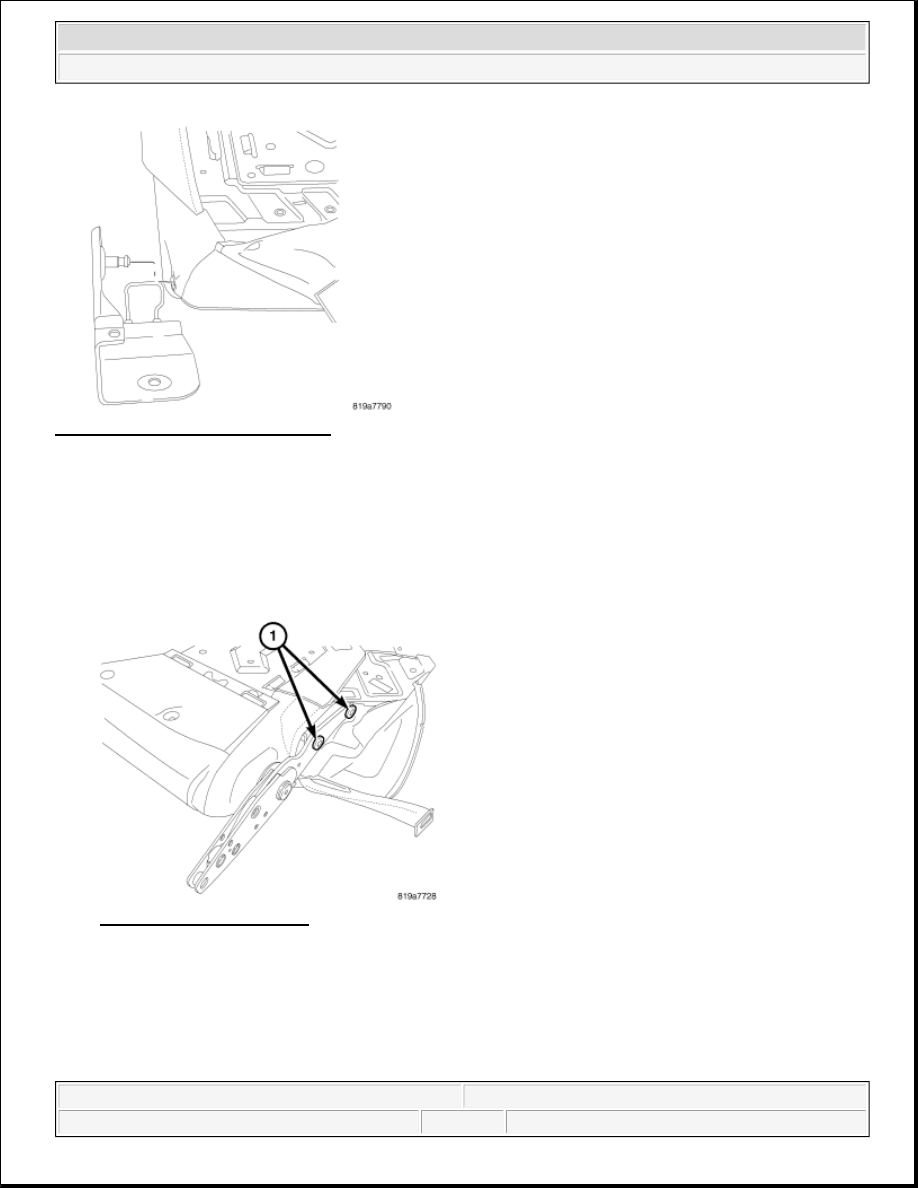

Fig. 512: 40 Seat Left Floor Bracket
Courtesy of CHRYSLER LLC

1. Install the seat back cover to the seat back cushion and install new hog rings.

2. Install the cover and cushion to the seat back frame, pull the seat cover tight around the cushion and seat

frame.

3. Install the head rest guides to the top of the seat cushion.

4. Install the left floor bracket to the seat frame.

Fig. 513: Right Hinge Bolts
Courtesy of CHRYSLER LLC

5. Install the right hinge and bolts (1) to the seat back frame and tighten to 47.5 N.m (35 ft. lbs.).
