Fig. 31: Disconnecting/Connecting Latch Electrical Connector
Courtesy of CHRYSLER LLC

18. Disconnect the latch electrical connector.

Fig. 32: Carrier Plate Slots
Courtesy of CHRYSLER LLC

19. Turn the carrier plate over and slide the latch bracket assembly to remove from the carrier plate slots (1).



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

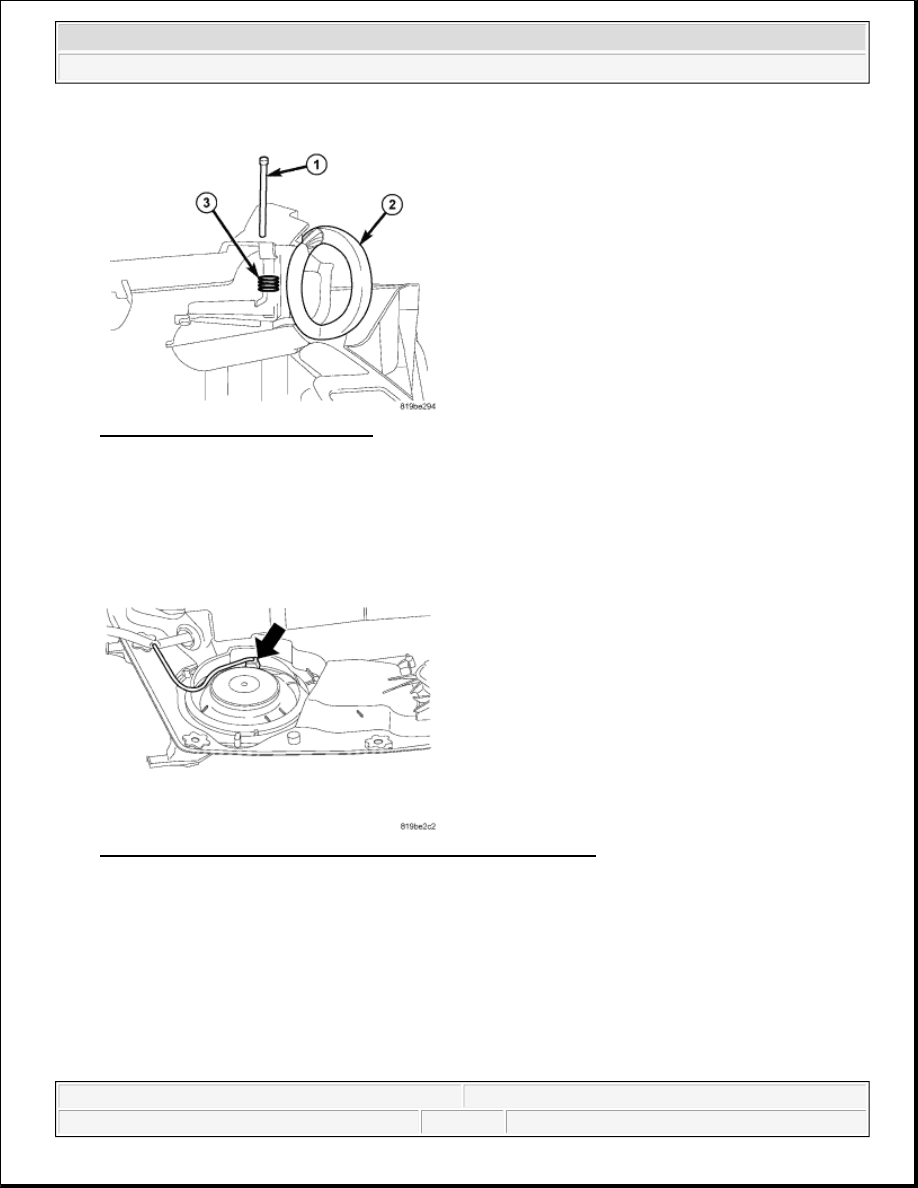

Fig. 33: Push Pin, Handle & Spring
Courtesy of CHRYSLER LLC

20. Remove the push pin (1) from the handle.

21. Remove the spring (3) and handle (2) from the carrier.

Fig. 34: Disconnecting/Connecting Speaker Electrical Connector
Courtesy of CHRYSLER LLC

22. Disconnect the speaker electrical connector.

23. Remove speaker wire from wire clip.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

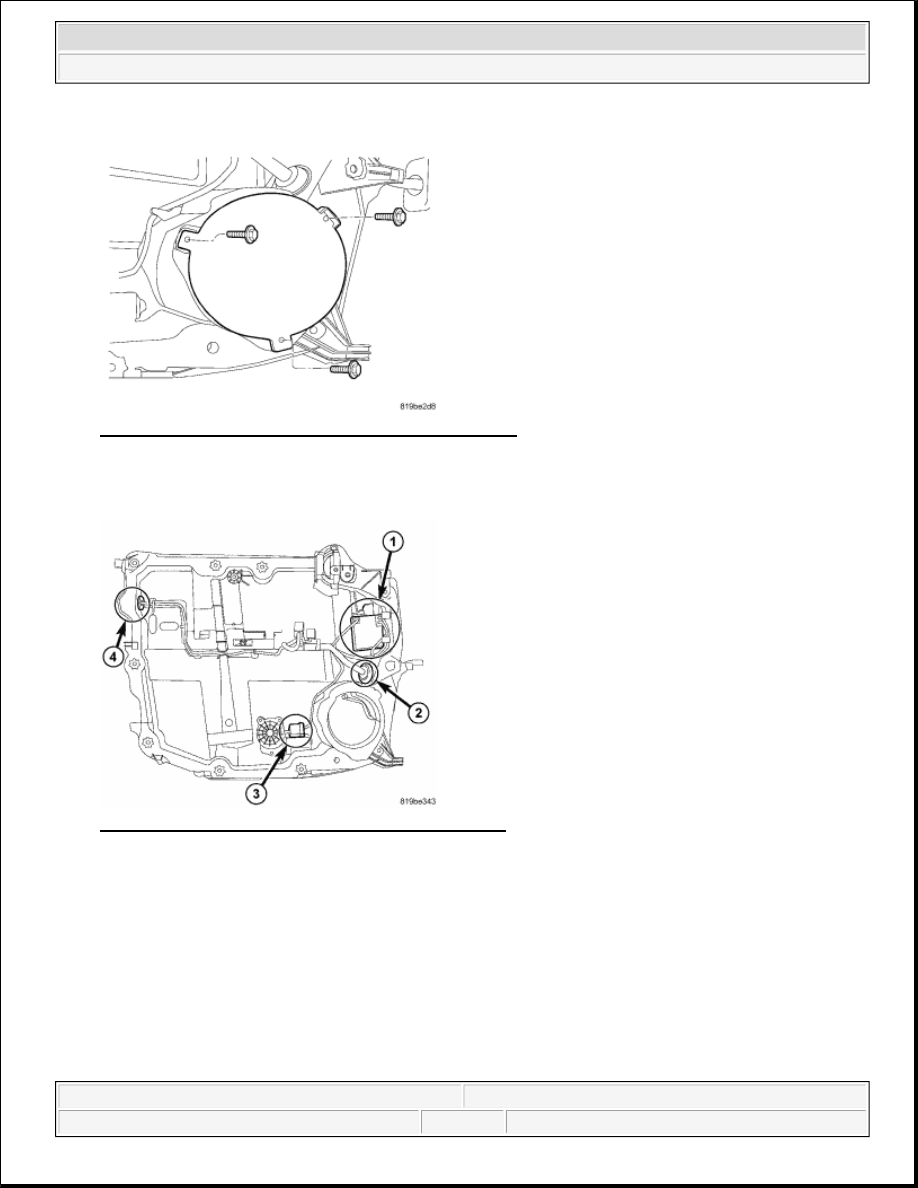

Fig. 35: Removing/Installing Speaker Bolts & Speaker
Courtesy of CHRYSLER LLC

24. Remove the speaker bolts and speaker from the carrier.

Fig. 36: Identifying Connectors & Electrical Harness
Courtesy of CHRYSLER LLC

25. Remove the electrical harness (4) from the carrier plate.

26. Release harness from all the hooks in the carrier plate.

27. Disconnect the connectors (1) from the module.

28. Disconnect the connector (3) from the window motor.

29. Remove the electrical harness (2) from the carrier plate.

30. Remove the harness from the carrier plate.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

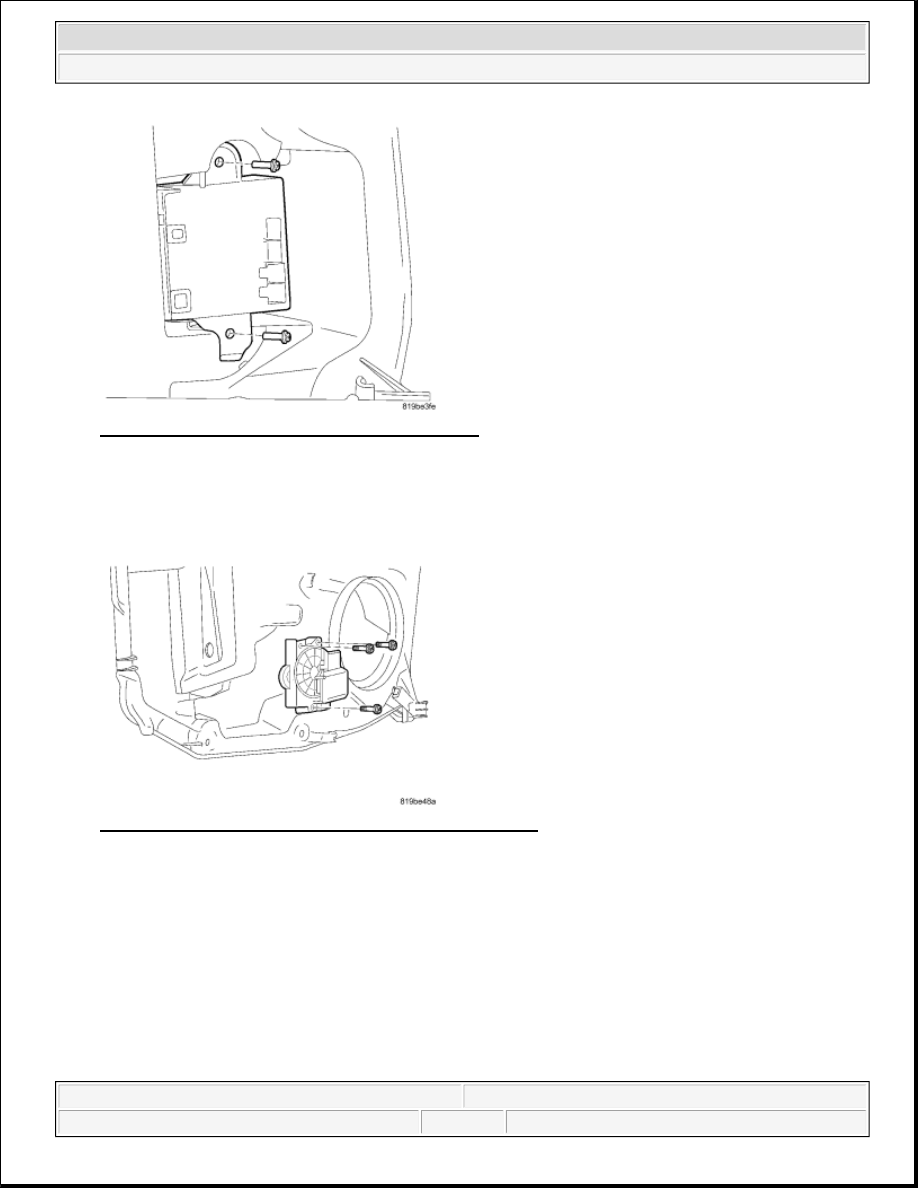

Fig. 37: Removing/Installing Screws And Module
Courtesy of CHRYSLER LLC

31. Remove the screws and module from the carrier plate.

Fig. 38: Removing/Installing Screws And Window Motor
Courtesy of CHRYSLER LLC

32. Remove the screws and window motor from the carrier plate.

INSTALLATION

CARRIER PLATE - FRONT DOOR
