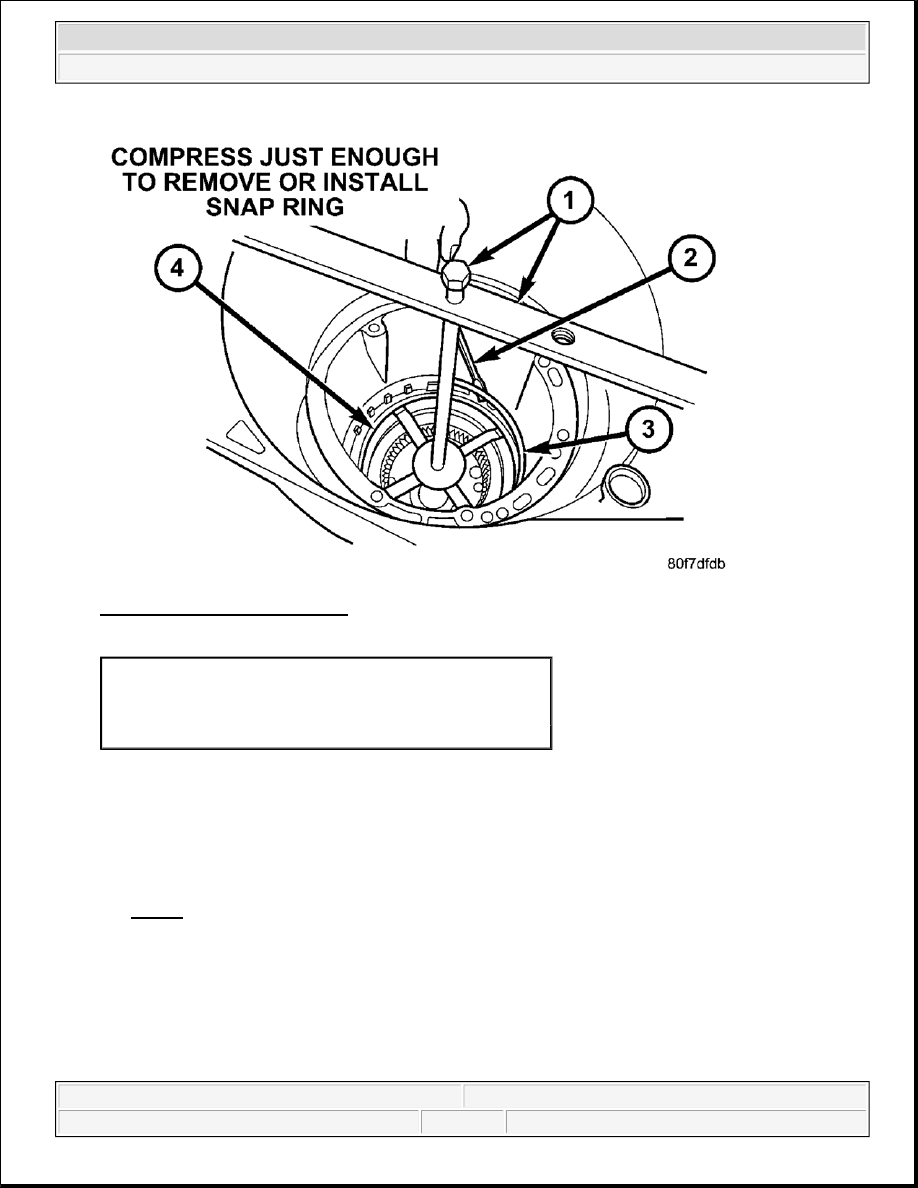

Fig. 48: Compressing 2/4 Clutch
Courtesy of CHRYSLER LLC

33. Set up Compressor 5058 (1) as shown. Compress 2/4 clutch just enough to facilitate snap ring installation.

See Fig. 48.

1 - TOOL 5058
2 - SCREWDRIVER
3 - SNAP RING
4 - 2/4 CLUTCH RETAINER

NOTE:

Verify that Compressor 5058A (1) is centered properly over the 2/4 clutch
retainer (4) before compressing. If necessary, fasten the bar from
Compressor 5058A to the bellhousing flange with any combination of
locking pliers and bolts to center the tool properly.



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



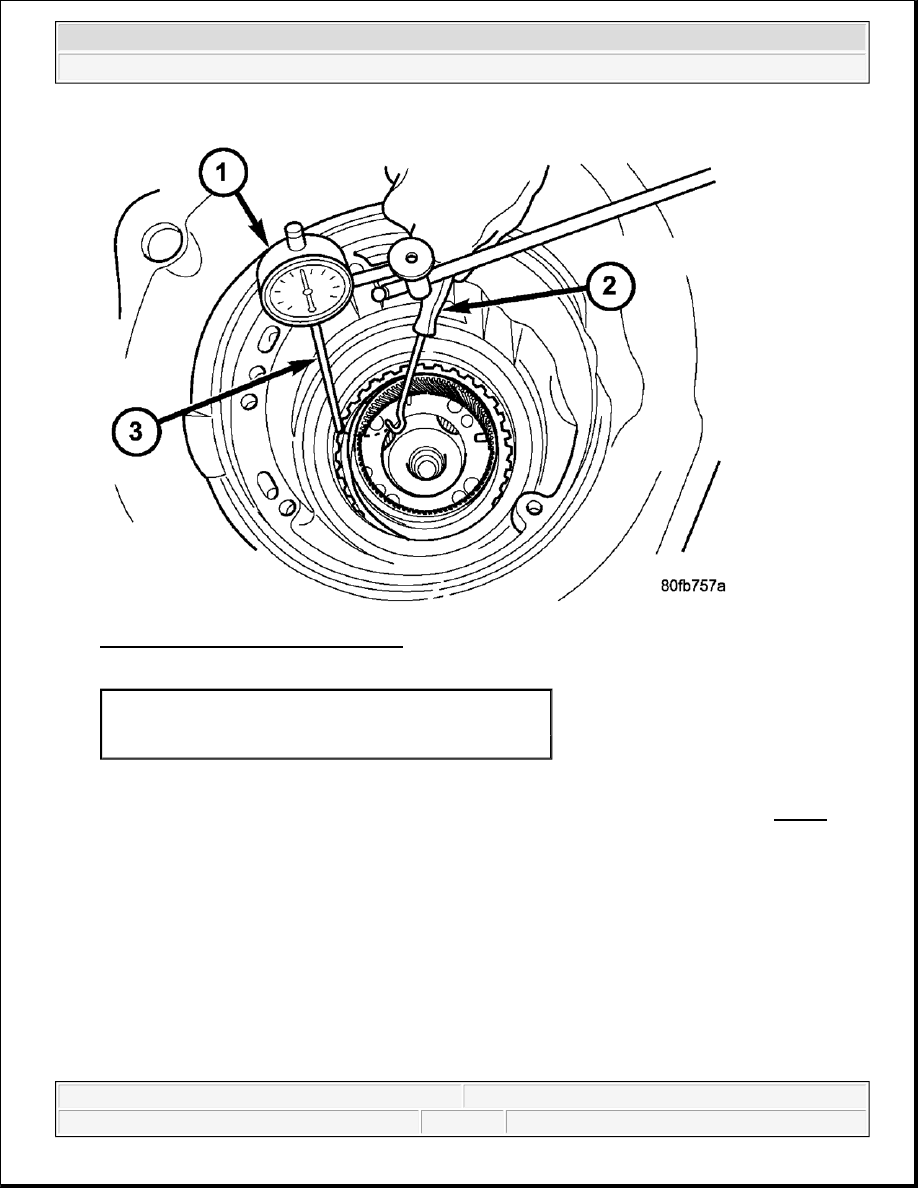

Fig. 49: Checking 2/4 Clutch Clearance
Courtesy of CHRYSLER LLC

34. Measure 2/4 clutch clearance: Set up dial indicator (1) as shown. Press down clutch pack with finger

and zero dial indicator. Record measurement in four (4) places and take average reading. See Fig. 49.The
2/4 clutch pack clearance is 0.76 to 2.64 mm (0.030 to 0.104 inch). If not within specifications, the
clutch is not assembled properly or is excessively worn. There is no adjustment for the 2/4 clutch
clearance.

1 - DIAL INDICATOR
2 - HOOK TOOL
3 - DIAL INDICATOR TIP TOOL 6268



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



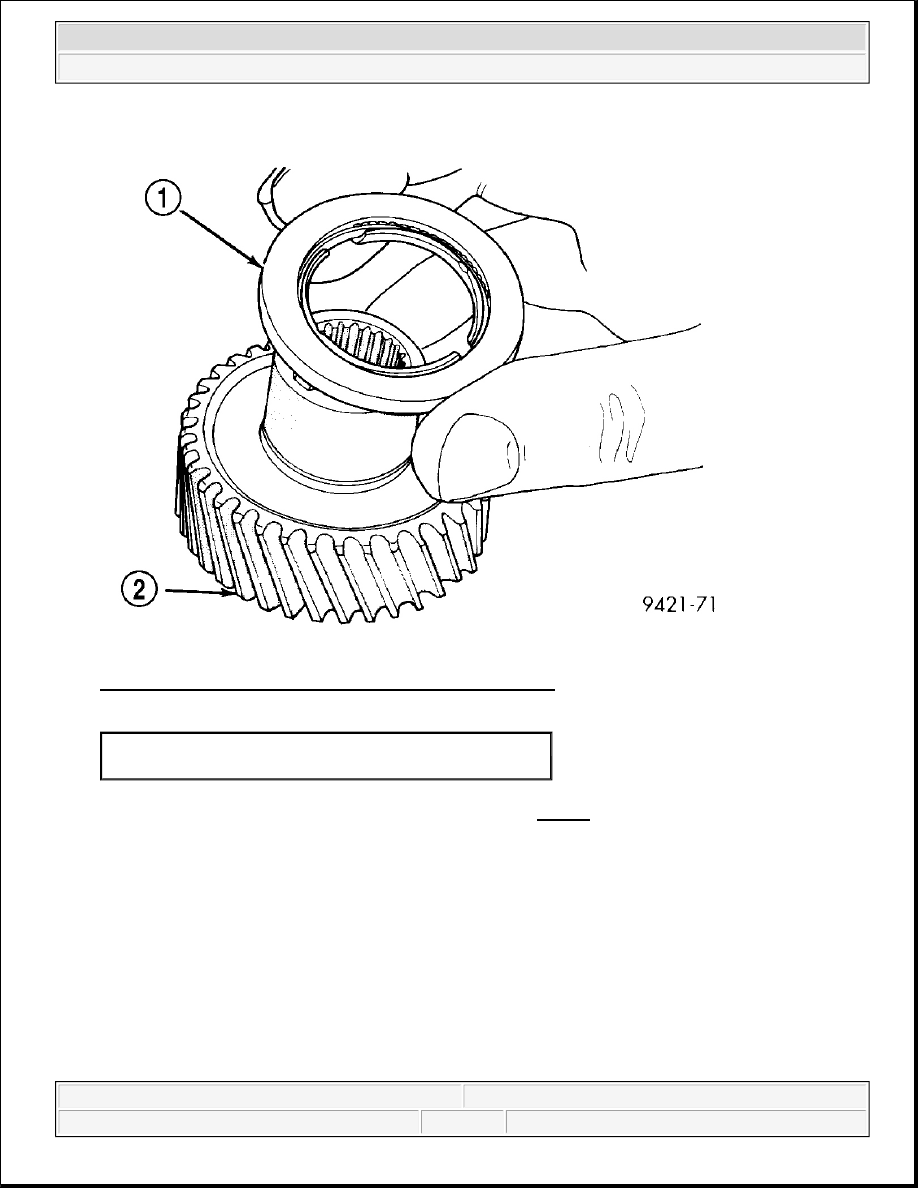

Fig. 50: Identifying Rear Sun Gear & No. 7 Needle Bearing
Courtesy of CHRYSLER LLC

35. Install the #7 needle bearing (1) to the rear sun gear (2). See Fig. 50. The number 7 needle bearing has

three antireversal tabs and is common with the number 5 and number 2 position. The orientation
should allow the bearing to seat flat against the rear sun gear. A small amount of petrolatum can be
used to hold the bearing to the rear sun gear.

1 - #7 BEARING
2 - REAR SUN GEAR



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



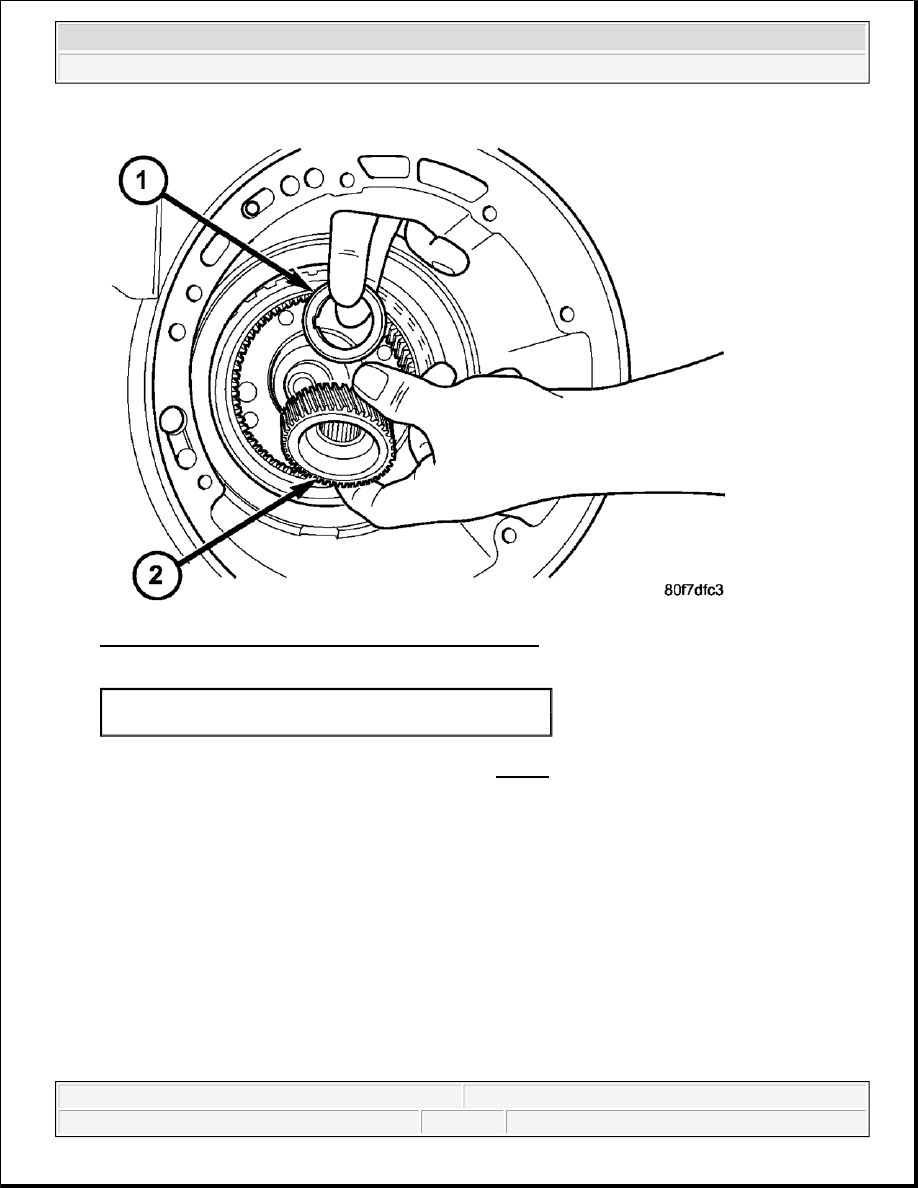

Fig. 51: Installing Rear Sun Gear And #7 Needle Bearing
Courtesy of CHRYSLER LLC

36. Install rear sun gear (2) and #7 needle bearing (1). See Fig. 51.

1 - #7 NEEDLE BEARING
2 - REAR SUN GEAR
