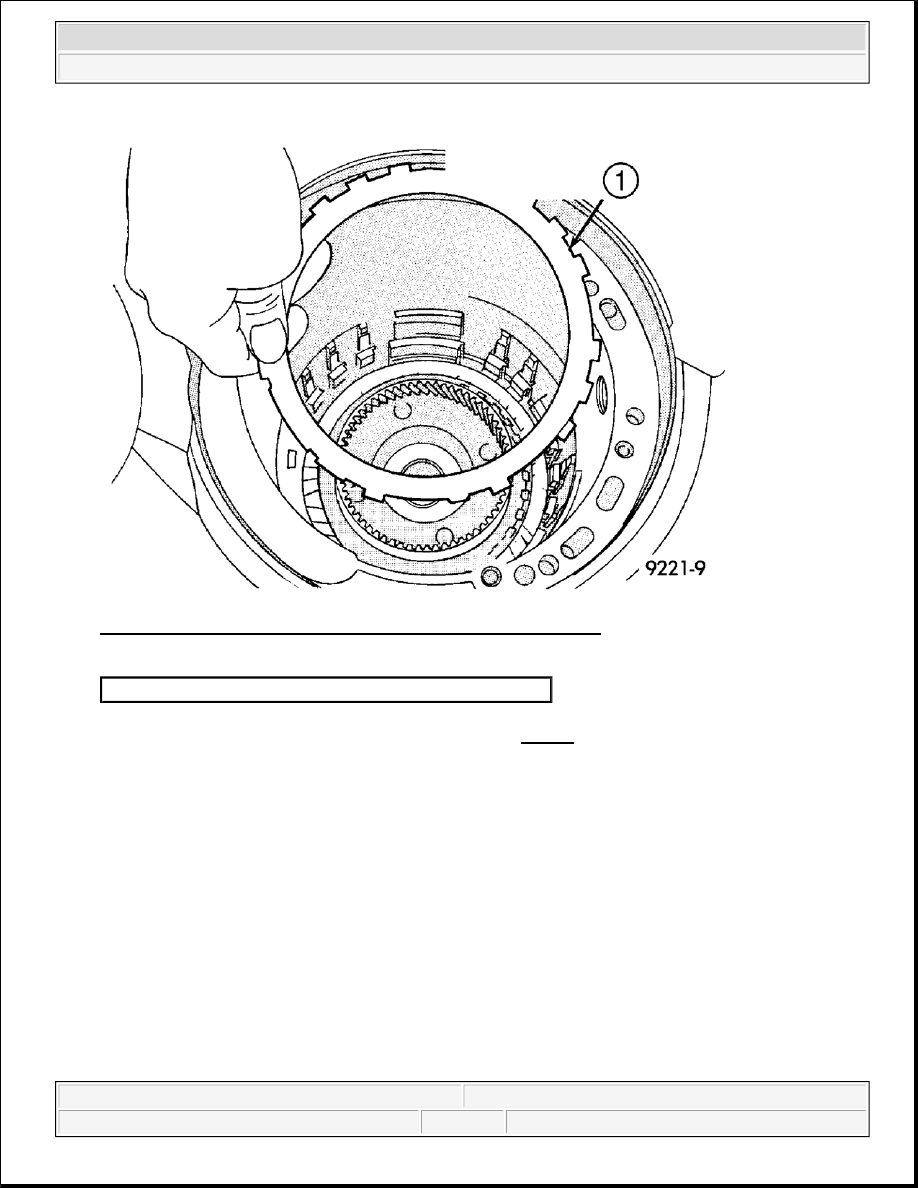

Fig. 40: Installing Low/Reverse Reaction Plate With Flat Side Up
Courtesy of CHRYSLER LLC

24. Install low/reverse reaction plate (1) with flat side up. See Fig. 40

1 - LOW/REVERSE REACTION PLATE (FLAT SIDE UP)



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



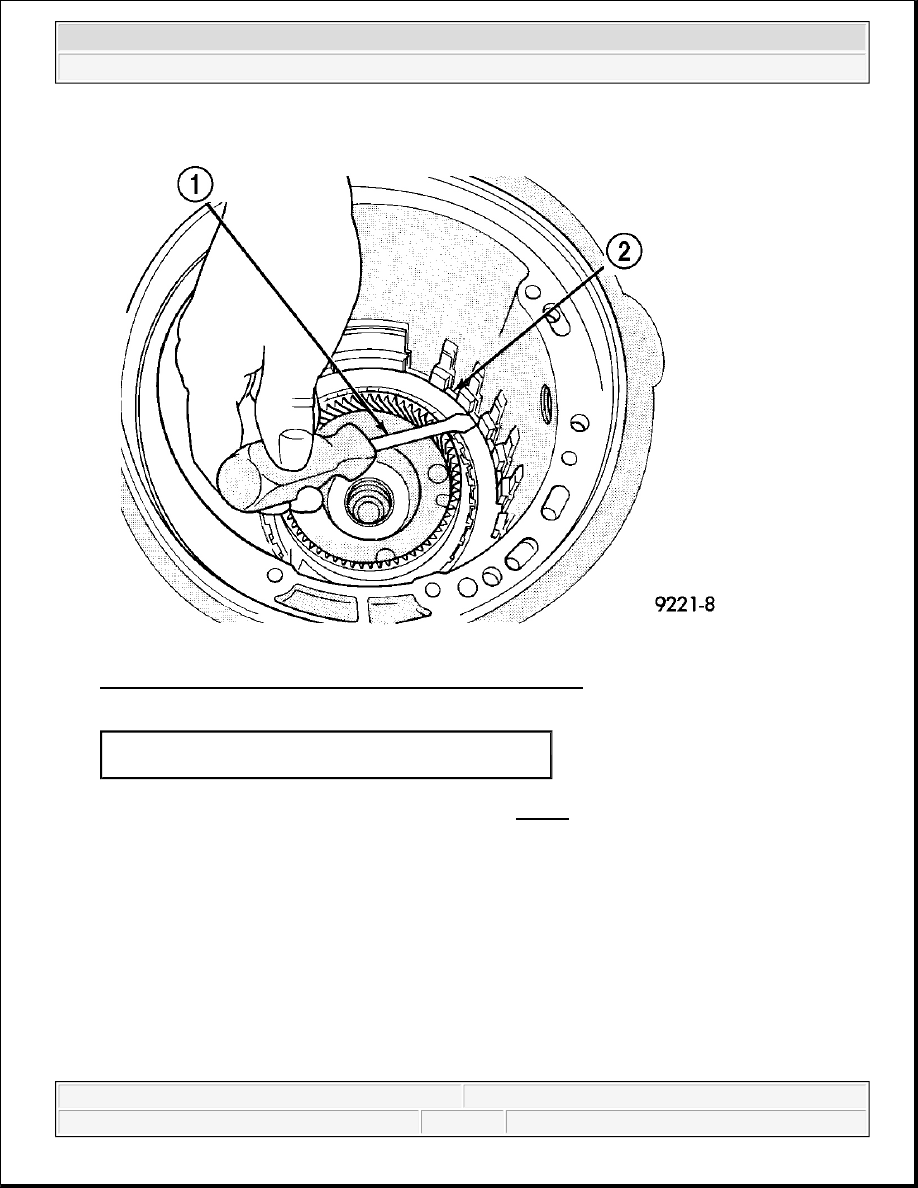

Fig. 41: Installing New Tapered Snap Ring (Tapered Side Out)
Courtesy of CHRYSLER LLC

25. Install a new tapered snap ring (2) (tapered side out). See Fig. 41.

1 - SCREWDRIVER
2 - TAPERED SNAP RING (INSTALL AS SHOWN)



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro

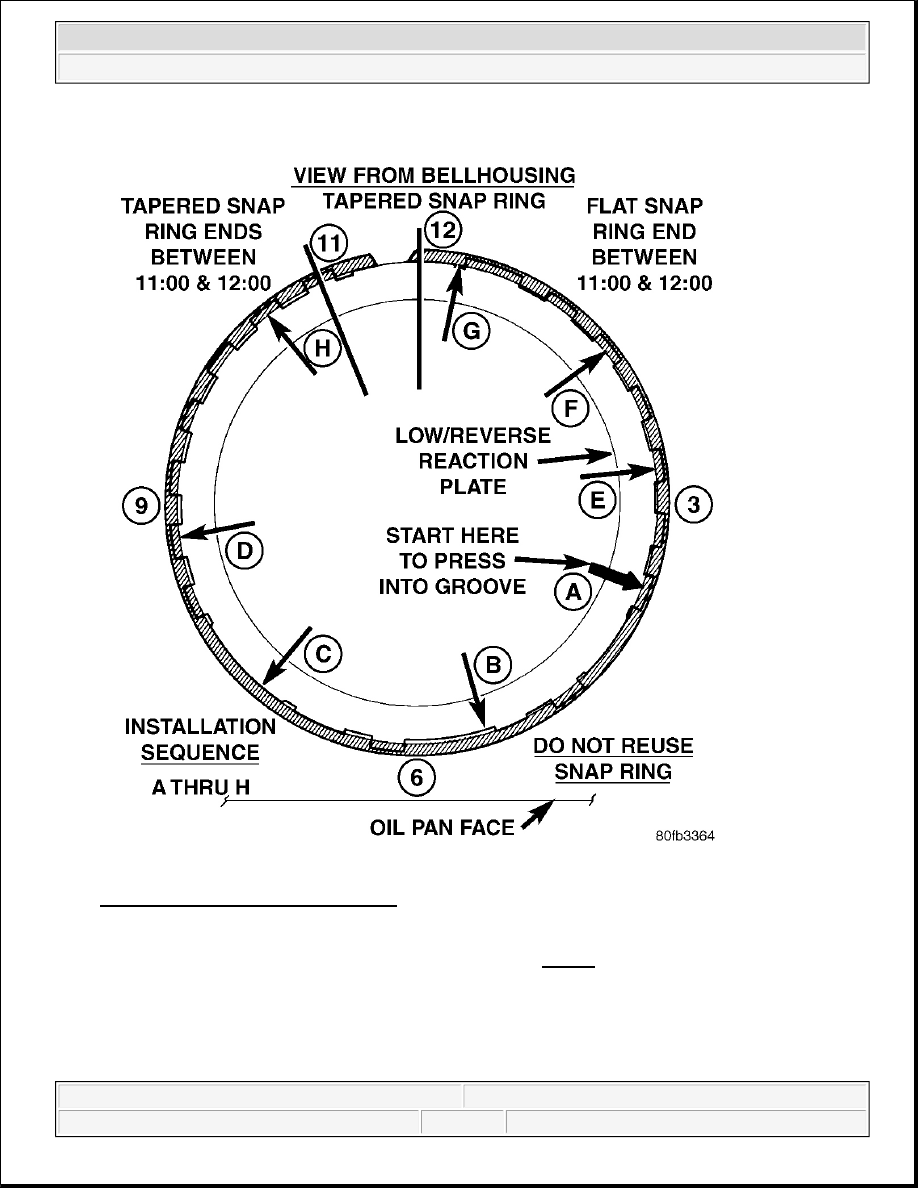

Fig. 42: Proper Snap Ring Orientation
Courtesy of CHRYSLER LLC

26. Make sure that the snap ring ends are oriented as shown. See Fig. 42.



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



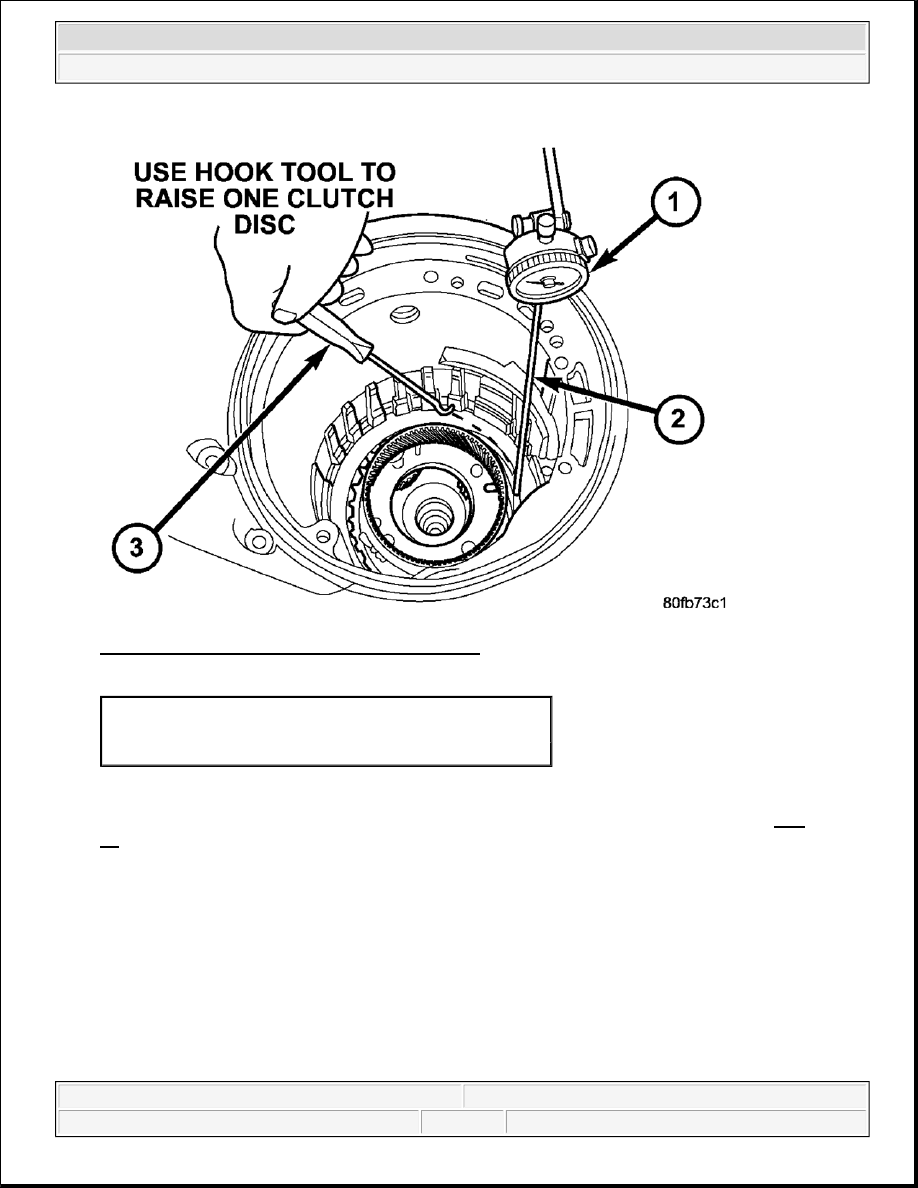

Fig. 43: Checking Low/Reverse Clutch Clearance
Courtesy of CHRYSLER LLC

27. Measure low/reverse clutch pack. Set up dial indicator (1) as shown. Press down clutch pack with finger

and zero dial indicator. Record measurement in four (4) places and take average reading. See Fig.
43.Low/Reverse clutch pack clearance is 0.84 to 1.60 mm (0.033 to 0.063 inch).

28. Select the proper low/reverse reaction plate to achieve specifications.

1 - DIAL INDICATOR
2 - DIAL INDICATOR TIP TOOL 6268
3 - HOOK TOOL
