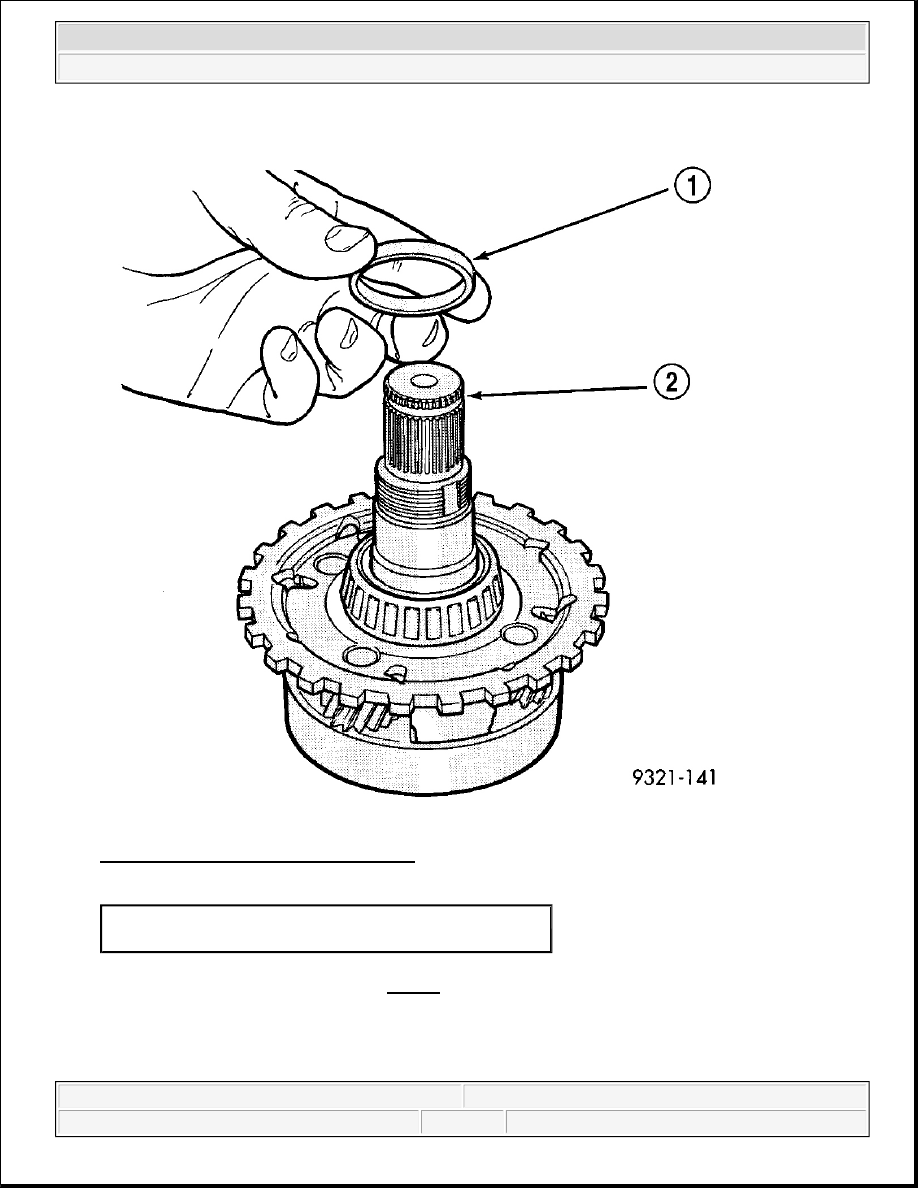

Fig. 32: Installing Shim On Output Shaft
Courtesy of CHRYSLER LLC

16. Install shim (1) on output shaft (2). See Fig. 32. Apply small amount of petrolatum onto the shim to hold

it in place. Use the original shim as a starting point. If original shim is not available, use the thickest shim
available.

1 - SHIM
2 - OUTPUT SHAFT



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



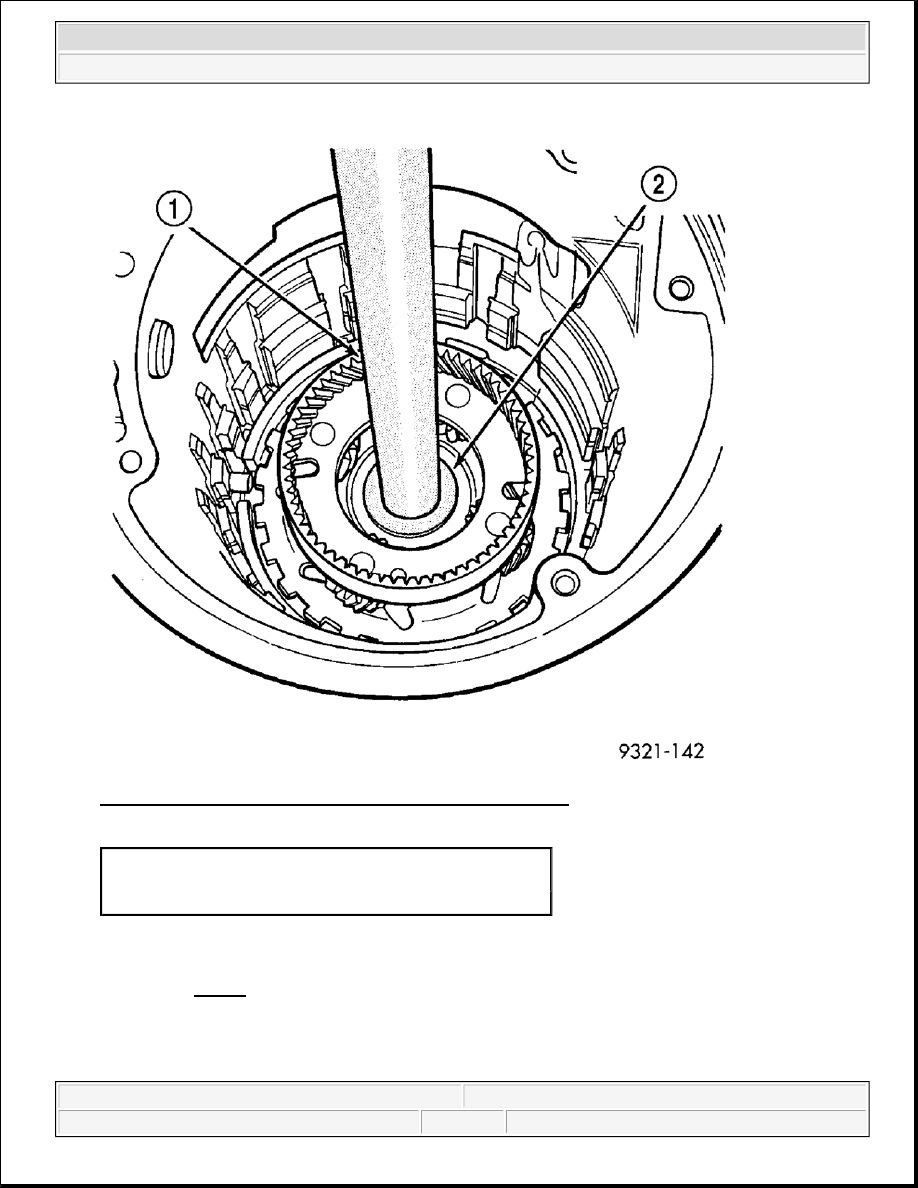

Fig. 33: Install Output Shaft/Rear Carrier Into Rear Bearing
Courtesy of CHRYSLER LLC

17. Install output shaft/rear carrier into rear bearing. The shaft must be pressed into position. Use Disc MD-

998911 (2) and Universal Handle C-4171 and Handle Extension C4171-2 (1) to press shaft into rear
bearing. See Fig. 33.

1 - UNIVERSAL HANDLE C-4171 AND HANDLE
EXTENSION C-4171-2
2 - DISC MD-998911



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro

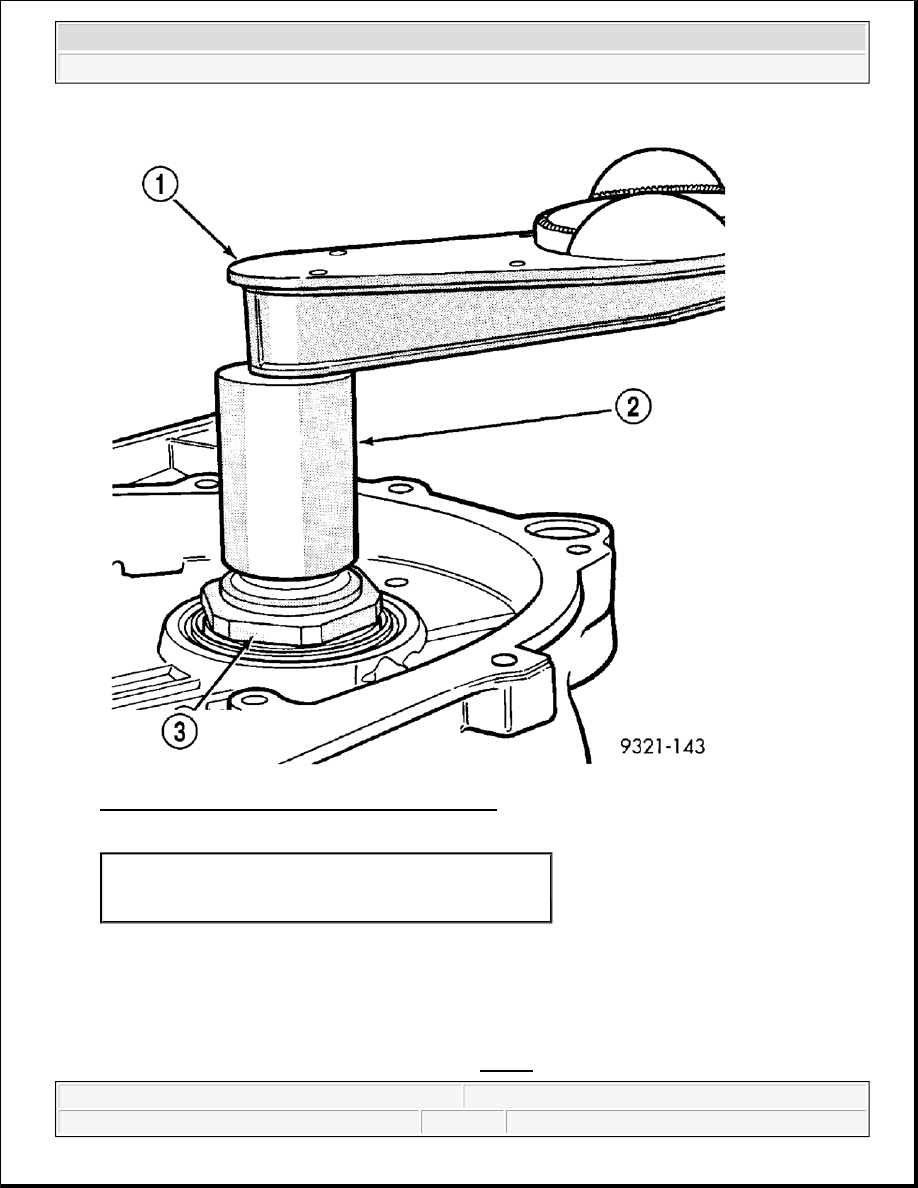

Fig. 34: Checking Turning Torque Of Output Shaft
Courtesy of CHRYSLER LLC

18. Check the turning torque (1) of the output shaft. See Fig. 34. The shaft should have 1 to 8 in. lbs. of

1 - TORQUE WRENCH
2 - WRENCH 6498-A
3 - OUTPUT SHAFT NUT

CAUTION: Do not re-use old output shaft nut because the removed stake

weakens the nut flange. Using Wrenches 6497 and 6498-A, install
new output shaft nut. Tighten new output shaft nut to 271 N.m (200 ft.
lbs.).



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



turning torque. If the turning torque is higher than 8 in. lbs, install a thicker shim. If turning torque is less
than 1 in. lb, install a thinner shim. Make sure there is no end play.

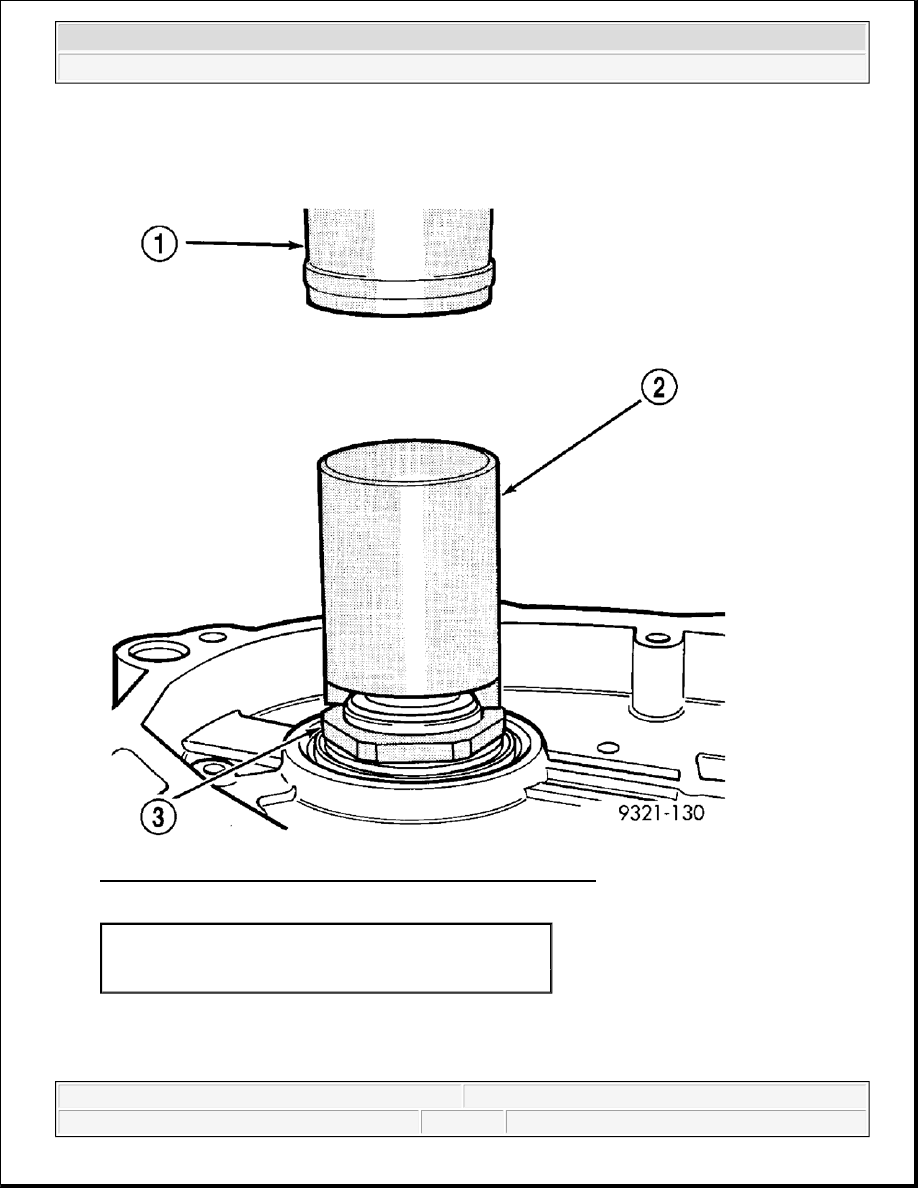

Fig. 35: Identifying Arbor Press, Staking Tool - 6639 & New Nut
Courtesy of CHRYSLER LLC

1 - ARBOR PRESS
2 - STAKING TOOL - 6639
3 - NEW NUT

CAUTION: Failure to stake nut could allow the nut to back-off during use.
