Dodge Nitro. Manual - part 316

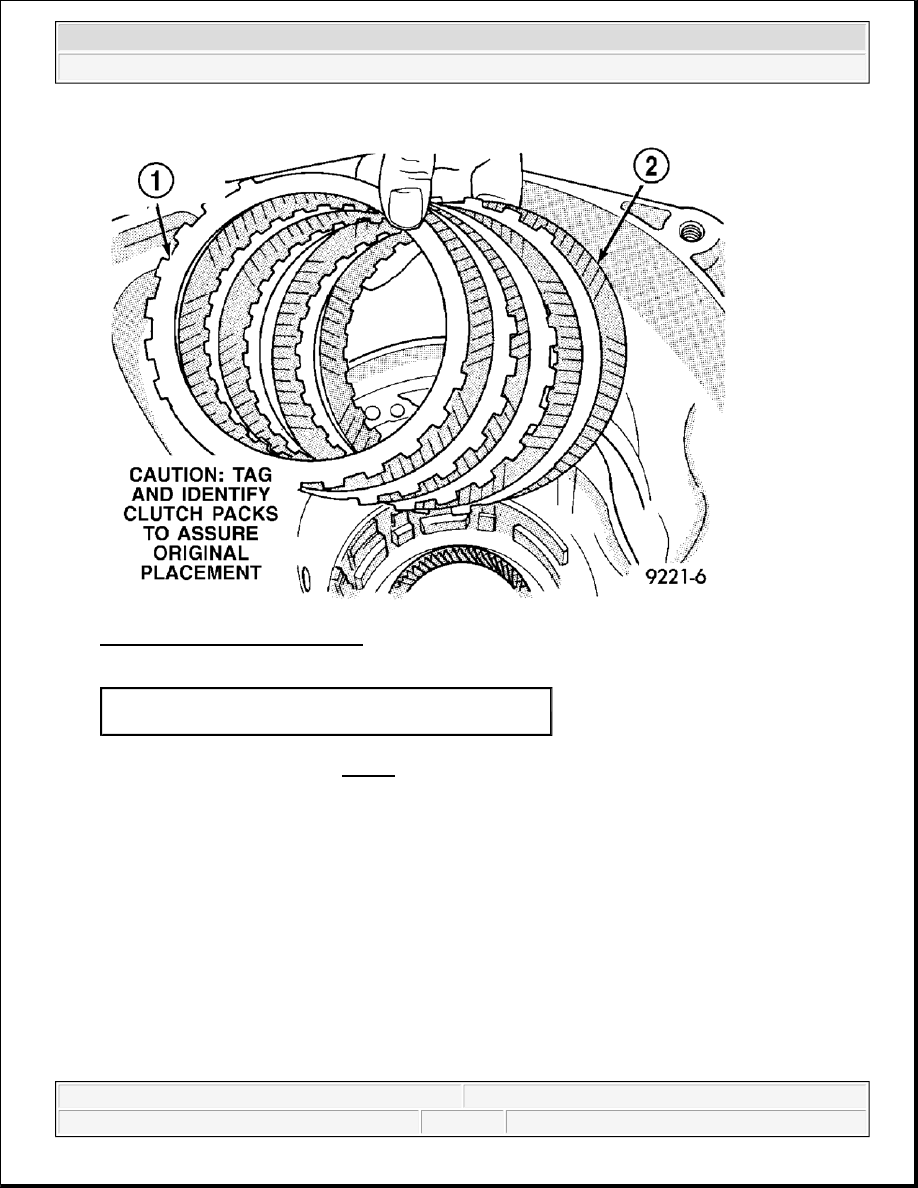

Fig. 44: Installing 2/4 Clutch Pack
Courtesy of CHRYSLER LLC

29. Install 2/4 clutch pack (1, 2). See Fig. 44.

1 - CLUTCH PLATE (4)
2 - CLUTCH DISC (4)



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



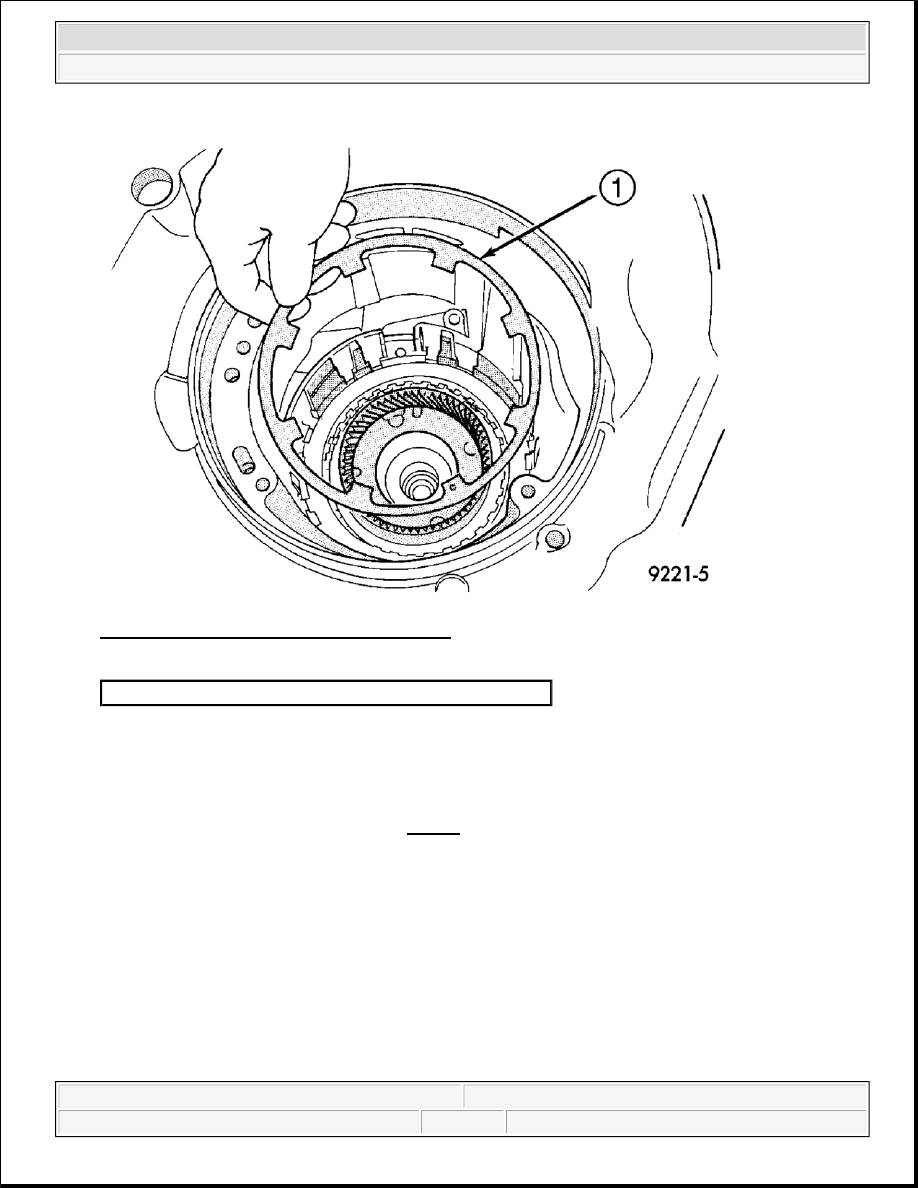

Fig. 45: Installing 2/4 Clutch Belleville Spring
Courtesy of CHRYSLER LLC

30. Install 2/4 clutch belleville spring (1). See Fig. 45.

1 - 2/4 CLUTCH RETURN SPRING

NOTE:

The 2/4 Clutch Piston has bonded seals which are not individually
serviceable. Seal replacement requires replacement of the piston
assembly.



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



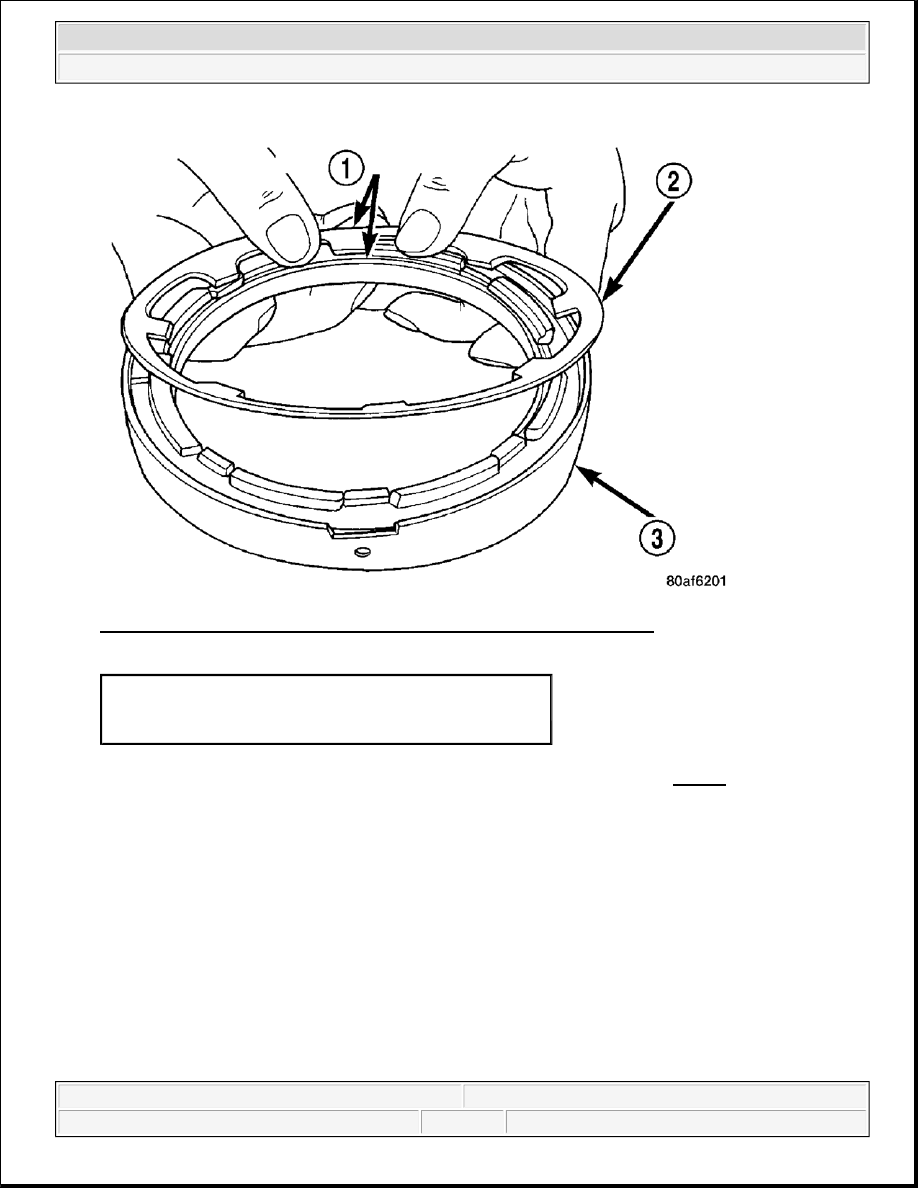

Fig. 46: Verifying Proper Orientation Of Return Spring To 2/4 Retainer
Courtesy of CHRYSLER LLC

31. Verify the proper orientation of the return spring (2) to the 2/4 retainer (3). See Fig. 46.

1 - NOTE POSITION
2 - RETURN SPRING
3 - 2/4 CLUTCH RETAINER



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



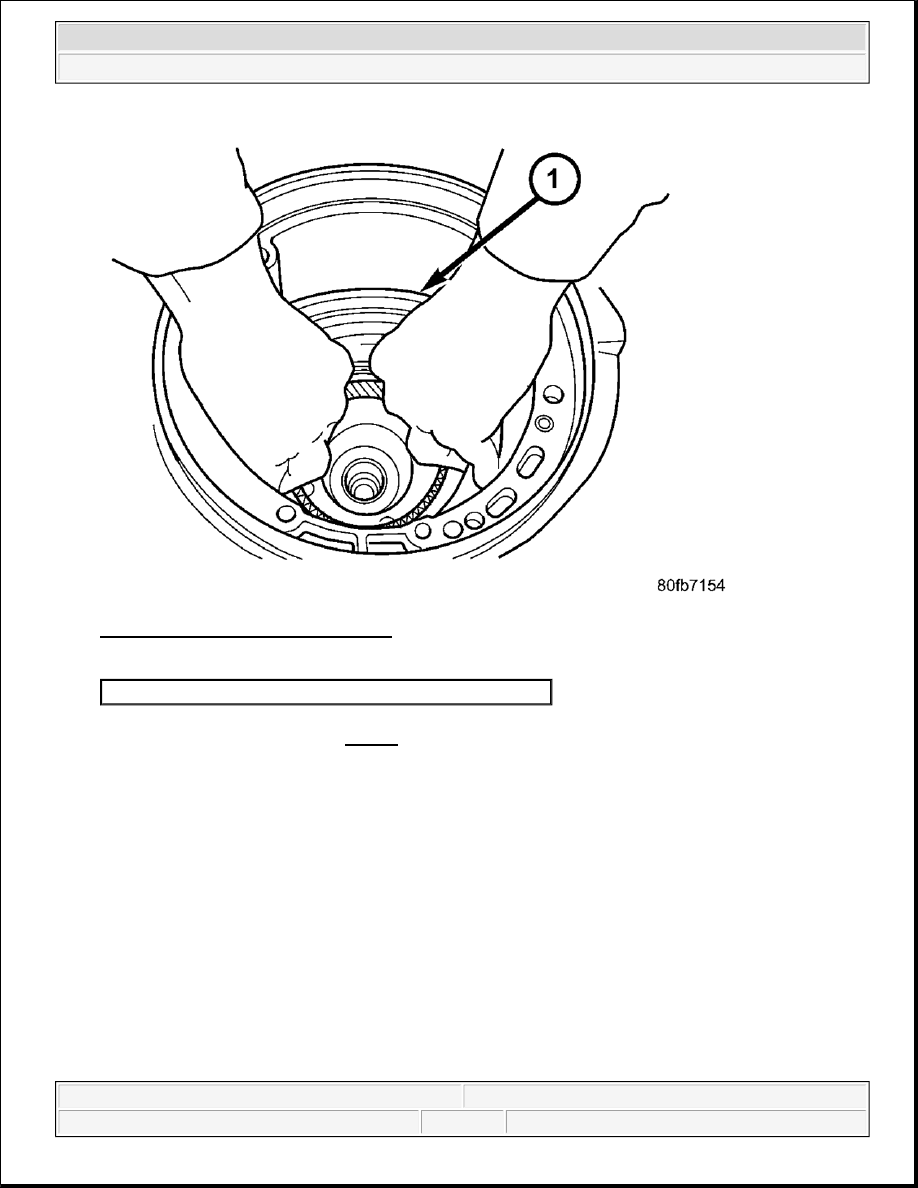

Fig. 47: Installing 2/4 Clutch Retainer
