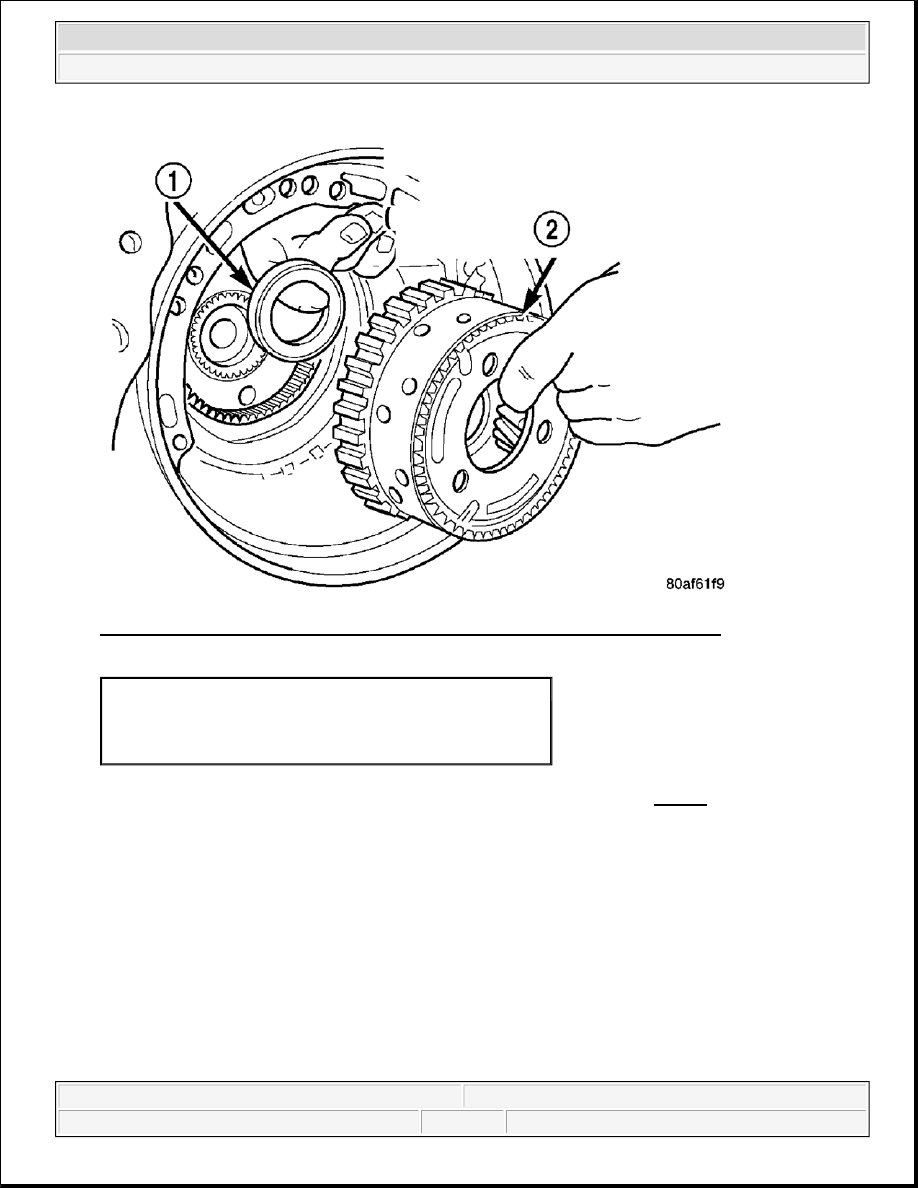

Fig. 52: Installing Front Carrier/Rear Annulus Assembly And #6 Needle Bearing
Courtesy of CHRYSLER LLC

37. Install front carrier/rear annulus assembly (2) and #6 needle bearing (1). See Fig. 52.

1 - #6 NEEDLE BEARING
2 - FRONT CARRIER AND REAR ANNULUS
ASSEMBLY (TWIST AND PULL OR PUSH TO REMOVE
OR INSTALL).



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



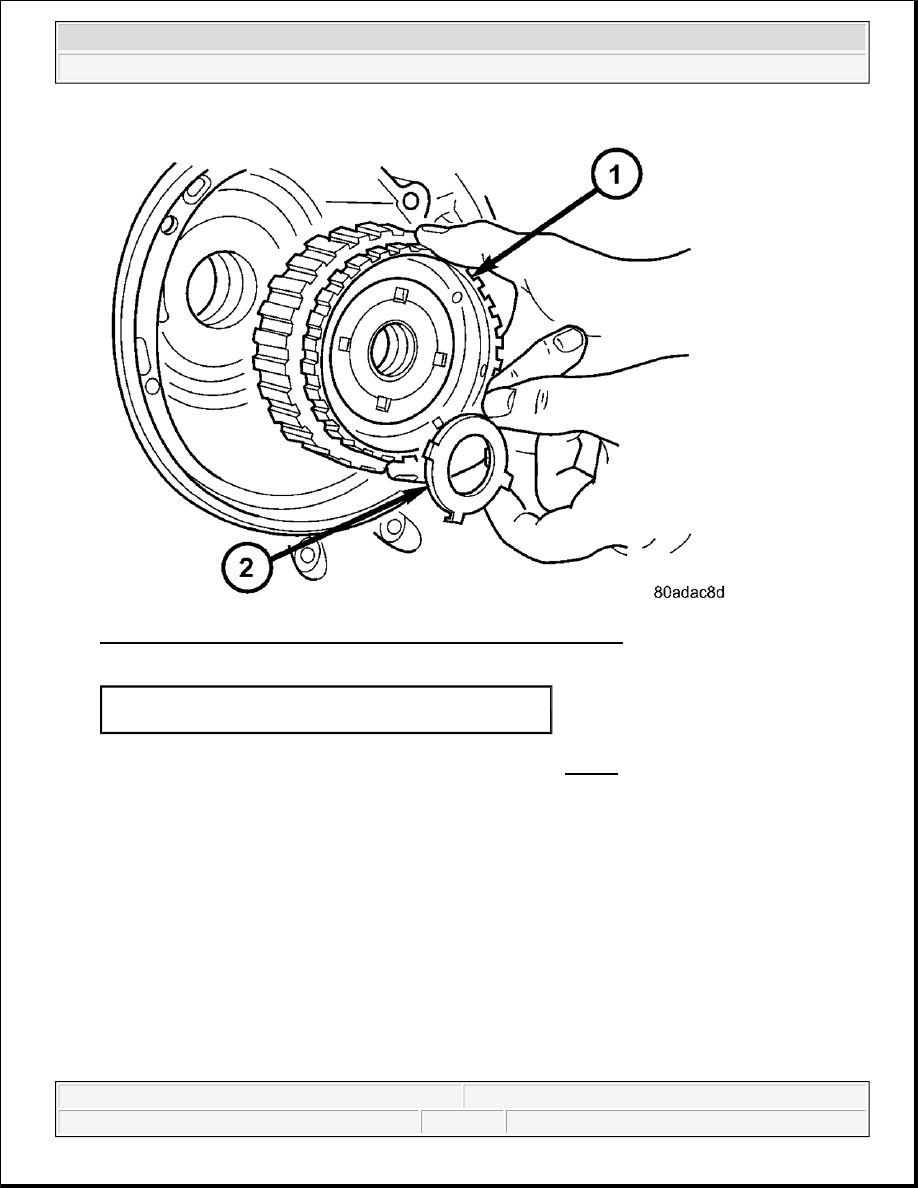

Fig. 53: Installing Front Sun Gear Assembly And #4 Thrust Washer
Courtesy of CHRYSLER LLC

38. Install front sun gear assembly (1) and #4 thrust washer (2). See Fig. 53.

1 - FRONT SUN GEAR ASSEMBLY
2 - #4 THRUST WASHER (FOUR TABS)



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



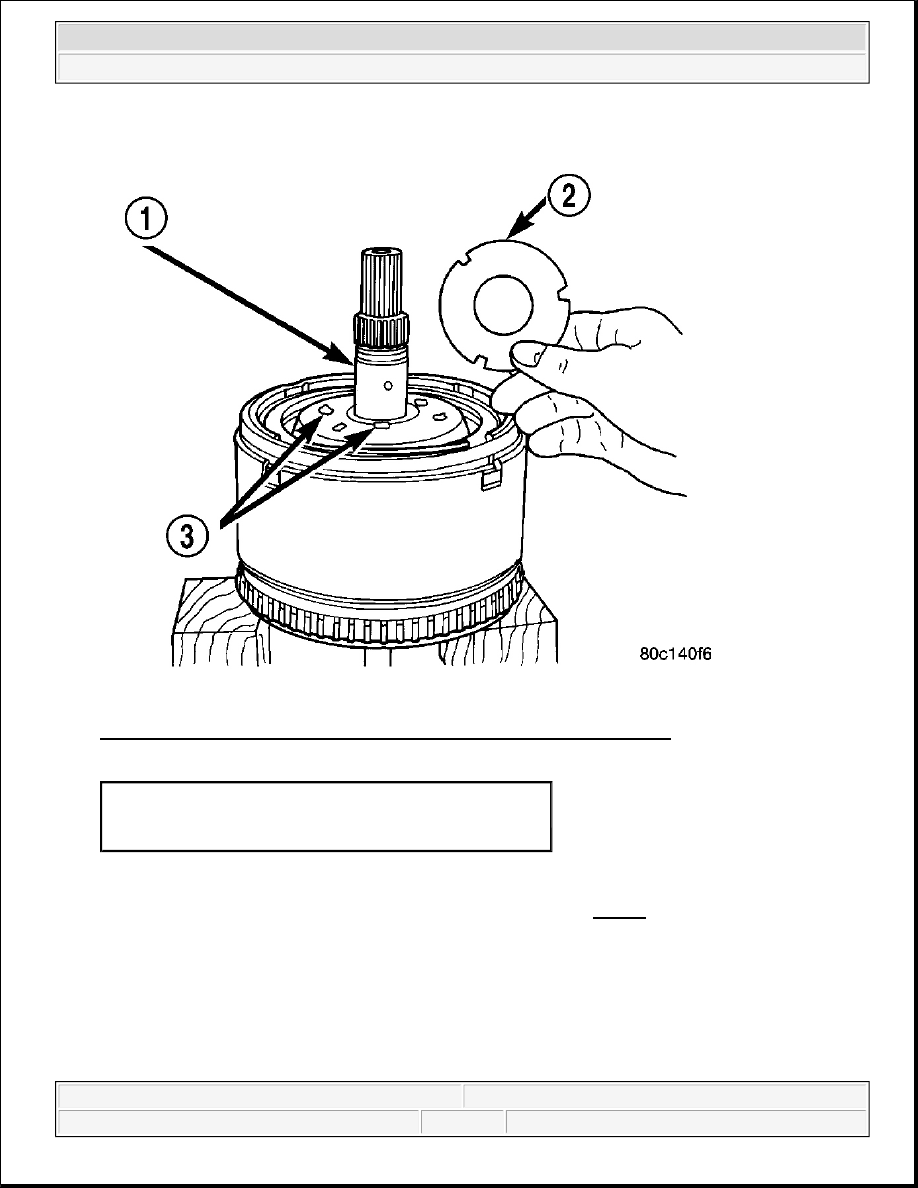

Fig. 54: Installing #4 Thrust Plate Using Petrolatum To Hold Into Position
Courtesy of CHRYSLER LLC

39. Determine proper #4 thrust plate thickness. Select the thinnest available #4 thrust plate.

40. Install #4 thrust plate (2) using petrolatum to hold into position. See Fig. 54.

41. Install input clutch assembly. Ensure the input clutch assembly is completely seated by viewing position

through input speed sensor hole. If the speed sensor tone wheel is not centered in the opening, the
input clutches assembly is not seated properly.

1 - OVERDRIVE SHAFT ASSEMBLY
2 - #4 THRUST PLATE (SELECT)
3 - PETROLATUM FOR RETENTION



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



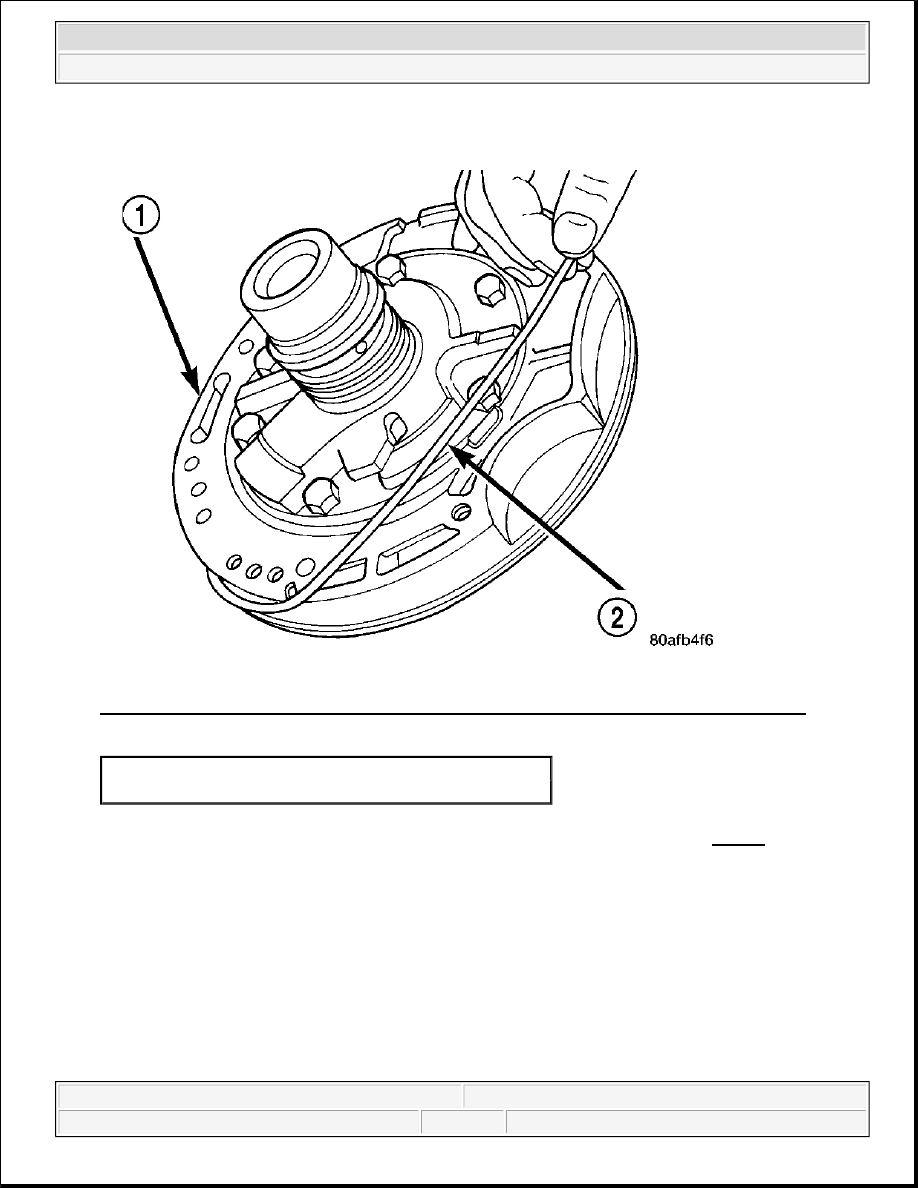

Fig. 55: Removing Oil Pump O-Ring And Installing Oil Pump And Gasket To Transmission
Courtesy of CHRYSLER LLC

42. Remove the oil pump o-ring (2) and install oil pump and gasket to transmission. See Fig. 55.Use screw-

in dowels or Phillips head screwdrivers to align pump to case. Be sure to reinstall O-ring on oil
pump after selecting the proper No. 4 thrust plate.

1 - OIL PUMP ASSEMBLY
2 - O-RING
