3-1

Removal and installation

BRAKE SYSTEM AND COMPONENTS

ΧΦ65/75/85 series

6

5

3. REMOVAL AND INSTALLATION

3.1 REMOVAL AND INSTALLATION, QUICK-RELEASE COUPLING

When disconnecting pipes and/or
quick-release couplings, ensure that
the relevant connection has first
been made pressureless.

Removing the quick-release coupling
1.

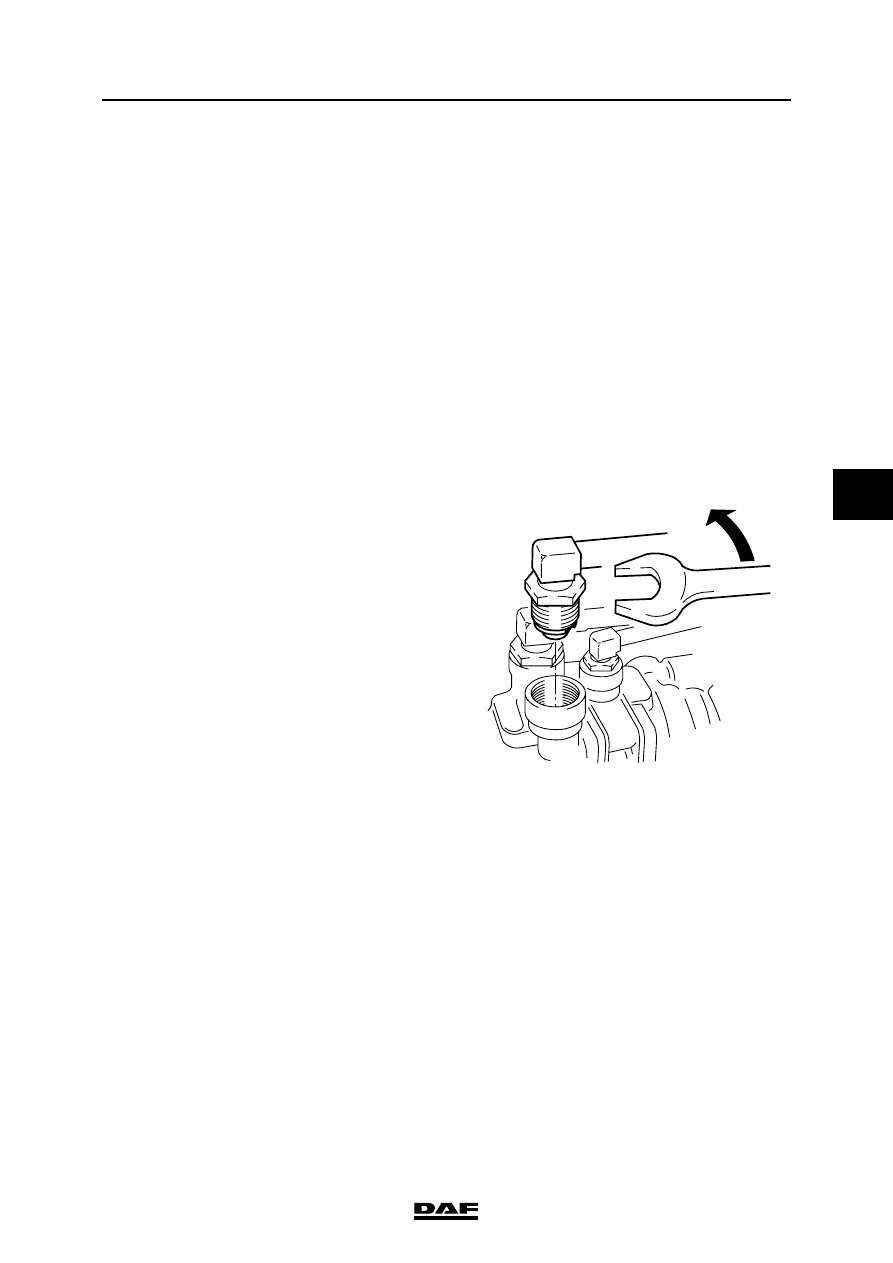

Loosen the socket using an open-end
spanner.

2.

Remove the socket and the pipe connector
from the valve as an assembly.

Installing the quick-release coupling
1.

Check the bore in the valve for dirt and clean
the bore as necessary.

Note:
If the plug is not removed from the socket,
the quick-release coupling (plug and socket)
can be re-fitted as an assembly. The socket
does not then have to be replaced.

2.

Apply brake grease to the O-ring.

3.

Tighten the socket to the specified torque.
See "Technical data".

}

R600367

BRAKE SYSTEM AND COMPONENTS

3-2

©

 200423

Removal and installation

5

ΧΦ65/75/85 series

6

3.2 REMOVAL AND INSTALLATION, PLUG FROM/IN SOCKET

When disconnecting pipes and/or
quick-release couplings, ensure that
the relevant connection has first
been made pressureless.

Removal, plug from socket
1.

Remove the quick-release coupling from the
valve.

Note:

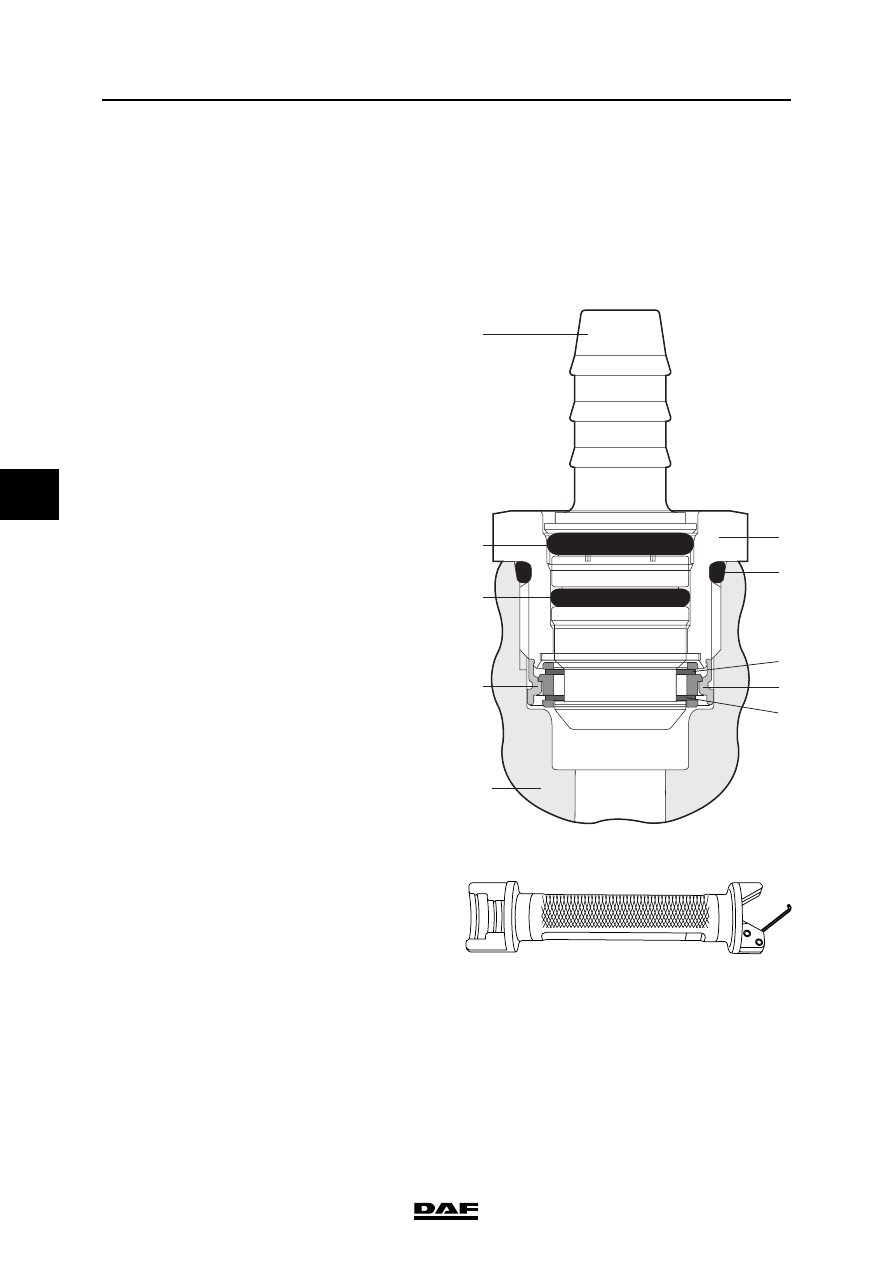

Make sure that the plug (1) is not damaged
when removing the sleeve (6), retainer
clips (8) and (9) and circlip (7).

2.

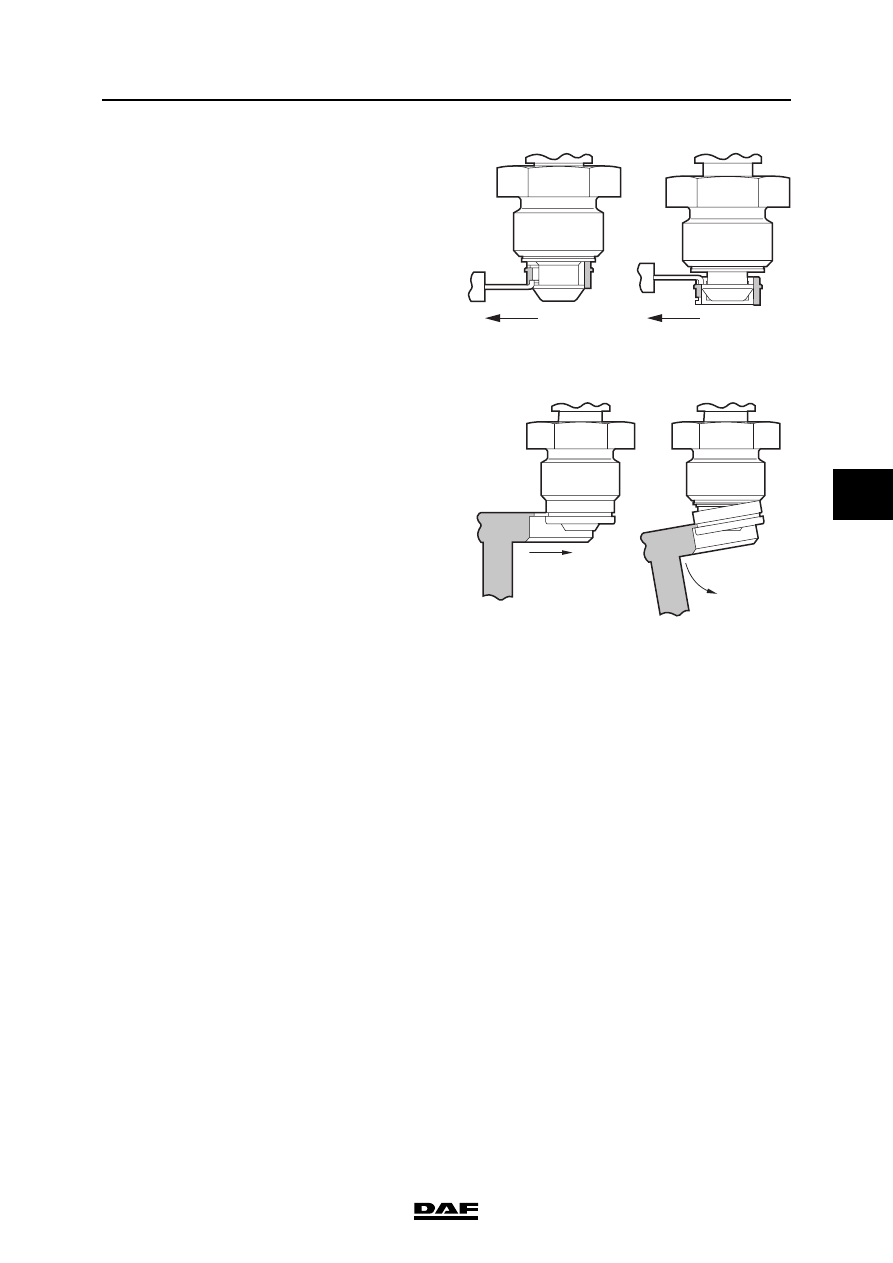

Remove the sleeve using the special tool
(DAF no. 1329459).

}

R600365

2

1

3

5

6

10

4

8

7

9

R600404

©

 200423

3-3

Removal and installation

BRAKE SYSTEM AND COMPONENTS

ΧΦ65/75/85 series

6

5

3.

Remove the two retainer clips and the circlip
using the special tool (DAF no. 1329459).

4.

Remove the plug from the socket.

If the plug is removed from the
socket, the socket must always
be replaced. It is supplied complete
with retainer clips, circlips and
sleeve.

R600369

R600368

}

BRAKE SYSTEM AND COMPONENTS

3-4

©

 200423

Removal and installation

5

ΧΦ65/75/85 series

6

Installation, plug in socket
1.

Check the bore in the valve for dirt and clean
the bore as necessary.

If the plug is removed from the
socket, the socket must always
be replaced. It is supplied complete
with retainer clips, circlips and
sleeve.

2.

Fit a new socket in the valve and tighten it to
the specified torque. See "Technical data".

3.

Check the O-rings of the plug for damage
and replace as necessary.

4.

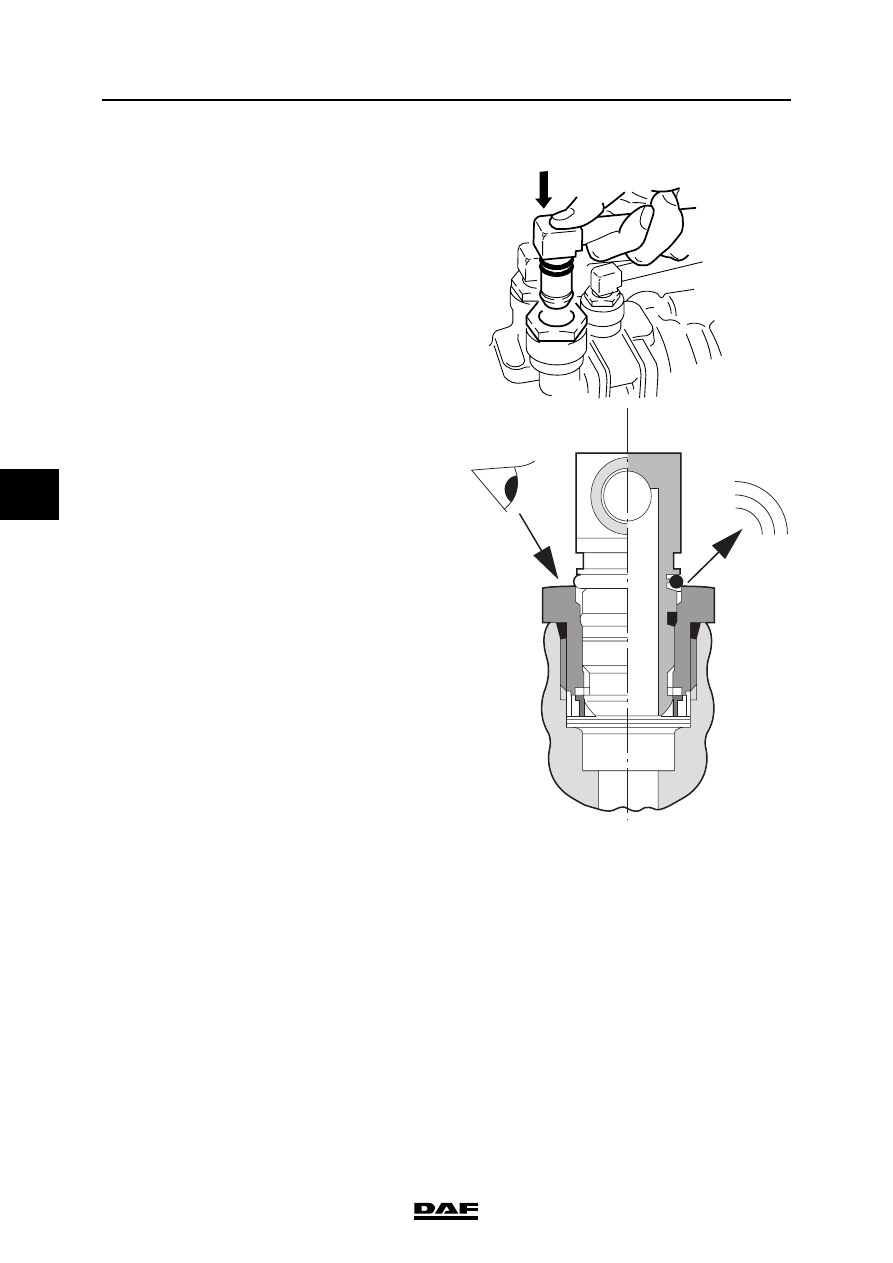

Fit the plug in the socket and check that the
connection is fully locked by pulling it
upwards.

Note:
If the connection is not fully locked, the upper
O-ring of the plug is still visible. If there is
pressure, there will also be an audible
escape of air.

W602006

R600366

}
