DAF CF65, CF75, CF85 Series . Manual - part 358





3

CF65/75/85 series

Removal and installation

CLUTCH

5-9

5.7 REMOVAL AND INSTALLATION, CLUTCH RELEASE ASSEMBLY/CLUTCH

PLATE

Removing the clutch release
assembly/clutch plate
1.

Remove the gearbox.

2.

If necessary, remove the thrust bearing.

3.

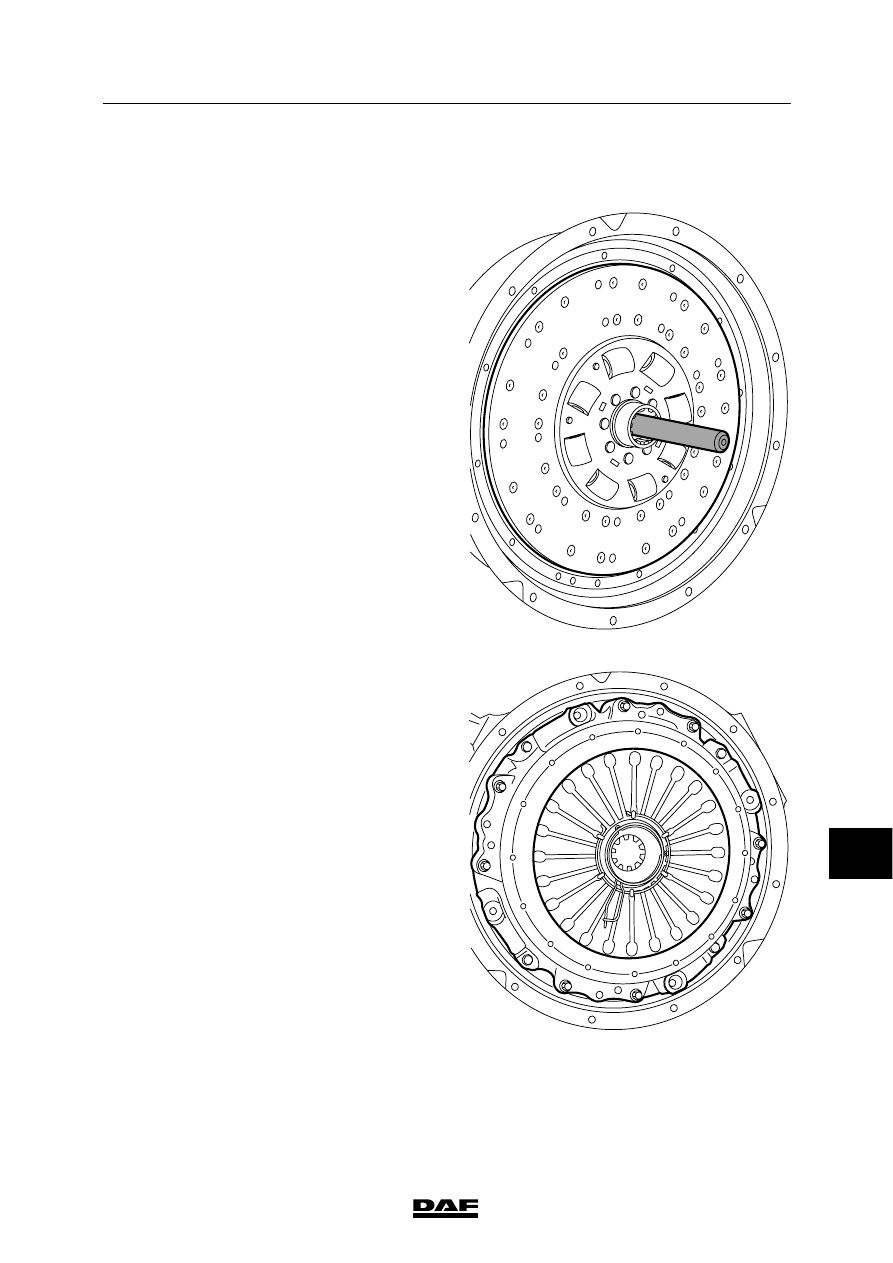

Insert a dummy input shaft through the hub
of the clutch plate in the flywheel pilot
bearing.

V300124

4.

Remove four attachment bolts distributed
around the circumference from the clutch
release assembly and replace them with
studs.

5.

Evenly remove the remaining attachment
bolts from the clutch release assembly.

6.

Remove the clutch release assembly by
sliding it off the four studs.

7.

Remove the clutch plate with the
dummy input shaft.

V300125

10

ᓻ 200337

3

CLUTCH

Removal and installation

CF65/75/85 series

5-10

Installing the clutch release assembly/clutch
plate
1.

Apply a little grease to the input shaft and
check the movement of the clutch plate on
the splines of the input shaft.

2.

Use a dummy input shaft to position the
clutch plate against the flywheel.

3.

Install four studs in the flywheel, distributed
evenly around the circumference.

4.

Support the clutch release assembly and
slide it onto the four studs.

5.

Fit the attachment bolts and tighten them
crosswise and evenly to the specified
torque. See “Technical data”.

6.

Apply a little grease to all pivoting points of
the release fork.

7.

If necessary, fit the thrust bearing.

8.

Fit the gearbox.

10

ᓻ 200337

3

CF65/75/85 series

Removal and installation

CLUTCH

5-11

5.8 REMOVAL AND INSTALLATION, AUTOMATICALLY ADJUSTING CLUTCH

RELEASE ASSEMBLY/CLUTCH PLATE

Removing the automatically adjusting clutch
release assembly/clutch plate
1.

Remove the gearbox.

2.

If necessary, remove the thrust bearing.

3.

Insert a dummy input shaft through the hub
of the clutch plate in the flywheel pilot
bearing.

V300124

4.

Remove four attachment bolts distributed
around the circumference from the clutch
release assembly and replace them with
studs.

V300125

10

ᓻ 200337

3

CLUTCH

Removal and installation

CF65/75/85 series

5-12

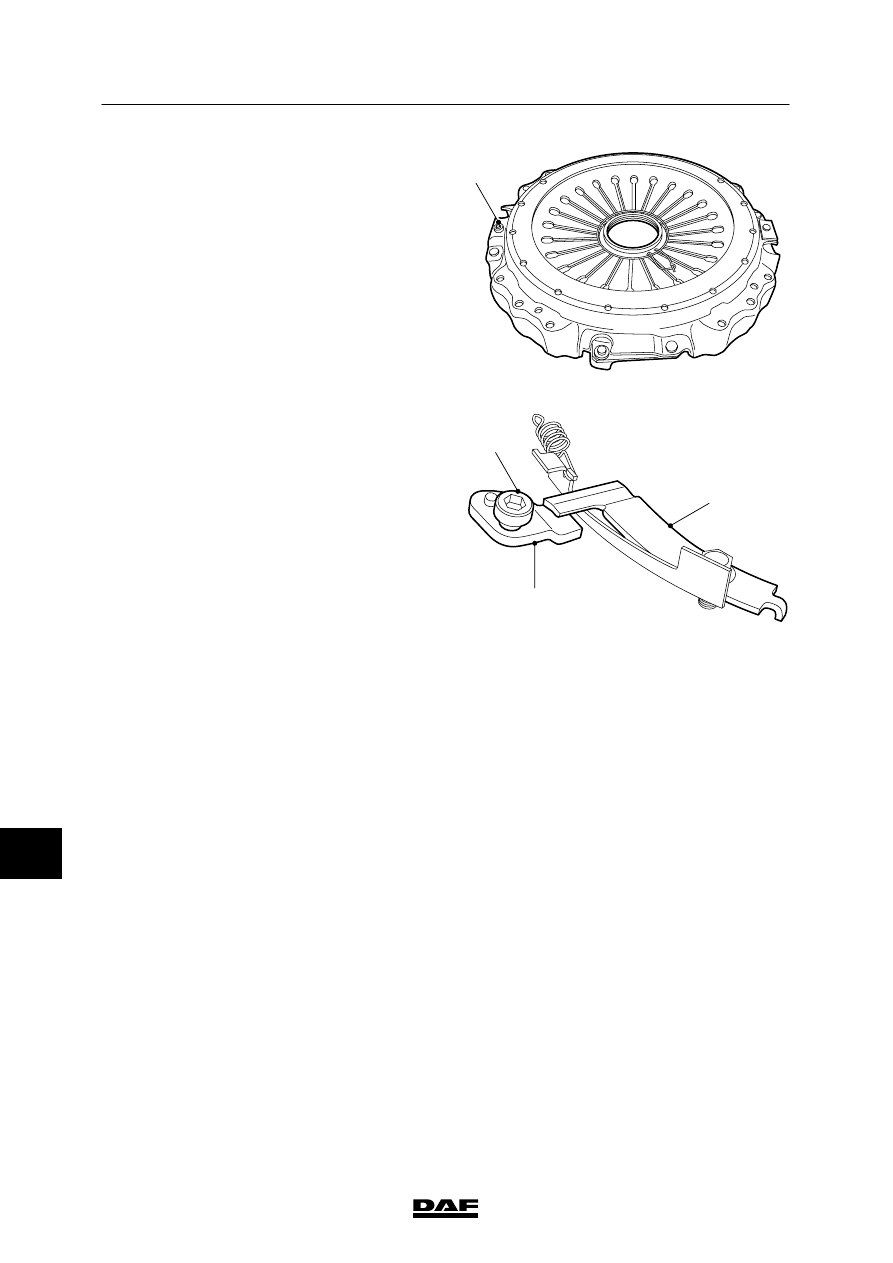

Note:
If you want to disassemble the entire clutch
assembly, always loosen the attachment
bolt (1) of the stop plate (2) first before
removing the clutch release assembly.

If you do not loosen the attachment bolt (1)
of the stop plate (2) before removing the
clutch release assembly, the stop spring (3)
will be deformed.

5.

Fully loosen the attachment bolt (1) of the
stop plate (2).

6.

Evenly remove the remaining attachment
bolts from the clutch release assembly.

7.

Remove the clutch release assembly by
sliding it off the four studs.

8.

Remove the clutch plate with the
dummy input shaft.

Installation of an existing automatically
adjusting clutch release assembly/clutch
plate
1.

Apply a little grease to the input shaft and
check the movement of the clutch plate on
the splines of the input shaft.

2.

Use a dummy input shaft to position the
clutch plate against the flywheel.

3.

Install four studs in the flywheel, distributed
evenly around the circumference.

V300473

1

V300474

1

2

3

10

ᓻ 200337
