CF65/75/85 series

Removal and installation

CLUTCH

5-1

5. REMOVAL AND INSTALLATION

5.1 REMOVAL AND INSTALLATION, CLUTCH SERVO

Hydraulic fluid is toxic and can have
a damaging effect on your health.
Direct or indirect physical contact
should therefore be avoided.
As hydraulic fluid is also a
corrosive fluid, it may damage the
paintwork of the vehicle. Avoid any
contact between hydraulic fluid and
paintwork.

Always use new and clean hydraulic
fluid which has been kept in a
sealed container that meets the
specifications. Hydraulic fluid which
has absorbed water (from the
ambient air) may have an adverse
effect on the operation of the clutch
system.
Avoid any contact with mineral oil.
Even one drop of mineral oil in the
system will damage the seals.

Removing the clutch servo
1.

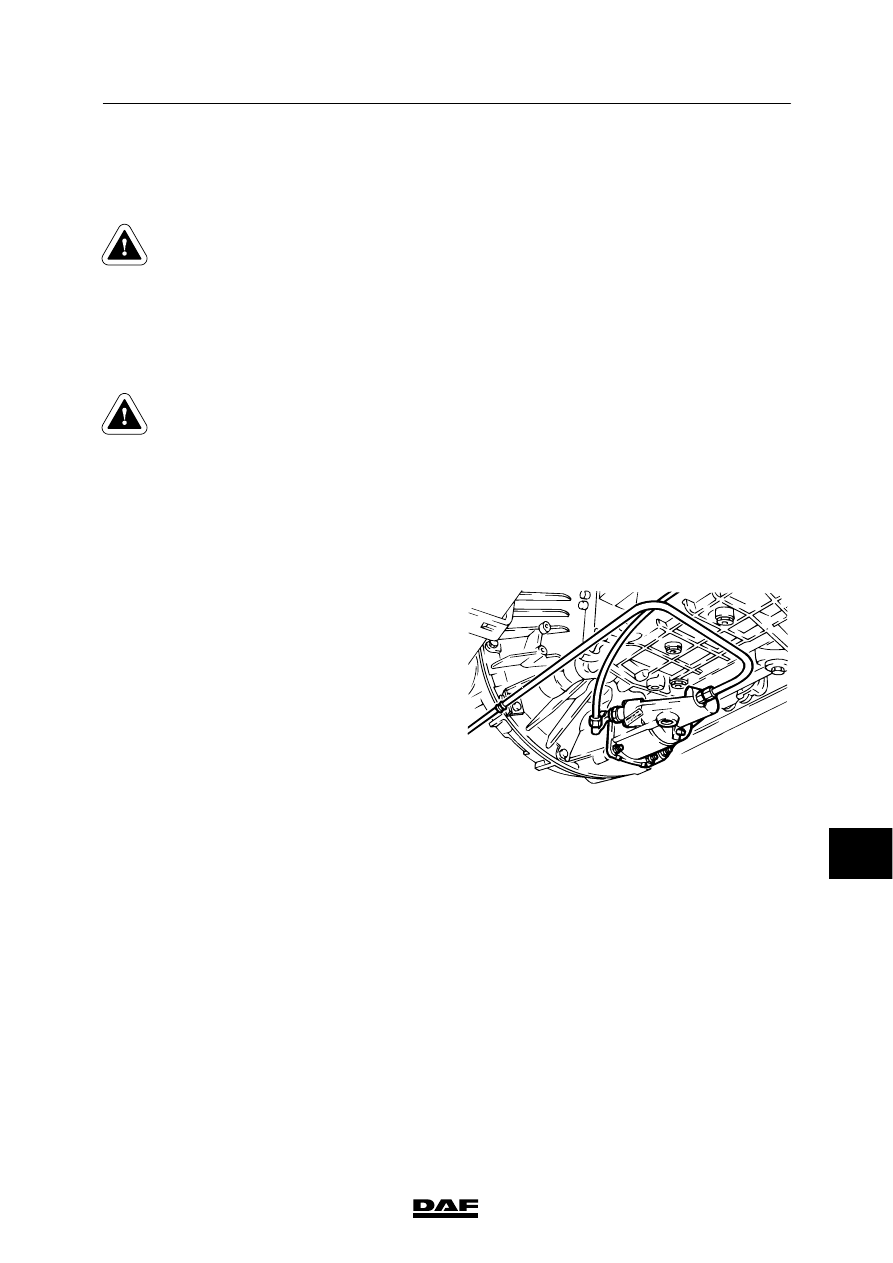

Remove the air pipe from the clutch servo.

2.

Place a container beneath the clutch servo
and remove the fluid pipe. Then plug the
pipe.

3.

Note:
The clutch servo is mounted on the clutch
housing under pre-tension.

Remove the attachment nuts from the
clutch servo.

V300064

10

ᓻ 200337

3

CLUTCH

Removal and installation

CF65/75/85 series

5-2

Installing the clutch servo
1.

Fit the clutch servo. Make sure that the
thrust pin fits into the cup-shaped recess in
the clutch lever.

Note:
If the clutch servo with wear-indicator is
used in the

CF65, pay attention to the

following.
Make sure that the thrust pin fits into the
cup-shaped recess in the wear-indicator.

2.

Tighten the attachment nuts evenly.

3.

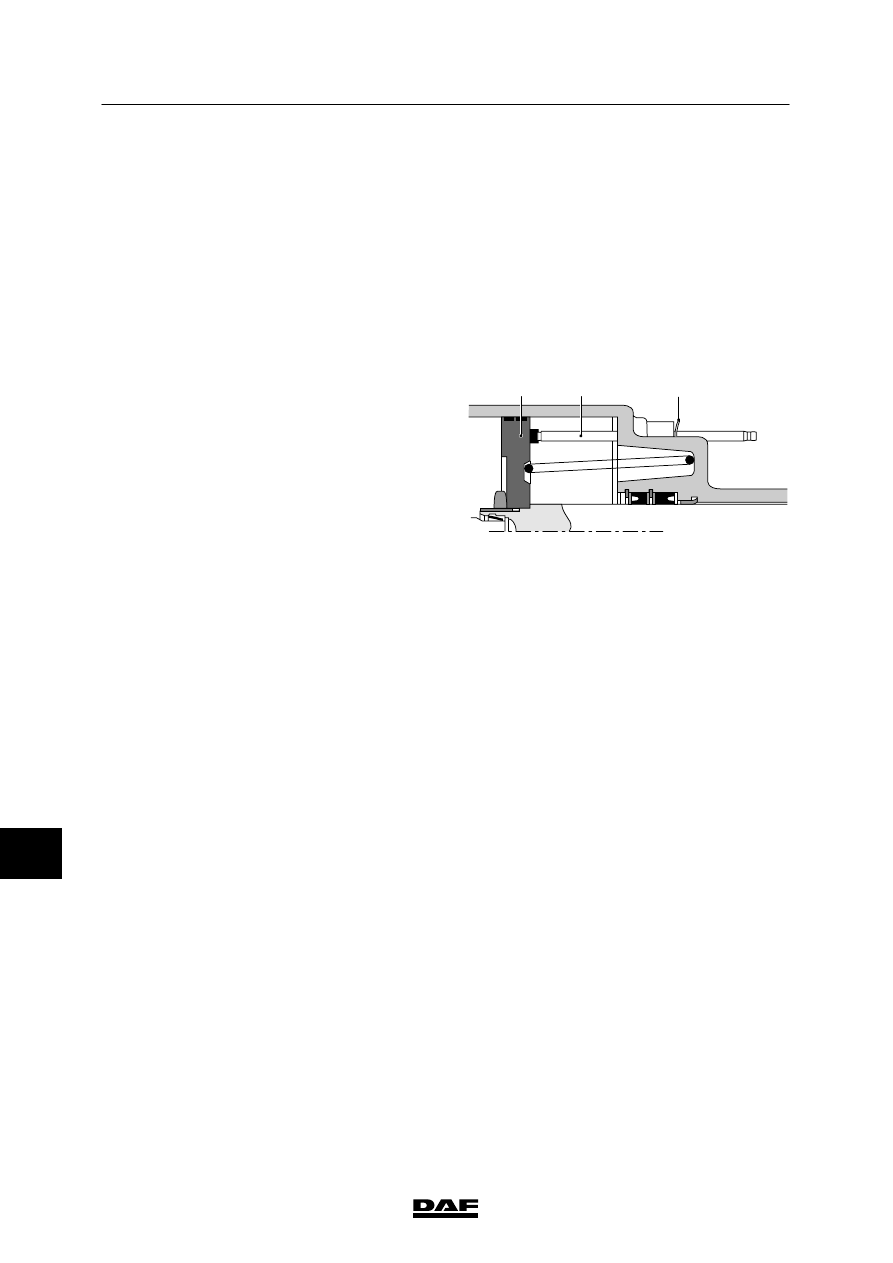

After mounting clutch servos equipped with
a wear pin, the pin (11) must be pushed
against the air piston (5), and the circlip (12)
must be pushed against the clutch servo
housing.

4.

Fit the air pipe and the fluid pipe.

5.

Fill and bleed the clutch system.

V300355

5

11

12

10

ᓻ 200337

3

CF65/75/85 series

Removal and installation

CLUTCH

5-3

5.2 REMOVAL AND INSTALLATION, AS TRONIC CLUTCH UNIT

Removing the clutch unit
1.

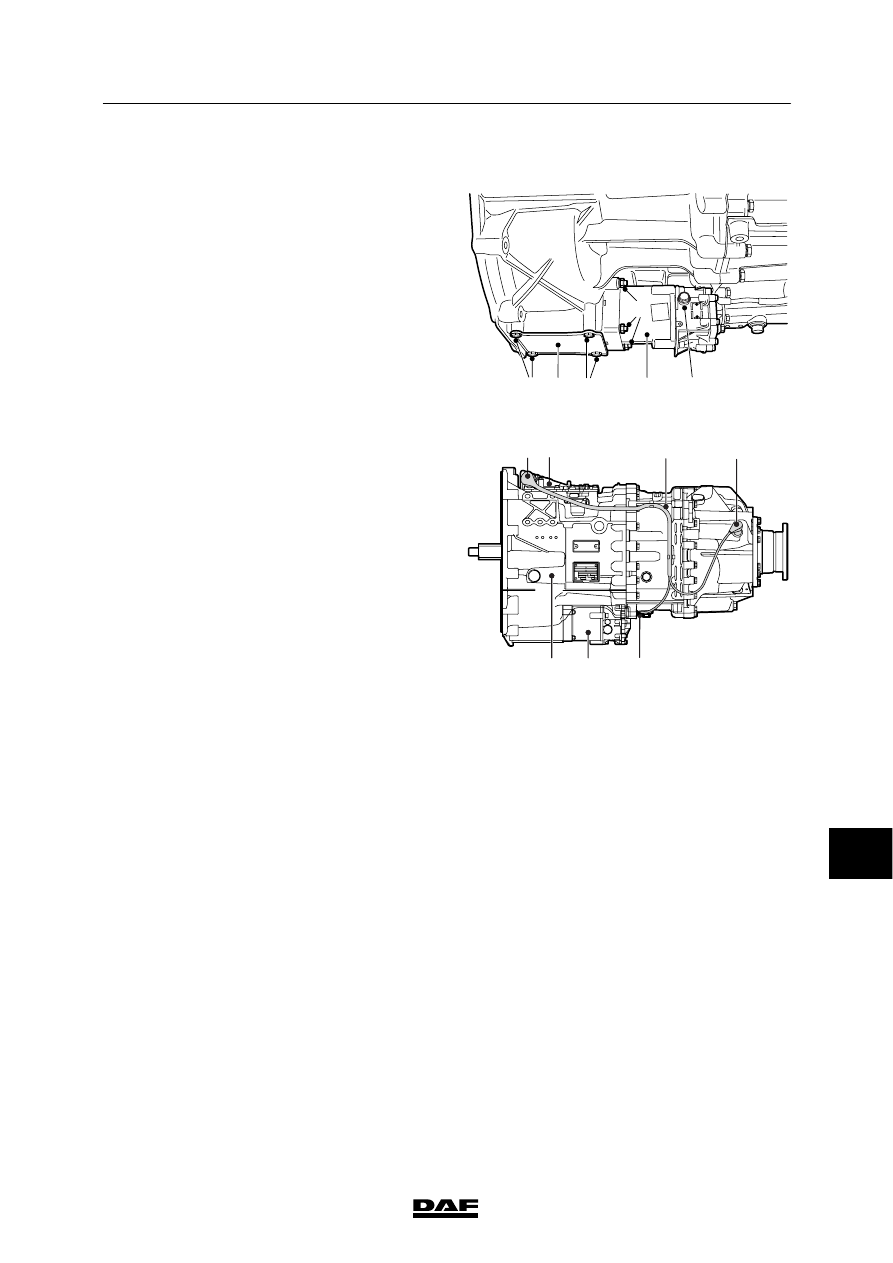

Remove the bolts (1) from the clutch
inspection cover (2) and remove the clutch
inspection cover.

2.

Remove the connector (4) on the left-hand
side of the gearbox modulator and the
speed sensor connector (3).

3.

Bleed circuit 4 and remove the air pipe from
the clutch unit.

4.

Remove the attachment nuts (3) from the
clutch unit (5) and remove the complete
clutch unit, including the wiring harness.

5.

Remove the thrust pin from the clutch lever.

Installing the clutch unit
1.

Fit the thrust pin in the clutch lever.

2.

Bleed the clutch unit.

3.

Fit the clutch unit, tighten the attachment
bolts. See “Technical data”.

4.

Fit the air pipe, tighten the attachment bolts.
See “Technical data”.

5.

Fit the wiring harness (2), with connector 4
to the modulator (5) and connector 3 to the
speed sensor.

6.

Fit the clutch inspection cover.

V300669

1 2

3

1

5

4

ZF FRIEDRICHSHAFEN AG

8

1

9

3

5

4

V300718

2

10

ᓻ 200337

3

CLUTCH

Removal and installation

CF65/75/85 series

5-4

5.3 REMOVAL AND INSTALLATION, PULL-TYPE CLUTCH THRUST BEARING

Removing the pull-type clutch thrust bearing
1.

Remove the gearbox.

2.

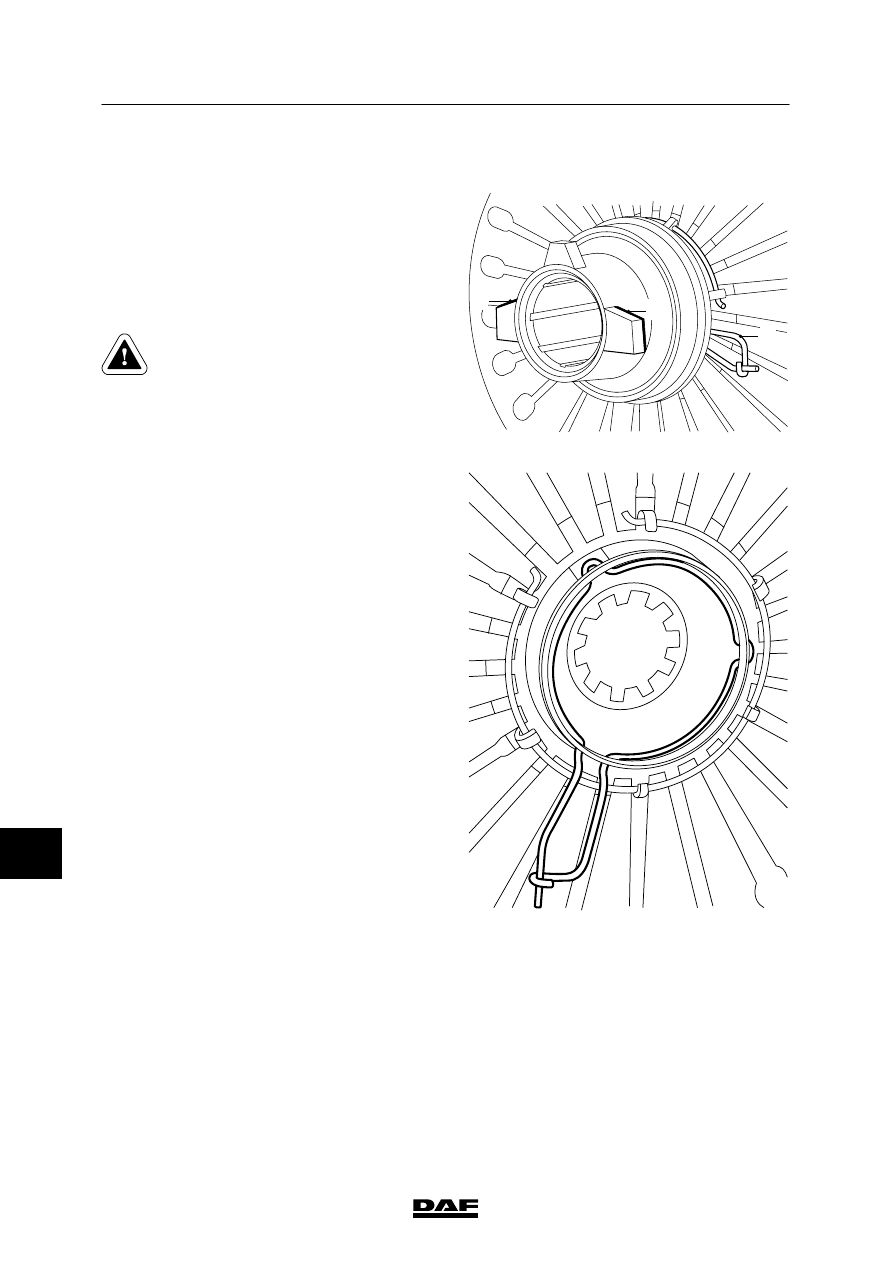

Remove the thrust bearing from the clutch
release assembly by releasing the retaining
clip (A) from the clutch release assembly.

Installing the pull-type clutch thrust bearing

In the case of thrust bearings with a
plastic coating, no grease should be
used on the gearbox front cover.
The grease will attack the plastic
coating and shorten the service life
of the thrust bearing.
The thrust bearing chamber has
been greased for the full service
life.

1.

Apply a little grease to the pressure
surfaces of the release fork and the thrust
washer.

2.

Fit the thrust bearing, with the lip pointing
up, dry onto the gearbox front cover.

3.

Move the clutch lever, causing the thrust
bearing to engage behind the rolls of the
clutch lever.

Note:
Before fitting the gearbox, check whether
the retaining clip in the clutch release
assembly has been locked.

V300059

B

A

B

V300123

10

ᓻ 200337
