3

CF65/75/85 series

Removal and installation

CLUTCH

5-5

4.

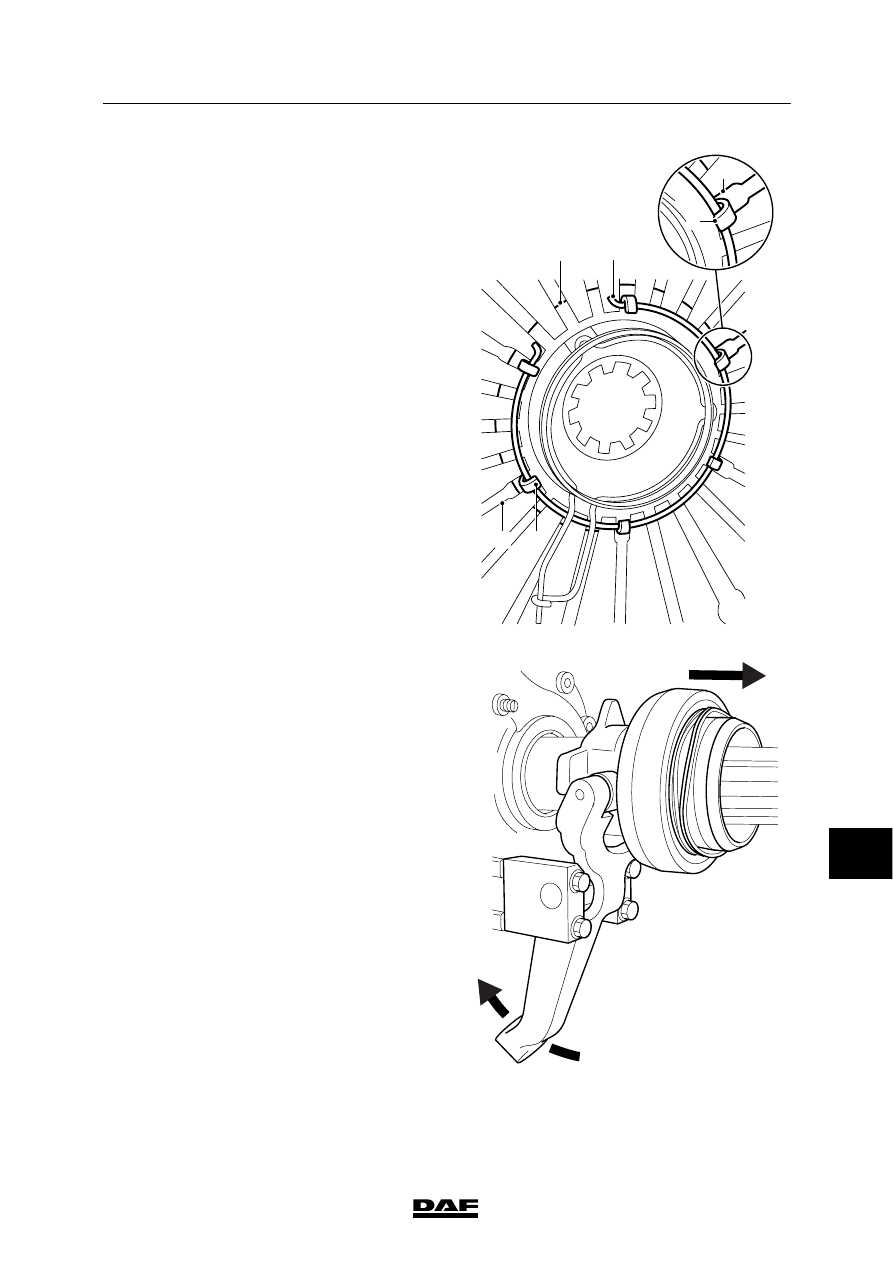

Check whether the retainer plate (2) and
circlip (1) and retaining clip (3) have been
fitted in the correct locations. The
diaphragm springs (4) have special
recesses to accommodate the retaining
clips (3).

V300122

2

4

4

1

3

3

5.

Fit the gearbox.

6.

Move the clutch lever so as to lock the
thrust bearing in the clutch release
assembly.

V300442

10

ᓻ 200337

3

CLUTCH

Removal and installation

CF65/75/85 series

5-6

5.4 REMOVAL AND INSTALLATION, PUSH-TYPE CLUTCH THRUST BEARING

Removing the push-type clutch thrust
bearing
1.

Remove the gearbox.

2.

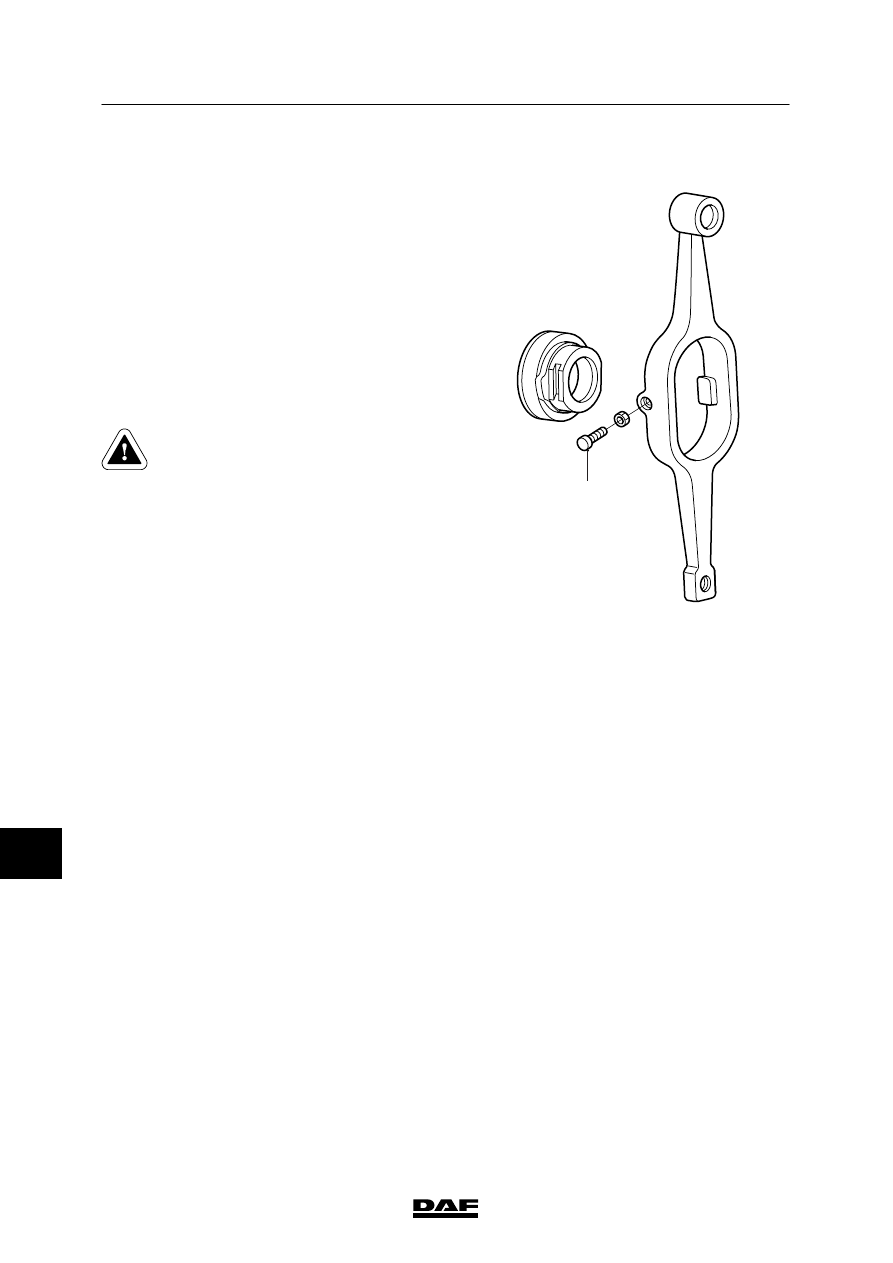

Remove the thrust bearing from the clutch
lever in the clutch housing. If fitted, remove
the locking bolt (1).

Note:
This applies only to the fork of the

CF75.

The fork of the

CF65 does not have a locking

bolt.

Installing the push-type clutch thrust bearing

In the case of thrust bearings with a
plastic coating, no grease should be
used on the gearbox front cover.
The grease will attack the plastic
coating and shorten the service life
of the thrust bearing.

1.

Apply a little grease to the pressure
surfaces of the release fork and the thrust
washer.

2.

In the case of thrust bearings with an
aluminium lining, apply a little grease to the
gearbox front cover.

3.

Install the thrust bearing onto the clutch
lever and install the locking bolt (1), if
present.

Note:
When tightening the locking bolt (1) in the
thrust bearing groove, ensure that the thrust
bearing can move freely relative to the
clutch lever.

4.

Fit the gearbox.

1

V300291

10

ᓻ 200337

3

CF65/75/85 series

Removal and installation

CLUTCH

5-7

5.5 REMOVAL AND INSTALLATION, PULL-TYPE CLUTCH LEVER

Removing the pull-type clutch lever
1.

Remove the gearbox.

2.

Remove the thrust bearing.

3.

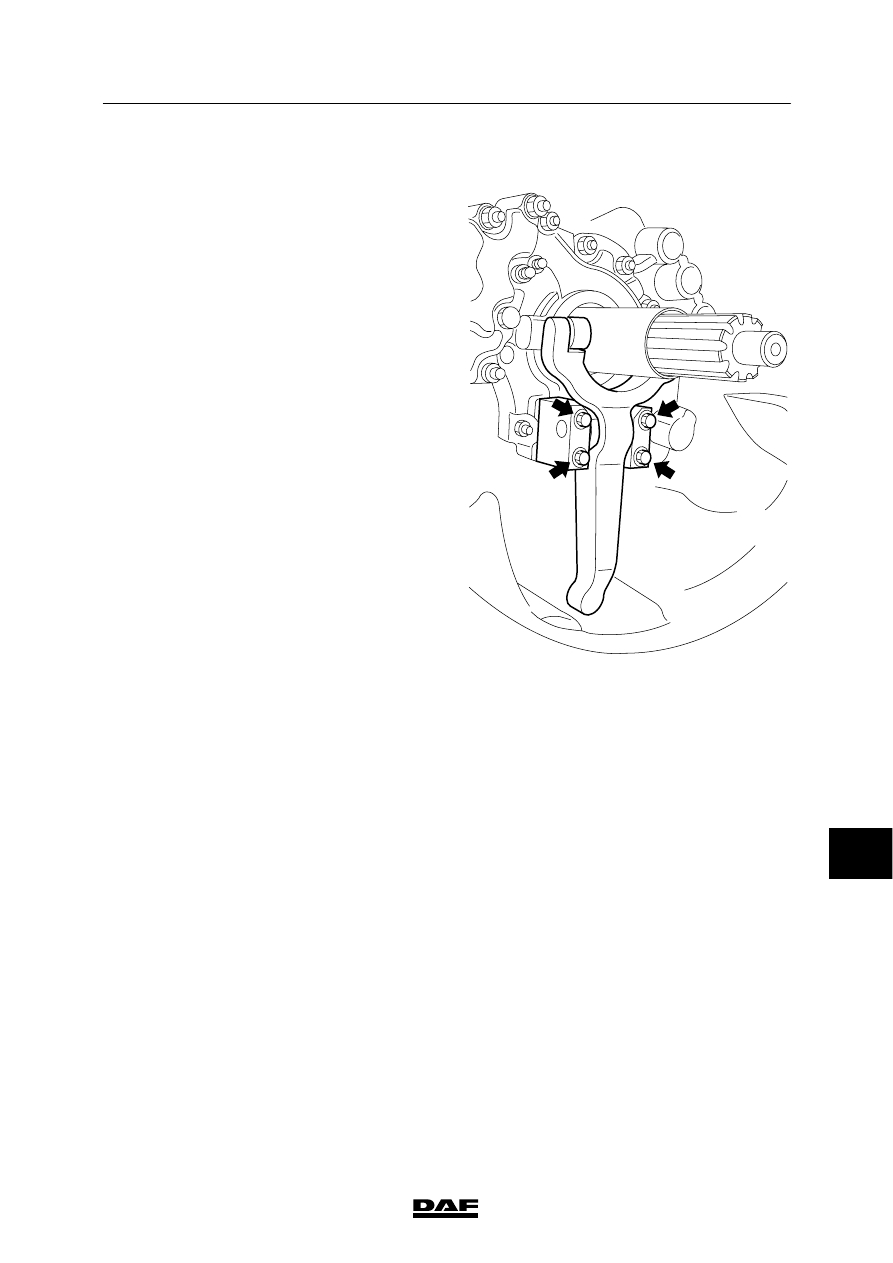

Remove the attachment bolts from the
clutch lever.

Installing the pull-type clutch lever
1.

Apply a little grease to the moving parts of
the clutch lever.

2.

Install the clutch lever on the gearbox and
tighten the attachment bolts.

3.

Fit the thrust bearing.

4.

Fit the gearbox.

V300441

10

ᓻ 200337

3

CLUTCH

Removal and installation

CF65/75/85 series

5-8

5.6 REMOVAL AND INSTALLATION, PUSH-TYPE CLUTCH LEVER

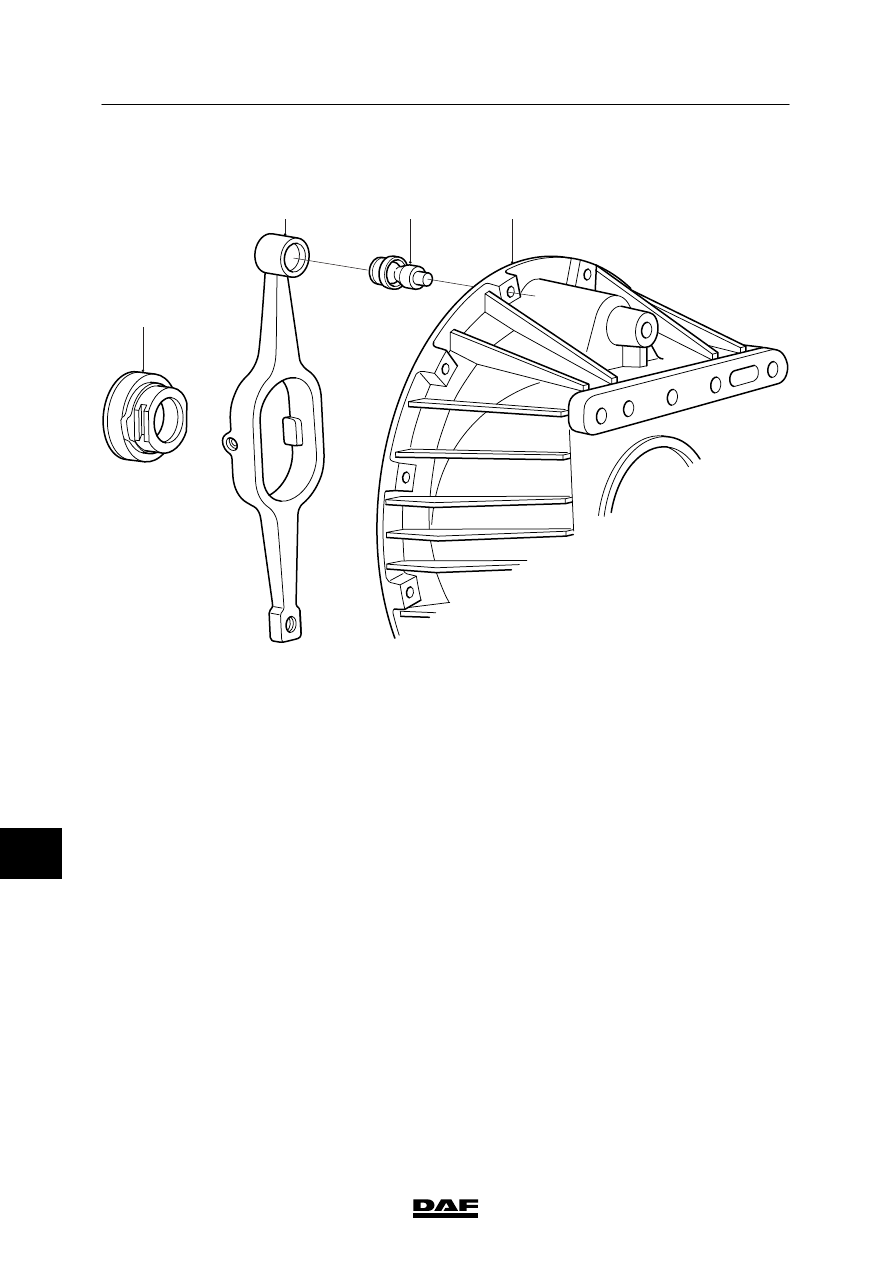

V300440

2

3

4

1

Removing the push-type clutch lever
1.

Remove the gearbox.

2.

Remove the thrust bearing.

3.

Force the clutch lever (2) out of the ball joint
(3) fitted in the clutch housing (4).

Installing the push-type clutch lever
1.

Apply a little grease to the moving parts of
the clutch lever.

2.

Force the clutch lever (2) into the ball joint
(3) fitted in the clutch housing (4).

3.

Fit the thrust bearing.

4.

Fit the gearbox.

10

ᓻ 200337
