DAF CF65, CF75, CF85 Series . Manual - part 314





3

CF65/75/85 series

Description of components

GEARBOX - PNEUMATIC SECTION

2-11

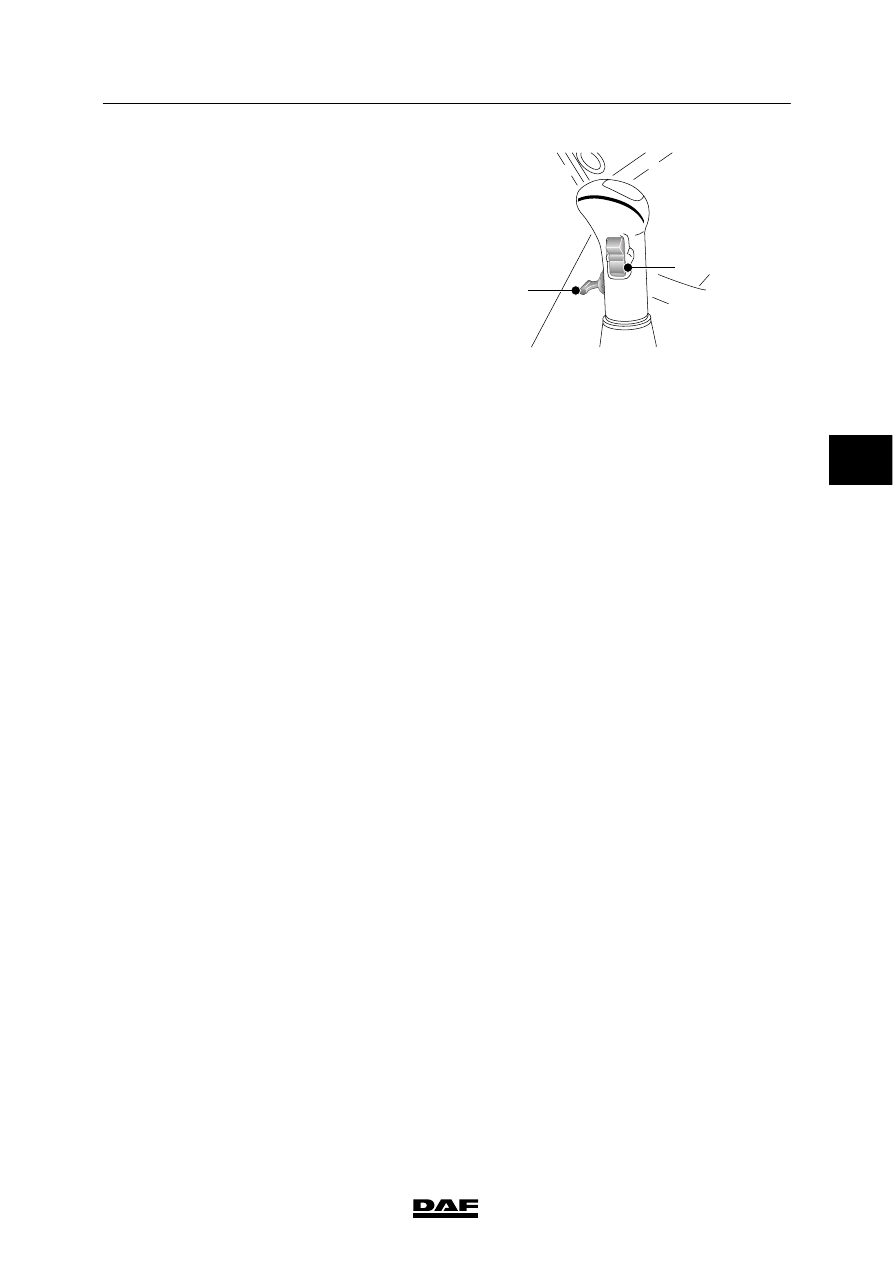

Operation of the range-change gear
Changing to the low or high speed range is done
with a switch (B) on the front of the gear lever:
turn the switch down to select the low range
and up to select the high range. Pre-selection is
permitted. Switching itself takes place when the
gear lever passes neutral.

Operation of the splitter switch
Engaging half gears, or splitting, is done with the
switch (A) on the side of the gear lever. Tip the
lower end of the switch for low split selection
and the upper end of the switch for high split
selection.
When the switch has been operated, the clutch
pedal must be fully depressed, after which the
gear change is made.
Pre-selection is permitted.
When the splitter is in low split position, the
splitter warning lamp “splitter low” on the
instrument panel will illuminate.

B

A

D000096

4

ᓻ 200337

3

GEARBOX - PNEUMATIC SECTION

Description of components

CF65/75/85 series

2-12

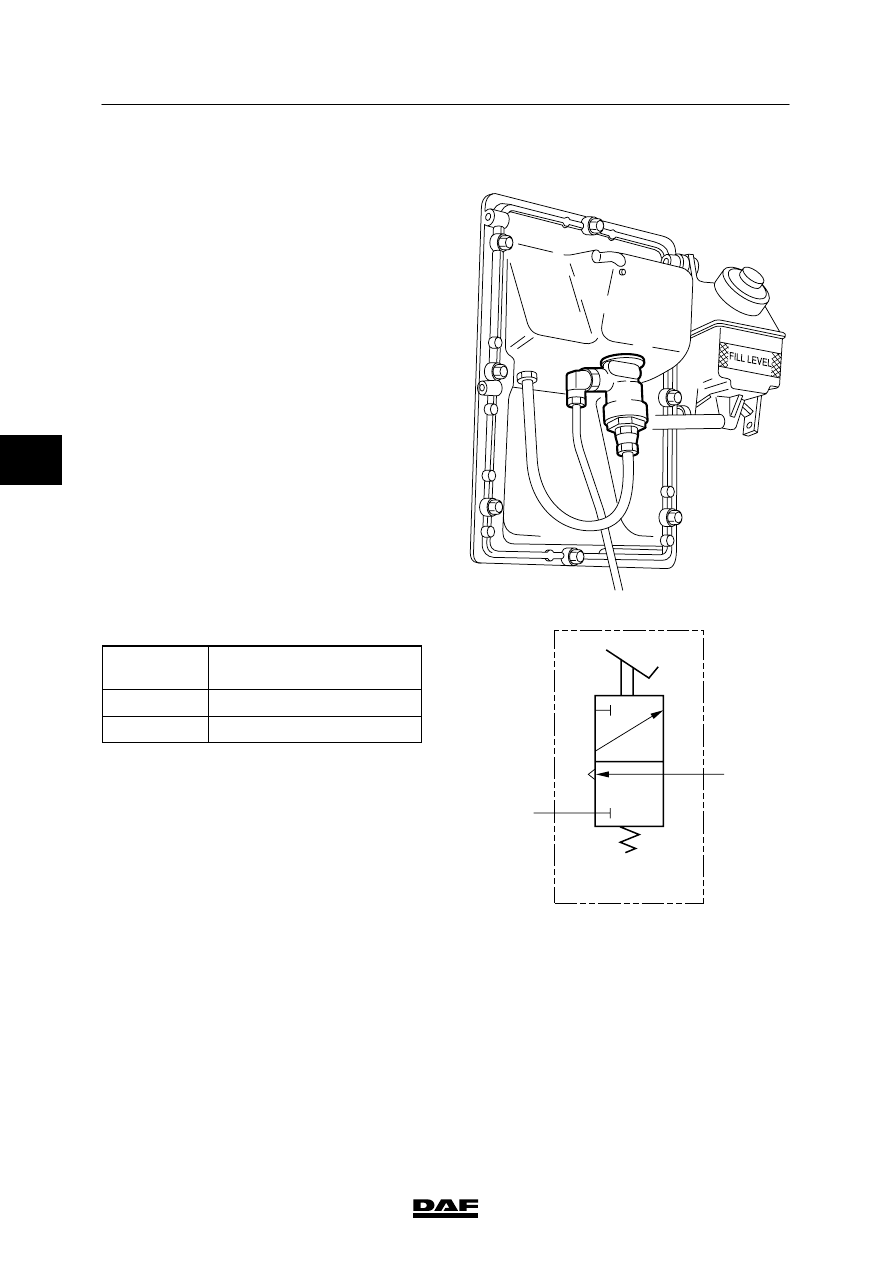

2.6 GV VALVE

V300177

Pneumatic symbol

Connection

point

Function

1

Supply

2

Control pressure

Operation of GV valve
The GV (“Getriebevorschalt”) pre-selector valve
ensures that when the clutch pedal is depressed
pressure is supplied to the splitter cylinder via
the relay valve.
If the clutch pedal is not depressed, this bleeds
the splitter cylinder.
The splitter cylinder will stay in the position to
which it was last switched.

V300164

1

2

4

ᓻ 200337

3

CF65/75/85 series

Description of components

GEARBOX - PNEUMATIC SECTION

2-13

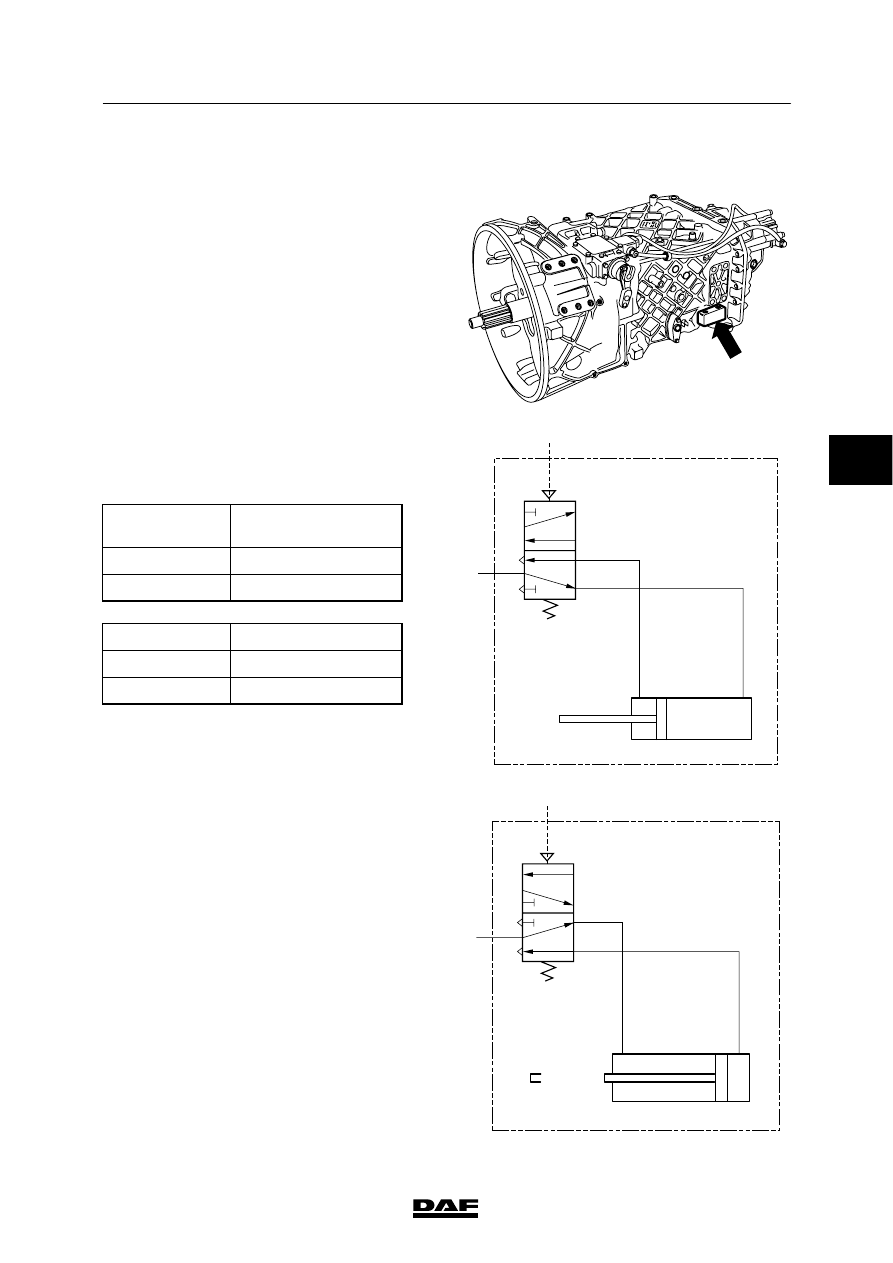

2.7 SPLITTER RELAY VALVE

In 16 S gearboxes, the splitter relay valve is
located at the left-hand side of the gearbox. The
valve is a 5/2 valve.
Depending on the type of gearbox (direct input
or overdrive), two variants are possible.

V300169

Pneumatic symbol
V300162 overdrive gearbox
V300163 direct input gearbox

Connection

point

Function

1

Supply

41

Control pressure

Position

Function

L

Splitter high

H

Splitter low

V300162

1

41

H

L

H

L

L

H

V300163

1

41

H

L

4

ᓻ 200337

3

GEARBOX - PNEUMATIC SECTION

Description of components

CF65/75/85 series

2-14

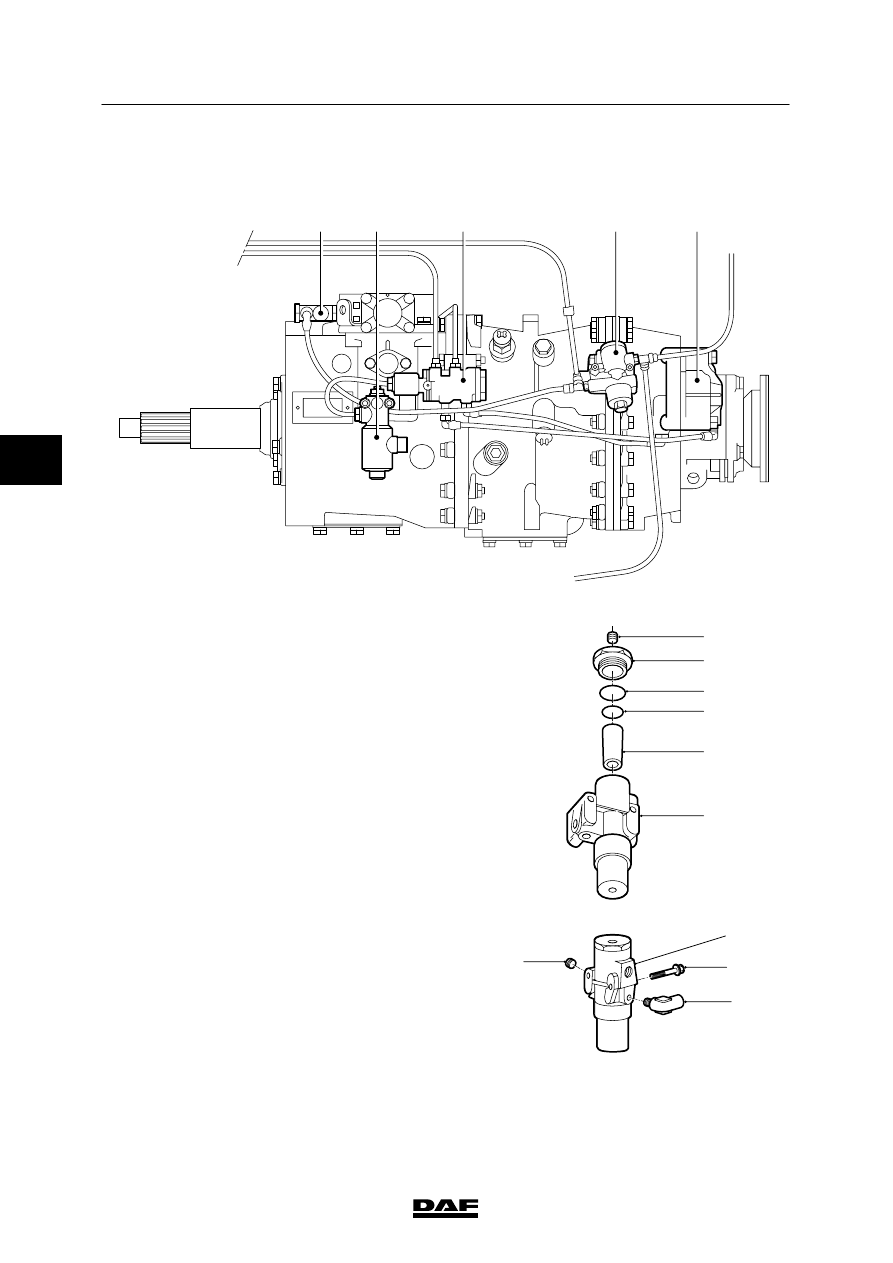

2.8 FILTER/GOVERNOR, EATON FS/6309A

Filter/governor (1) on gearbox

2

3

4

1

5

V300558

Overview drawing, filter/governor,
Eaton FS/6309A
1.

Filter/governor housing

2.

Filter element

3.

Sealing ring

4.

O-ring

5.

Cover

6.

Plug

7.

Output

8.

Selector valve output plug

9.

Attachment bolt

10. Supply pressure input

6

5

4
3

2

1

10

9

8

V300430

7

4

ᓻ 200337
