Removal and installation

XE ENGINE

CF65/75/85 series

2

8

4.

Remove the three studs used to position the

gasket and replace them with the remaining

attachment bolts.

5.

Fit new O-rings to the coolant pipe and fit it.

6.

Fit a new O-ring to the oil filler pipe and install

the oil filler pipe.

7.

Fit the timing cover seal.

8.

Fit the vibration damper hub.

9.

Install the vibration damper.

10. Fit the fan drive.

11. Fit the alternator bracket and alternator and

connect the electrical wiring to the alternator.

12. Fit the poly-V-belt.

13. Fill the cooling system. See "XE engine

cooling system".

XE ENGINE

4-32

©

 200324

Removal and installation

8

CF65/75/85 series

2

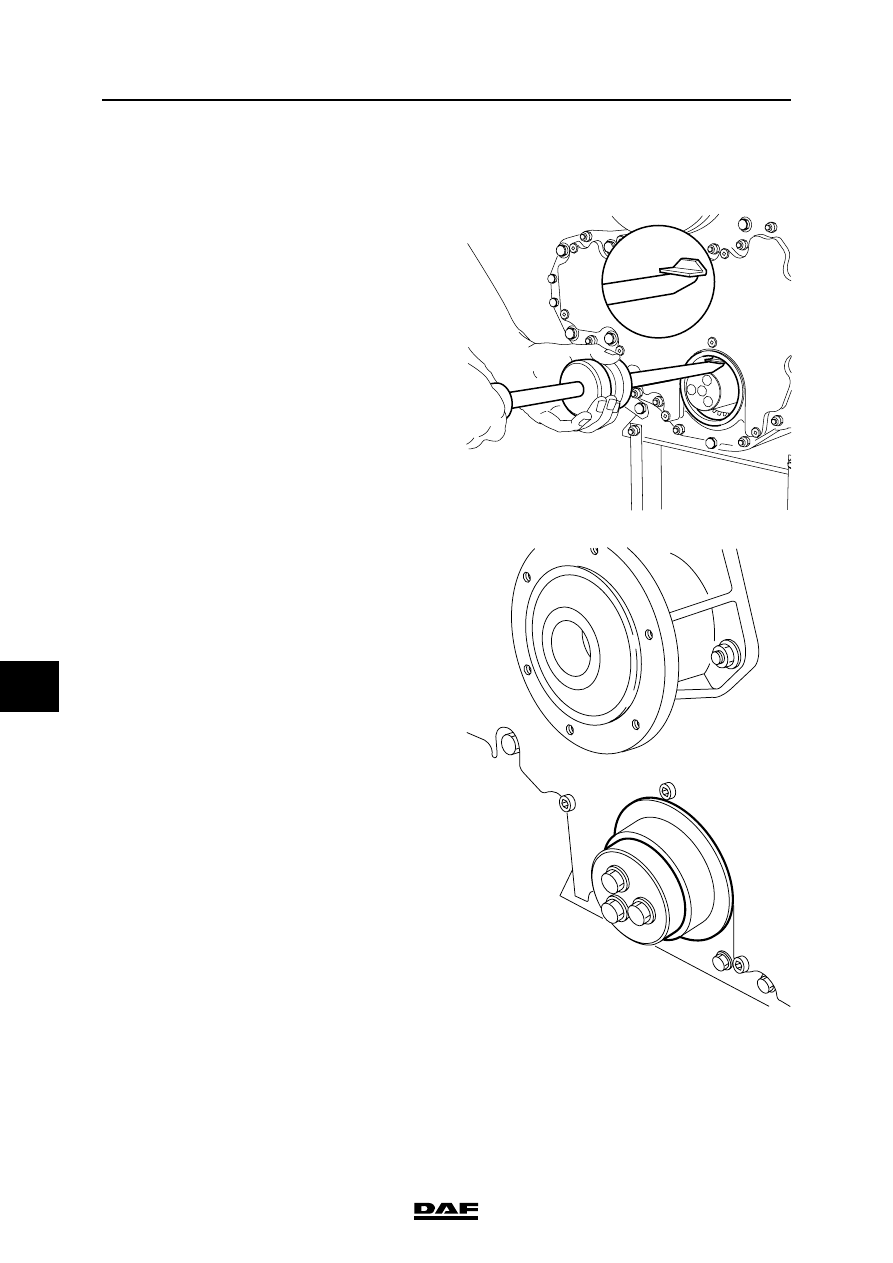

4.24 REMOVAL AND INSTALLATION, TIMING COVER SEAL

Removing the timing cover seal
1.

Remove the poly-V-belt.

2.

Remove the vibration damper.

3.

Remove the vibration damper hub.

4.

Remove the timing cover seal by using the

special tool (DAF no. 1329458) to pull the

seal out of the cover.

Installing the timing cover seal
1.

Clean and check the seal recess in the timing

cover. Even minimal damage may cause a

leak.

Note:

If a shim was fitted in the seal recess, it must

be re-fitted.

2.

Use the special tool (DAF no. 1310424) and

the thrust piece in the recess of the timing

cover to install the dry seal.

3.

Remove the special tool.

4.

Fit the vibration damper hub.

5.

Install the vibration damper.

6.

Fit the poly-V-belt.

M200971

M200771

©

 200324

4-33

Removal and installation

XE ENGINE

CF65/75/85 series

2

8

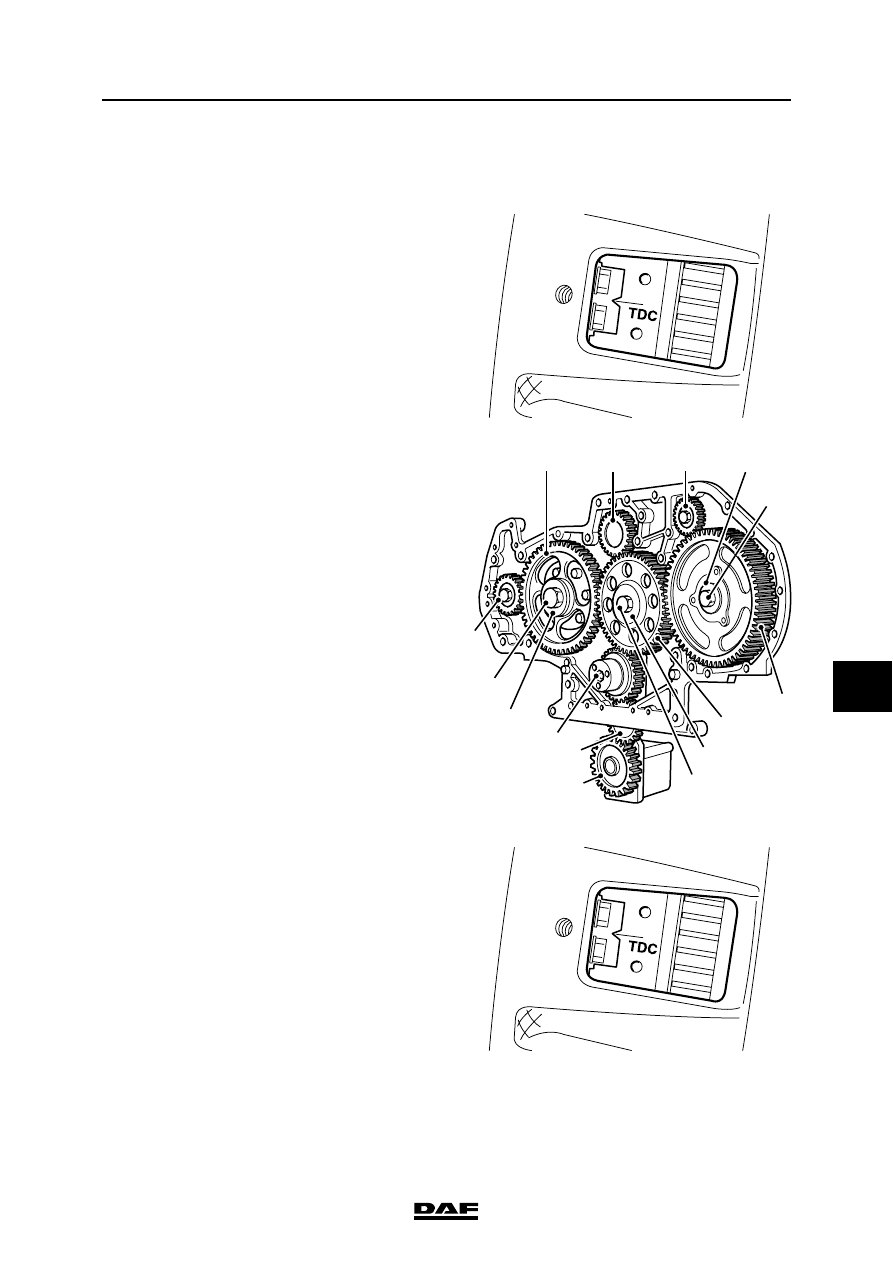

4.25 REMOVAL AND INSTALLATION, TIMING GEAR WHEELS

Removing the timing gear
1.

Remove the valve covers.

2.

Position cylinder 1 at top dead centre (TDC

on the flywheel, cylinder 6 in overlap

position).

3.

Remove the timing cover.

Note:

It is possible that the marks on the idler gear

are not exactly opposite the camshaft and

crankshaft gear wheels.

Removing the idler gear
1.

Remove the attachment bolt (10) and the

axial thrust washer (11).

2.

Remove the idler gear (3).

Removing the camshaft gear
1.

Remove the attachment bolt (12) of the

camshaft gear (2).

2.

Remove the idler gear.

3.

Remove the camshaft gear using a

commercially available puller.

Removing the pump housing camshaft gear
1.

Remove the attachment bolt (14) from the

pump housing camshaft gear wheel (6).

2.

Remove the idler gear.

3.

Remove the gear wheel, using a

commercially available puller.

Installing the timing gears
1.

Check whether cylinder 1 is at top dead

centre (TDC on the flywheel, cylinder 6 in

overlap position).

Note:

When the crankshaft (1) or the camshaft (2)

of an engine without an idler gear (3) is

rotated separately, the engine's pistons may

touch the valves.

M201185

M200954

2

4

15

14

5

7

1

8

9

3

11

10

12

13

6

M201185

XE ENGINE

4-34

©

 200324

Removal and installation

8

CF65/75/85 series

2

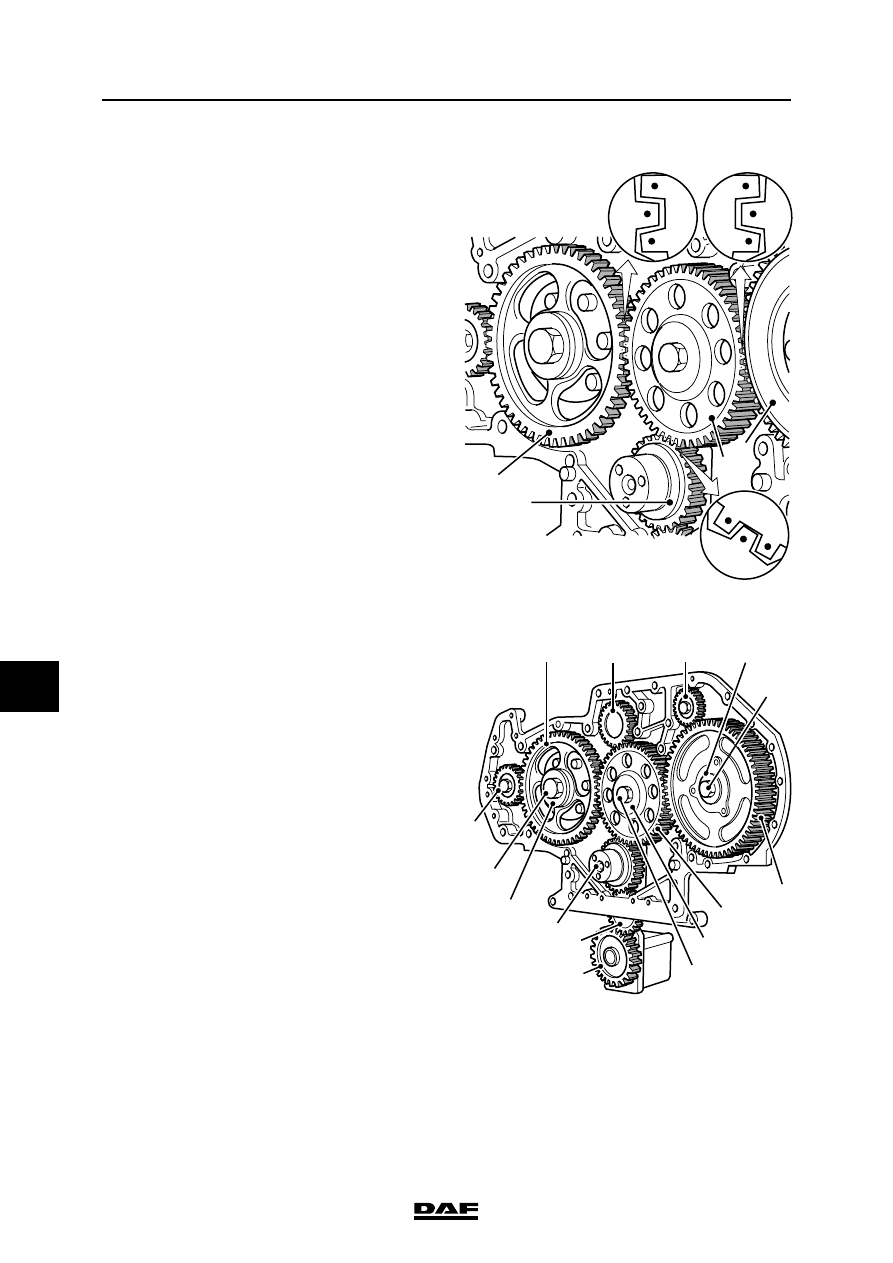

Installing the idler gear
1.

Fit the idler gear (3) so that the mark on

the idler gear (3) is opposite the marks on

the camshaft gear (2) and the crankshaft

gear (1).

2.

Fit the attachment bolt (10) and the axial

thrust washer (11) of the idler gear (3).

Tighten the attachment bolt to the specified

torque. See "Technical data".

3.

Check that the backlash specified for the

gears is not exceeded. See "Technical data".

Installing the camshaft gear
1.

Fit the gear wheel (2) onto the camshaft.

2.

Install the idler gear (3).

3.

Fit the attachment bolt (12) and the thrust

washer (13) of the camshaft gear wheel (2).

Tighten the attachment bolt (12) to the

specified torque. See "Technical data".

4.

Check that the backlash specified for the

gears is not exceeded. See "Technical data".

Installing the pump housing camshaft gear
wheel
1.

Fit the pump housing camshaft gear (6) to

the shaft journal.

2.

Fit the idler gear.

3.

Fit the attachment bolt (14) of the pump

housing camshaft gear wheel (6). Tighten

the attachment bolt to the specified torque.

See "Technical data".

4.

Check that the backlash specified for the

gears is not exceeded. See "Technical data".

Installing the timing gear
1.

Fit the timing cover.

2.

Fit the valve covers.

M201281

2

1

3

4

M200954

2

4

15

14

5

7

1

8

9

3

11

10

12

13

6
