Removal and installation

XE ENGINE

CF65/75/85 series

2

8

4.26 REMOVAL AND INSTALLATION, TIMING CASE

Removing the timing case
1.

Remove the timing gears.

2.

Remove the air compressor.

3.

Remove the steering pump.

4.

Remove the camshaft attachment bolts and

locking plate.

5.

Loosen the oil sump attachment bolts until

the oil sump is free from the timing case.

6.

Remove the bolts attaching the timing case

to the cylinder block, and remove the timing

case.

Installing the timing case
1.

Remove any remnants of gasket. Clean and

inspect the sealing surfaces, dowels and

locating holes.

2.

To position the gasket, insert three studs and

fit the new gasket.

3.

Then remove any gasket remnants between

the cylinder block and the oil sump.

4.

Fit the timing case. Tighten the attachment

bolts to the specified torque. See "Technical

data".

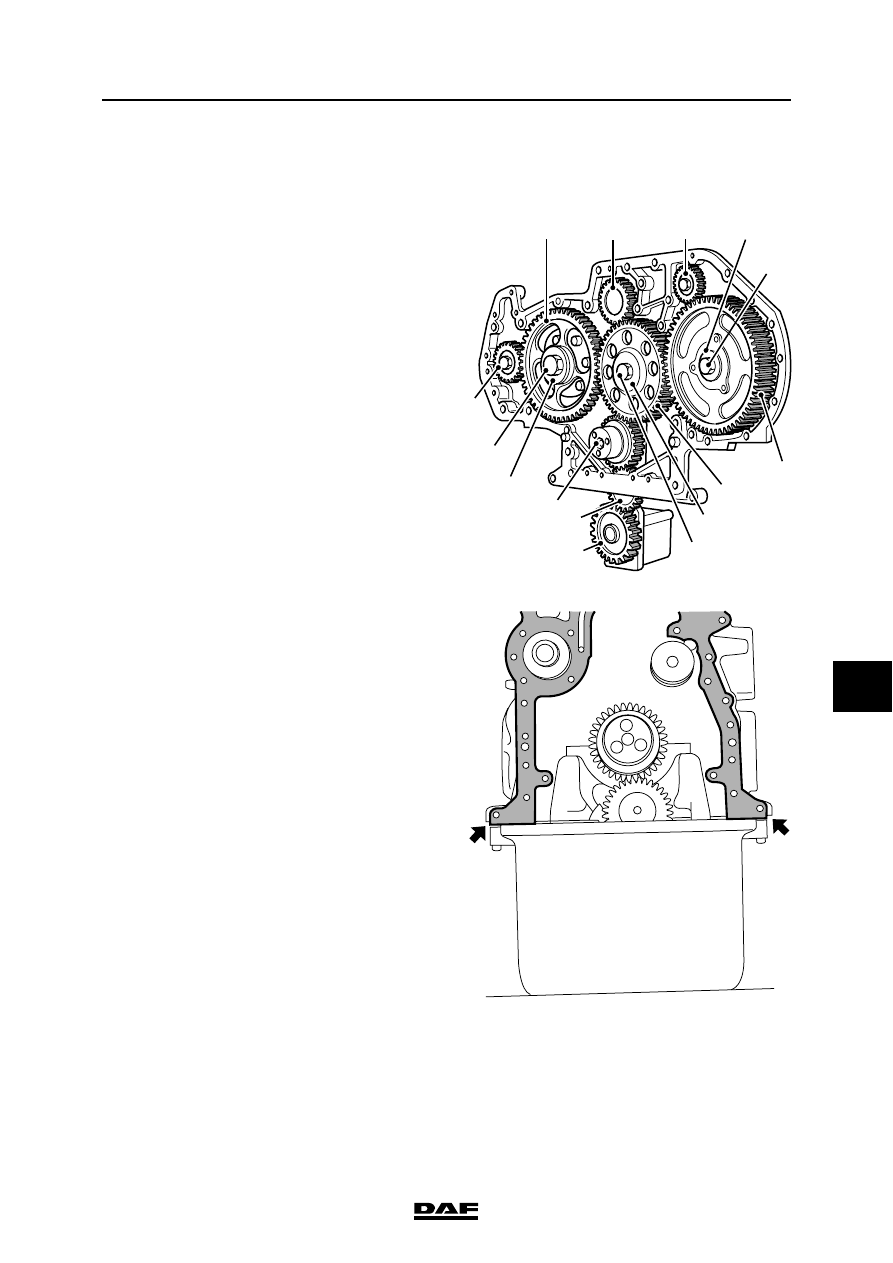

M200954

2

4

15

14

5

7

1

8

9

3

11

10

12

13

6

M200579

XE ENGINE

4-36

©

 200324

Removal and installation

8

CF65/75/85 series

2

5.

Tighten the oil sump attachment bolts to the

specified torque. See "Technical data".

6.

Fit the camshaft locking plate and

attachment bolts. Tighten the attachment

bolts to the specified torque. See "Technical

data".

7.

Fit the timing gears.

8.

Fit a new O-ring to the air compressor and fit

the air compressor.

9.

Fit the steering pump.

©

 200324

4-37

Removal and installation

XE ENGINE

CF65/75/85 series

2

8

4.27 REMOVAL AND INSTALLATION, TIMING CASE OIL SEAL

Removing the timing case oil seal
1.

Position cylinder 1 at top dead centre (TDC

on the flywheel, cylinder 6 in overlap

position).

2.

Remove the idler gear.

3.

Remove the pump housing camshaft gear (1).

4.

Remove the oil seal (2) by tapping it from the

timing case in the driving direction.

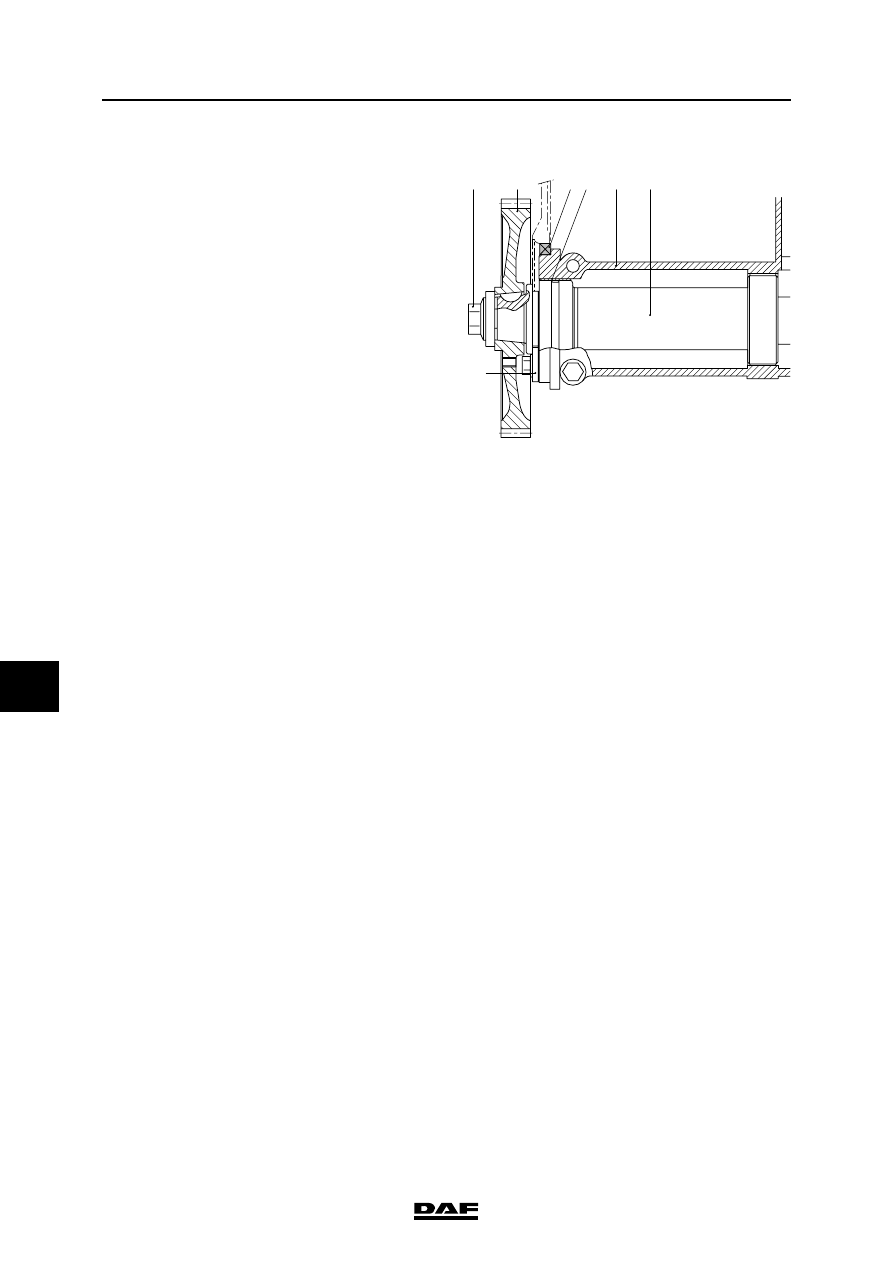

M201185

1

3

5

6

2 7

4

M200887

M200728

XE ENGINE

4-38

©

 200324

Removal and installation

8

CF65/75/85 series

2

Installing the timing case oil seal
1.

Fit a dry new timing case oil seal (2) using

the special tool (DAF no. 1329318).

2.

Fit the pump housing camshaft gear (1).

3.

Fit the idler gear.

Note:

Remember the marks.

4.

Fit the timing cover.

1

3

5

6

2 7

4

M200887
