DAF CF65, CF75, CF85 Series . Manual - part 158





©

 200346

4-15

Removal and installation

SEATS

ΧΦ65/75/85 series

1

7

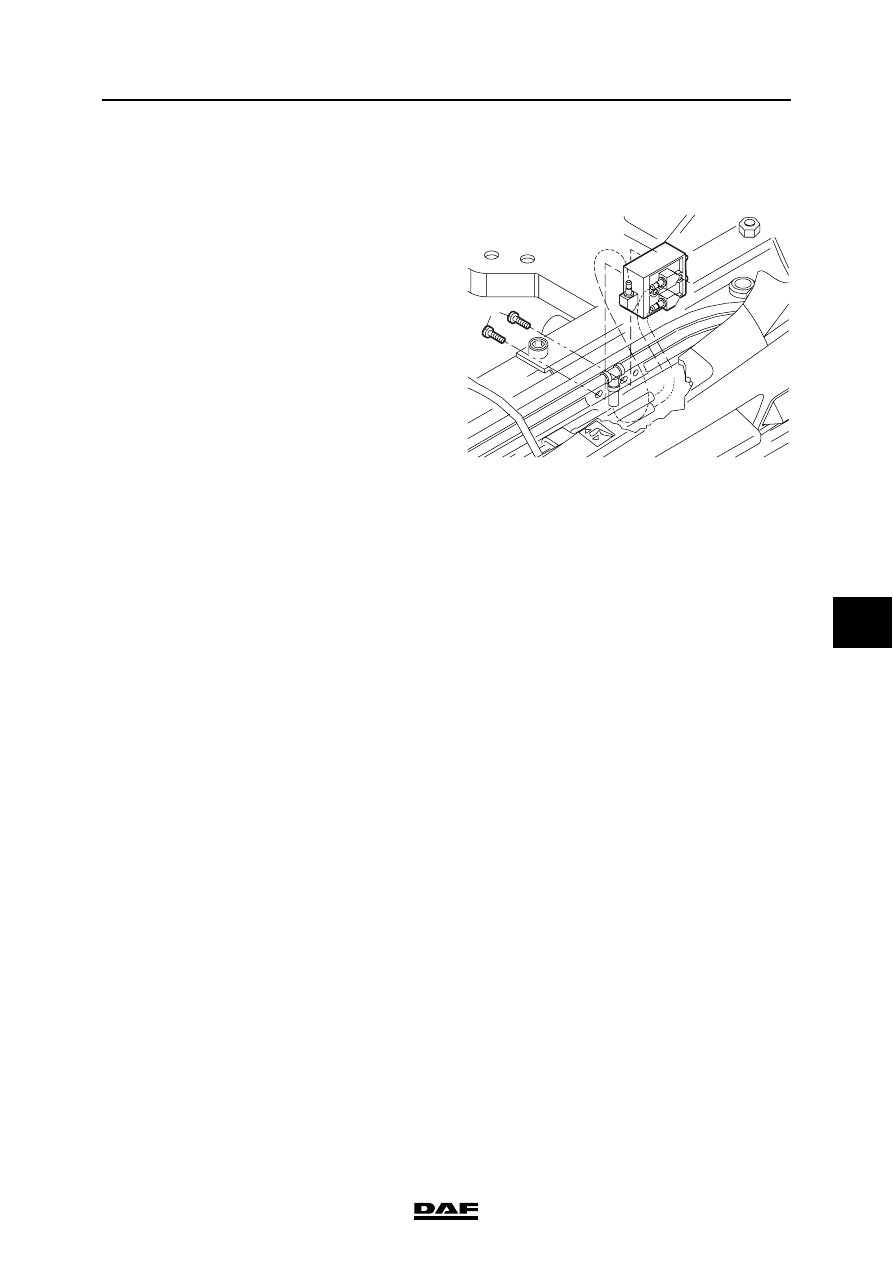

4.18 REMOVAL AND INSTALLATION, HEIGHT ADJUSTMENT VALVE

Removing height adjustment valve
1.

Remove the seat squab.

2.

Place the seat in the highest tilting position.

3.

Remove the screws (1).

4.

Disconnect the air pipes from the valve.

5.

Remove the valve (2).

Installing height adjustment valve
1.

Connect the air pipes to the valve (2).

2.

Secure the valve (2) with the screws (1).

3.

Fit the seat squab.

K100505

1

2

SEATS

4-16

©

 200346

Removal and installation

7

ΧΦ65/75/85 series

1

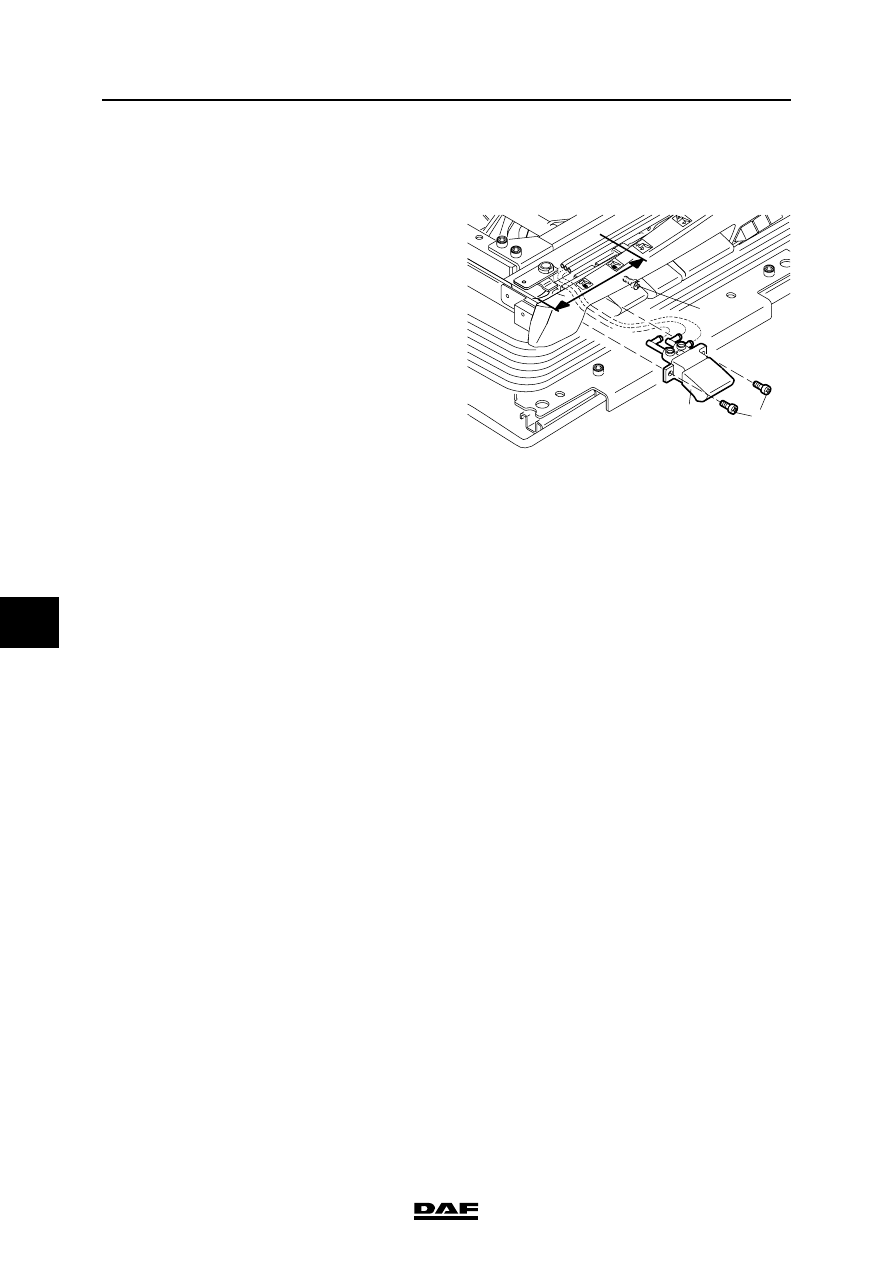

4.19 REMOVAL AND INSTALLATION, ENTRY/EXIT AID HANDLE

Removing entry/exit aid handle
1.

Remove the seat squab.

2.

Cut the air pipes of the entry/exit aid control
handle according to size X (X = 130 mm).

3.

Remove the side cover panel (without
disconnecting the air pipes from the valves
or the seat heating).

4.

Slightly loosen the screw (2).

5.

Remove the screws (3) from the entry/exit
aid handle and remove the handle along the
upper side.

Installing entry/exit aid handle
1.

To install a new handle, it must be
reconnected to the cut section X (repair kit
includes handle and sections of pipe and
connection pieces).

2.

Attach the air pipes of the handle (1) to the
cut air pipes. Use the same length as that
which was cut during removal.

3.

Fit the handle (1) and secure it with the
screws (3).

4.

Tighten the screw (2).

5.

Fit the side cover panel.

6.

Fit the seat squab.

K100506

1

2

3

X

©

 200346

4-17

Removal and installation

SEATS

ΧΦ65/75/85 series

1

7

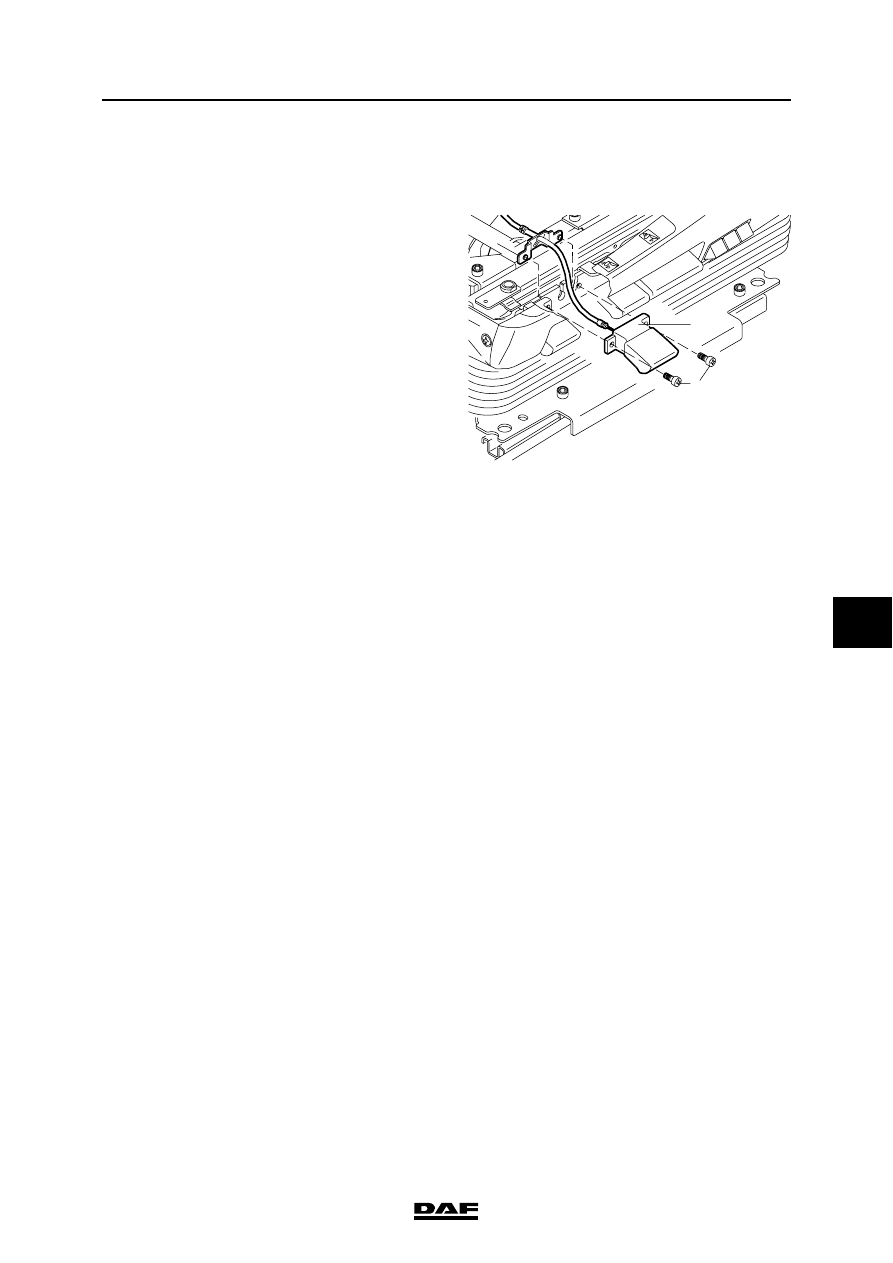

4.20 REMOVAL AND INSTALLATION, VERTICAL DAMPING ADJUSTER

Removing vertical damping adjuster
1.

Remove the seat squab.

2.

Remove the side cover panel (without
disconnecting the air pipes from the valves
or the seat heating).

3.

Remove the screws (1).

4.

Remove the shock absorber cable (remove
the lock ring (2) in the lowest position of the
system, and kink the cable from its holder (6)
when the system is in the highest position).

Installing vertical damping adjuster
1.

Install the combined cable and mounting
plate assembly (3) and the control handle
through the opening in the rubber bellows
into the frame.

2.

Secure the handle (2) with the screws (1).

3.

Fit the side cover panel.

4.

Install the adjustment cable before the seat
cushion is fitted.

5.

Adjust the cable before fitting the seat squab.

6.

Fit the seat squab.

K100507

2

1

3

SEATS

4-18

©

 200346

Removal and installation

7

ΧΦ65/75/85 series

1

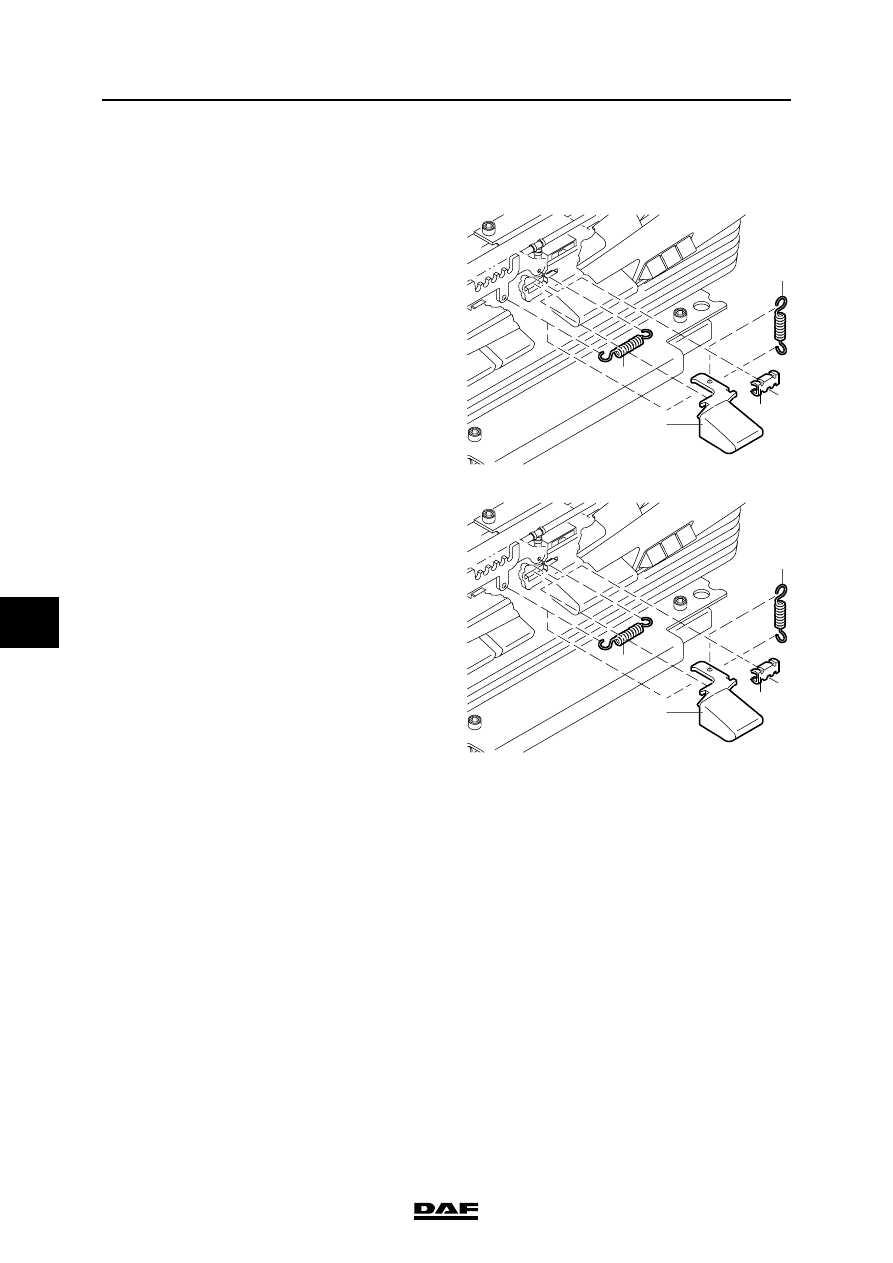

4.21 REMOVAL AND INSTALLATION, SEAT TILTING HANDLE

Removing seat tilting handle
1.

Remove the seat squab.

2.

Remove the springs (1) and (4).

3.

Remove the plastic connection piece (2) by
sliding it towards the back rest.

4.

Remove the control button (3) by lifting it and
pulling it out.

Installing seat tilting handle
1.

Fit the seat tilting handle (3).

2.

Fit the plastic connection piece (2). Note the
position of the small slot (X) when fitting the
new connection piece (2).

3.

Fit the springs (1) and (4).

4.

Fit the seat squab.

K100508

1

X

2

3

4

K100508

1

X

2

3

4
