Removal and installation

SEATS

ΧΦ65/75/85 series

1

7

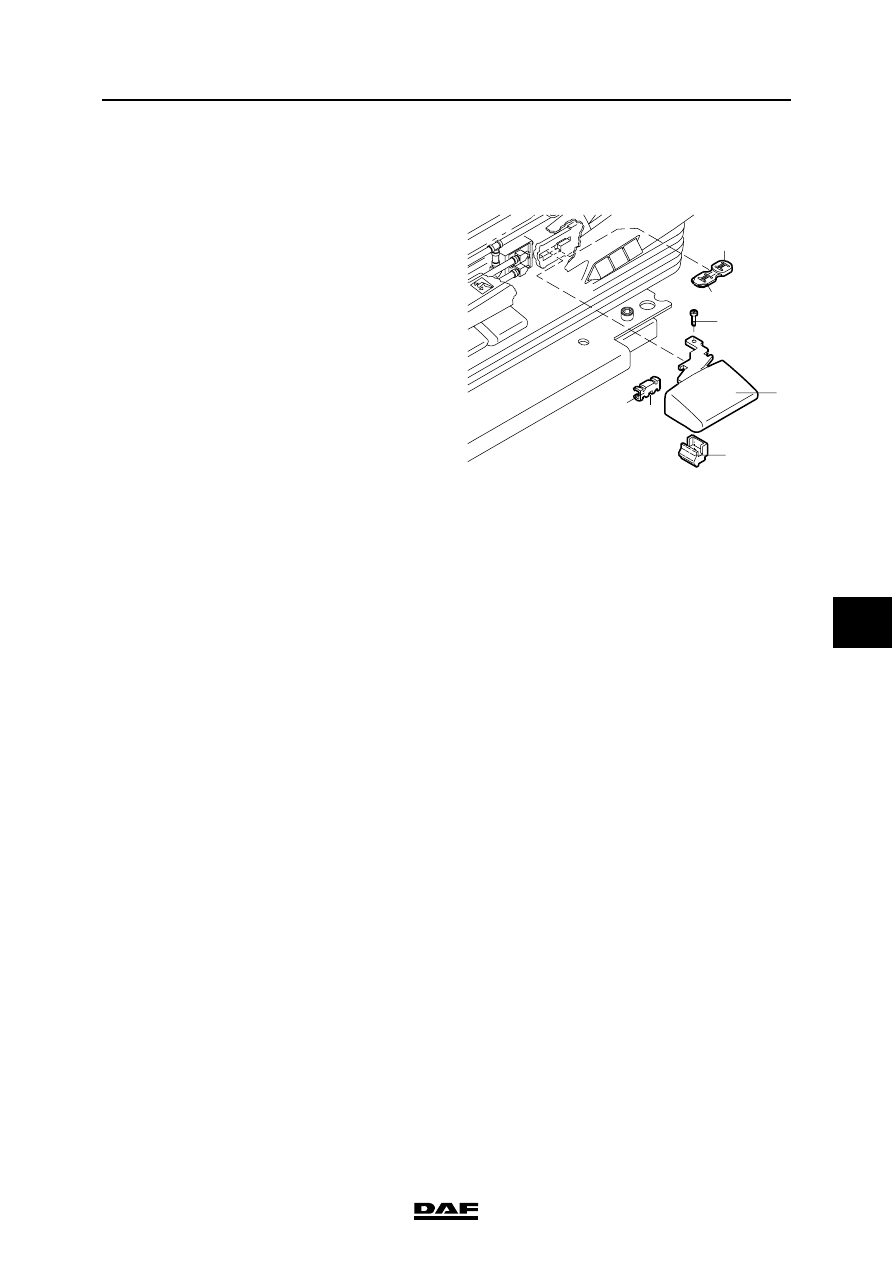

4.22 REMOVAL AND INSTALLATION, HEIGHT ADJUSTMENT HANDLE

Removing height adjustment handle
1.

Remove the seat squab.

2.

If necessary, remove the side cover panel
(without disconnecting the air pipes from the
valves or the seat heating).

3.

Remove the screw (1) and the plastic
connection piece (2).

4.

Remove the upper plate (3) by pushing it out
at position Y and pulling it from the frame.

5.

Remove the handle (4).

6.

Remove the plastic connection piece (5).

Installing height adjustment handle
1.

Fit the plastic connection piece (5). Note the
position of the small slot (X) when installing
the new connection piece (5).

2.

Fit the handle (4).

3.

Install the plate (3).

4.

If the side cover panel was removed, reinstall
it.

5.

Fit the seat squab.

K100509

Y

1

3

4

2

X

5

SEATS

4-20

©

 200346

Removal and installation

7

ΧΦ65/75/85 series

1

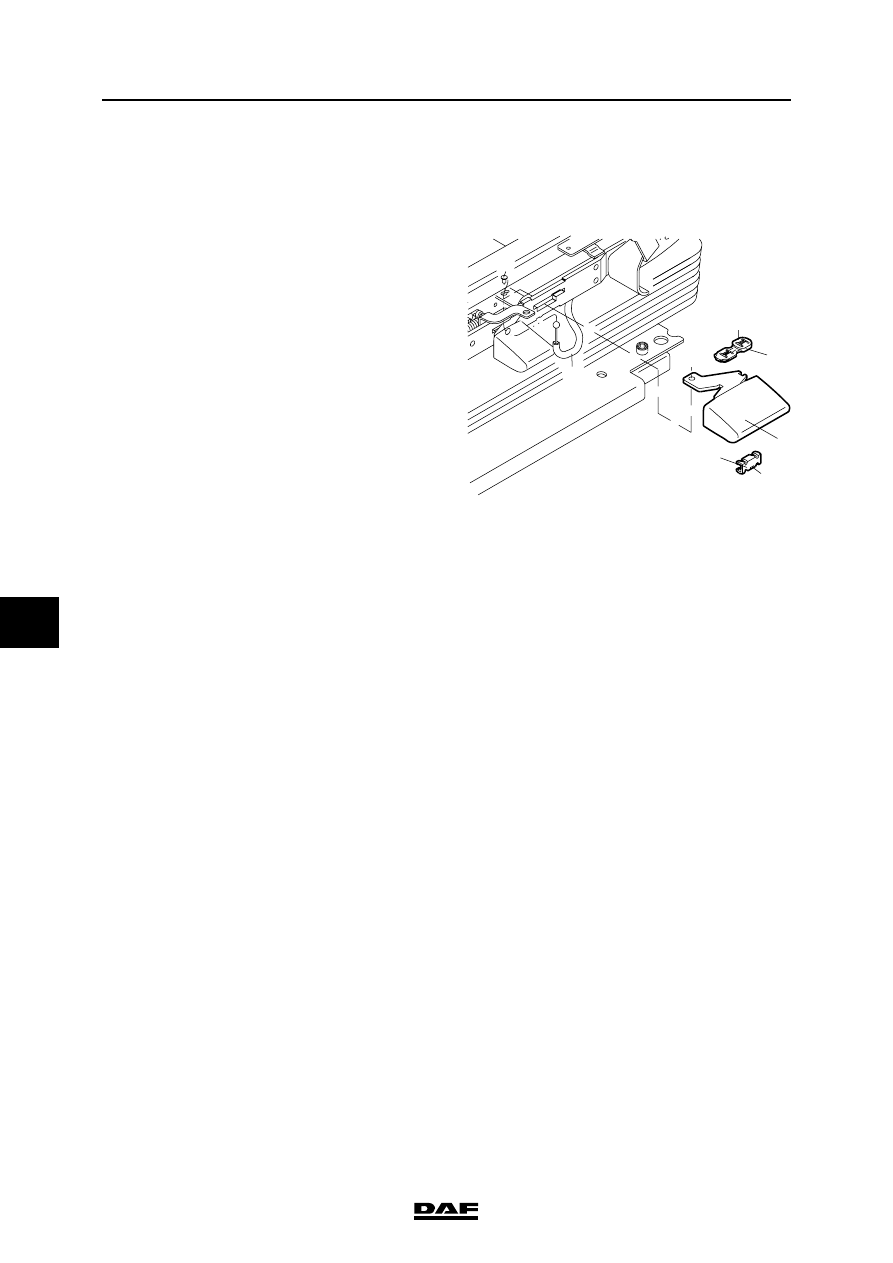

4.23 REMOVAL AND INSTALLATION, FIXED SEAT HEIGHT ADJUSTMENT

HANDLE

Removing height adjustment handle
1.

Remove the seat squab.

2.

If necessary, remove the side cover panel
(without disconnecting the air pipes from the
valves or the seat heating).

3.

Remove the screw (1) and the plastic
connection piece (2).

4.

Remove the upper plate (3) by pushing it out
at position Y and pulling it from the frame.

5.

Remove the handle (4).

6.

Remove the plastic connection piece (5).

Installing height adjustment handle
1.

Fit the plastic connection piece (5). Note the
position of the small slot (X) when installing
the new connection piece (5).

2.

Fit the handle (4).

3.

Install the plate (3).

4.

If the side cover panel was removed, reinstall
it.

5.

Fit the seat squab.

K100512

1

2

Y

3

4

X

5

©

 200346

4-21

Removal and installation

SEATS

ΧΦ65/75/85 series

1

7

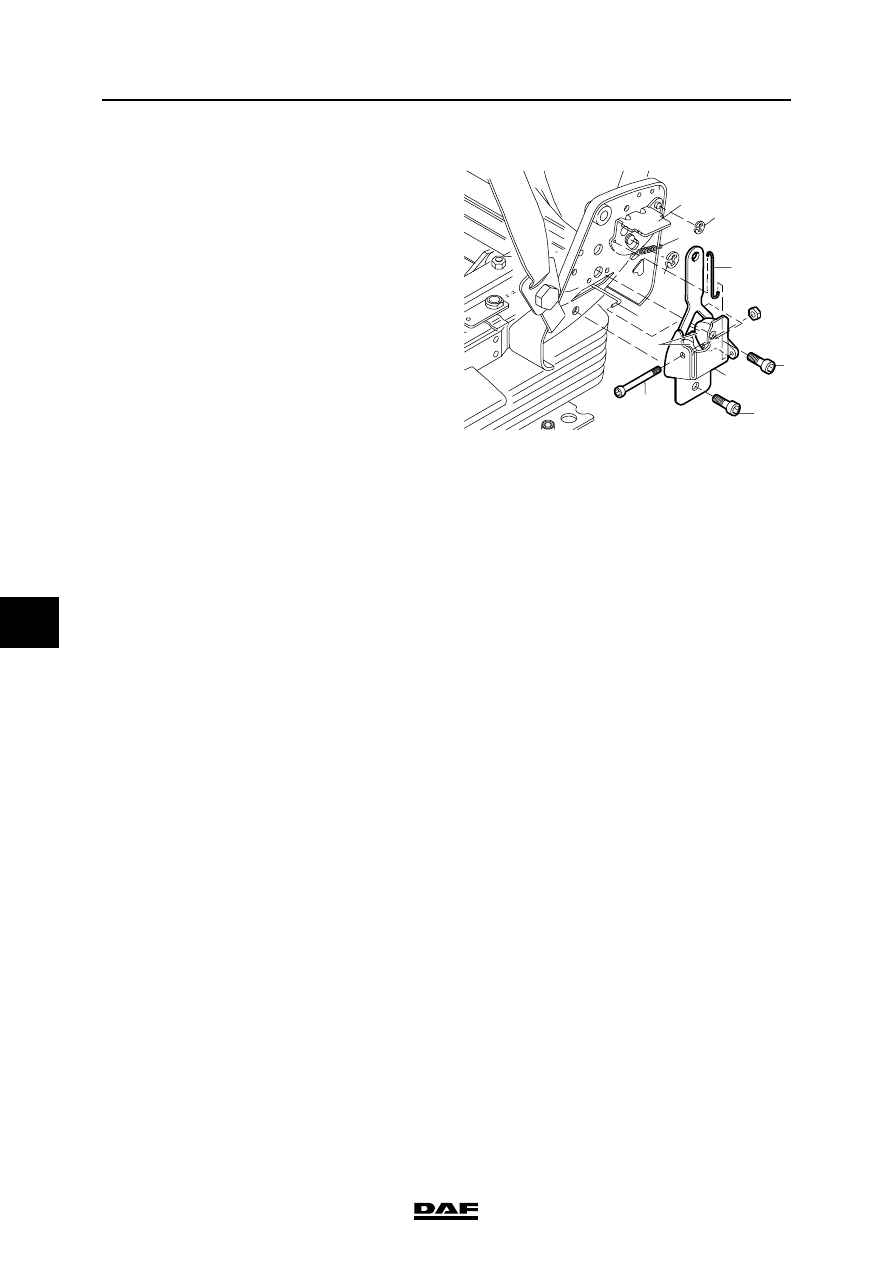

4.24 REMOVAL AND INSTALLATION, BACK REST ADJUSTER

Removing back rest adjuster without Y-
section
1.

Remove the seat squab.

2.

Remove the side cover panel without
disconnecting the pipes.

3.

Fold the back rest forward until it stops.

4.

Remove the screws (1) and (2) on control
side and on the opposite side.

5.

Remove the lock rings (3) and (11).

6.

Lift the spring (6) and pull the control plate (4)
from the axle, after which the wire (5) can be
removed.

7.

Loosen the screw (7) of the back rest
adjuster and remove it.

8.

Push the tooth segment assembly from the
bracket (9) until the wire (10) can be
removed.

Installing back rest adjuster without Y-section
1.

Fit the adjuster together with the wire (10) on
one side.

2.

Fit the wire (10) into the tooth segment
assembly at the other side.

3.

Insert the screw (7) into the back rest
adjuster.

4.

Lift the spring (6) and fit the control plate (4)
onto the axle, after which the wire (5) can be
installed.

5.

Connect the lock rings (3) and (11).

6.

Insert the screws (1) and (2) on control side
and on the opposite side.

7.

Fit the side cover panel and the seat squab.

K100511

4

3

11

6

5

8

10

1

2

9

7

SEATS

4-22

©

 200346

Removal and installation

7

ΧΦ65/75/85 series

1

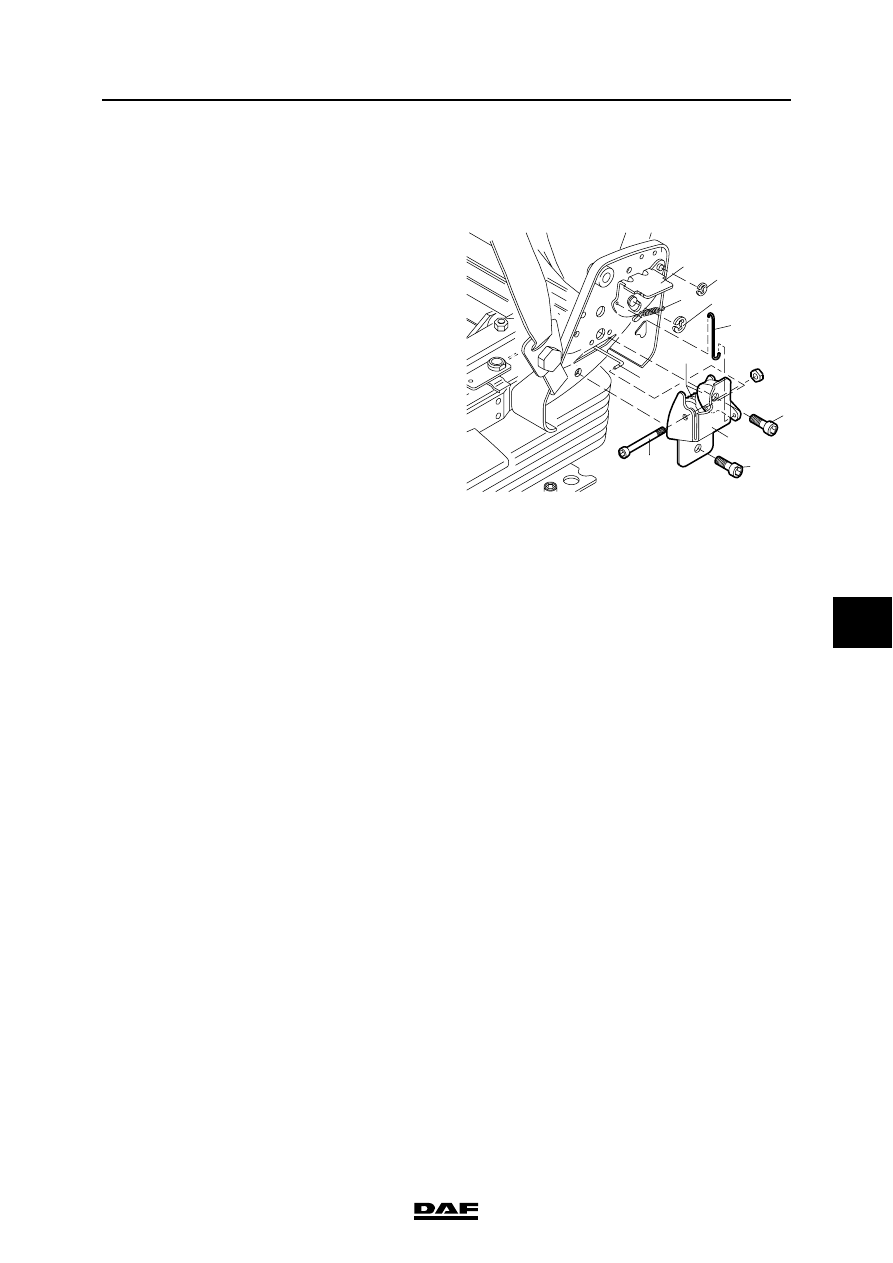

Removing back rest adjuster with Y-section
1.

Remove the seat squab.

2.

Remove the back rest.

3.

Remove the side cover panel without
disconnecting the pipes.

4.

Remove the screws (1) and (2) on control
side and on the opposite side.

5.

Remove the lock rings (3) and (11).

6.

Lift the spring (6) and pull the control plate (4)
from the axle, after which the wire (5) can be
removed.

7.

Loosen the screw (7) of the back rest
adjuster and remove it.

8.

Push the tooth segment assembly from the
bracket (9) until the wire (10) can be
removed.

Installing back rest adjuster with Y-section
1.

Fit the adjuster together with the wire (10) on
one side.

2.

Fit the wire (10) into the tooth segment
assembly at the other side.

3.

Insert the screw (7) into the back rest
adjuster.

4.

Lift the spring (6) and fit the control plate (4)
onto the axle, after which the wire (5) can be
installed.

5.

Connect the lock rings (3) and (11).

6.

Insert the screws (1) and (2) on control side
and on the opposite side.

7.

Fit the side cover panel and the seat squab.

K101366

4

3

11

6

10

1

2

9

7

5

8
