Removal and installation

SEATS

ΧΦ65/75/85 series

1

7

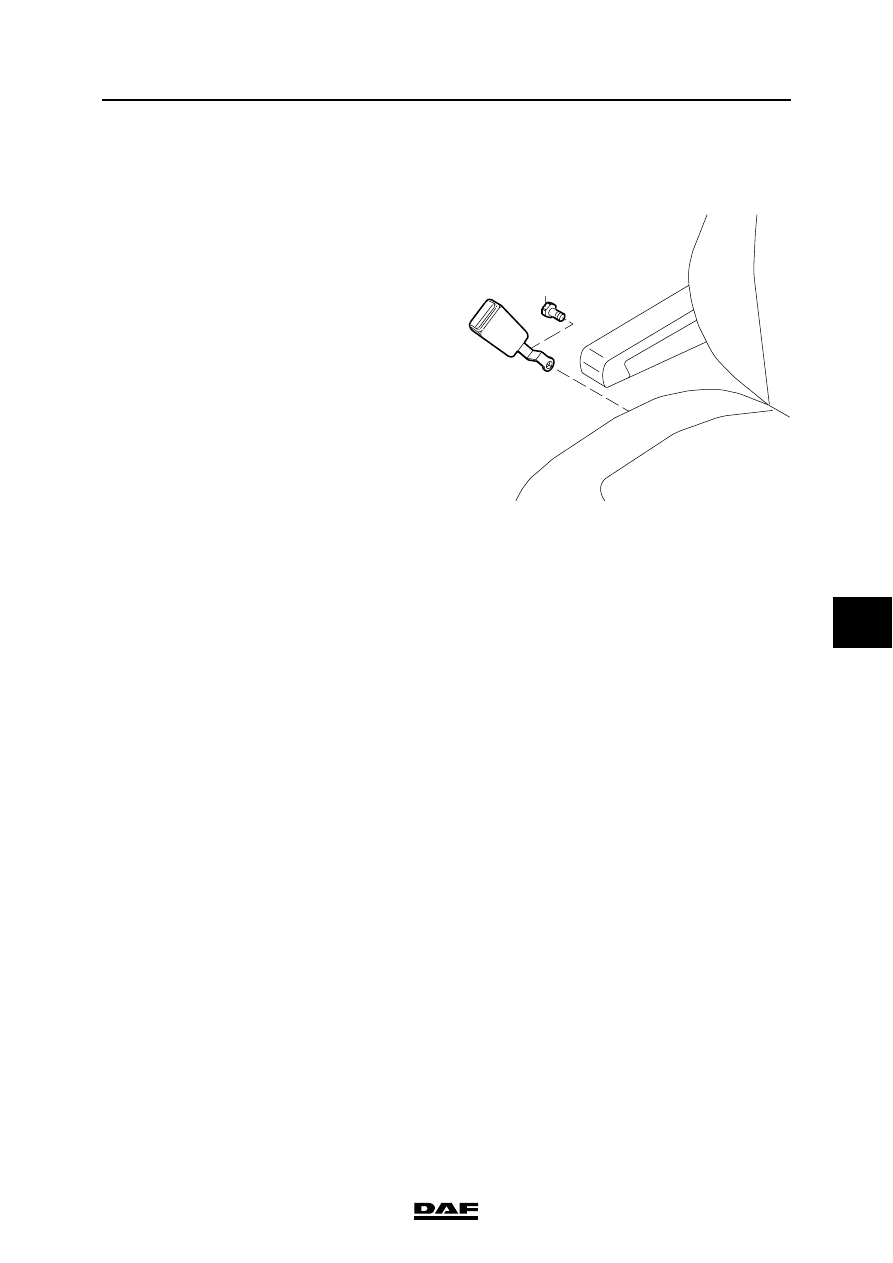

4.13 REMOVAL AND INSTALLATION, SEAT BELT LOCK

Removing seat belt lock
1.

Remove the side cover panel opposite the
control side.

2.

Remove the bolt (1).

Installing seat belt lock
1.

Install the lock mechanism and tighten the
bolt to the specified tightening torque. See
"Technical data".

2.

Fit the side cover panel.

K100500

1

SEATS

4-12

©

 200346

Removal and installation

7

ΧΦ65/75/85 series

1

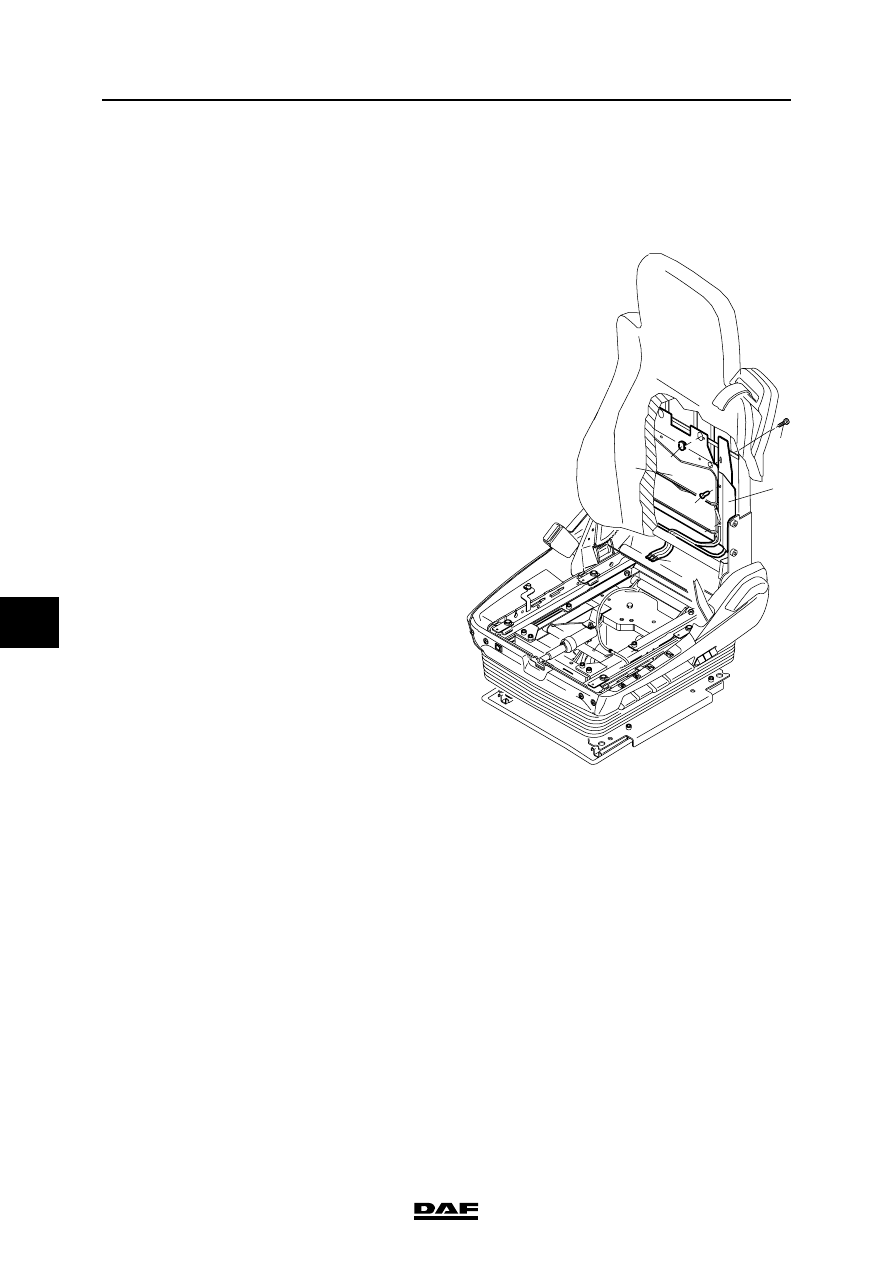

4.14 REMOVAL AND INSTALLATION, AIR RESERVOIRS FOR PNEUMATIC

LUMBAR SUPPORT

Removing air reservoirs for pneumatic
lumbar support
1.

Carefully remove part of the back rest cover
and slide it more than halfway upwards.

2.

Remove the four screws (6) (depending on
model).

3.

Carefully remove the shaped foam at the
bottom of the frame.

4.

Remove the pipes (1) (located underneath
the seat belt roll holder).

5.

Remove the two clips (2) and remove the air
reservoir(s) (3).

6.

Remove the side air reservoirs (5).

Installing air reservoirs for pneumatic lumbar
support
1.

Install the air reservoirs (3) and (5) and
secure them with the clips (2).

2.

Connect the pipes.

3.

Install the shaped foam.

4.

Fit the four screws (6).

5.

Fit the cover.

K100501

3

2

6

5

1

4

©

 200346

4-13

Removal and installation

SEATS

ΧΦ65/75/85 series

1

7

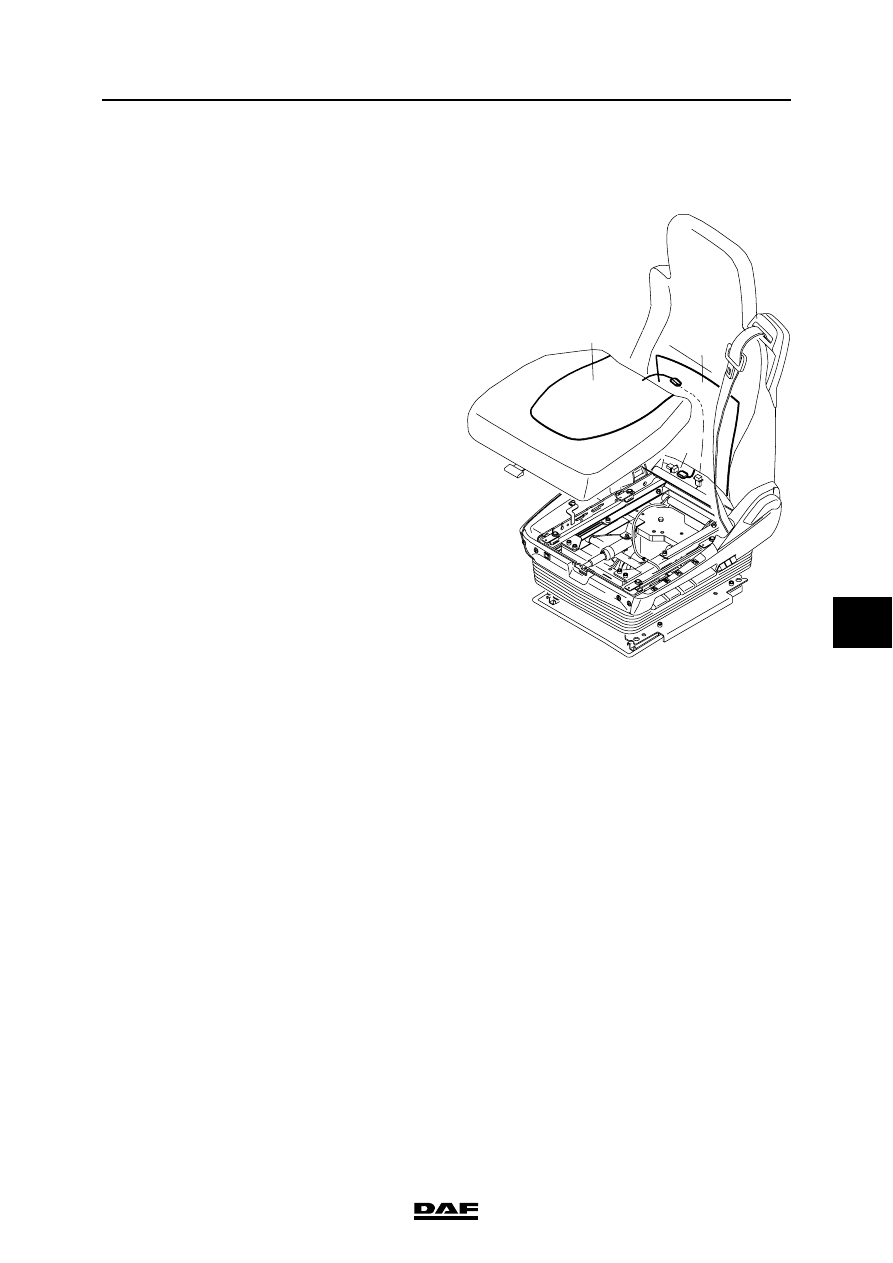

4.15 REMOVAL AND INSTALLATION, HEATING ELEMENTS

Removing seat squab heating element
1.

Remove the seat squab.

2.

Remove the connector (3) from the electric
wiring.

3.

Remove the seat squab cover.

4.

Carefully remove the heating element (1)
from the shaped foam (use a knife, if
necessary).

Removing back rest heating element
1.

Pull the back rest cover up as far as the white
loop for the padding thread, without
removing the back rest cover.

2.

Carefully remove the heating element (2)
from the shaped foam (use a knife, if
necessary).

Installing seat squab heating element
1.

Install a new heating element (1) and secure
it with double-sided adhesive tape.

2.

Connect the connector (3) of the heating
element (1).

3.

Fit the cover.

Installing back rest heating element
1.

Install a new heating element (2) and secure
it with double-sided adhesive tape.

2.

Connect the connector (3) of the heating
element (2).

3.

Fit the cover.

K100502

1

2

3

SEATS

4-14

©

 200346

Removal and installation

7

ΧΦ65/75/85 series

1

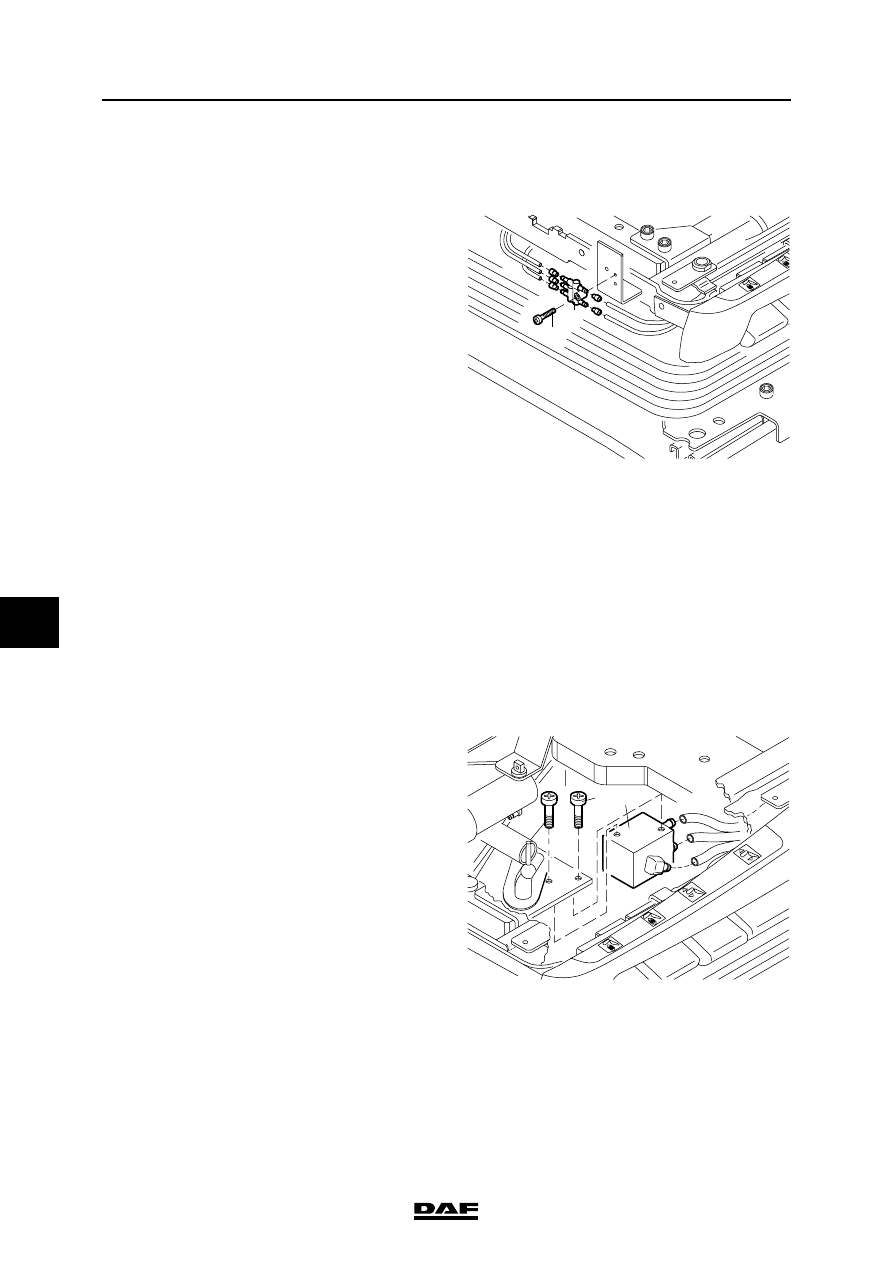

4.16 REMOVAL AND INSTALLATION, SWITCH VALVE

Removing switch valve
1.

Remove the seat squab.

2.

Put the seat squab in the highest tilting
position.

3.

Release the rubber bellows at the front of the
seat frame.

4.

Remove the screw (2) from the switch valve.

5.

Disconnect the air pipes from the switch
valve (1).

Installing switch valve
1.

Connect the air pipes to the switch valve.

2.

Put the seat squab in the highest tilting
position.

3.

Install the switch valve.

4.

Fit the rubber dust boot.

5.

Fit the seat squab.

4.17 REMOVAL AND INSTALLATION, HEIGHT CONTROL VALVE

Removing height control valve
1.

Remove the seat squab.

2.

Remove the screws (2).

3.

Disconnect the air pipes from the height
control valve (1).

Installing height control valve
1.

Connect the air pipes of the height control
valve (1).

2.

Secure the control valve with the screws (2).

3.

Fit the seat squab.

K100503

2

1

K100504

2 1
