DAF CF65, CF75, CF85 Series . Manual - part 156

©

 200346

4-7

Removal and installation

SEATS

ΧΦ65/75/85 series

1

7

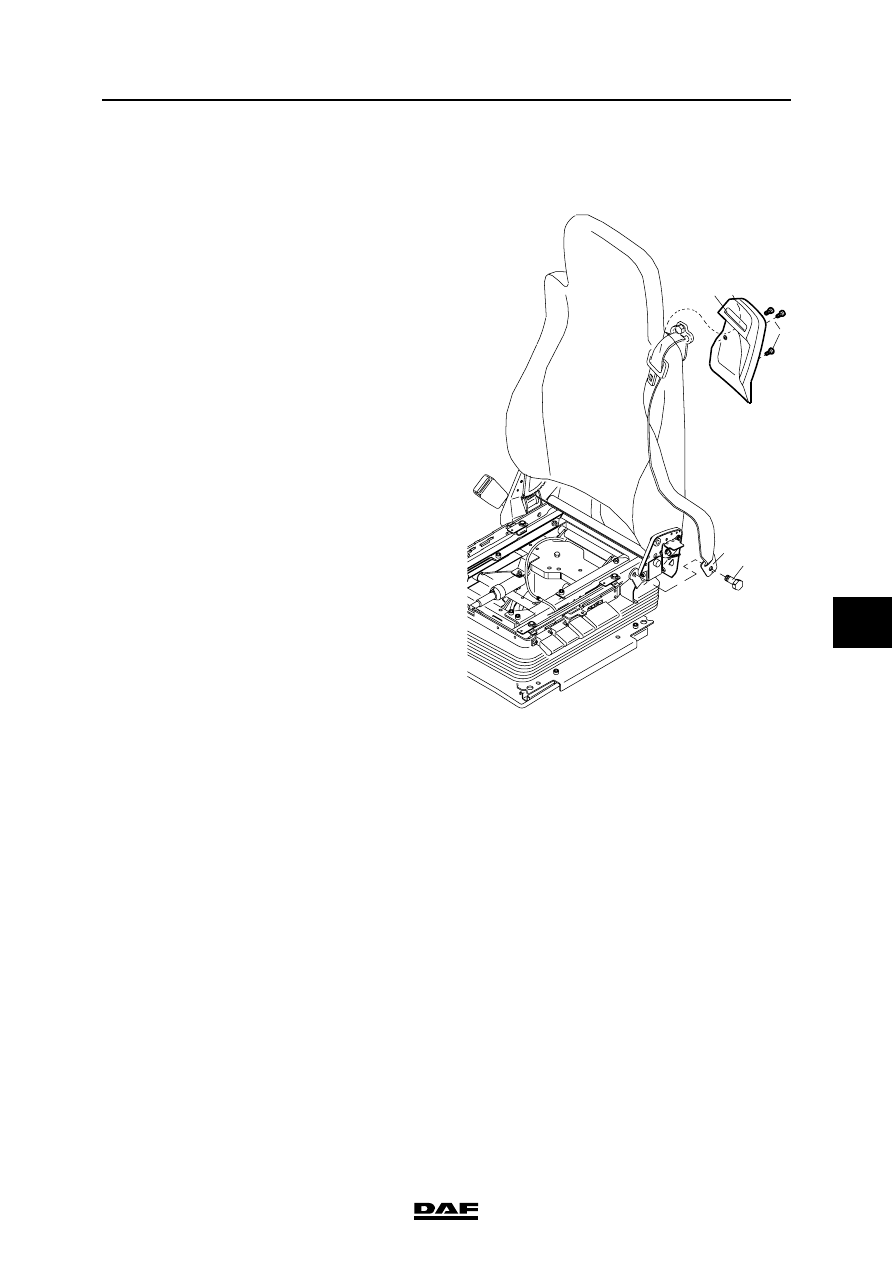

4.9 REMOVAL AND INSTALLATION, SEAT BELT GUIDE PANEL

Removing seat belt guide panel
1.

Remove the cover panel on control side.

2.

Remove the bolt (1) from the seat belt
attachment plate (2) and unscrew the screws
(3) in the cover.

3.

Pull the seat belt (2) through the opening (4).

Installing seat belt guide panel
1.

Guide the seat belt (2) through the opening
(4).

2.

Secure the seat belt attachment plate (2)
with the specified torque.

K100495

4

3

2

1

SEATS

4-8

©

 200346

Removal and installation

7

ΧΦ65/75/85 series

1

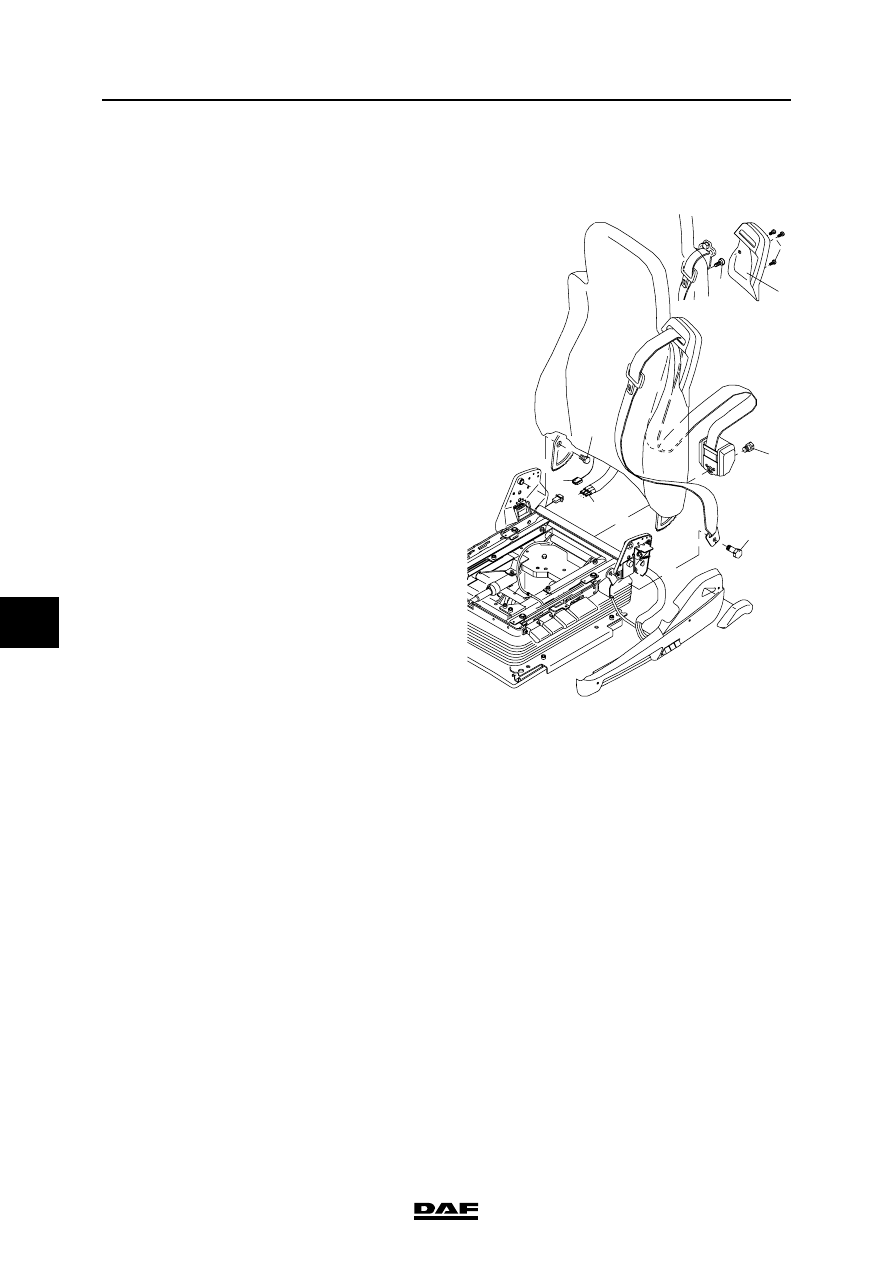

4.10 REMOVAL AND INSTALLATION, BACKREST

Removing back rest
1.

Remove the seat squab.

2.

Unscrew the screws (1) from the cover (2)
and remove screw (3) from the mounting
plate.

3.

Remove the seat belt from the back rest.

4.

Remove the electric plug connector (5) (if
fitted).

5.

Remove the attachment screws (6) from the
back rest.

6.

Fold the back rest down.

7.

Click the back rest out of the side rails of the
frame.

8.

Remove the back rest from the frame.

System with pneumatically adjusted lumbar
support
1.

Remove the seat.

2.

Remove the seat squab.

3.

Unscrew the screws (1) from the cover (2)
and remove screw (3) from the mounting
plate.

4.

Remove screw (8) from the seat belt roll and
screw (7) from the seat belt mounting
bracket.

5.

Remove the belt.

6.

Remove the rubber air hoses (4) (connection
is underneath the seat belt roll holder) and
the electric plug connector (5) (if applicable).

7.

Remove the attachment screws (6) from the
back rest.

8.

Fold the back rest down.

9.

Click the back rest out of the side rails of the
frame.

10. Remove the back rest from the frame.

K100496

3

2

1

8

7

4

6

5

©

 200346

4-9

Removal and installation

SEATS

ΧΦ65/75/85 series

1

7

Installing back rest
1.

Click the folded back rest in the side rails of
the frame.

2.

Fix the back rest with attachment bolts (6),
tightening the bolts to the specified torque.
See "Technical data".

3.

Connect the air hoses (4) and the seat
heating connector (5) (if fitted).

4.

Fit the screw (3) in the mounting plate,
together with the belt.

5.

Fit the cover (2).

6.

Fit screw (8) of the seat belt roll and screw
(7) of the seat belt mounting bracket.

7.

Fit the seat squab.

8.

Fit the seat.

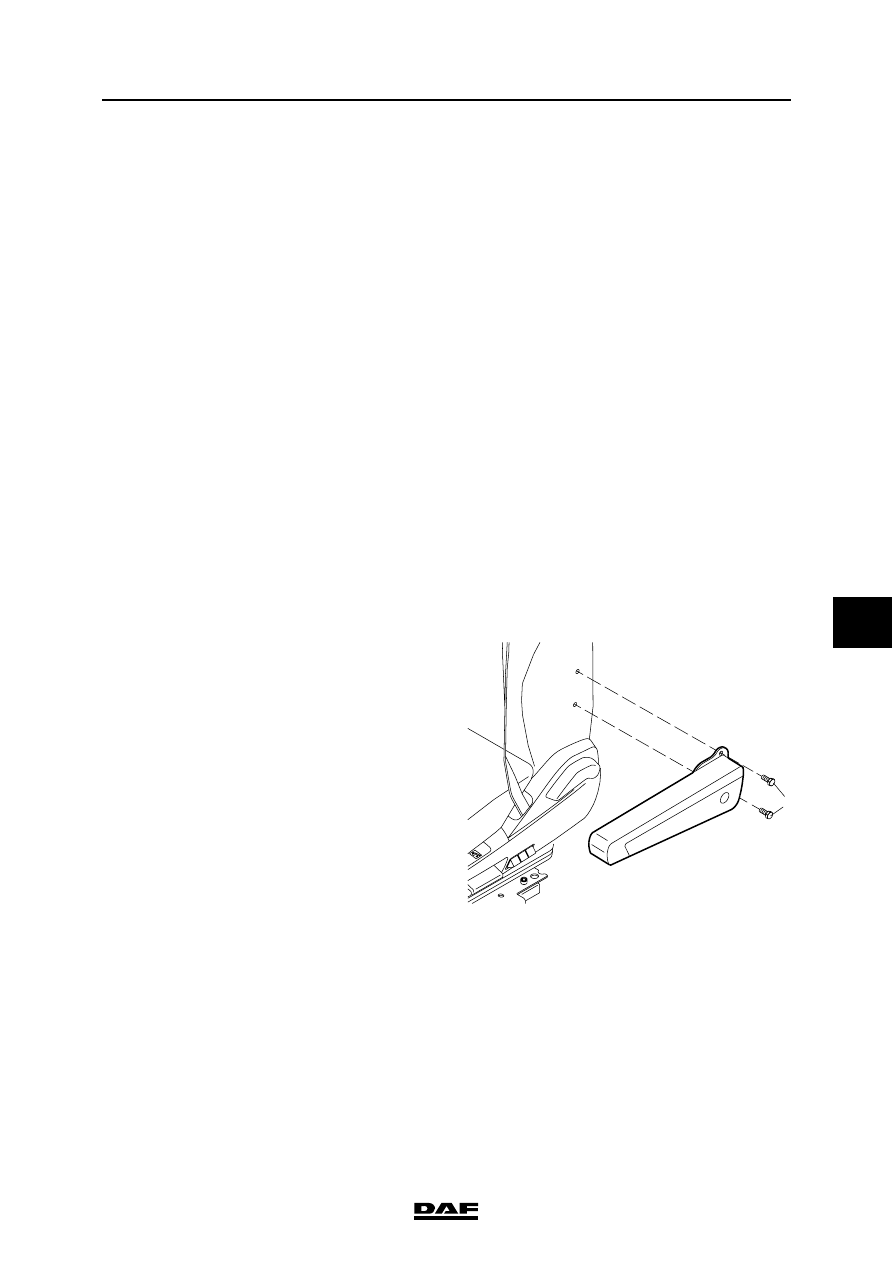

4.11 REMOVAL AND INSTALLATION, ARM REST

Removing arm rest
1.

Remove the black covers.

2.

Unscrew and remove the screws (1) from the
arm rest.

Installing arm rest
1.

Fit the screws and install the black covers.

K100498

1

SEATS

4-10

©

 200346

Removal and installation

7

ΧΦ65/75/85 series

1

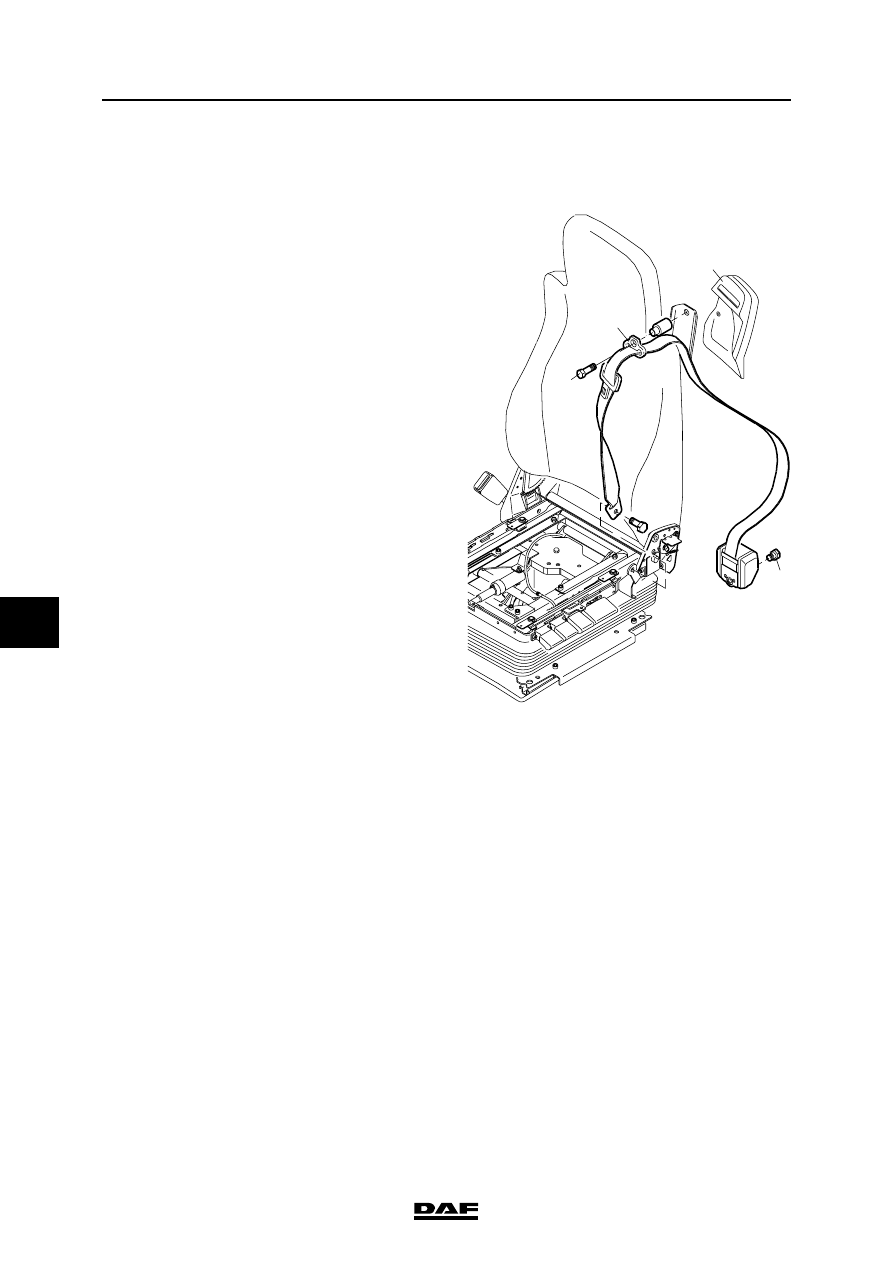

4.12 REMOVAL AND INSTALLATION, SEAT BELT MECHANISM

Removing seat belt mechanism
1.

Remove the side cover panel on control side
without disconnecting the air hoses of the
control valve for the pneumatic lumbar
support or the seat heating.

2.

Remove the cover (1).

3.

Remove the screw (2) from the mounting
plate (3).

4.

Remove the screw (4) from the seat belt roll.

5.

Remove the screw (5) from the lower seat
belt mount.

Installing seat belt mechanism
1.

Install the seat belt mounts and tighten them
to the specified tightening torque, see
"Technical data".

2.

Fit the seat belt roll and secure it with the
specified torque.

3.

Fit the cover (1).

4.

Install the side cover panel on control side.

K100499

1

3

2

4
