DAF CF65, CF75, CF85 Series . Manual - part 155

©

 200346

4-3

Removal and installation

SEATS

ΧΦ65/75/85 series

1

7

4.3 REMOVAL AND INSTALLATION, SEAT SQUAB

Removing seat squab
1.

Slide the seat squab in the frontmost position
(only for models with seat squab
adjustment).

2.

Remove the electric wiring from models with
heated seats.

3.

Push the control lever (1) up with a
screwdriver (insert the screwdriver between
frame -X- and the lever).

4.

Pull the seat squab forwards and up.

Installing seat squab
1.

Slide the seat squab approx. 10 mm into the
guides at the back.

2.

When doing so, press the seat squab at the
front down into the guides.

3.

Slide the seat squab in the frontmost guides
until the lever (A) engages with a click.

4.

After assembly, check whether the adjuster
engages in the locking cam (2) in all
openings of the runner (1). If necessary,
align the runner to the left or the right.

K100489

1

3

2

X

A

SEATS

4-4

©

 200346

Removal and installation

7

ΧΦ65/75/85 series

1

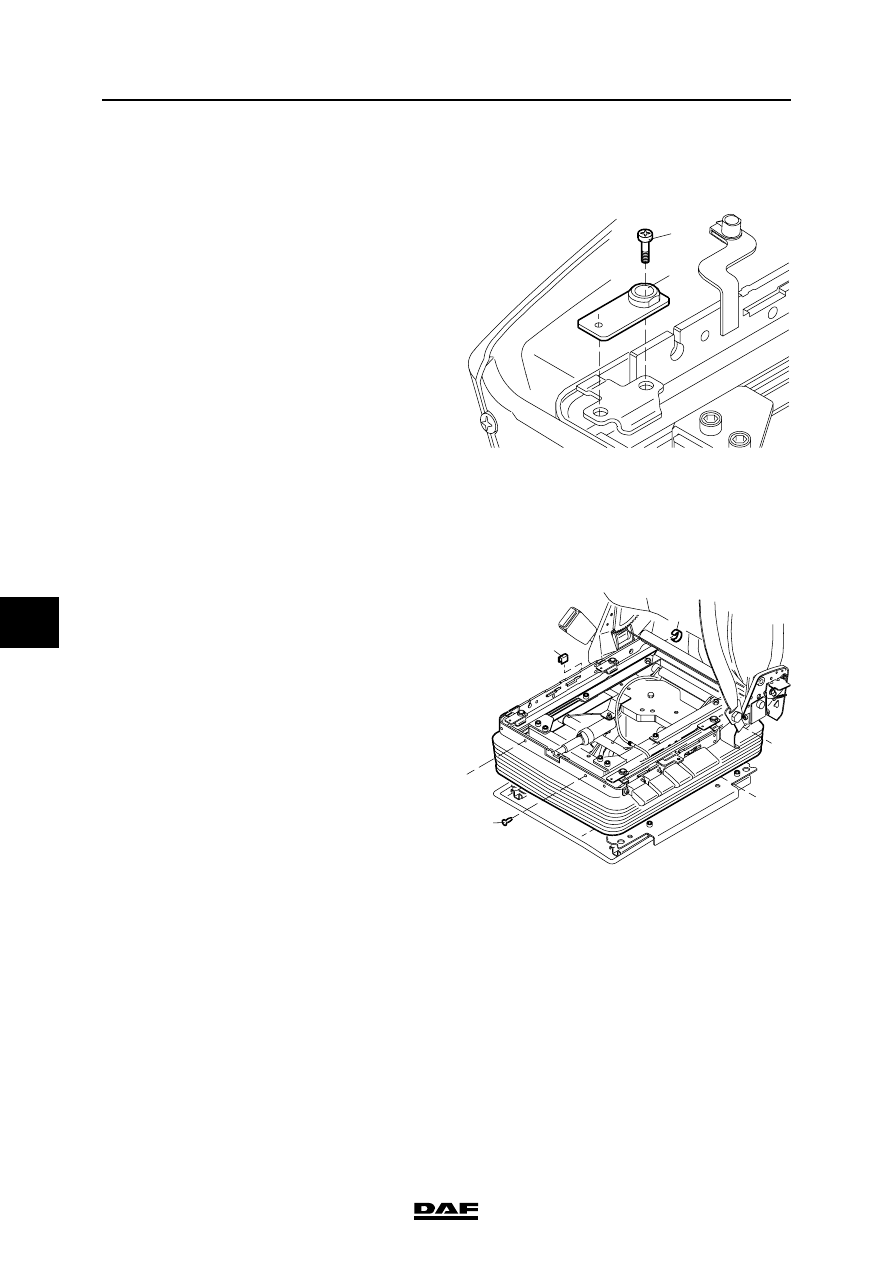

4.4 REMOVAL AND INSTALLATION, SEAT SQUAB GUIDE

Removing seat squab guide
1.

Remove the seat squab.

2.

Remove the screw (1) from the guide.

3.

Remove the guide (2).

Installing seat squab guide
1.

Install the guide (2).

2.

Tighten the screw (1).

3.

Fit the seat squab.

4.5 REMOVAL AND INSTALLATION, RUBBER DUST BOOT

Removing rubber dust boot
1.

Remove the entire seat.

2.

Remove the seat squab.

3.

Remove the side cover on control side and
the opposite side.

4.

Release the attachment caps (1) and clamps
(2) and (3).

5.

Remove the seat belt mechanism and pull
the rubber dust boot over it.

6.

Pull the rubber dust boot over the controls
and remove it via the bottom.

Installing rubber dust boot
1.

Fit the rubber dust boot.

2.

Fit the seat belt mechanism.

3.

Fasten the rubber dust boot with the
attachment caps (1) and clamps (2) and (3).

4.

Fit the side covers.

5.

Fit the seat squab.

6.

Install the entire seat.

K100490

1

2

K100491

1

2

3

©

 200346

4-5

Removal and installation

SEATS

ΧΦ65/75/85 series

1

7

4.6 REMOVAL AND INSTALLATION, COVER PANEL ON CONTROL SIDE

Removing the cover panel on control side
(including control valve for pneumatic lumbar
support and seat heating switch)
1.

Remove the seat squab.

2.

Remove back rest adjuster button (1).

3.

Remove the screws (2), (3) and (4).

4.

Disconnect the plug of the seat heating
operating switch (6) behind the back rest.

5.

Remove the air pipes from the operating
valve for the pneumatic lumbar support (5).

Installing cover panel on control side
1.

Install the plug of the seat heating operating
switch (6).

2.

Connect the air pipes for the operating valve
for the pneumatic lumbar support (5).

3.

Fit the screws (2), (3) and (4).

4.

Fit the back rest adjuster button.

5.

Fit the seat squab.

K1 01 655

2

3

3

5

6

1

3

4

SEATS

4-6

©

 200346

Removal and installation

7

ΧΦ65/75/85 series

1

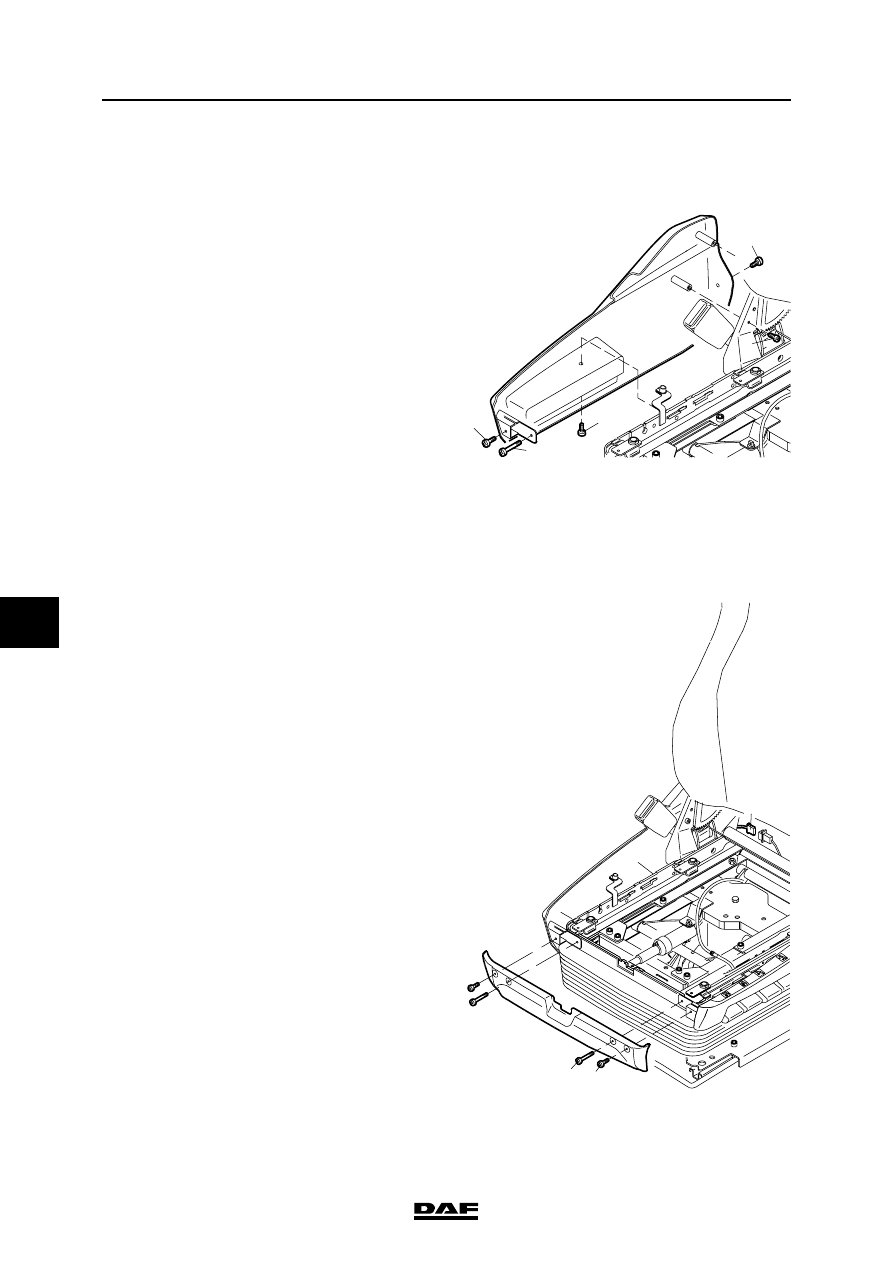

4.7 REMOVAL AND INSTALLATION, SIDE COVER PANEL

Removing side cover panel
1.

Remove the seat squab.

2.

Remove the screws (2), (3) and (1).

Installing side cover panel
1.

Fit the screws (1), (2) and (3).

2.

Fit the seat squab.

4.8 REMOVAL AND INSTALLATION, FRONT COVER PANEL

Removing front cover panel
1.

Remove the seat squab.

2.

Remove the screws (1) and (2).

3.

Remove the front cover panel.

Installing front cover panel
1.

Fit the front cover panel.

2.

Fit the screws (1) and (2).

3.

Fit the seat squab.

K100493

2

2

2

3

1

K1 01 656

1 2

3
