DAF CF65, CF75, CF85 Series . Manual - part 153

©

 200346

2-9

General

SEATS

ΧΦ65/75/85 series

1

7

Item

Description

Note

5-8

Seat guides

9

Rubber dust boot with fastening material

not shown

10

Guide for seat squab adjustment

11-13

Side cover panels

14

Front cover panels

17

Back rest adjustment mechanism

Y-section (if any), not shown

20

Seat angle control knob

21

Seat height control knob

26

Gas spring with mounting material

27

Adjuster cable assembly

29

Back rest control knob

40

Back rest

44

Seat belt cover

45

Seat belt lock without contact switch

46

3-point seat belt

47

Back rest cover

60

Seat squab

65

Seat squab adjuster

67

Seat squab cover

SEATS

2-10

©

 200346

General

7

ΧΦ65/75/85 series

1

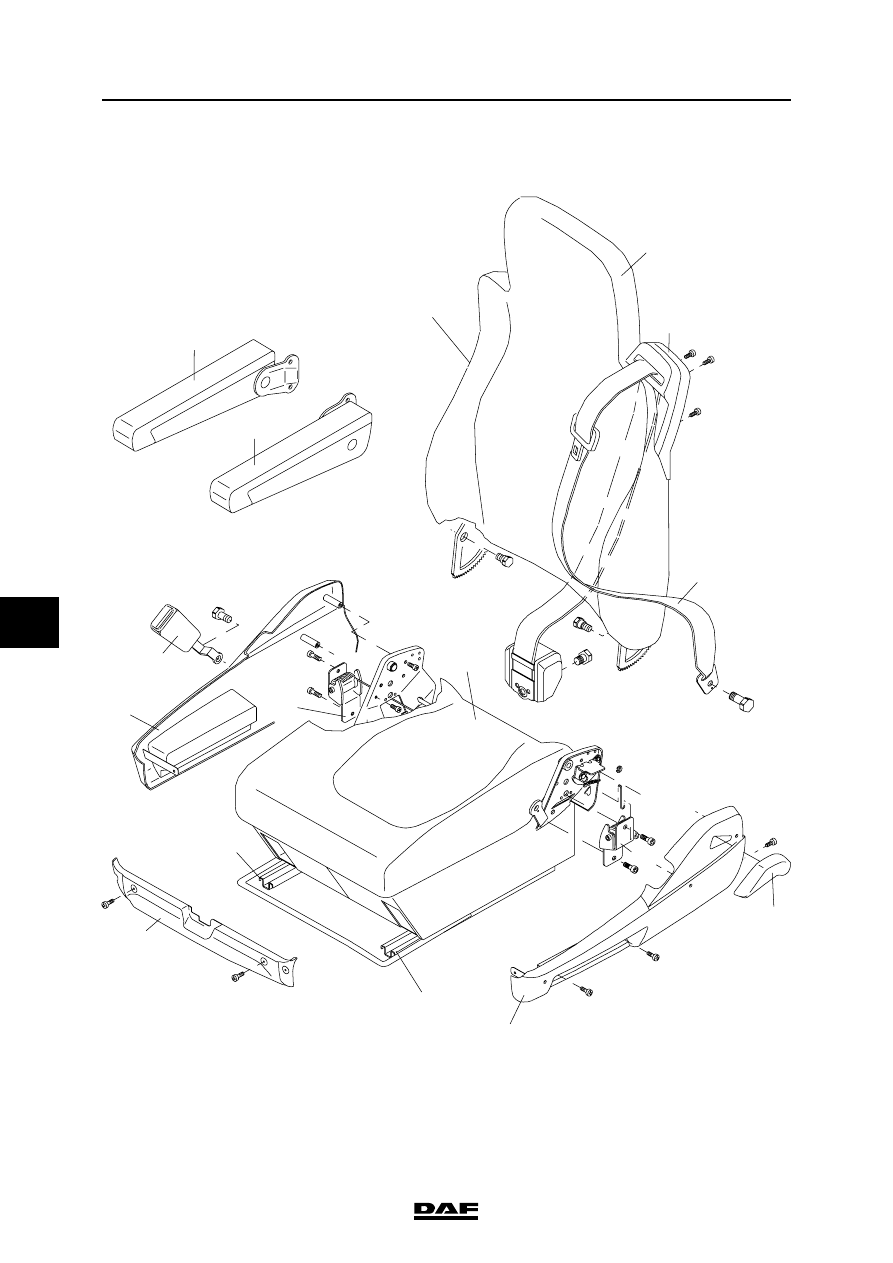

2.7 OVERVIEW DRAWING, STANDARD MODEL ISRI 6800

K100486

47,48

40,41

44

46

15,16

17

29

11

5,7

14

6,8

13

45

17

80

81

©

 200346

2-11

General

SEATS

ΧΦ65/75/85 series

1

7

Item

Description

Note

5-8

Seat guides

11-13

Side cover panel

14

Front cover panel

15-16

Seat squab cover

17

Back rest adjustment mechanism

Y-section (if any), not shown

29

Back rest control knob

40-41

Back rest

44

Seat belt cover

45

Seat belt lock without contact switch

46

3-point seat belt

47-48

Back rest cover

80-81

Arm rests
