3. INSPECTION AND ADJUSTMENT

3.1 INSPECTING SEAT BELT OPERATION

-

Give a short pull on the seat belt to test the
locking mechanism. During this test, the belt
must lock. It must not be possible to pull the
belt out any further after locking.

-

Check the seat belts for wear.

SEATS

3-2

©

 200346

Inspection and adjustment

7

ΧΦ65/75/85 series

1

©

 200346

4-1

Removal and installation

SEATS

ΧΦ65/75/85 series

1

7

4. REMOVAL AND INSTALLATION

4.1 REMOVAL AND INSTALLATION, SEAT ASSEMBLY

Removing seat assembly
1.

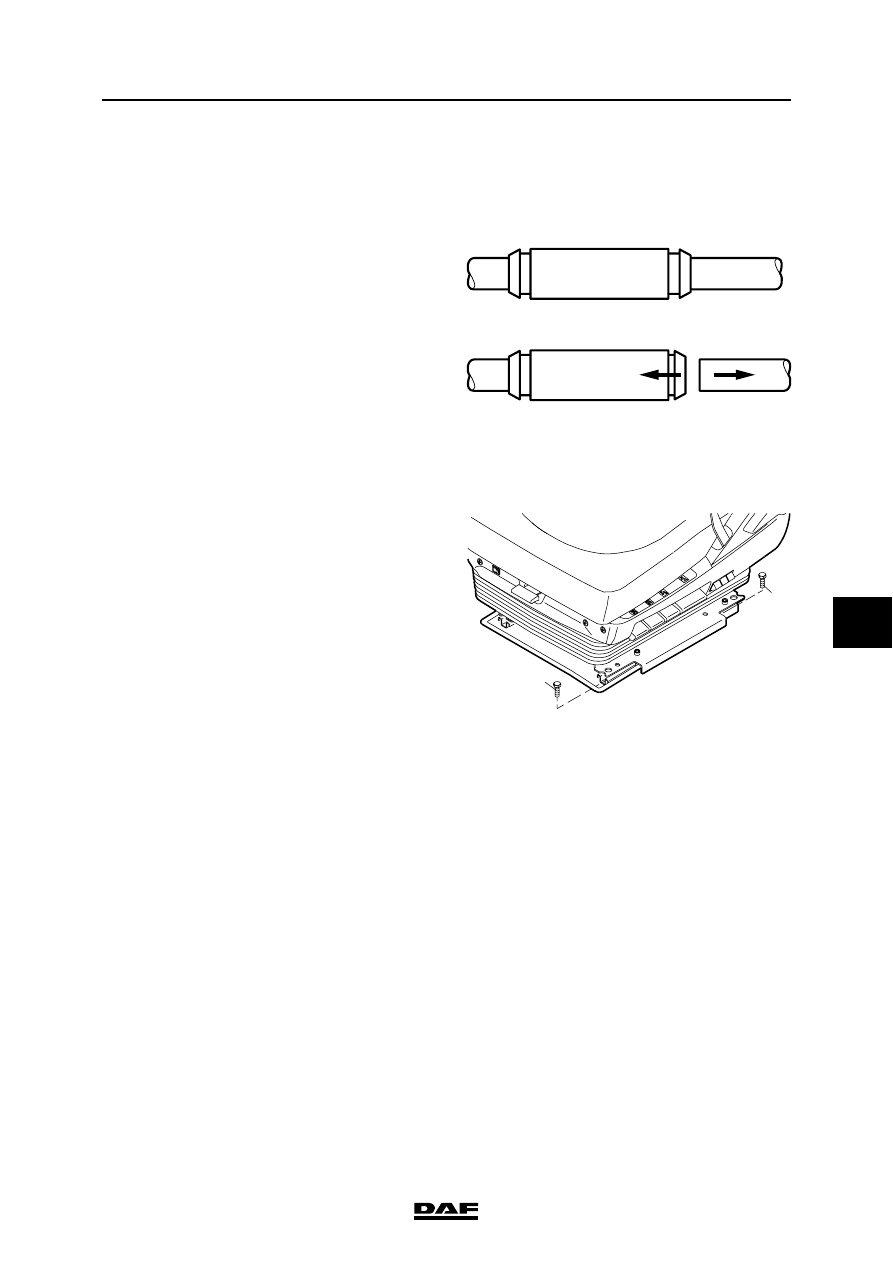

Remove the air pipe between the cab floor
and the seat, at the rear of the seat, pressing
the side of the quick-release coupling and
pulling the pipe from the coupling.

2.

Detach the seat heating connector (if
installed) between the cab floor and the seat,
at the rear of the seat.

3.

Slide the seat backwards and remove the
front screws (1).

4.

Slide the seat forwards and remove the rear
screws (2).

Installing seat assembly
1.

Place the seat on the ground plate. Make
sure that the air pipes do not get pinched off.
Slide the seat backwards and tighten the
front screws (1).

2.

Slide the seat forwards and tighten the back
screws (2).

3.

Connect the air pipe.

4.

Install the seat heater connector (if
applicable).

5.

Tighten the seat to the specified torque, see
"Technical data".

K100412

K100487

1

2

SEATS

4-2

©

 200346

Removal and installation

7

ΧΦ65/75/85 series

1

4.2 REMOVAL AND INSTALLATION, SEAT SLIDE

Removing seat slide
1.

Remove the entire seat.

2.

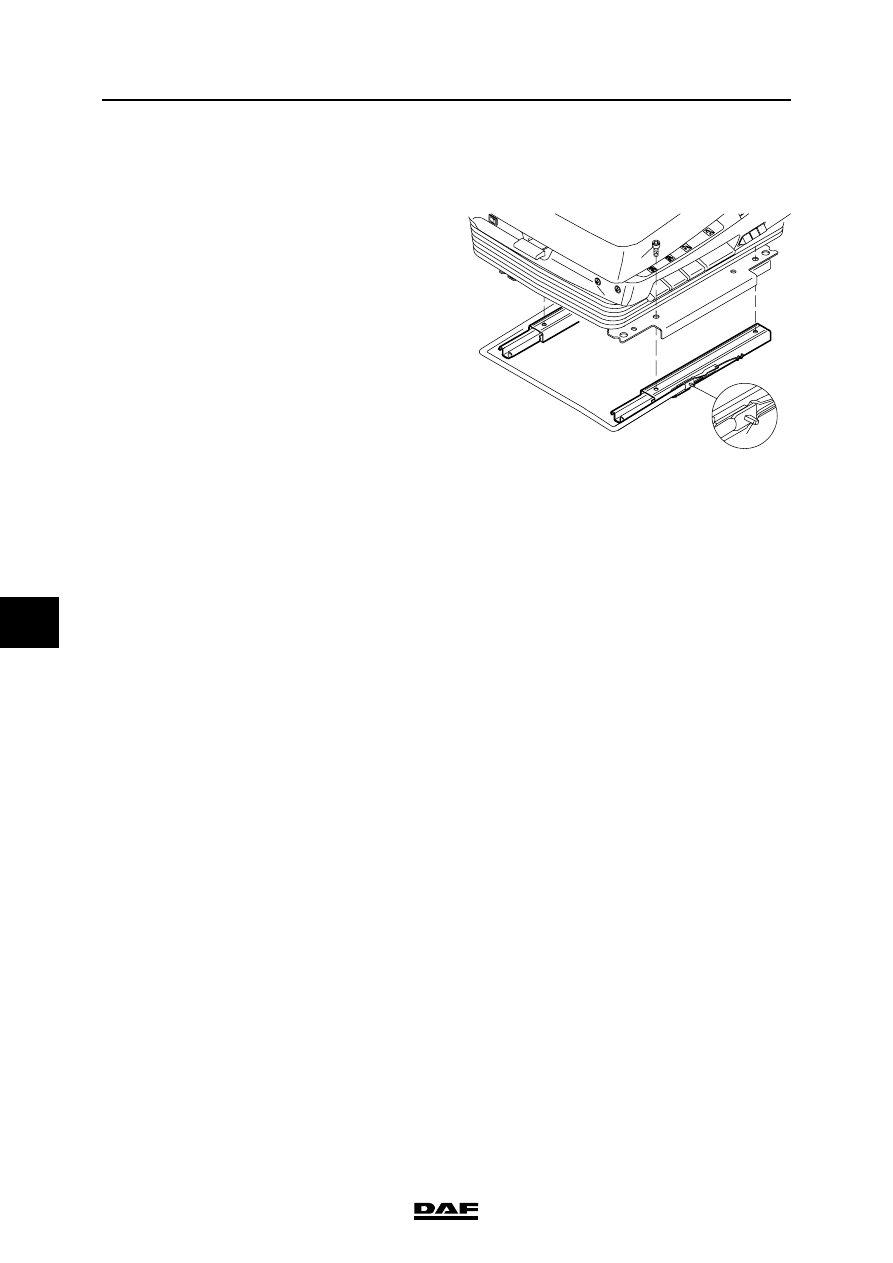

Remove the 4 attachment screws (1).

3.

Bend back the bent pin (2) on either side and
disassemble the bracket.

Installing seat slide
1.

Install the bracket and bend the pin (2).

2.

Fit the 4 attachment screws (1).

3.

Install the entire seat.

K100488

1

2
