Colours and functions of the pneumatic
system air pipes
Cab air pressure supply
black cab air pressure supply to
-

quick-release air valve A1

-

valve H25 for pneumatic lumbar support

Pressure profile when operating entry/exit
aid, top button
red from pressure reduction for quick-release
valve A2 to
-

control valve D10

-

height control valve E14

Pressurising/depressurising the air bellows
brown from height control valve E12 to
-

air bellows G18

Operation of entry/exit aid, bottom button
borwn from air bellows G18 to
-

pressure release valve A19

Pressurising the air bellows during use
grey: from height control valve E13 to
-

cab

Colours and functions of the height
adjustment air pipes
Seat up
brown: from control valve D9 to
-

switch valve C5

-

switch valve C8

-

adjustment cylinder F16

Seat down
grey: from control valve D11 to
-

switch valve C6

-

switch valve C7

-

adjustment cylinder F17

Seat up/down
black: from switch valve C4 to
-

locking cylinder B3

SEATS

2-6

©

 200346

General

7

ΧΦ65/75/85 series

1

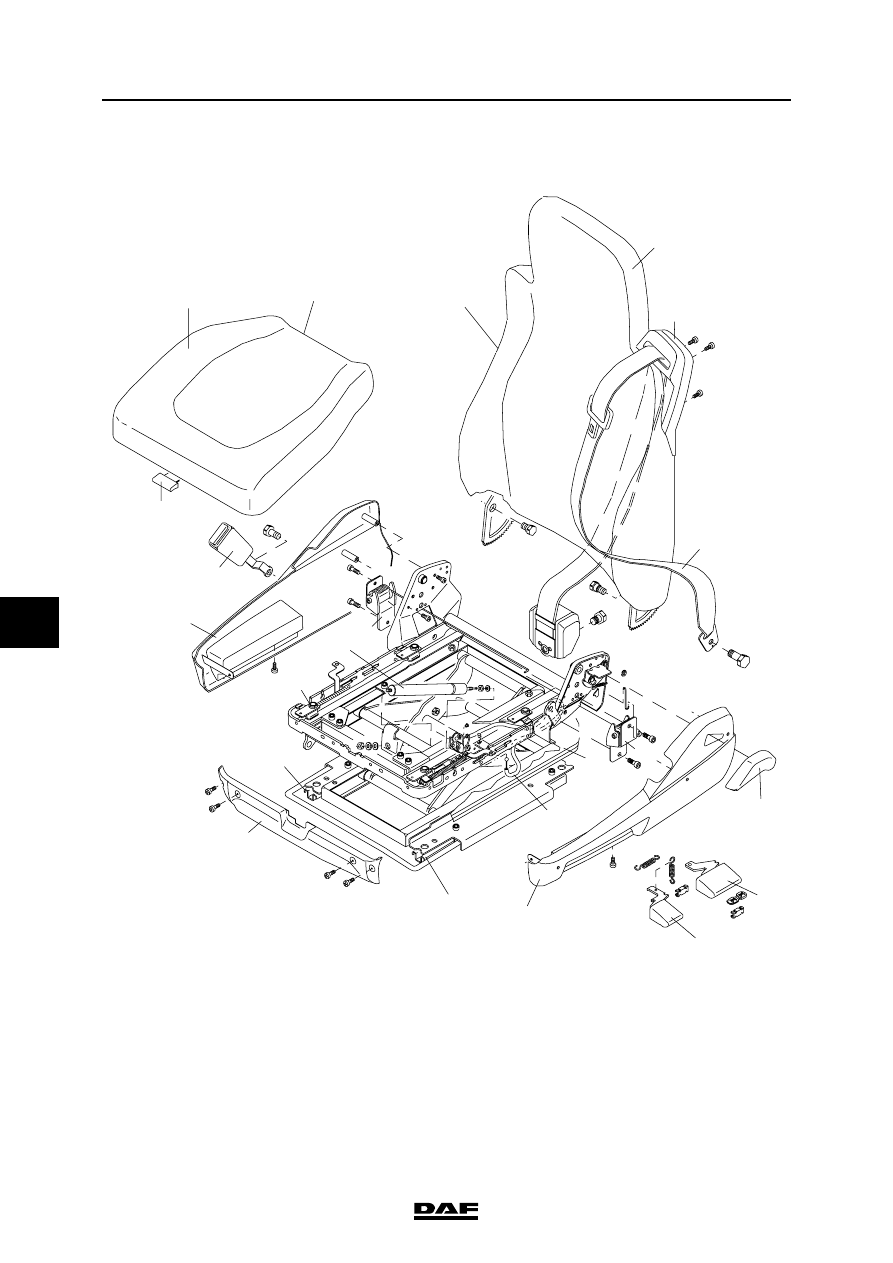

2.5 OVERVIEW DRAWING, HIGH LUXURY MODEL ISRI 6800

K1 01 654

81

80

60-63

67-70

75

47-50

51

55

17

10

45

65

13

6,8

25

23

14

26

52

22

24

27

5,7

11,12

16

9

20

19

18

21

15

29

17

46

44

40-43

©

 200346

2-7

General

SEATS

ΧΦ65/75/85 series

1

7

Item

Description

Note

5-8

Seat guides

9

Rubber dust boot with fastening material

not shown

10

Guide for seat squab adjustment

11-13

Side cover panel

14

Front cover panel

15

Control of pneumatic lumbar support

LWS = 1 or 2 switch buttons, IPS = 3 switch
buttons

16

Height control valve

17

Back rest adjustment mechanism

Y-section (if any), not shown

18

Control of entry/exit aid

20

Seat angle control knob

21

Seat height control knob

22

Vertical damper

23

Pneumatic spring

24

Control unit of the height control valve

25

Adjustment cylinder

26

Switch valve

27

Height control valve

28

Connections/air pipes

not shown

29

Back rest control knob

40-43

Back rest

44

Seat belt cover

45

Seat belt lock without contact switch

46

3-point seat belt

47-50

Back rest cover

51

Air reservoirs for pneumatic lumbar support

52

Switch for seat heating

60-63

Seat squab

65

Seat squab adjuster

67-70

Seat squab cover

80-81

Arm rests
