 200346

4-27

Removal and installation

EXTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

4

3.

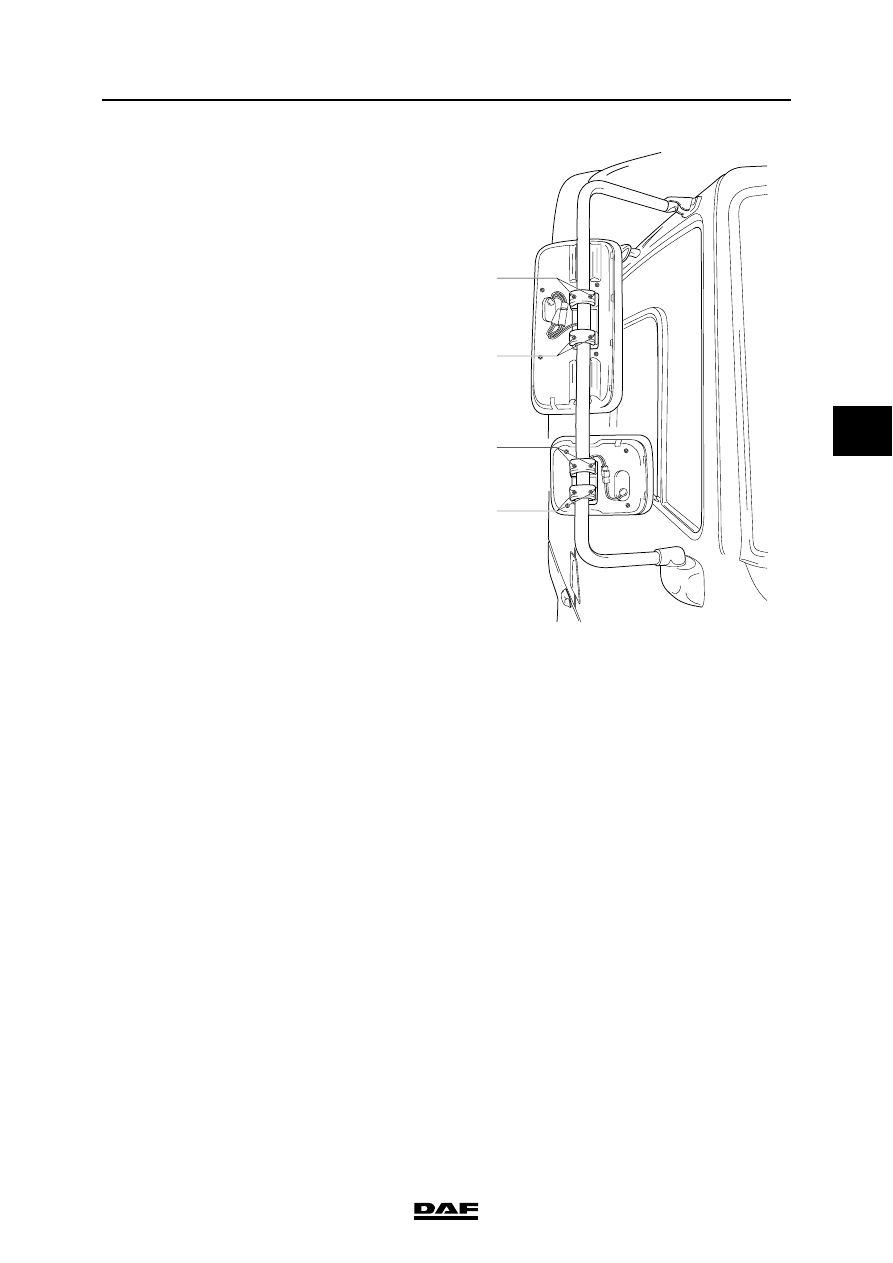

Remove the clamping bracket bolts (1) and
remove the exterior mirror from the D-
shaped arm.

Installing wide-angle exterior mirror/dead
angle exterior mirror
1.

Fit the exterior mirror to the D-shaped arm.
Hand-tighten the clamping bracket bolts (1).

2.

Fit the connectors of the exterior mirror
heating.

3.

Position the mirror at the proper height and
angle, see "Technical data".

4.

Tighten the clamping bracket bolts.

5.

Fit the cover (push into place).

1

1

1

1

K1 01 095

EXTERNAL CAB COMPONENTS

4-28

©

 200346

Removal and installation

4

ΧΦ65/75/85 series

1

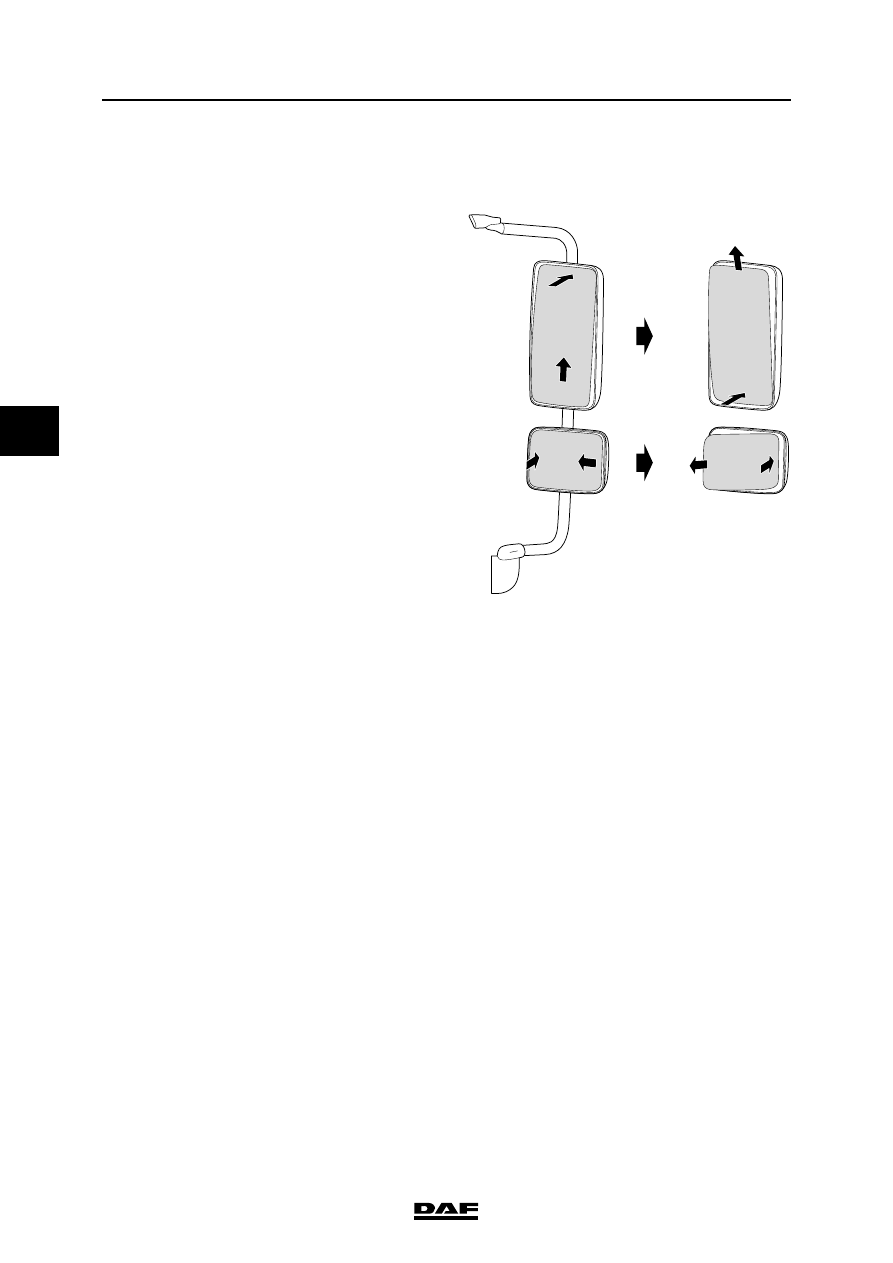

4.15 REMOVAL AND INSTALLATION, MIRROR GLASS

Removing main exterior mirror glass
1.

Press in the mirror glass at the top (1).

2.

Push the mirror glass upwards (2).

3.

Press in the mirror glass at the bottom (3).

4.

Put your fingers in the opening created and
now push the mirror glass (from the bottom
up) out of the fixing and remove the glass (4).

Installing main exterior mirror glass
1.

Put the mirror glass in place.

2.

Push the mirror glass from the top down into
the fixing.

3.

Put the mirror in its required position.

Removing wide-angle mirror glass/dead
angle exterior mirror glass
1.

Press the mirror glass in at the left side (1).

2.

Push the glass sideways from right to left (2).

3.

Press the mirror glass on the right-hand side
(3).

4.

Put your fingers in the opening created and
now push the mirror from right to left out of
the fixing and remove the glass (4).

Installing wide-angle mirror glass/dead angle
exterior mirror glass
1.

Put the mirror glass in place.

2.

Push the mirror glass into the fixing from left
to right.

3.

Put the mirror in its required position.

1

1

2

3

4

2

3

4

K1 01 029

©

 200346

4-29

Removal and installation

EXTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

4

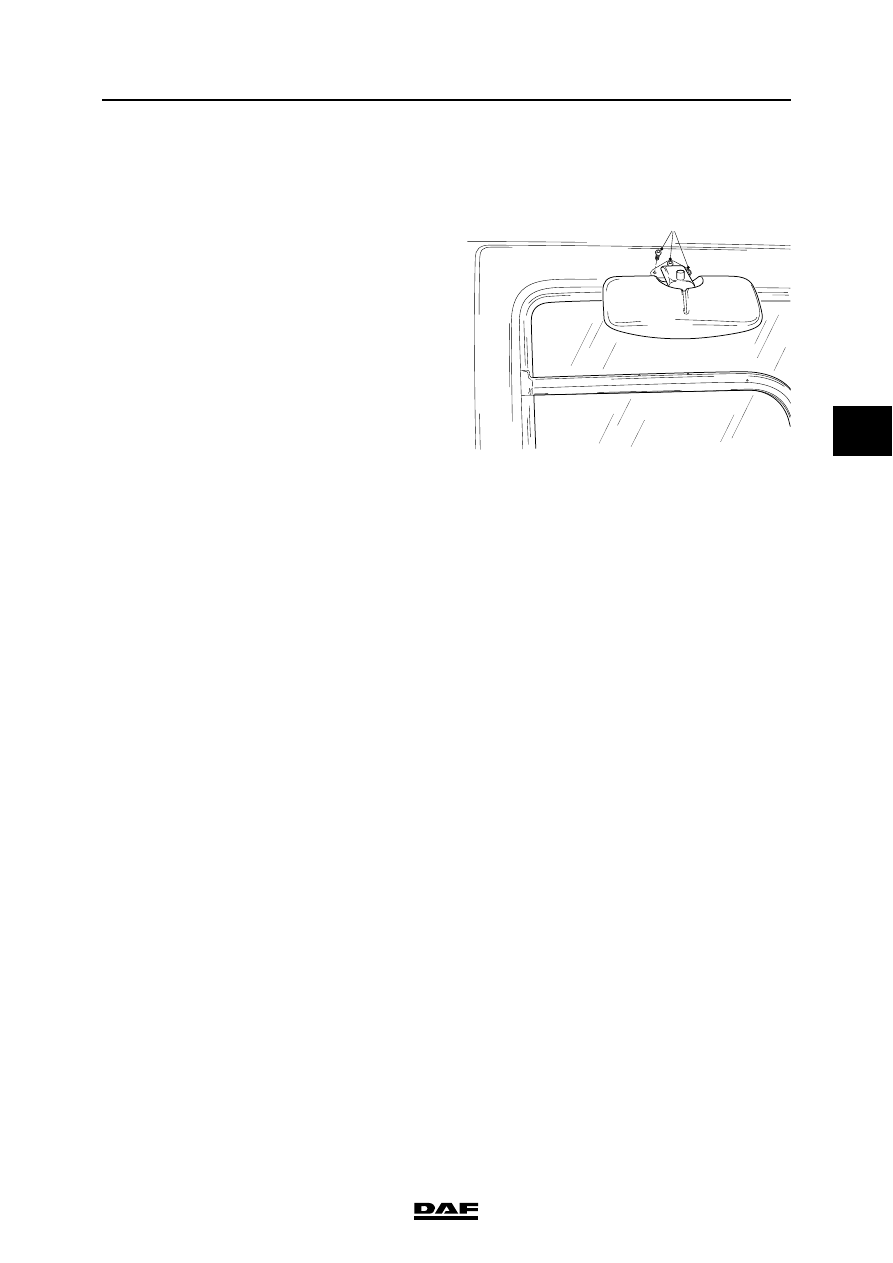

4.16 REMOVAL AND INSTALLATION, PAVEMENT MIRROR

Removing pavement mirror
1.

Remove the attachment bolts (1) from the
pavement mirror and remove the mirror.

Installing pavement mirror
1.

Put the pavement mirror in place and secure
it using the attachment bolts (1).

K1 01 064

1

EXTERNAL CAB COMPONENTS

4-30

©

 200346

Removal and installation

4

ΧΦ65/75/85 series

1

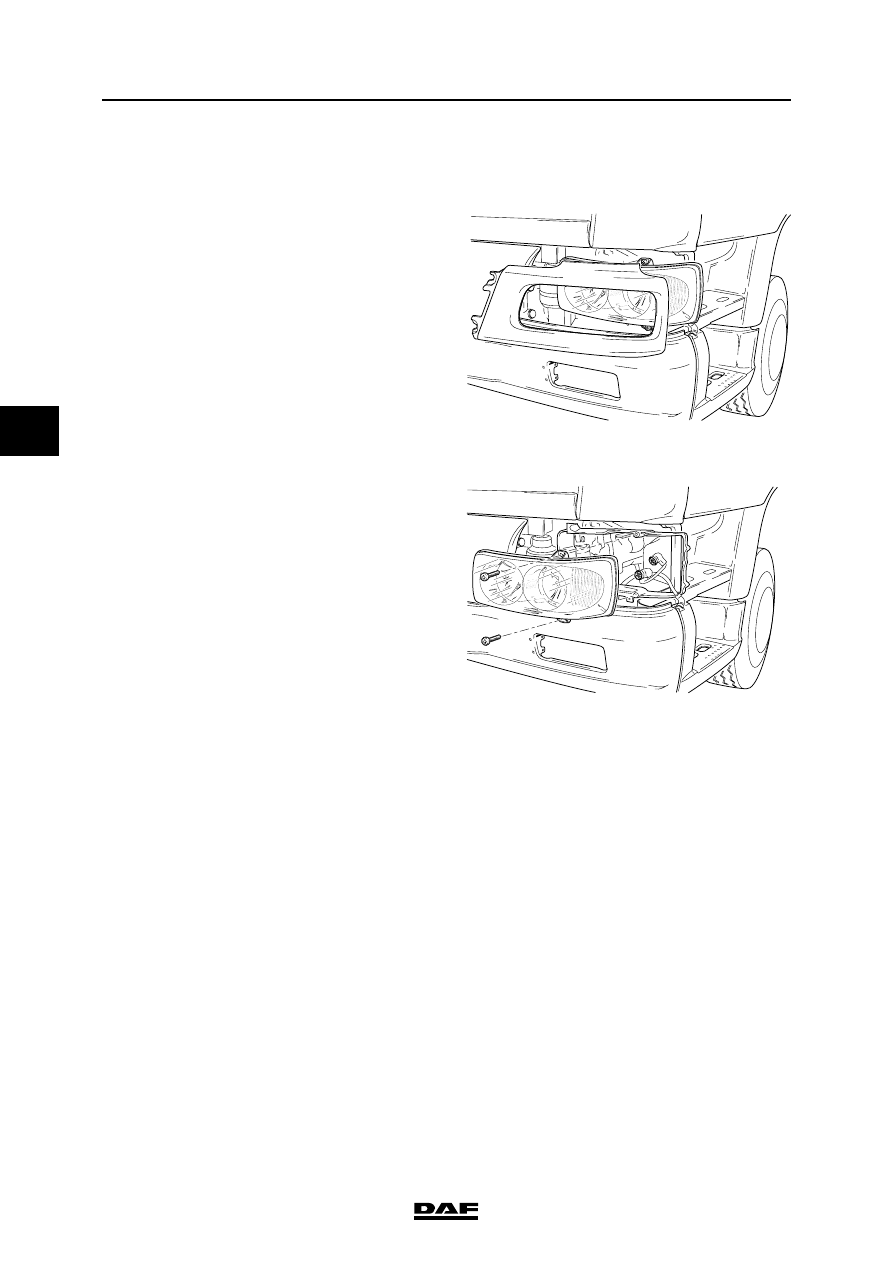

4.17 REMOVAL AND INSTALLATION, HEADLIGHT

Removing headlight
1.

Remove the attachment bolts in the stepwell
and remove the plastic corner piece around
the headlight.

2.

Remove the attachment bolts from the front
of the headlight.

3.

Pull the headlight forward and disconnect the
connectors at the rear.

4.

Remove the headlight.

Installing headlight
1.

Connect the headlight.

2.

Hook the rubber protuberance in the recess
and fix the headlight in place with the
attachment bolts at the front.

3.

Fit the plastic corner piece around the
headlight and refit the corner piece in the
stepwell.

K1 00 946

K1 00 947
