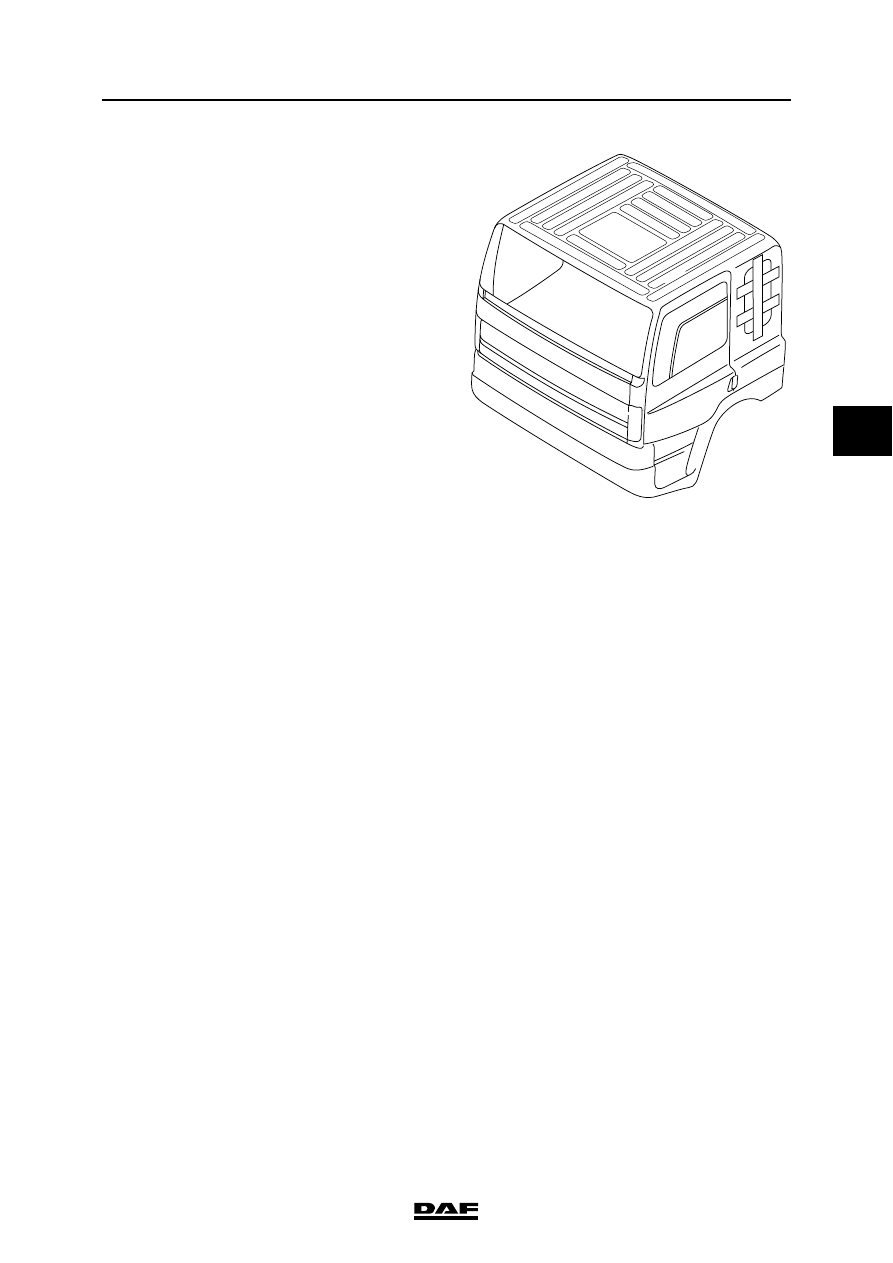

Removal and installation

EXTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

4

4.

To prevent the side window moving, tape it to
the cab with wide tape until the sealant has
cured.

5.

Let the sealant cure for the specified time.
See "Technical data".

6.

Remove all tape used for protection and
marking.

7.

Then clean the entire window and the parts
of the cab body which have been fouled
during the installation of the window using a
(window) cleaning agent.

K1 01 348

EXTERNAL CAB COMPONENTS

4-24

©

 200346

Removal and installation

4

ΧΦ65/75/85 series

1

4.13 REMOVAL AND INSTALLATION, EXTERIOR MIRRORS COMPLETE WITH

ARMS

Removing main/wide-angle/dead angle
exterior mirrors complete with arms
1.

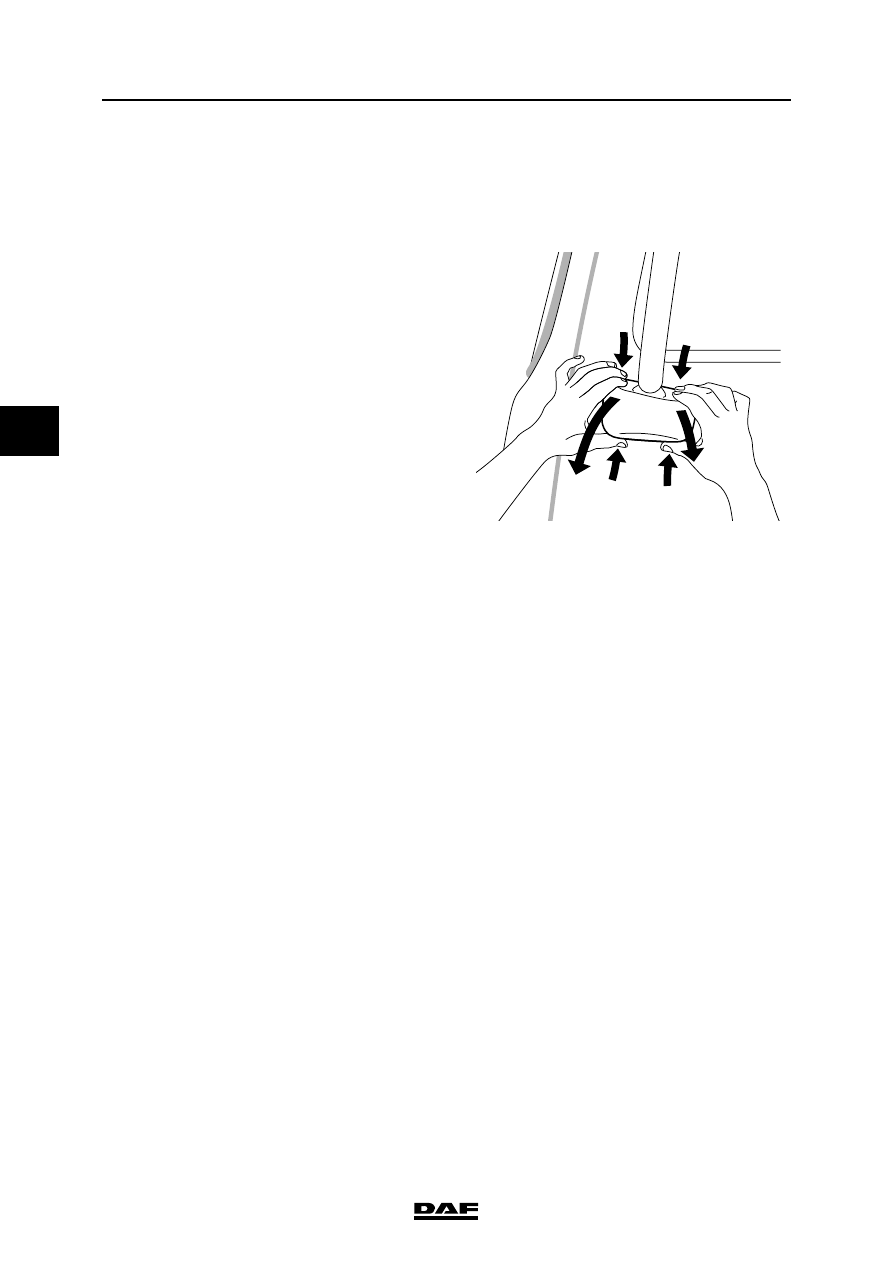

Remove the lower cover by pressing the top
and bottom sides (A) firmly. Tilt the cover
backwards (B), away from the D-shaped
support.

2.

Remove the connectors to the mirror heater
and to the adjustment on the inside of the
door.

3.

Remove the attachment bolts and remove
the entire mirror complete with arm.

Installing main/wide-angle/dead angle
exterior mirrors complete with arms
1.

Install the mirror complete with arm and
secure it using the attachment bolts.

2.

Fit the connectors to the inside of the door.

3.

Fit the cover and press it firmly.

A

A

A

A

B

B

K1 01 226

©

 200346

4-25

Removal and installation

EXTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

4

4.14 REMOVAL AND INSTALLATION, EXTERIOR MIRRORS

Removing main exterior mirror
1.

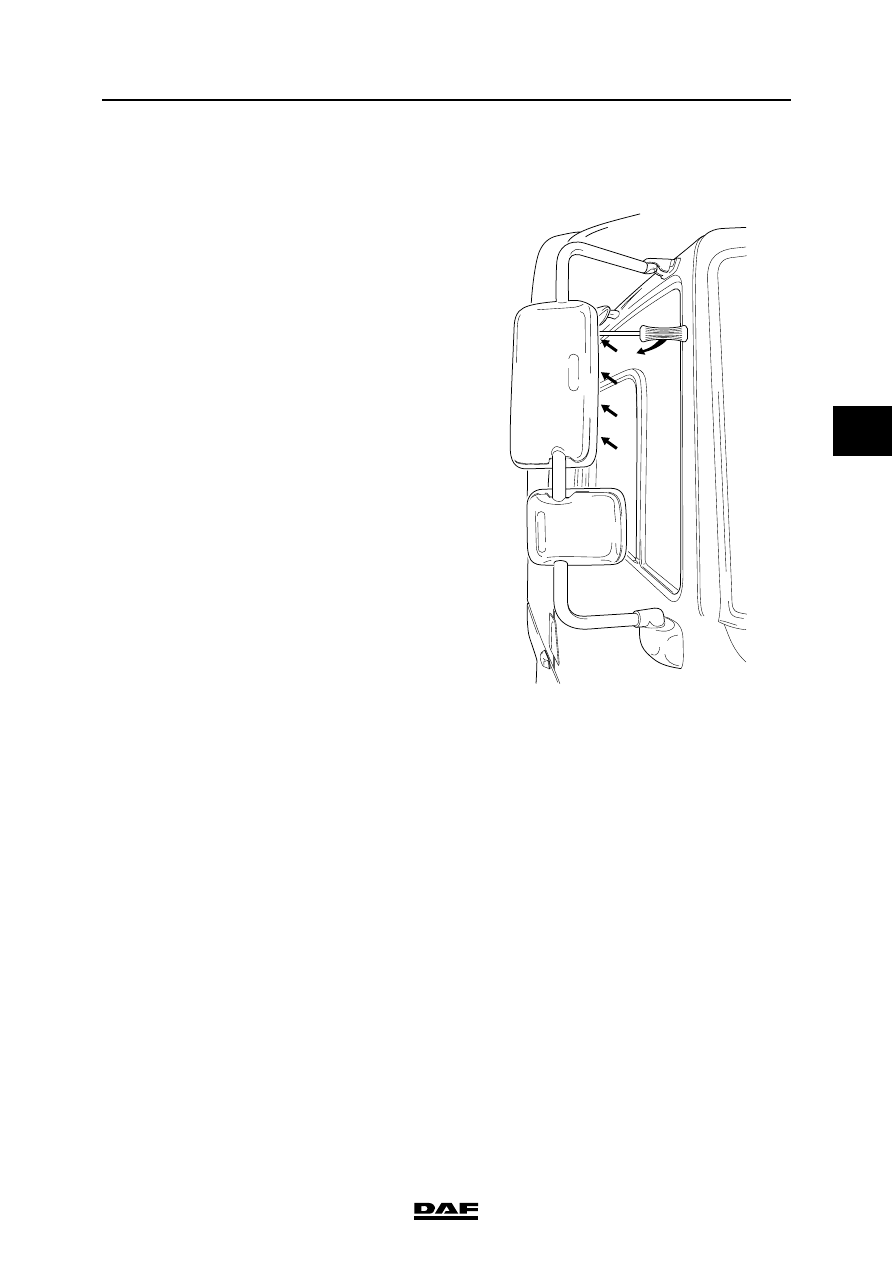

Remove the cover at the back of the exterior
mirror. This cover can be loosened by
sticking a wide screwdriver into the openings
(do not turn it) and moving the screwdriver
backwards.

2.

Unplug the connectors of the exterior mirror
heating and/or exterior mirror adjustment.

K1 01 094

EXTERNAL CAB COMPONENTS

4-26

©

 200346

Removal and installation

4

ΧΦ65/75/85 series

1

3.

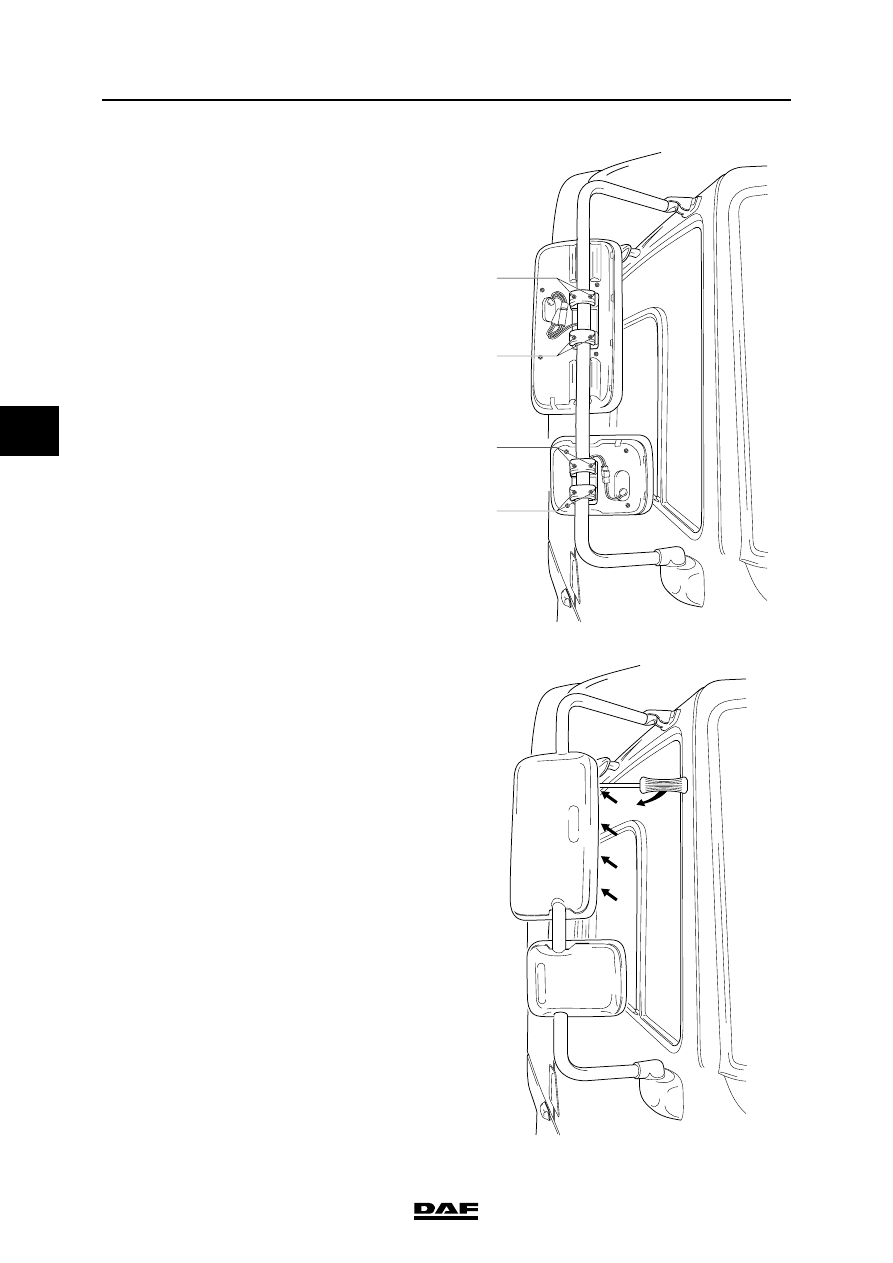

Remove the clamping bracket bolts (1) and
remove the exterior mirror from the D-
shaped arm.

Installing main exterior mirror
1.

Fit the exterior mirror to the D-shaped arm.
Hand-tighten the clamping bracket bolts (1).

2.

Fit the connectors of the exterior mirror
heating and/or exterior mirror adjustment.

3.

Position the mirror at the proper height and
angle, see "Technical data".

4.

Tighten the clamping bracket bolts.

5.

Fit the cover (push into place).

Removing wide-angle exterior mirror/dead
angle exterior mirror
1.

Remove the cover at the back of the exterior
mirror. This cover can be loosened by
sticking a wide screwdriver into the openings
(do not turn it) and moving the screwdriver
backwards.

2.

Unplug the connectors of the exterior mirror
heating.

1

1

1

1

K1 01 095
