Removal and installation

EXTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

4

Installing windscreen

}

Be careful when using an activator:
the fluid will cause skin irritation and
swallowing will cause burning.
Inhaling may cause breathing
problems.

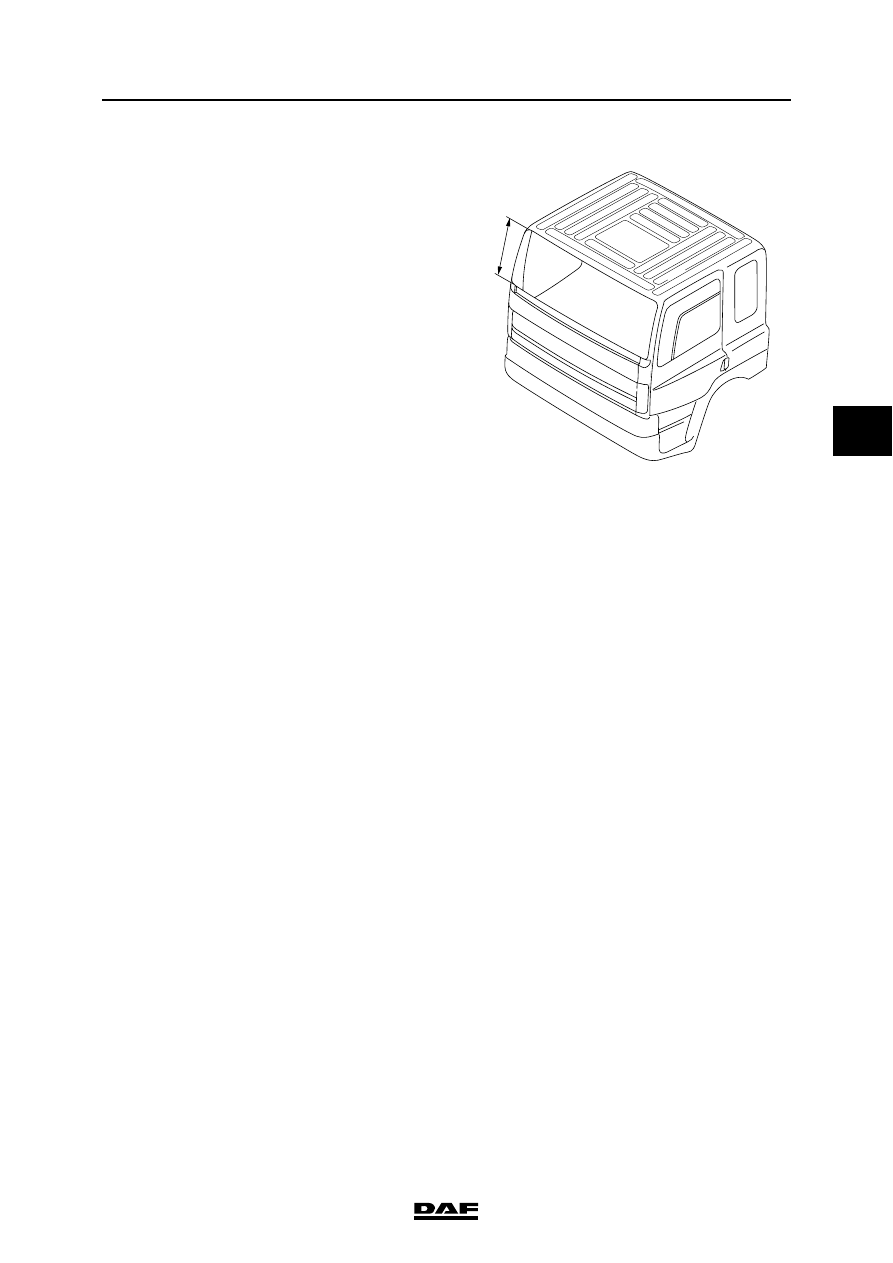

1.

Check that the windscreen frame (A - B) is
parallel.

2.

Make sure that the guide rail is smooth and
flat (no major irregularities).

3.

Check the windscreen for damage.

4.

Attach two double suction pads, special tool
(DAF no. 0484800), to the outside of the
windscreen.

5.

Put the glass with the suction pads on a
completely clean workbench.

6.

Fit the rubber trimming to the glass and
secure it with tape on the outside of the
glass.

7.

Place the glass in the frame without using
sealant, starting at the bottom and ensuring
that it fits exactly in the frame.

K1 00 719

A-B

EXTERNAL CAB COMPONENTS

4-16

©

 200346

Removal and installation

4

ΧΦ65/75/85 series

1

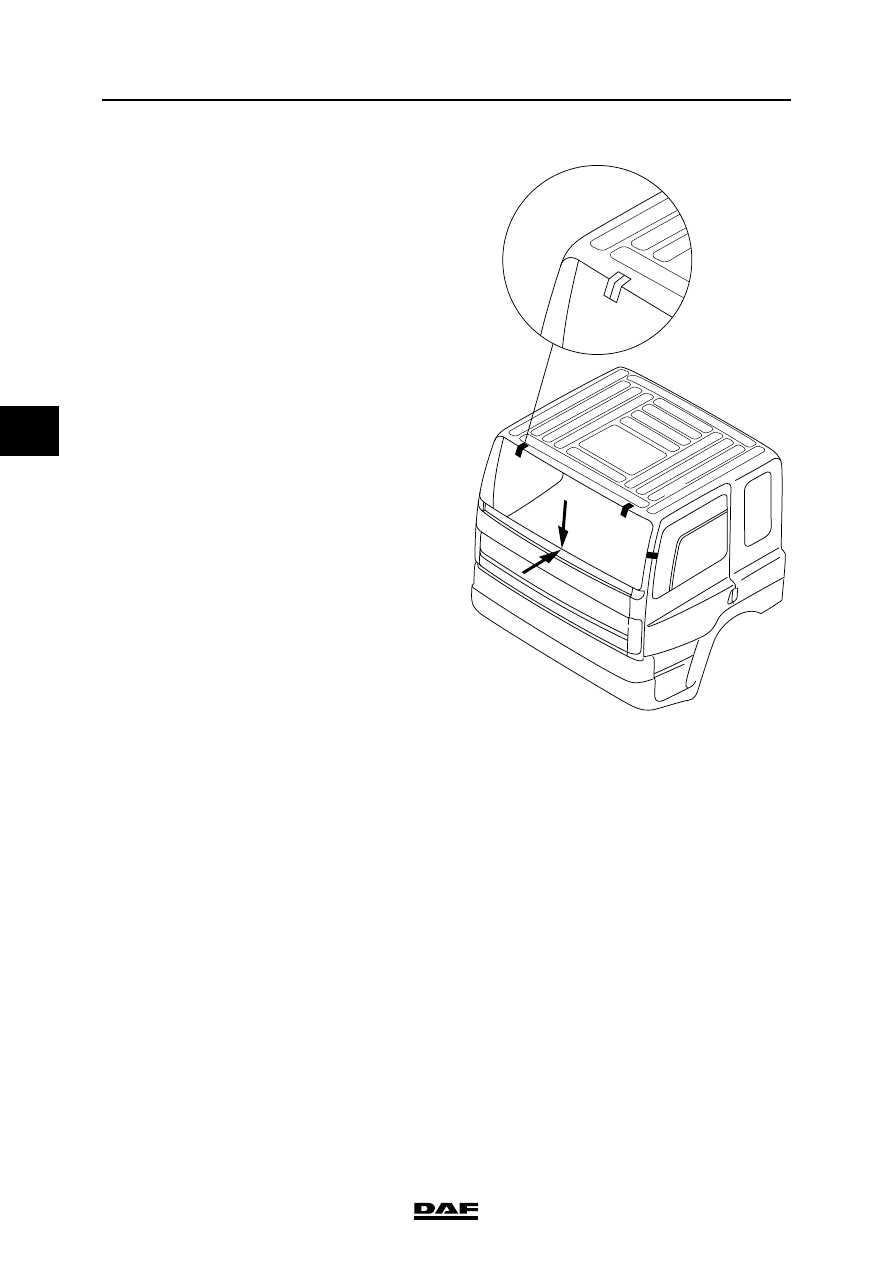

8.

Mark the correct position of the glass in the
frame with strips of tape. Cut through the
tape in the frame.

9.

Remove the glass from the frame and place
the glass on the workbench.

10. Clean the glass edge where the sealant is to

be applied using the specified activator, see
"Technical data". Apply the activator using a
well moistened ball of crumpled paper towels
or tissue; swipe it off immediately using a ball
of crumpled paper towels or tissues so that
only a thin layer remains. Allow the surface to
dry for at least the specified time, see
"Technical data".

11. Clean the cut-back sealant in the frame

using the specified activator, see "Technical
data". Apply the activator using a well
moistened ball of crumpled paper towels or
tissue; swipe it off immediately using a ball of
crumpled paper towels of tissues so that only
a thin layer remains. Allow the surface to dry
for at least the specified time, see "Technical
data".

K1 00 720

©

 200346

4-17

Removal and installation

EXTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

4

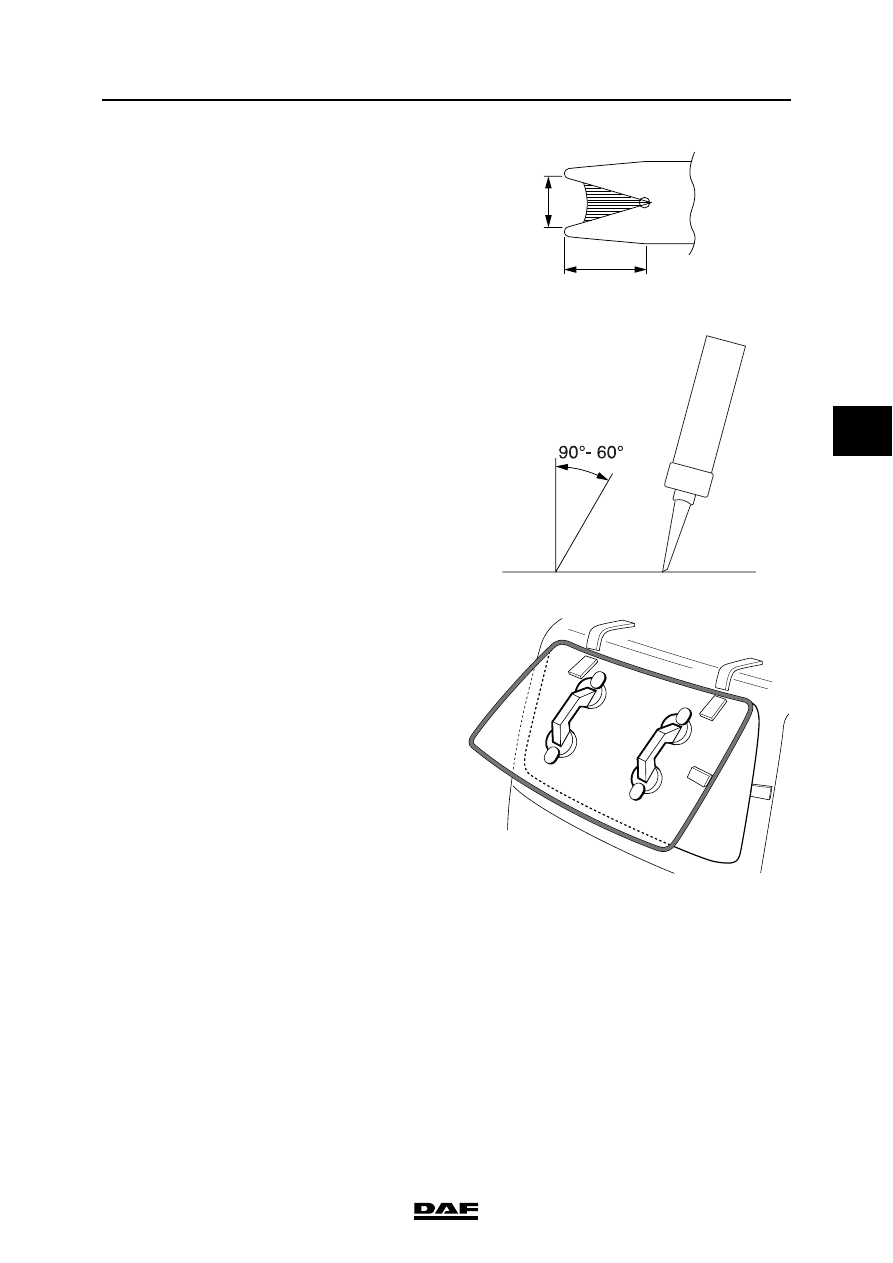

Applying sealant
1.

For hot working the sealant must be
preheated in an oven, special tool
(DAF no. 1329416), for 60 minutes at 80

|C.

2.

Give the spraying nozzle the shape shown in
the drawing.

3.

Take note of the processing time when
applying the sealant, see "Technical data".

4.

Fit the spraying nozzle to the cartridge and
apply the sealant to the windscreen,
spraying as evenly as possible.

5.

Place the sealant gun with the opening 90

|/

60

| onto the glass and move it evenly to build

up a good layer.

6.

Avoid air bubbles in the layer of sealant.

Note:
If a pneumatic glue gun is used for sealing,
special tool (DAF no. 1240444), then before
beginning adjust the pressure in the gun (by
spraying several test strips).

Fitting the glass
1.

The glass should be taken from the
workbench by two persons and it should be
placed in the frame in one go. Use the
dimensions on the tape strips (1).

12 mm

8 mm

K1 00 721

K1 00 722

1

1

1

K1 00 699

EXTERNAL CAB COMPONENTS

4-18

©

 200346

Removal and installation

4

ΧΦ65/75/85 series

1

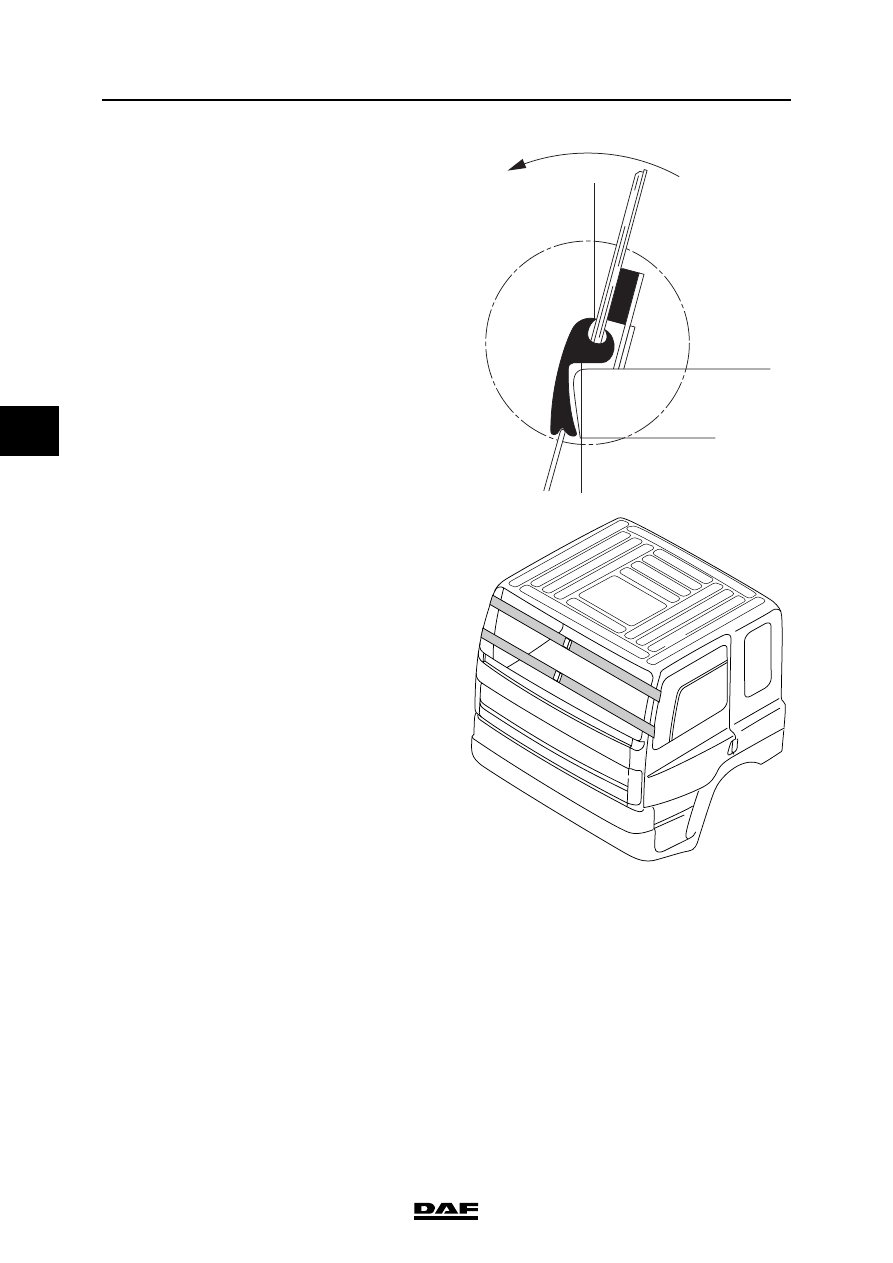

2.

Make sure that the rubber windscreen trim at
the bottom catches properly into the upper
grille plate.

3.

Use the specified sealant remover to remove
the excess sealant immediately from the
painted parts, see "Technical data".

4.

For safety, open the windows to avoid
undesirable pressure build-up on the
windscreen.

5.

Depending on the type of sealant used
(setting time), fit straps. See "Technical
data". Protect the paint by fitting linen tape in
the places where the straps touch it.

6.

If applicable, pull two strips round the outside
of the windscreen and the cab pillar. Put
strips of wood or Tempex underneath to
avoid damage.

7.

Let the sealant cure for the specified time.
See "Technical data".

8.

Remove all tape used for protection and
marking from the cab body.

9.

Then clean the entire windscreen and the
parts of the cab body which have been fouled
during the installation of the windscreen
using a (window) cleaning agent.

10. Fit the A-pillar trimming panels in the cab.

11. Install the dashboard panel at the top.

12. Fit the stepwell handles.

13. Fit the windscreen wipers and adjust them.
