DAF CF65, CF75, CF85 Series . Manual - part 123

©

 200346

4-7

Removal and installation

EXTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

4

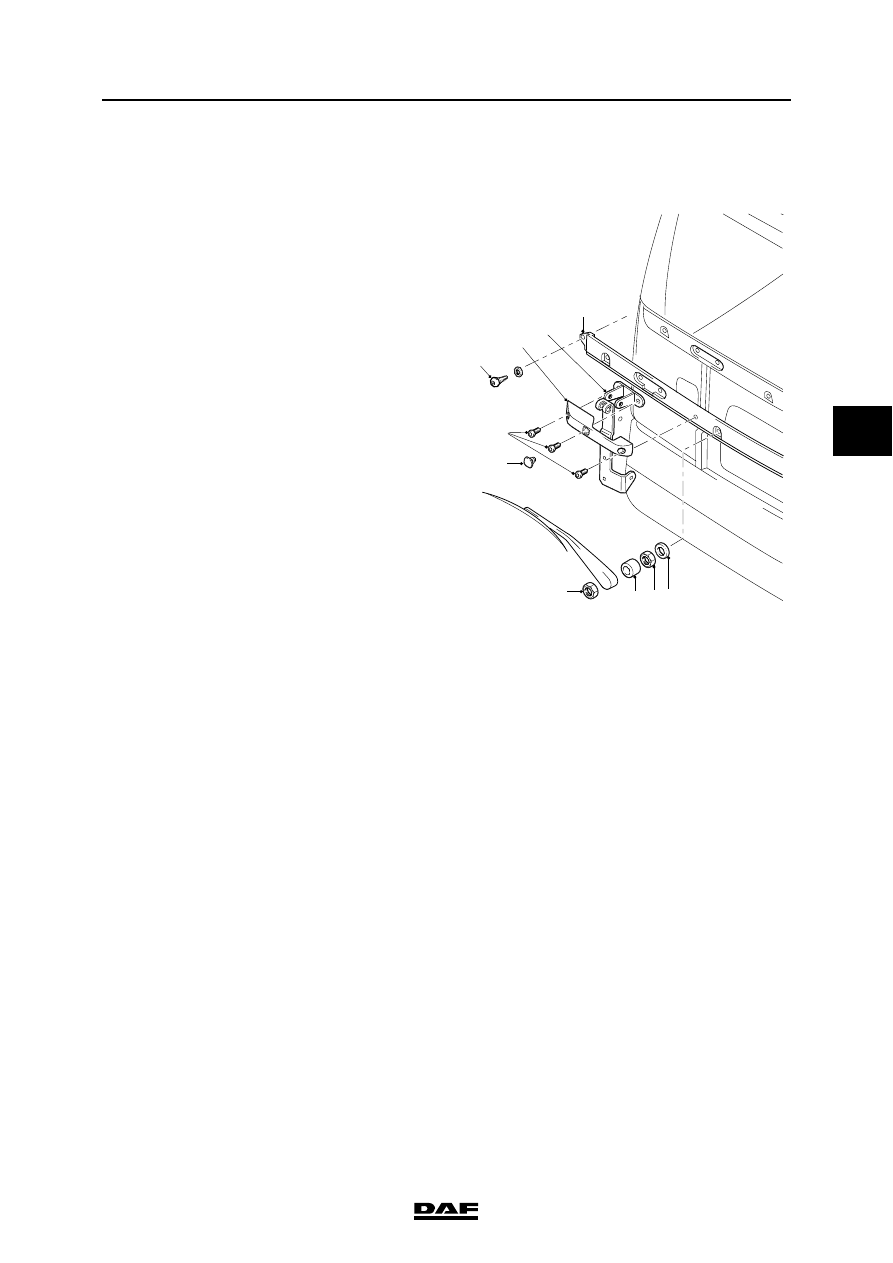

4.6 REMOVAL AND INSTALLATION, WINDSCREEN WIPER PANEL

Removing windscreen wiper panel
1.

Remove the corner pieces.

2.

Remove the attachment bolts (1) from the
ends of the windscreen wiper panel.

3.

Remove the nuts (8) from the windscreen
wiper arms and remove the arms.

4.

Remove the covers (7).

5.

Remove the nuts (6) and washers (5).

6.

Remove the covers (9).

7.

Remove the attachment bolts (10) and
remove the handles (2).

8.

Remove the cab grille with the supports (3).

9.

Remove the windscreen wiper panel (4).

Installing windscreen wiper panel
1.

Install the windscreen wiper panel (4).

2.

Fit the cab grille with the supports (3).

3.

Fit the handles (2) and secure them with the
attachment bolts (10).

4.

Fit the covers (9).

5.

Fit the washer (5) and the nut (6).

6.

Fit the covers (7).

7.

Put the windscreen wiper arms in place and
secure them using the nuts (8).

8.

Fit the attachment bolts (1) to the ends of the
windscreen wiper panel.

9.

Fit the corner pieces.

7

1

2

6 5

K1 01 057

8

9

10

3

4

EXTERNAL CAB COMPONENTS

4-8

©

 200346

Removal and installation

4

ΧΦ65/75/85 series

1

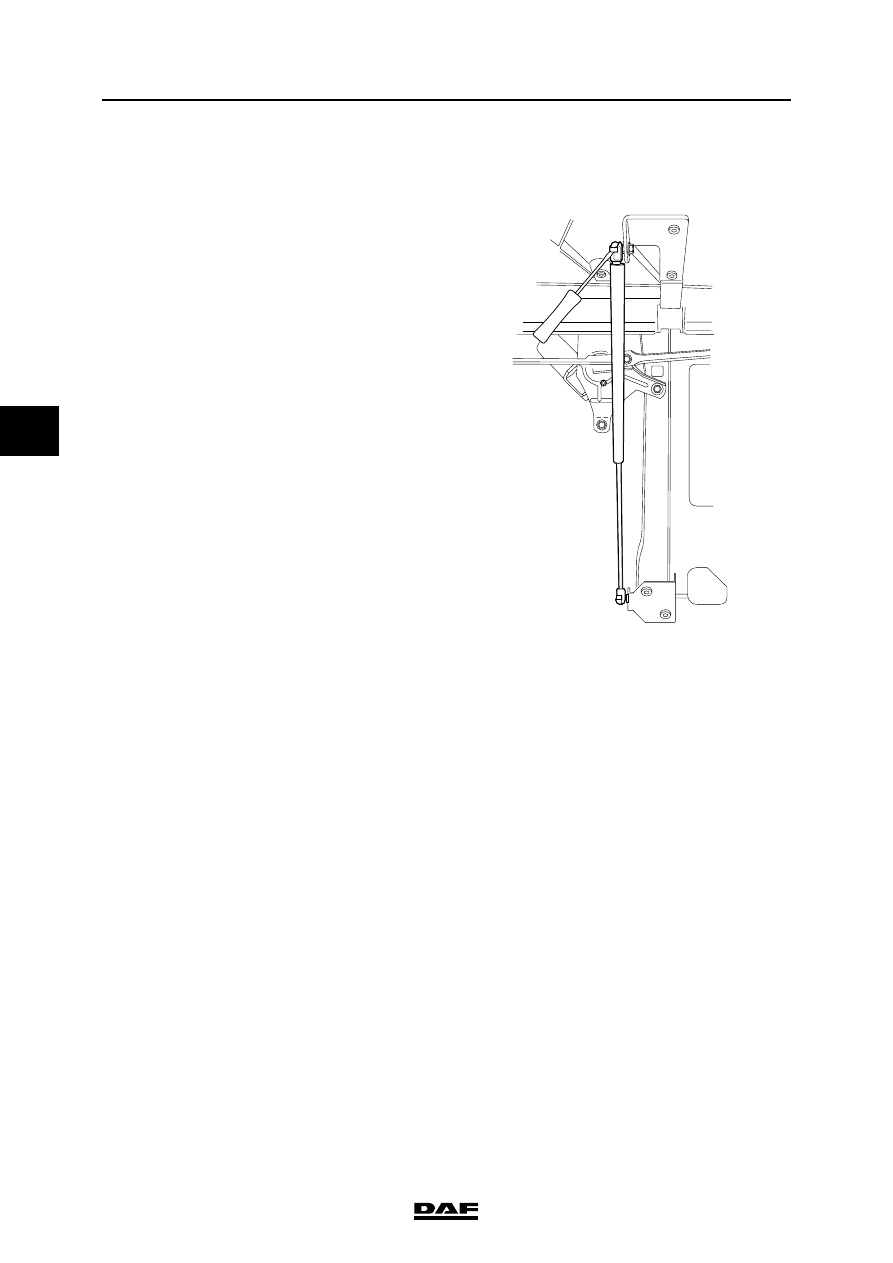

4.7 REMOVAL AND INSTALLATION, CAB GRILLE

Removing cab grille
1.

Open the grille and support it.

2.

Remove the retaining clips from the gas
damper mounting using a screwdriver and
remove the gas dampers.

3.

Remove the handles.

4.

Remove the dowels using a punch and
remove the cab grille.

Installing cab grille
1.

Put the cab grille in place and fit the dowels
using a punch.

2.

Support the grille in the open position and
install the gas dampers with the retaining
clips.

3.

Attach the handles.

K1 01 034

©

 200346

4-9

Removal and installation

EXTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

4

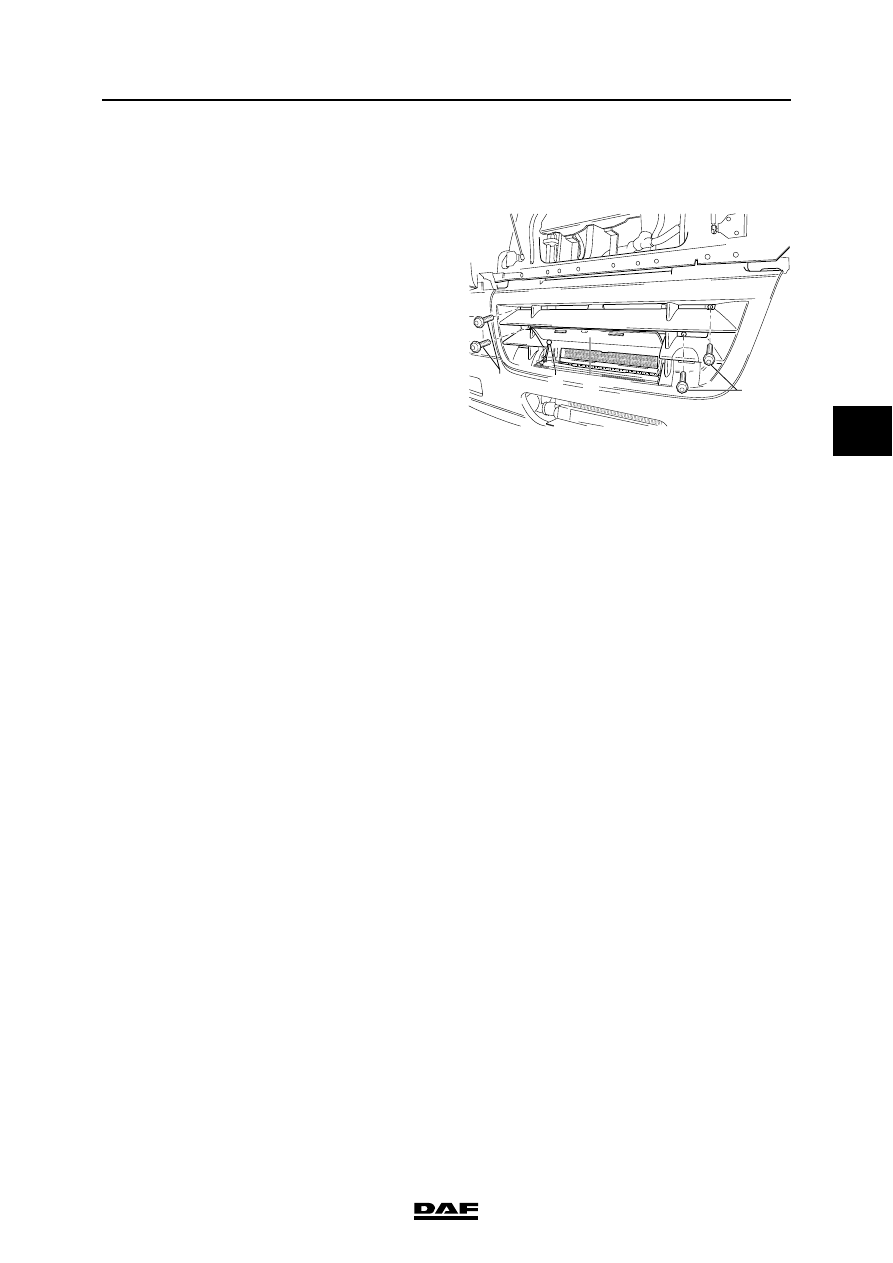

4.8 REMOVAL AND INSTALLATION, VEHICLE GRILLE

Removing vehicle grille
1.

Remove the corner pieces around the
headlights.

2.

Remove the attachment bolts (3) from the
front of the grille.

3.

Open the cover (1) at the front and remove
the rubber tie rods (2).

4.

Remove the grille by lifting it out of the
notches at the bottom.

Installing vehicle grille
1.

Put the top of the grille under the cross
member.

2.

Lift the lower edge of the grille and hook into
the notches.

3.

Insert the attachment bolts (3).

4.

Fit the rubber tie rods (2) and close the cover
(2).

5.

Fit the corner pieces around the headlights.

3

1

2

3

K1 01 097

EXTERNAL CAB COMPONENTS

4-10

©

 200346

Removal and installation

4

ΧΦ65/75/85 series

1

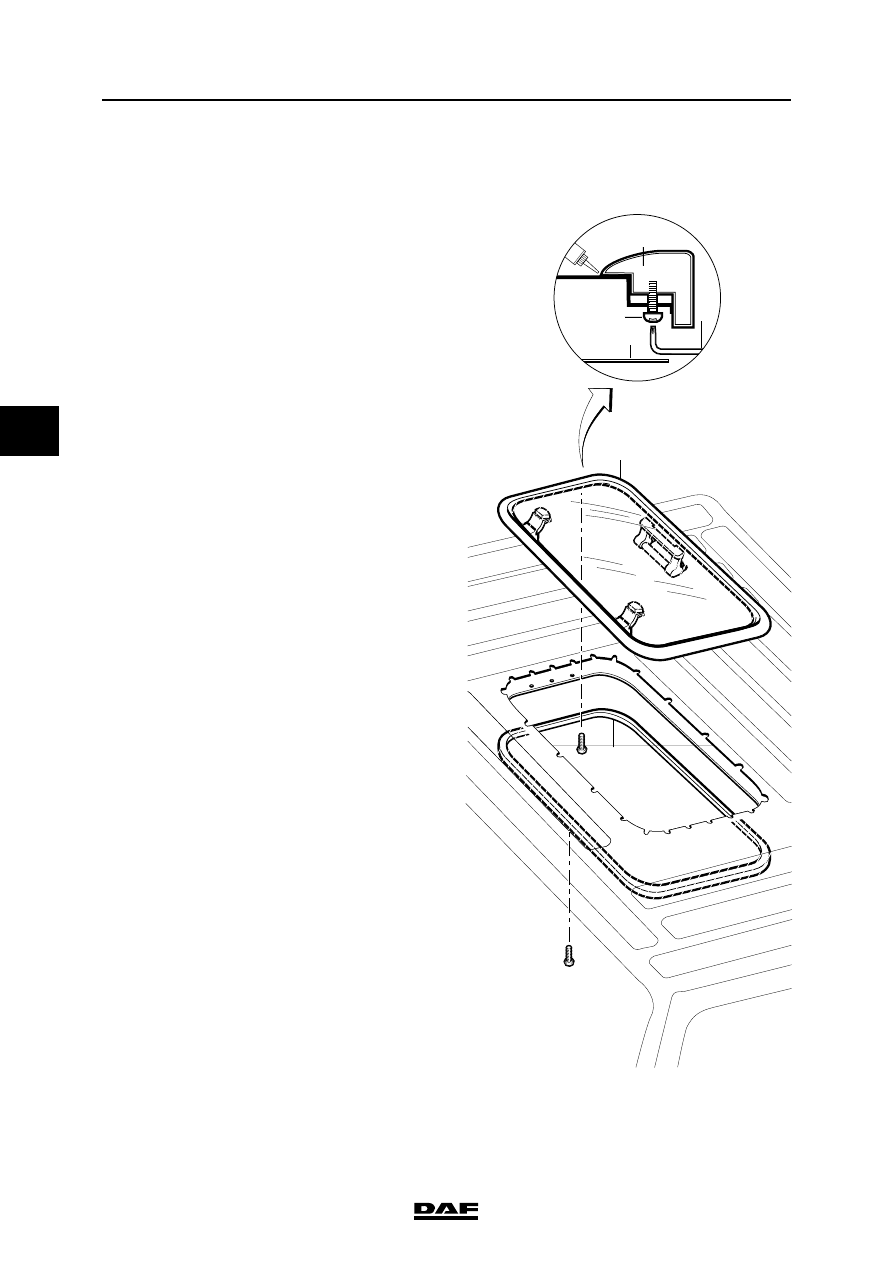

4.9 REMOVAL AND INSTALLATION, ROOF HATCH ASSEMBLY

Removing roof hatch assembly
1.

Remove the roof console.

2.

Disconnect the interior lighting connector
and remove the roof hatch trim.

3.

Remove the headlining.

4.

Remove the attachment bolts from around
the roof hatch.

5.

Remove the roof hatch complete with the
glass. If there is an electric roof hatch,
remove the connector of the adjusting motor.

Installing roof hatch assembly
1.

Install the roof hatch.

2.

Attach the roof hatch all around with the
attachment bolts.

3.

Connect the lighting.

4.

Fit the headlining, roof hatch trim and the
roof console.

1

3

K1 01 110

2

5

4

2
