DAF CF65, CF75, CF85 Series . Manual - part 129

©

 200346

4-31

Removal and installation

EXTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

4

4.18 REMOVAL AND INSTALLATION, HEADLIGHT BRACKET

Removing headlight bracket
1.

Tilt the cab.

2.

Remove the headlight.

3.

Remove the attachment bolts from the
headlight bracket and remove the bracket
together with the height control valve.

Installing headlight bracket
1.

Position the headlight bracket together with
the height control valve and fix it with the
attachment bolts.

2.

Fit the headlight.

3.

Tilt the cab back.

4.19 REMOVAL AND INSTALLATION, HEADLIGHT LEVELLING CONTROL

Removing headlight levelling control
1.

Tilt the cab forwards.

2.

Disconnect the headlight levelling connector.

3.

Remove the headlight levelling control by
turning it fully counterclockwise out of the
back of the headlight (at the rear).

Installing headlight levelling control
1.

Fit the headlight levelling control by screwing
it clockwise into the bayonet catch.

2.

Fit the headlight levelling connector.

3.

Tilt the cab back.

K1 01 031

K1 01 100

EXTERNAL CAB COMPONENTS

4-32

©

 200346

Removal and installation

4

ΧΦ65/75/85 series

1

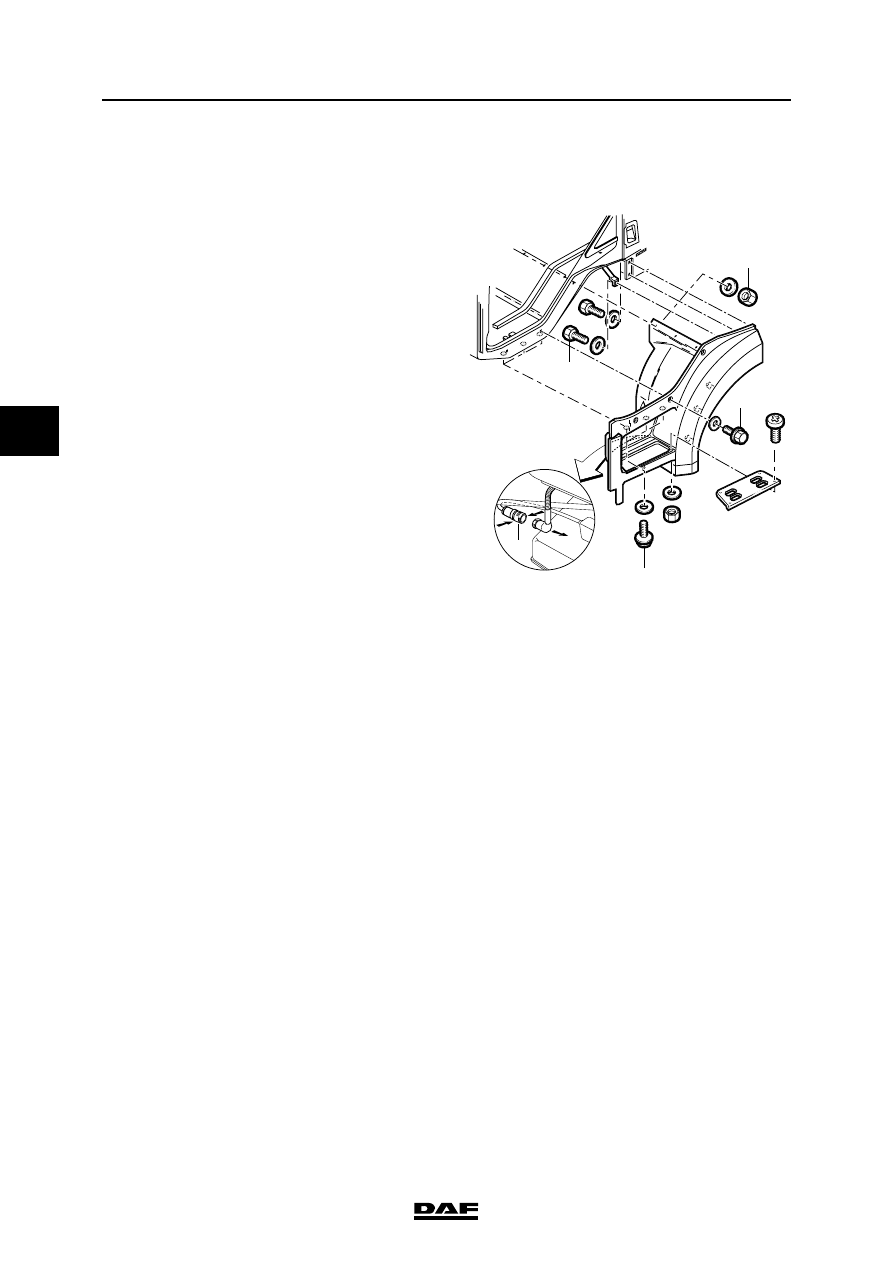

4.20 REMOVAL AND INSTALLATION, MUDGUARD ASSEMBLY

Removing mudguard assembly
1.

Tilt the cab.

2.

Disconnect the stepwell lighting connector
(1).

3.

Remove attachment bolts (2) and
attachment nuts (3).

4.

Support the mudguard, remove the
attachment screws (4) and attachment bolts
(5) and remove the mudguard assembly.

Installing mudguard assembly
1.

Position the mudguard assembly and fit the
attachment screws (4) and attachment bolts
(5).

2.

Fit the attachment bolts (2) and attachment
nuts (3).

3.

Connect the stepwell lighting connector (1).

K1 00 660

3

2

5

1

4

©

 200346

4-33

Removal and installation

EXTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

4

4.21 REMOVAL AND INSTALLATION, BUMPER

Removing bumper
1.

Remove the corner pieces around the
headlights.

2.

Remove the vehicle grille.

3.

Remove the attachment bolts at the rear
(bottom) of the bumper support on the
chassis.

4.

Remove the attachment bolts from the front
of the bumper.

5.

Disconnect the connectors and remove the
bumper assembly.

Installing bumper
1.

Fit the connectors and the bumper.

2.

Fit the attachment bolts at the front.

3.

Fit the attachment bolts at the rear (bottom)
of the bumper support.

4.

Fit the vehicle grille.

5.

Fit the corner pieces around the headlights.

K1 01 080

EXTERNAL CAB COMPONENTS

4-34

©

 200346

Removal and installation

4

ΧΦ65/75/85 series

1

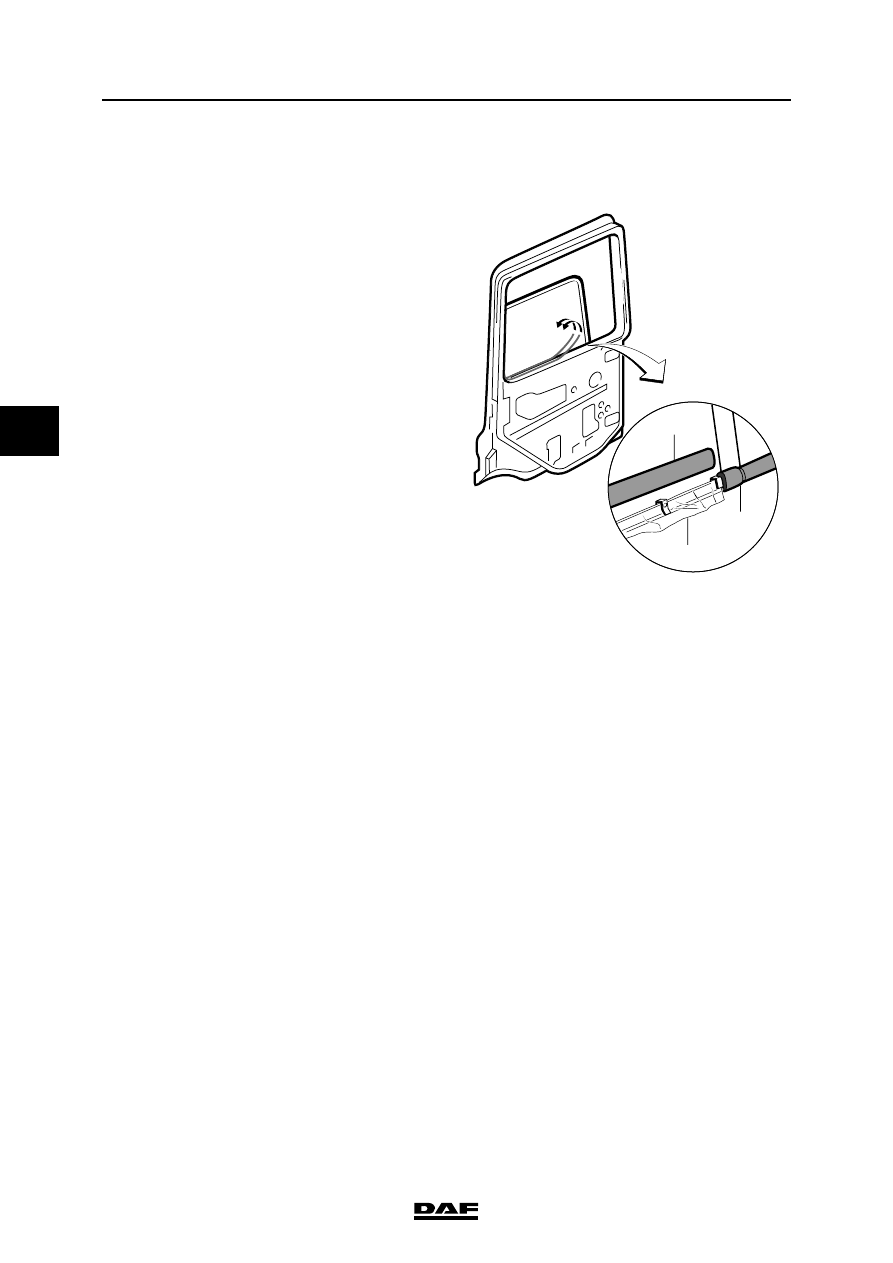

4.22 REMOVAL AND INSTALLATION, SQUEEGEE STRIPS

Removing squeegee strips
1.

Fully lower the door glass.

2.

Remove the squeegee strips on the inside
and outside of the door by pulling them from
the window frame.

Installing squeegee strips
1.

Fit the ends of the squeegee strips on the
inside and outside in the top corner and fix
these ends firmly in place.

2.

Then work towards the bottom, while
pressing firmly on the squeegee strip.
Ensure that the squeegee strips (1) connect
to the weatherstrip (2).

Note:
Make sure the foil (3) on the inside of the
door is over the edge of the window frame
when the squeegee strip is being fitted.

3.

Fit the squeegee strips firmly by tapping
them with a mallet.

1

3

2

K1 00 697
