Removal and installation

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

Version with steel reservoir

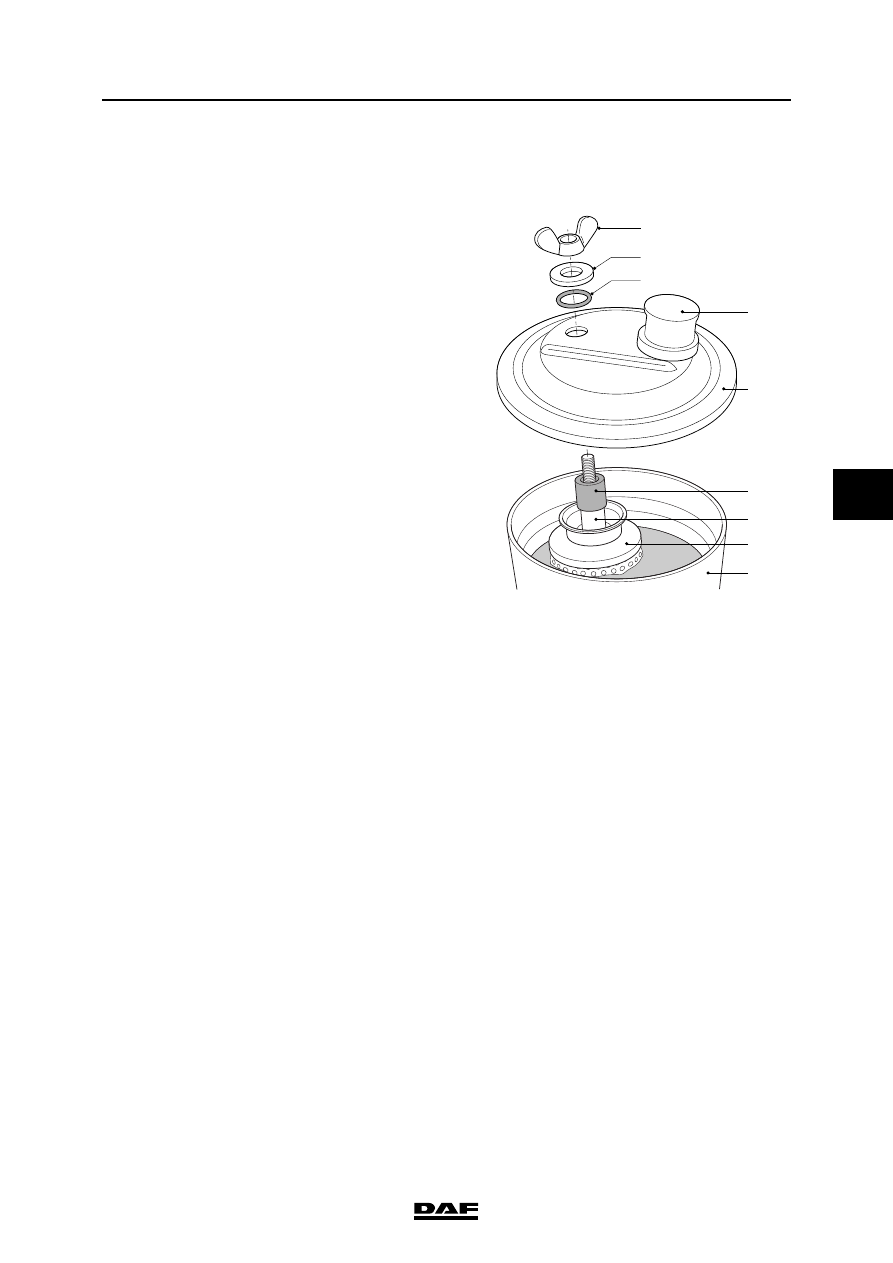

Removing the steering gear filter element
1.

Clean the reservoir cover, so that absolutely

no dirt can get into the reservoir.

2.

Remove the wingnut (1).

3.

Remove the steel ring (2) and the sealing

ring (3).

4.

Remove the cover (5).

5.

Remove the rubber bush (6) and steel

bush (7).

6.

Slowly remove the filter element (8) from the

reservoir (9).

Note:

The filter element must be removed from the

reservoir with care so that no dirt remains in

the reservoir.

Installing the steering gear filter element
1.

Fit a new filter element (8) into the

reservoir (9).

2.

Fit the spacer sleeve (7).

3.

Check the flexibility of the rubber bush (6)

and replace if necessary. Install the rubber

bush (6).

4.

Check the sealing ring on the cover (5) and

replace if necessary. Fit the cover (5).

5.

Check the rubber ring (3) and replace if

necessary. Install the rubber ring (3) and

steel ring (2).

6.

Fit the wing nut (1).

7.

Check the fluid level using the dip stick (4).

S7 00 720

1

4

5

6

7
8

9

2
3

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

4-14

©

 200423

Removal and installation

5

ΧΦ75 series

4.10 REMOVAL AND INSTALLATION, OIL FILTER IN FLUID FLOW CONTROL

VALVE BLOCK OF EMAS SYSTEM

Drained steering oil must not be re-

used.

Make sure that during filling and

bleeding the reservoir always

remains filled with oil in order to

prevent the pump from drawing in air

which would cause foaming in the

oil.

Air in the hydraulic system may

cause serious damage to the

steering pump. Air in the hydraulic

system can cause the steering gear

to jam occasionally.

If the hydraulic system contains air,

a squealing sound will be heard

when the steering wheel is turned

and pressure is built up.

In the case of serious foaming, the

steering oil should be completely

drained.

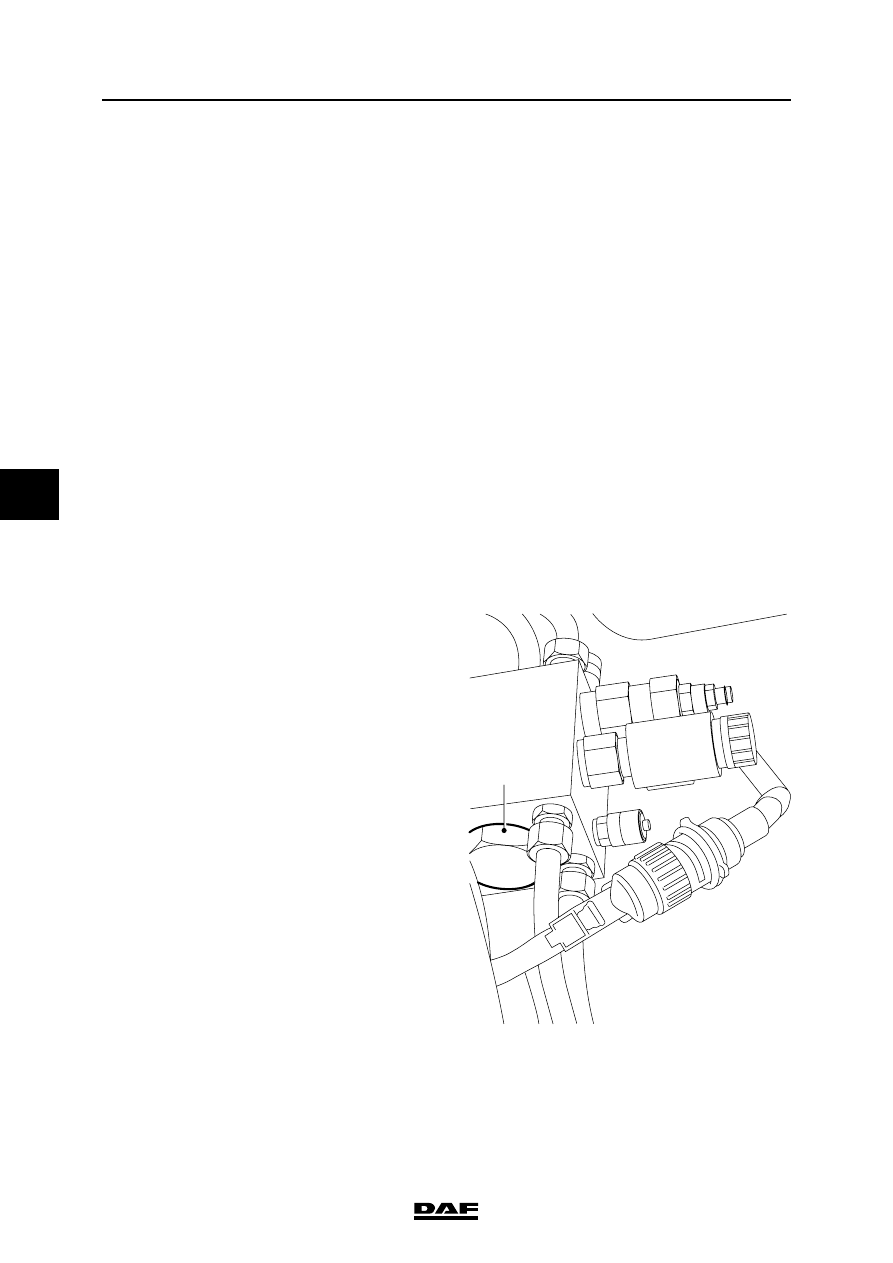

Removing the filter of the fluid flow control
valve block
1.

Place a receptacle under the valve block.

2.

Remove the plug (1) from the valve block.

3.

Turn a bolt (M6) into the filter.

4.

Remove the filter by pulling the screwed-in

bolt.

5.

Remove the O-ring from the plug.

Installing the filter of the fluid flow control
valve block
1.

Always fit a new O-ring to the plug and lightly

lubricate the O-ring with oil.

2.

Fit the new filter in the valve block.

3.

Fit the plug (1).

4.

Tighten the plug to the specified tightening

torque, see "Technical data".

5.

Top up the system.

6.

Bleed the steering circuit of the front axle.

}

S700848

1

©

 200423

4-15

Removal and installation

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

4.11 REMOVAL AND INSTALLATION, AIR DRYER FILTER ELEMENT

Note:

To be certain that the air dryer is functioning

properly, the air reservoirs should regularly be

checked for condensation. If more than the

normal amount of water is drained off repeatedly,

the air dryer element must be replaced. Under

normal circumstances the element must be

replaced at least once per year.

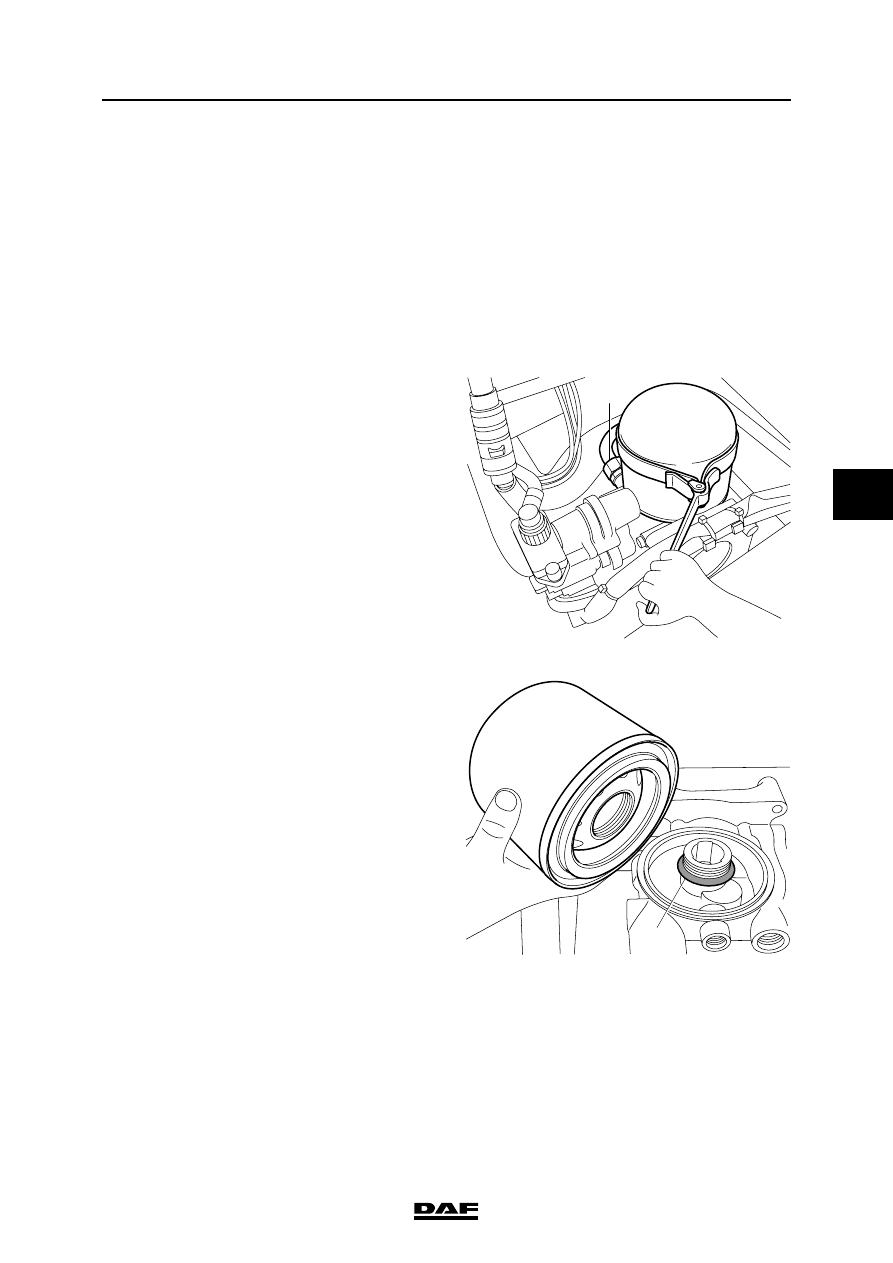

Removing air dryer filter element
1.

Vent the air dryer by allowing it to regenerate

or by loosening the compressor line (1), so

that the interior of the air dryer is

depressurised.

2.

Remove the filter element by turning it anti-

clockwise using a filter strap spanner.

3.

Dispose of the drying element as if it were an

oil filter.

4.

Clean the air dryer internally.

5.

Check the air dryer threaded connection (2)

for damage and then lubricate it sparingly

with grease.

Installing the air dryer filter element
1.

Lubricate the sealing ring of the new filter

element sparingly with grease.

2.

Fit the filter element by manually tightening it

until the sealing ring abuts. Then tighten the

element by hand (approx. 1 turn).

3.

Fasten the compressor line (1).

4.

Pressurise the system and then check the air

dryer for any air leaks.

R600525

1

R600526

2

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

4-16

©

 200423

Removal and installation

5

ΧΦ75 series

5.

Using a water-resistant felt pen, write on the

sticker the latest date by which the dryer

element must be replaced (not later than 1

year after the date of fitting).

Drive and chassis

Artikelnummer

Reference

Teilenummer

Référence

Eerstvolgende vervanging

Next change

Nächster Wechsel

Prochain remplacement

1391510

R600523
