Removal and installation

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

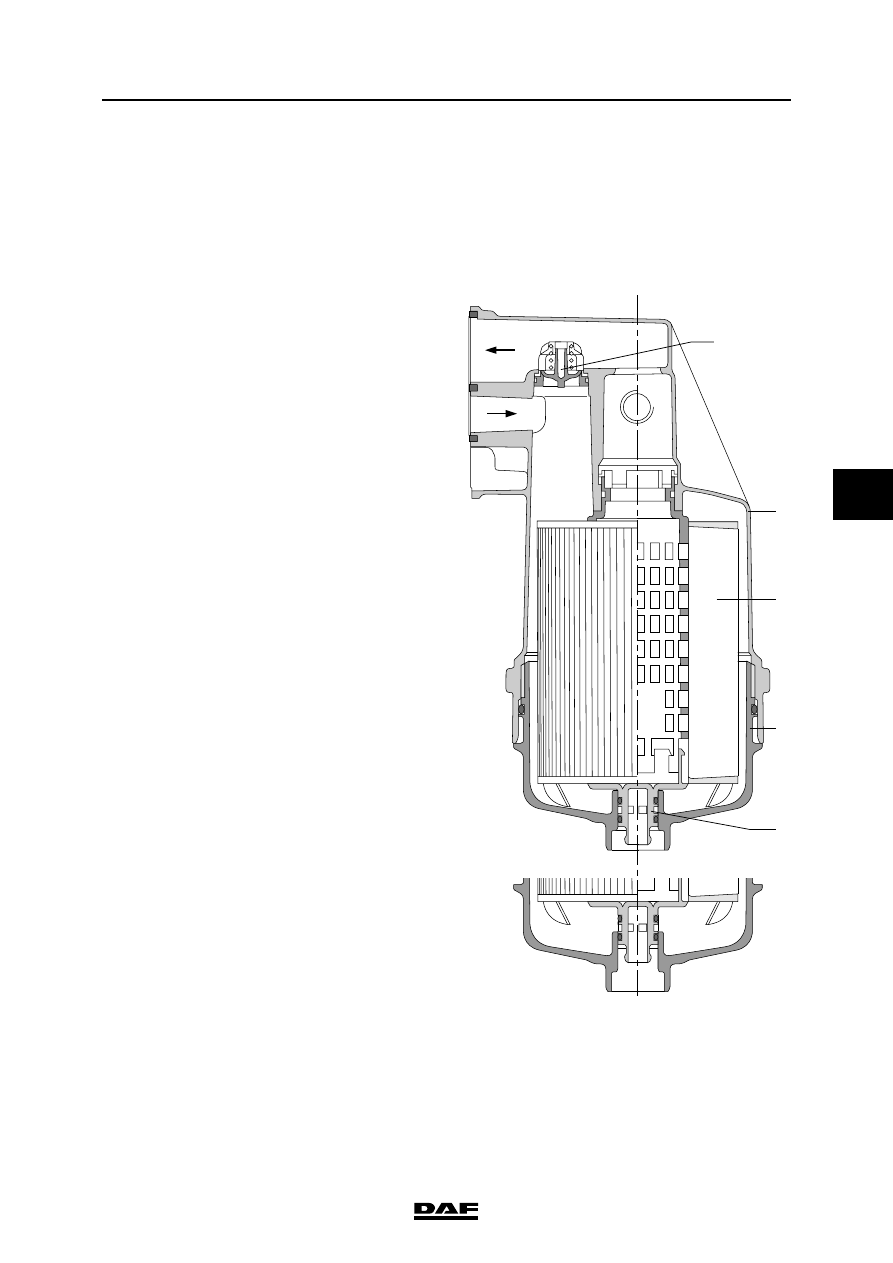

4.4 REMOVAL AND INSTALLATION, ENGINE OIL FILTER

To prevent skin injury, avoid

unnecessary contact with the

drained engine oil.

Removing the engine oil filter
1.

Place a tray beneath the engine oil filter.

2.

Unscrew the cap (2) a few turns until the

engine oil starts to flow out of the filter.

3.

Remove cap (2) when the engine oil filter is

empty.

4.

Remove the filter element (3) from the filter

housing (1).

Installing the engine oil filter
1.

Replace the sealing ring in the cap (2).

2.

Lightly lubricate the sealing ring with engine

oil.

3.

Fit a new filter element (3) in the filter

housing (1).

4.

Fit the cap (2) and tighten to the specified

torque, see main group "Technical data".

}

4

1

3

2

5

M201049

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

4-6

©

 200423

Removal and installation

5

ΧΦ75 series

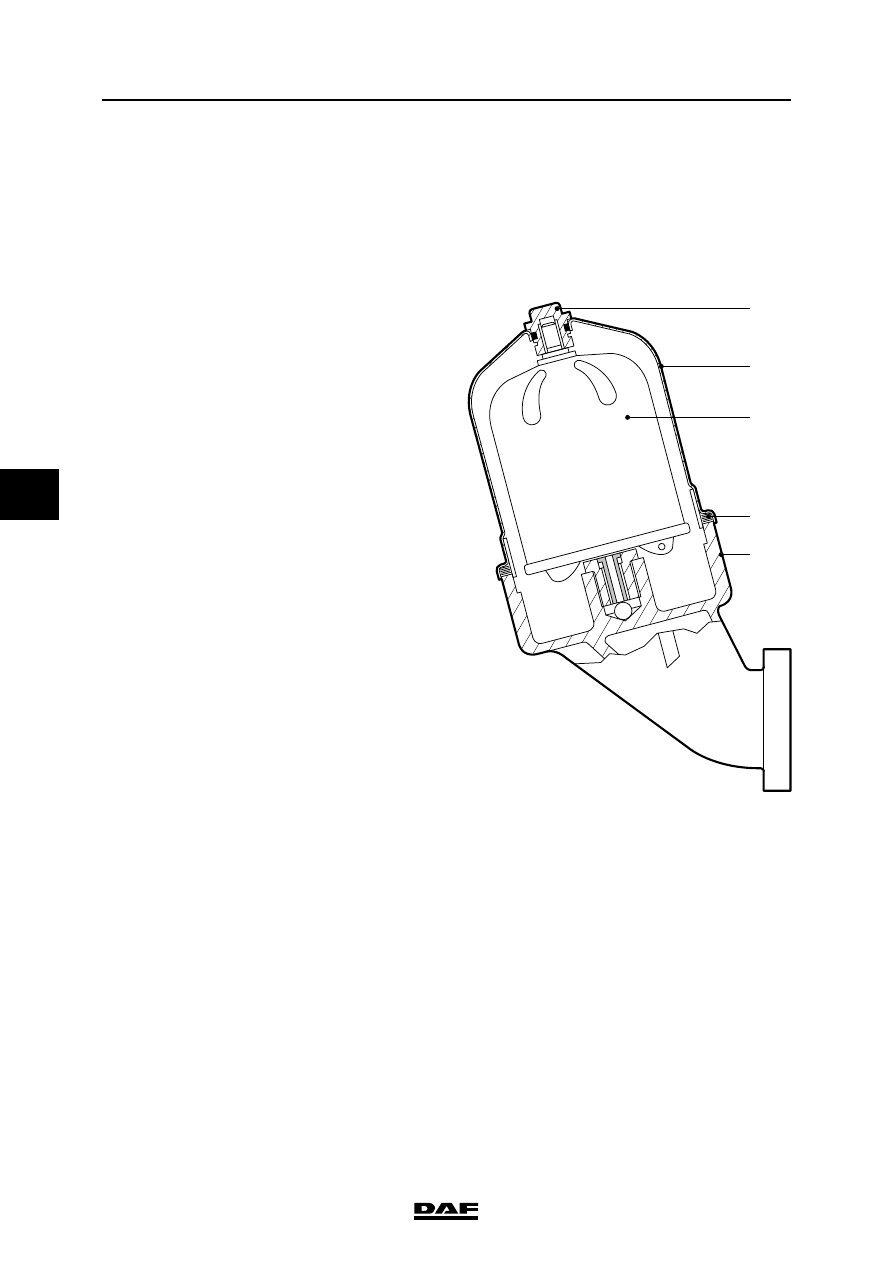

4.5 REMOVAL AND INSTALLATION, CENTRIFUGAL FILTER ROTOR

To prevent skin injury, avoid

unnecessary contact with the

drained engine oil.

Removing the centrifugal filter rotor
1.

Clean the cap (3) and the area around it.

2.

Remove the central bolt (4) and cap (3).

3.

Remove the rotor (2) from the cap (3).

Installing the centrifugal filter rotor
1.

Clean the interior of the cap (3).

2.

Check the central bolt (4) for damage.

3.

Replace the sealing ring (5).

4.

Fit the rotor (2) in the cap (3).

5.

Lightly oil the sealing ring (5) with engine oil

and fit the cap (3).

6.

Tighten the central bolt (4) to the specified

tightening torque, see main group "Technical

data".

7.

Start the engine and check for leakage.

8.

Inspect the engine oil level.

}

4

3

2

5

1

M200526

©

 200423

4-7

Removal and installation

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

4.6 REMOVAL AND INSTALLATION, FUEL FILTER ELEMENT

When removing the fuel filter, a

quantity of fuel will escape. Collect

the fuel to avoid the risk of fire.

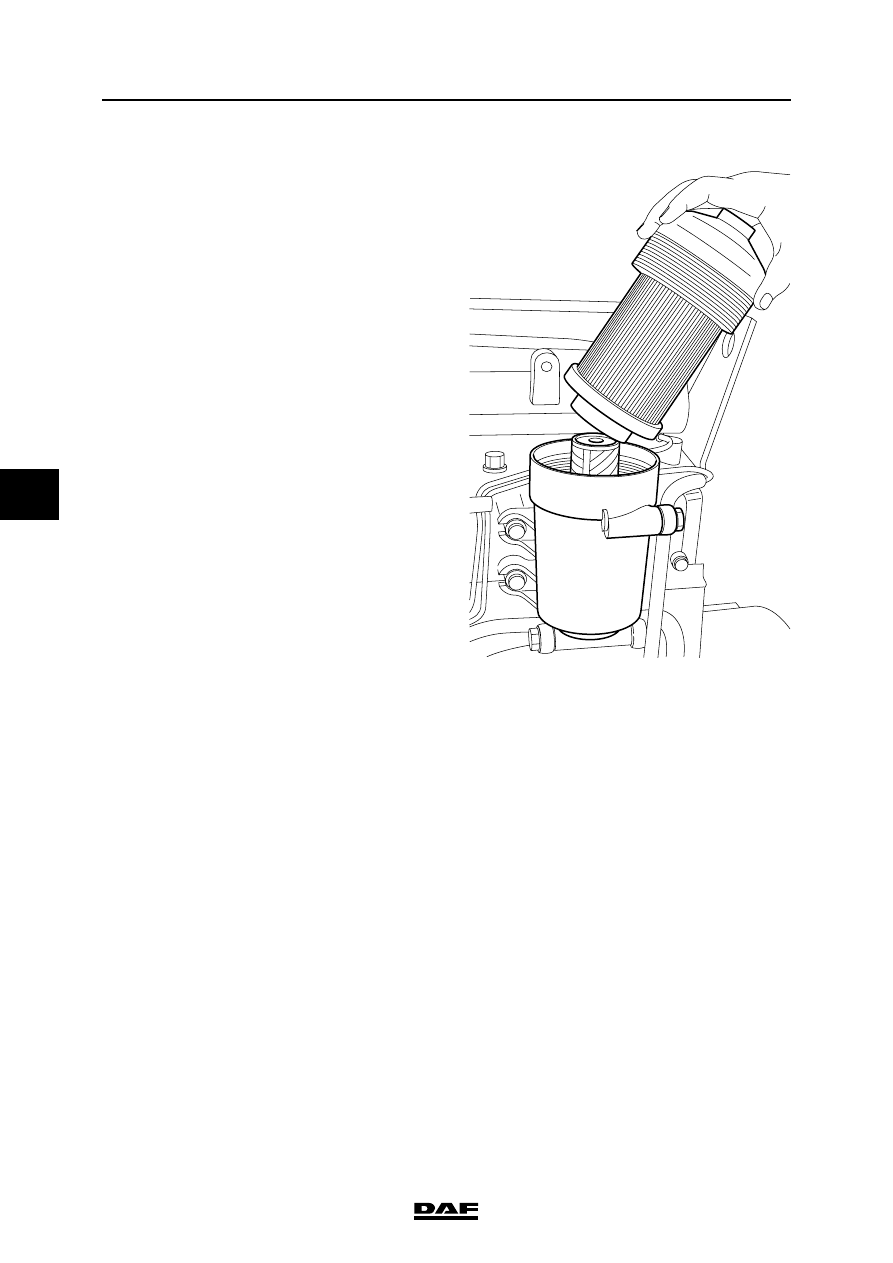

Removing the fuel filter element
1.

Remove the cover together with the fuel filter

element from the filter housing.

Note:

The fuel filter element is a disposable filter,

and may not be cleaned and reused.

Dispose of the filter as chemical waste.

}

i 400444

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

4-8

©

 200423

Removal and installation

5

ΧΦ75 series

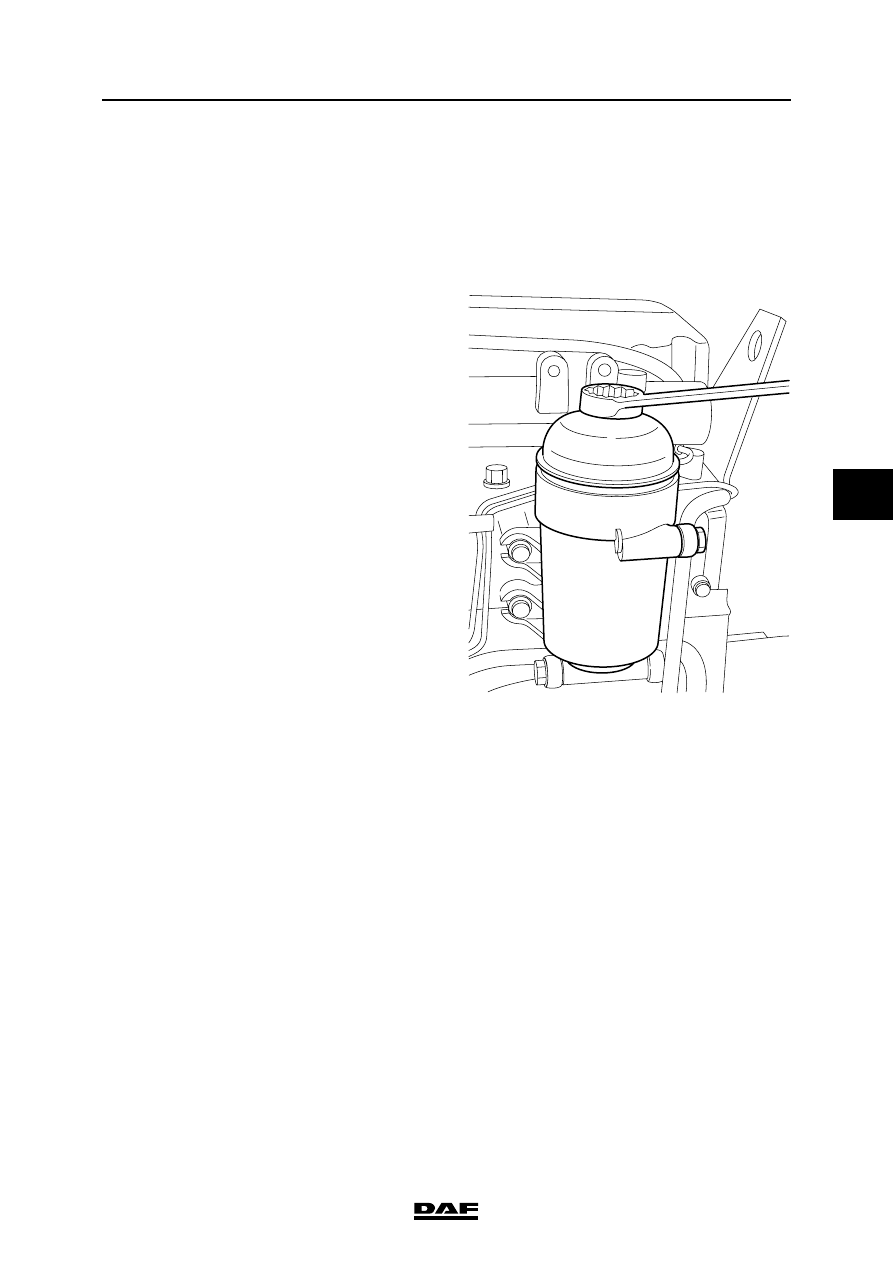

Fitting the fuel filter element
1.

Replace the cover O-ring.

2.

Fit the fuel filter element in the cover

3.

Fit the cover with fuel filter element. Tighten

the filter cover to the specified torque. See

"Technical data".

4.

Pump for approximately 1 minute using the

primer pump to partially fill the filter housing

with fuel.

5.

Start the engine and run it at idling speed for

a few minutes; this will allow any air in the

filter housing to escape.

6.

If the motor will not start up or runs very

erratically, the fuel system must be bled, see

"Draining and filling".

7.

Check the fuel system for leaks.

i 400445
