Removal and installation

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

4.7 REMOVAL AND INSTALLATION, FUEL PREFILTER/WATER SEPARATOR

FILTER ELEMENT

When removing the fuel prefilter/

water separator, a quantity of fuel

will escape. Collect the fuel to avoid

the risk of fire.

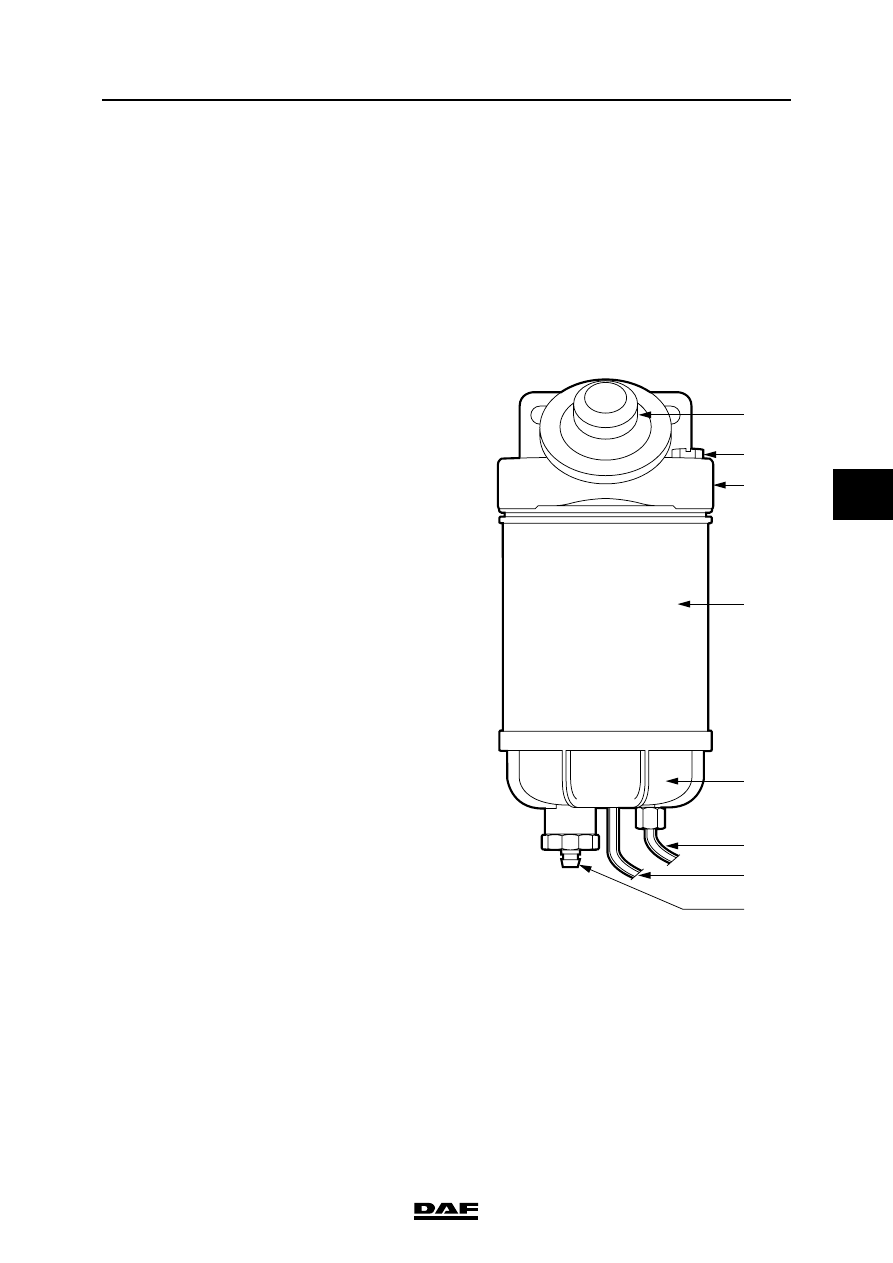

Version: Racor

Removing the fuel prefilter/water separator
filter element
1.

Drain the fuel from the filter element by

unscrewing the bleed plug (2) and opening

the drain plug (8).

2.

If fitted, disconnect the water sensor (6) and

the heating element (7) connectors.

3.

Remove the filter element (4) and the bottom

cover (5). Clean the O-ring seal.

Installing the fuel prefilter/water separator
filter element
1.

Apply a film of engine oil to the O-ring and

the new sealing ring.

2.

Fit the bottom cover (5) onto the new filter

element (4).

3.

Fit the bottom cover (5) together with the new

filter element (4) to the filter housing (3).

4.

Hand-tighten the new filter.

5.

If fitted, attach the water sensor and heating

element connectors.

6.

Check whether the drain plug (8) is tight.

7.

Open the air-bleeder plug (2) a couple of

turns.

8.

Operate the primer pump (1) until fuel comes

out of the air-bleeder plug.

9.

Close the air-bleeder plug (2).

10. Start the engine and check for leaks. If

necessary, retighten the filter element (4) by

hand.

}

1

2

3

4

5

7

6

8

i400356

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

4-10

©

 200423

Removal and installation

5

ΧΦ75 series

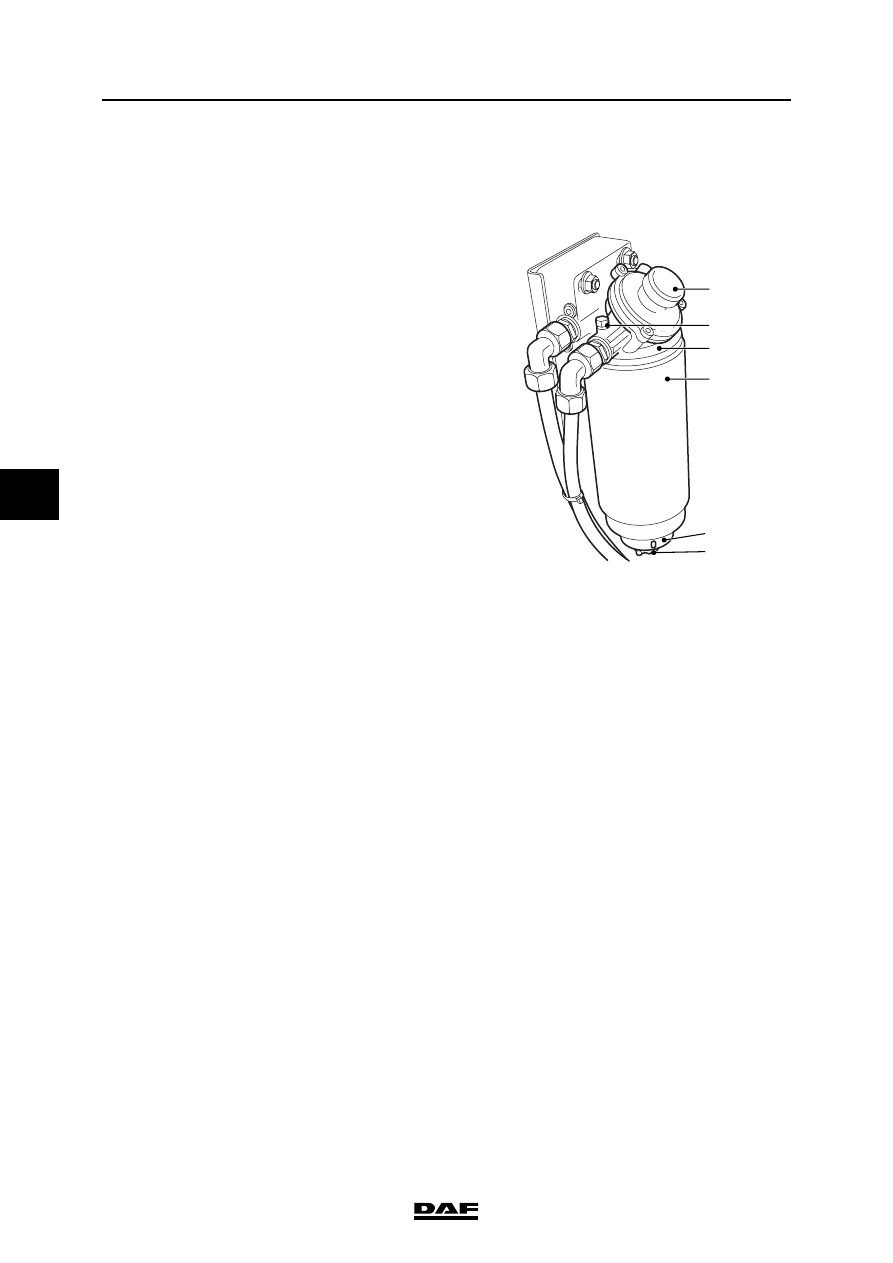

Version: Mann + Hummel

Removing the fuel prefilter/water separator
filter element
1.

Drain the fuel from the filter element by

unscrewing the bleed plug (2) and opening

the drain plug (6).

2.

If fitted, unplug the connectors of the water

sensor and the heating element.

3.

Remove the filter element (4) together with

the bottom cover (5) and clean the O-ring

seal.

Installing the fuel prefilter/water separator
filter element
1.

Apply a film of engine oil to the O-ring and

the new sealing ring.

2.

Fit the bottom cover (5) onto the new filter

element (4).

3.

Fit the bottom cover (5) together with the new

filter element (4) to the filter housing (3).

4.

Hand-tighten the new filter.

5.

If fitted, attach the water sensor and heating

element connectors.

6.

Check whether the drain plug (6) is tight.

7.

Open the air-bleeder plug (2) a couple of

turns.

8.

Operate the primer pump (1) until fuel comes

out of the air-bleeder plug.

9.

Close the air-bleeder plug (2).

10. Start the engine and check for leaks. If

necessary, retighten the filter element (4) by

hand.

G0 00 266

6

1

2
3

4

5

©

 200423

4-11

Removal and installation

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

4.8 REMOVAL AND INSTALLATION, VALVE COVER

When the engine or parts thereof are

opened, dirt may penetrate. This

may cause serious damage to the

engine. Therefore, the engine should

be cleaned thoroughly before any

parts are opened.

Removing the valve cover
1.

Clean the area around the valve cover.

2.

Remove the attachment bolts from the valve

cover.

3.

Remove the valve cover and the valve cover

gasket.

Installing the valve cover
1.

Clean the sealing surface of the valve sleeve

and the valve cover.

2.

Fit the valve cover using a new valve cover

gasket.

3.

Fit the attachment bolts of the valve cover

and tighten them to the specified torque. See

the main group "Technical data".

Steering gear and brake system

}

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

4-12

©

 200423

Removal and installation

5

ΧΦ75 series

4.9 REMOVAL AND INSTALLATION, STEERING GEAR FILTER ELEMENT

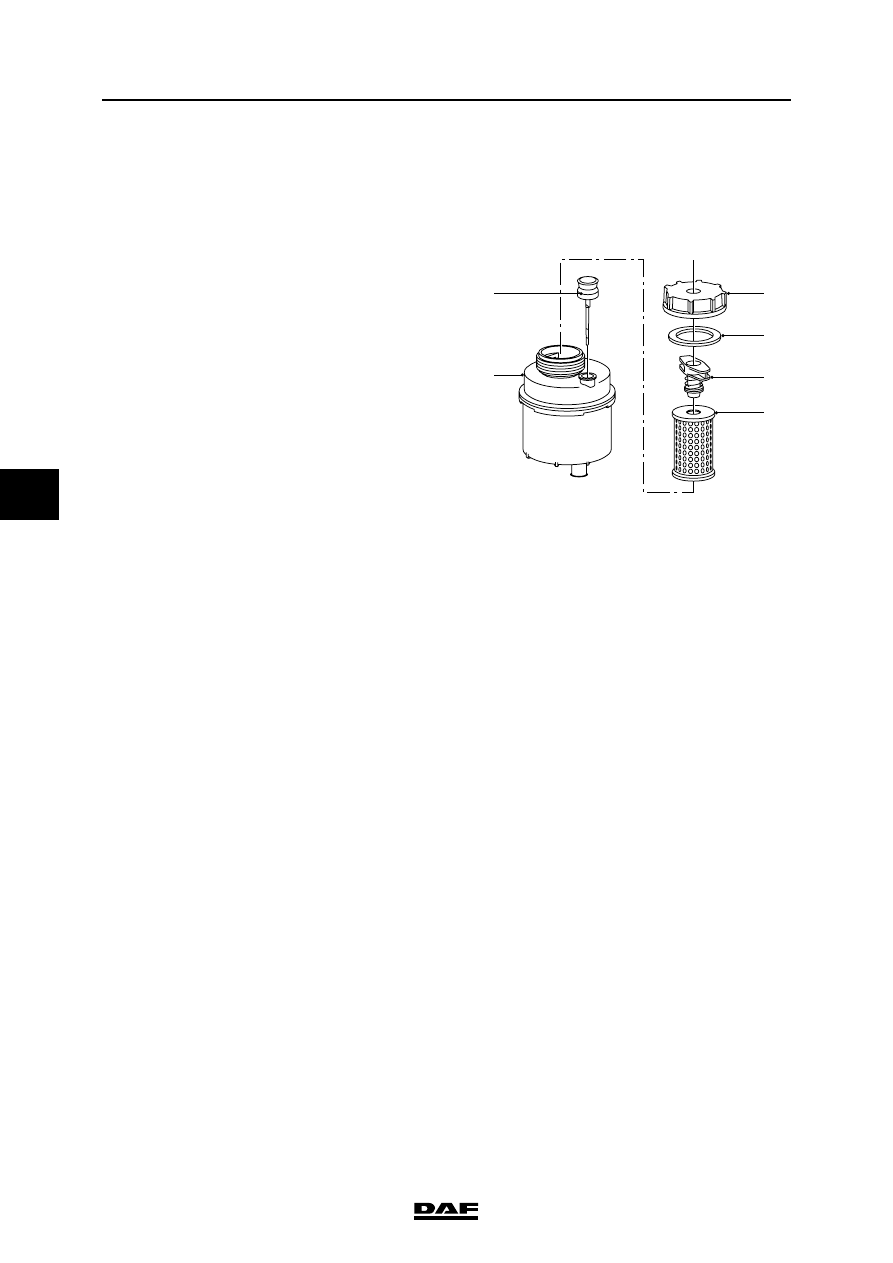

Version with plastic reservoir

Removing the steering gear filter element
1.

Clean the reservoir cover, so that absolutely

no dirt can get into the reservoir.

2.

Remove the cover (3).

3.

Rotate the filter holder (5) a quarter turn.

Slowly remove the filter holder (5) together

with the filter element (6) from the reservoir

(1).

Note:

The filter holder and filter element must be

removed from the reservoir (1) with care so

that no dirt remains in the reservoir (1).

4.

Remove the filter element (6) from the filter

holder (5).

Installing the steering gear filter element
1.

Fit a new filter element (6) in the filter holder

(5).

2.

Fit the filter holder (5) together with the filter

element (6) in the reservoir (1) and rotate the

filter holder (5) a quarter turn. Make sure that

the filter holder (5) engages in its locking

element.

3.

Check the sealing ring (4) for damage and

replace if necessary.

4.

Fit the cover (3).

5.

Check the fluid level using the dip stick (2),

see chapter "Inspection and adjustment".

S7 00 689
