Removal and installation

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

4.12 REMOVAL AND INSTALLATION, GEARBOX FILTER ELEMENT

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

ZF gearbox with integrated retarder

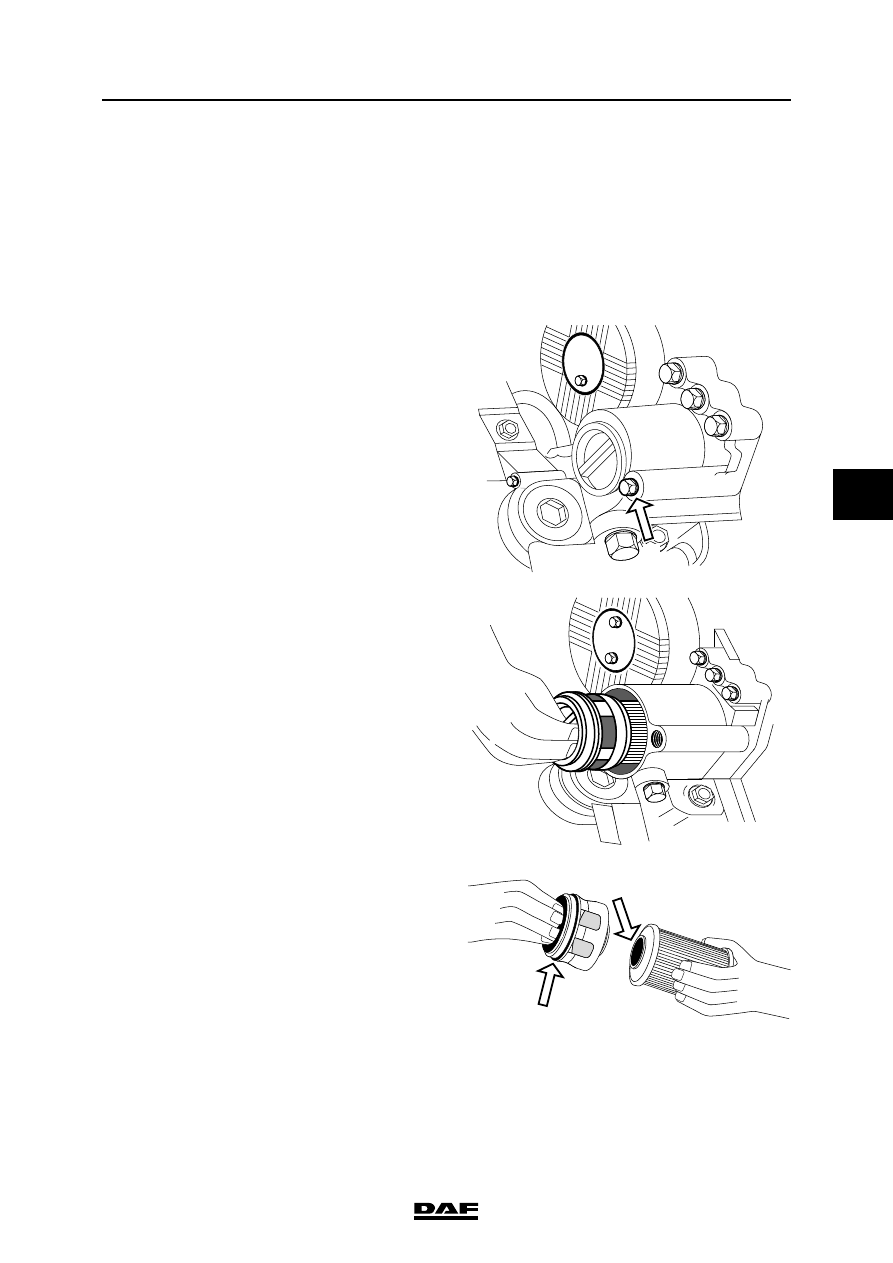

Removing the gearbox filter element
1.

Remove the attachment bolt (1) of the oil

filter.

2.

Pull the filter cover with the filter from the

filter housing.

3.

Remove the filter (3) from the filter cover (2).

Do not clean the filter. The filter must always

be replaced.

Note:

If the magnetic disk is still attached to the

back of the filter, separate it from the filter

element and fit it on the new filter element.

}

M3052

1

M3053

M3054

2

3

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

4-18

©

 200423

Removal and installation

5

ΧΦ75 series

Installing the gearbox filter element
1.

Check the O-ring of the filter cover (2) for

damage. If necessary, replace the O-ring.

Grease the O-ring.

2.

Grease the O-ring of the new filter (3) and

place the filter on the filter cover.

3.

Then insert the filter and the filter cover into

the filter housing.

4.

Use a plastic mallet to tap the filter cover into

the filter housing.

5.

Tighten the attachment bolt (1) to the

specified tightening torque, see main group

"Technical data".

©

 200423

4-19

Removal and installation

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

4.13 REMOVAL AND INSTALLATION, AUTOMATIC GEARBOX OIL FILTERS

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

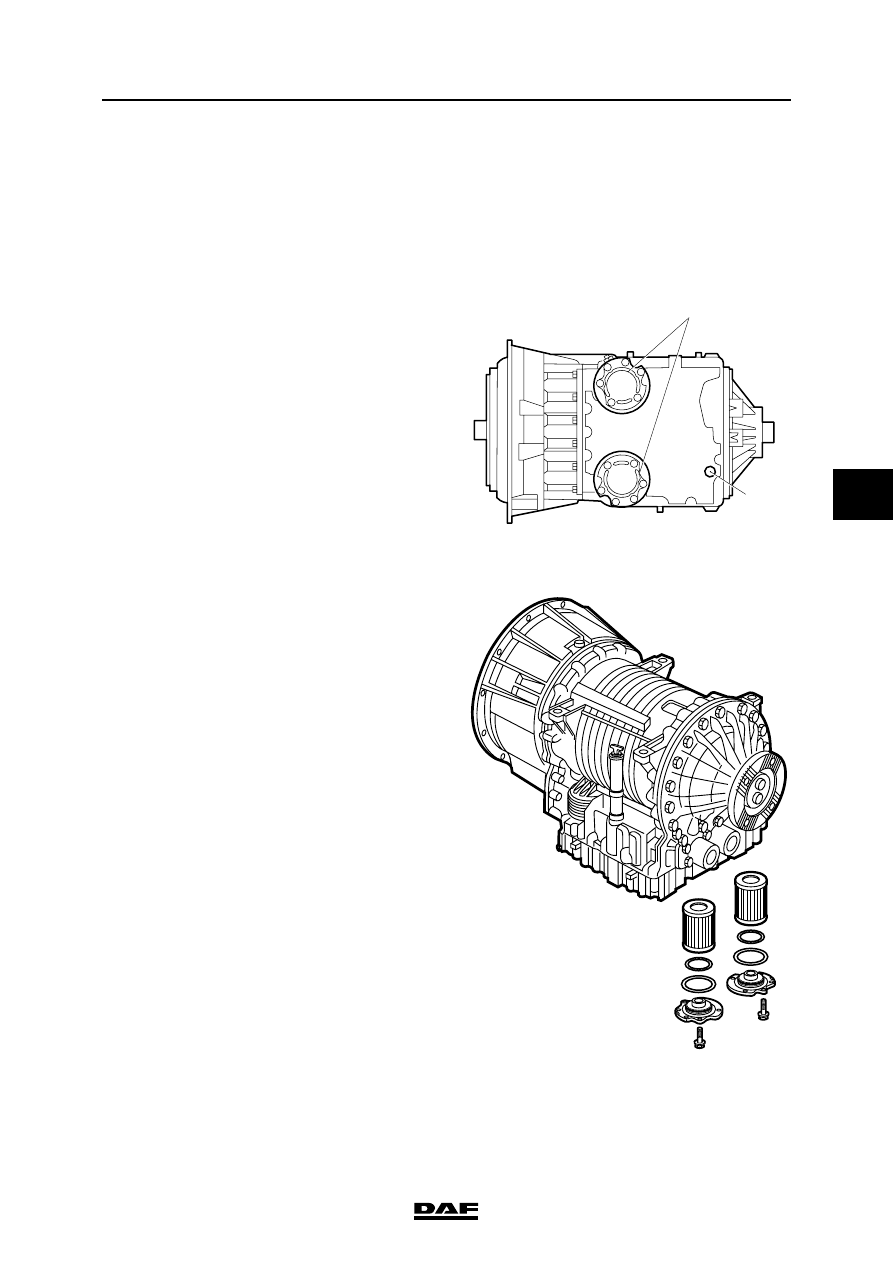

Removing automatic gearbox oil filters
1.

Remove the attachment bolts from the filter

covers (2) and remove the filter covers.

Collect any oil that is flowing out.

2.

Remove the oil filters from the oil sump.

3.

Remove the various O-rings from the filter

covers.

4.

If a gasket is used, remove the any pieces of

the gasket left on the filter covers and the

contact surfaces.

Fitting automatic gearbox oil filters
1.

Lightly lubricate the new O-rings with clean

gearbox oil and fit the various O-rings to the

filter covers.

Note:

Compare the new O-rings to the old O-rings

to ensure that the correct O-rings are used.

2.

If a gasket is used, fit a new gasket to the

filter cover.

3.

Lightly lubricate the rubber inner ring of the

oil filters with clean gearbox oil and fit the oil

filters to the filter covers.

4.

Fit the filter covers together with the oil filters

to the gearbox and tighten the attachment

bolts to the specified torque, see main group

"Technical data".

5.

Check the oil level, see chapter "Inspection

and adjustment".

}

V300371

2

1

W 3 03 103
