DAF CF65, CF75, CF85 Series . Manual - part 108





©

 200346

4-31

Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

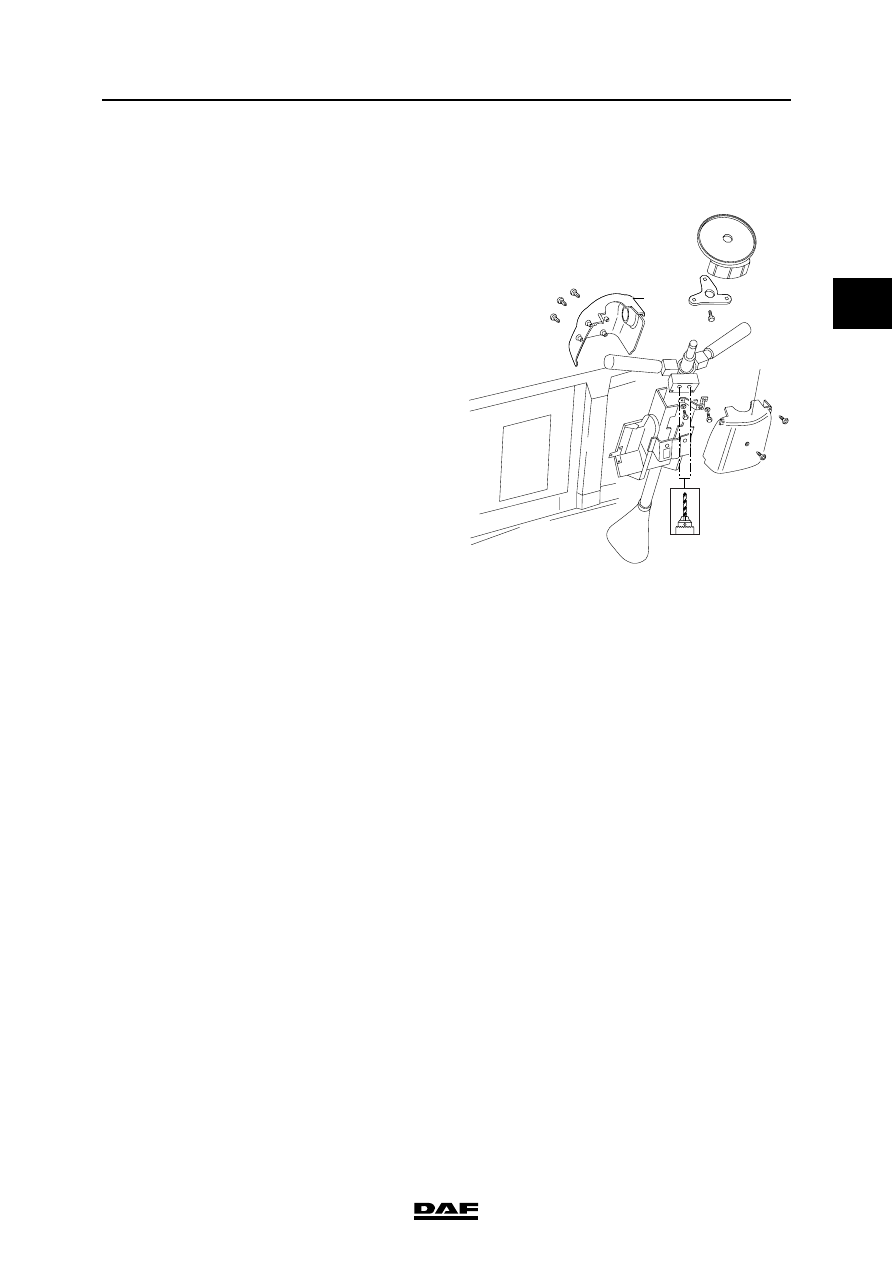

4.21 REMOVAL AND INSTALLATION, IGNITION LOCK

Removing ignition lock
1.

Remove the covers (A) from the steering
column below the steering wheel.

2.

Remove the radio panel.

3.

Unplug the ignition lock connectors behind
the radio panel.

4.

Drill off the head of the security bolt, use a bit
with the same diameter as the hole where
the head goes into and remove the ignition
lock.

Installing ignition lock
1.

Fit the ignition lock.

2.

Tighten the security bolts with such a torque
that the heads break off.

3.

Fit the connectors.

4.

Fit the radio panel.

5.

Fit the covers (A) around the steering
column.

K1 01 646

A

A

INTERNAL CAB COMPONENTS

4-32

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

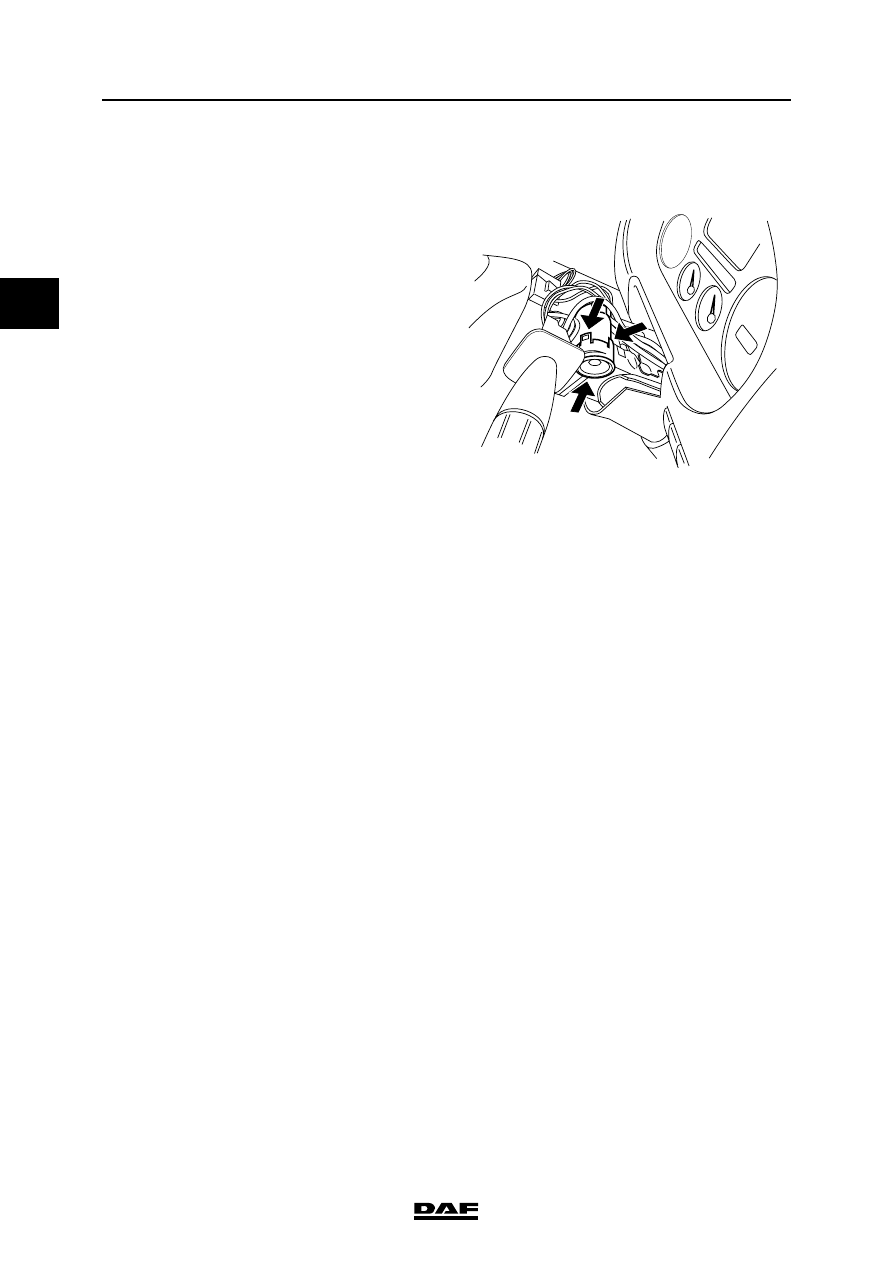

4.22 REMOVAL AND INSTALLATION, IMMOBILISER

Removing immobiliser
1.

Remove the cover panels from the steering
column.

2.

Remove the radio panel.

3.

Remove the connector of the immobiliser.

4.

Push the housing of the immobiliser aside.

5.

Remove the immobiliser.

Installing immobiliser
1.

Fit the immobiliser. Push the immobiliser into
the housing.

2.

Fit the connector.

3.

Fit the radio panel.

4.

Fit the cover panels around the steering
column.

Note:
If the immobiliser is replaced then the
following procedure must be carried out
using DAVIE XD.

5.

The new immobiliser must be adjusted to the
electronic unit of the engine management
system.

6.

The new ignition keys must be adjusted to
the new immobiliser. The 'old' keys cannot
be adjusted to the new immobiliser and
therefore can no longer be used.

K1 01 153

©

 200346

4-33

Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

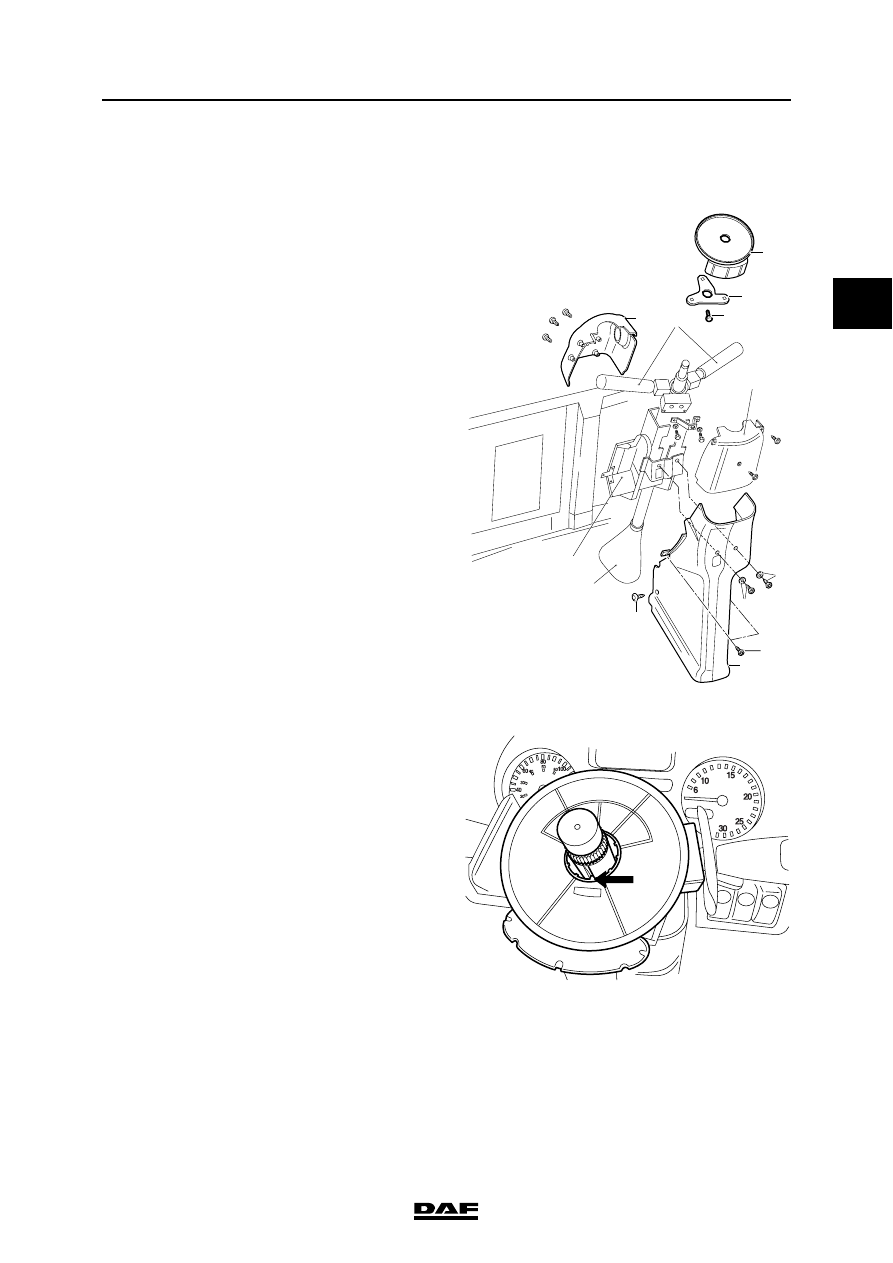

4.23 REMOVAL AND INSTALLATION, STEERING ANGLE SENSOR

Removing steering angle sensor
1.

Remove the battery earth clamps.

2.

Remove the covers of the steering box (A)
right below the steering wheel.

3.

Remove the steering wheel.

4.

Disconnect the connector from the steering
angle sensor (C).

5.

Carefully remove the steering angle sensor
(C) from the sensor bracket (D).

6.

Remove the attachment bolt (E) of the
sensor bracket.

7.

Remove the sensor bracket (D) from the
steering box.

Installing steering angle sensor
1.

Fit the sensor bracket to the steering box
using the attachment bolt.

2.

Fit the steering angle sensor to the steering
shaft. Make sure that the projecting part on
the inner ring of the steering angle sensor
falls into the groove in the steering shaft.
Carefully press the steering angle sensor in
the attachment holes in the sensor bracket.

3.

Install the connector on the steering angle
sensor.

4.

Fit the covers.

5.

Fit the steering wheel.

6.

Attach the earth clamps to the batteries.

K1 01 636

F

F

G

H

I

J

A

A

B

K

C

D

E

K1 01 649

INTERNAL CAB COMPONENTS

4-34

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

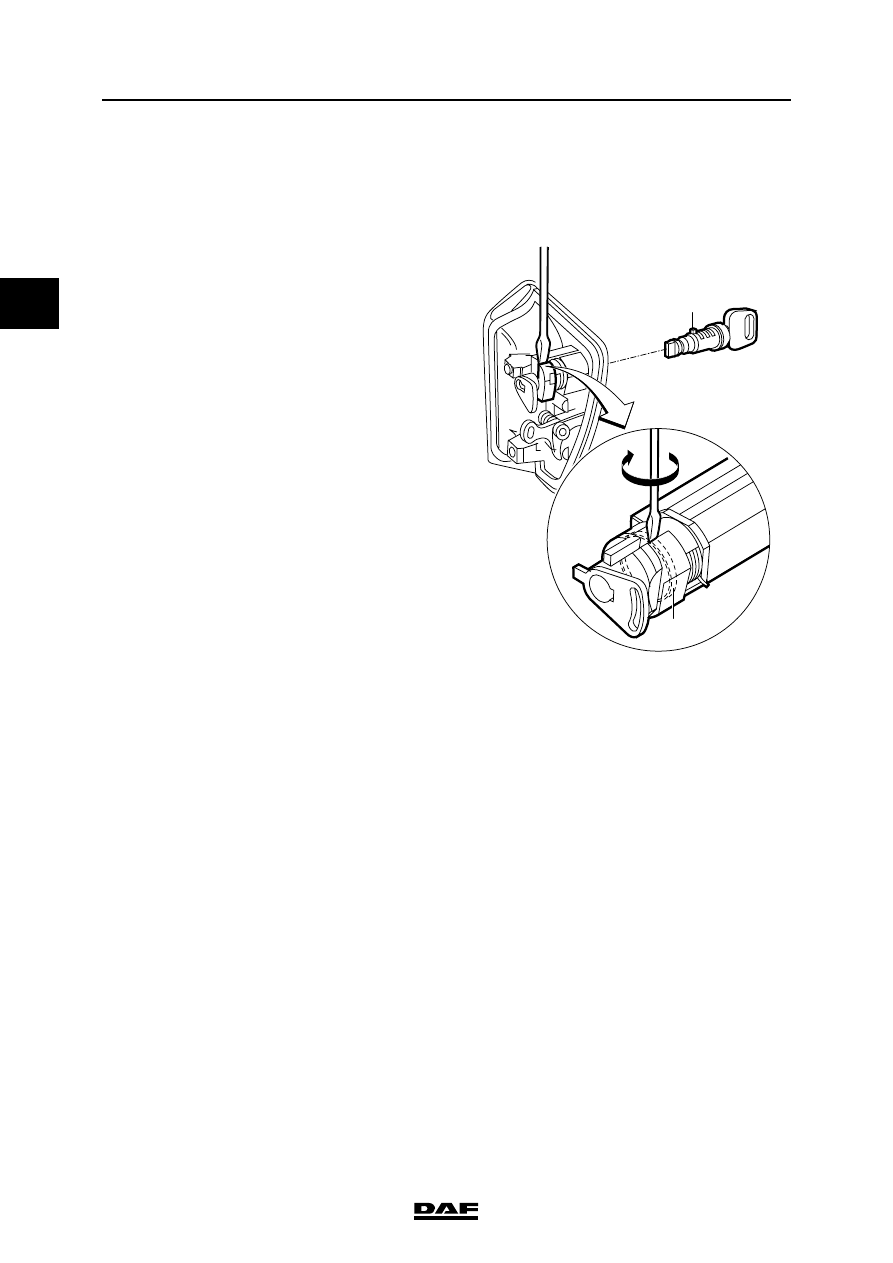

4.24 REMOVAL AND INSTALLATION, DOOR LOCK

Removing door lock
1.

Remove the door handle.

2.

Insert the key in the cylinder lock, use a
screwdriver to turn the ring (1) outwards and
remove the cylinder lock from the door
handle.

Installing door lock
1.

Turn the ring (1) outwards and position the
cylinder lock. Pay attention to the position of
the projection (A). Check whether ring (1)
makes proper contact.

2.

Check the operation of the cylinder lock.

3.

Fit the door handle.

K1 00 670

A

1
